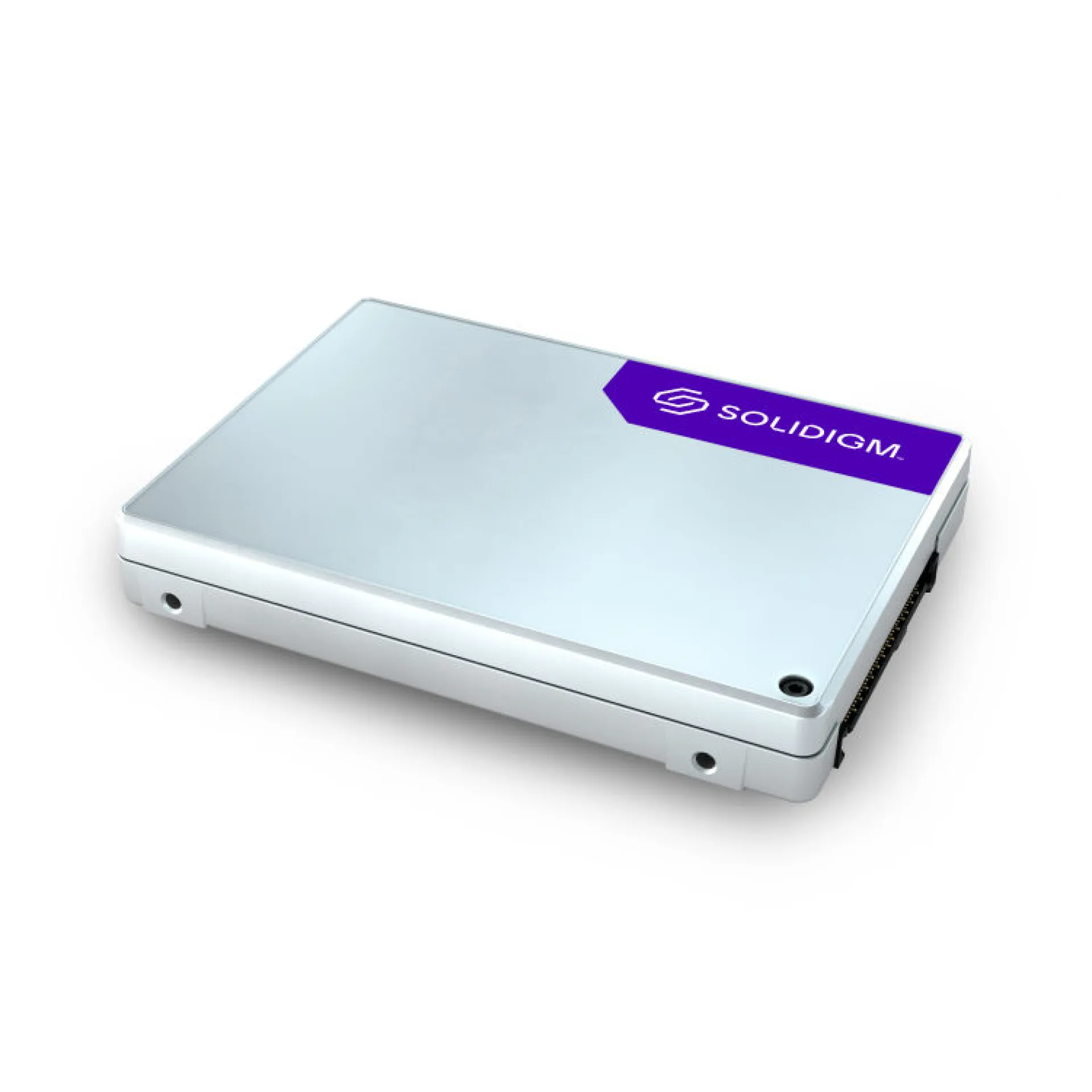

SBFPF2BU076T001 Solidigm D5 Series D5-P5430 7.68TB PCIe Gen 4 2.5" Server SSD

High-Density PCIe Gen4 NVMe Enterprise SSD architecture with the SBFPF2BU076T001 for read-centric data tiers

The SBFPF2BU076T001 is a Solidigm D5-P5430 Series 7.68TB 2.5" U.2 NVMe SSD engineered to deliver predictable throughput and capacity efficiency in PCIe Gen4 server storage domains. It aligns with modern CPU platforms by providing low-latency NVMe access over a Gen4 interface, supporting higher queue depths and parallelism required by virtualized and scale-out nodes.

Using 3D QLC NAND in a DRAM-less design, SBFPF2BU076T001 targets dense, read-centric tiers where cost-per-GB and rack-level capacity are decisive. Sequential performance up to 6,800 MB/s read and 1,730 MB/s write, plus up to 717K/100K 4K IOPS read/write, supports mixed ingestion and retrieval patterns typical of object stores, repositories, and warm analytics. Power Loss Protection (PLP) helps preserve in-flight data during power events, while 256-bit AES encryption supports data-at-rest controls without altering host architecture.

Why Choose the SBFPF2BU076T001?

The SBFPF2BU076T001 provides a strong density-to-performance ratio for U.2 bays, enabling high-capacity NVMe pools without shifting to larger form factors or external shelves. With 1.14 DWPD endurance over 5 years and 2.0M hours MTBF, it is suited for enterprise operational models that demand consistent service levels, straightforward scaling across nodes, and controlled power envelopes up to 18W active.

Solidigm designs the D5 series around data center reliability and workload-aligned optimization, focusing on stable latency behavior, controlled write amplification for QLC capacity tiers, and compatibility with standard NVMe management practices across contemporary server and storage platforms.

Key Applications:

• Cloud and object storage read-centric tiers
• Content delivery and media repositories
• Data lake and warm analytics storage
• High-density NVMe caching and read pools

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for SBFPF2BU076T001 rollouts and extended warranty options up to 6 years to align SSD lifecycle coverage with enterprise refresh and support policies.
