SST-TX500-G SilverStone Active 500W TFX Desktop PSU
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
TFX Series
Do you have questions about this product SST-TX500-G?
SST-TX500-G

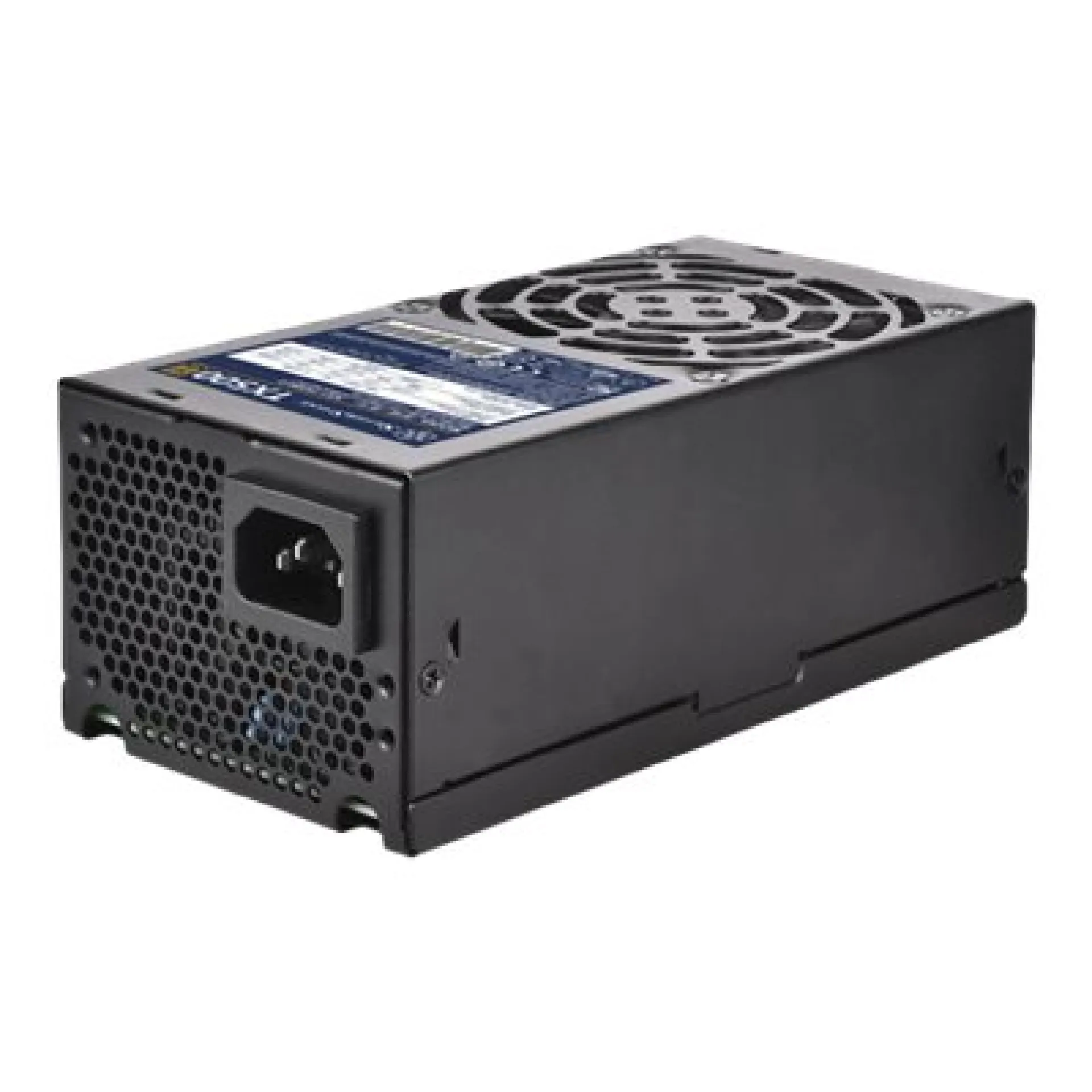

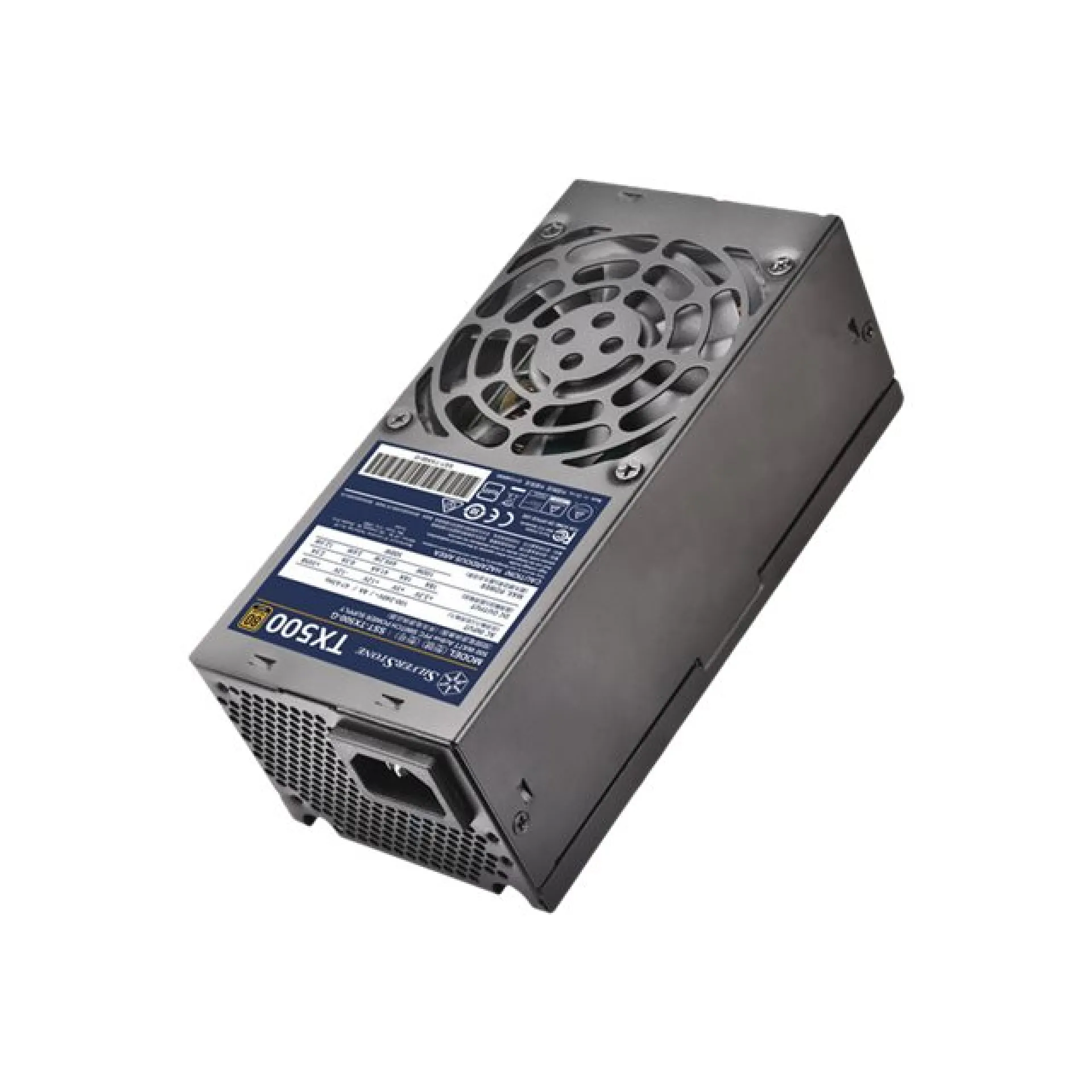

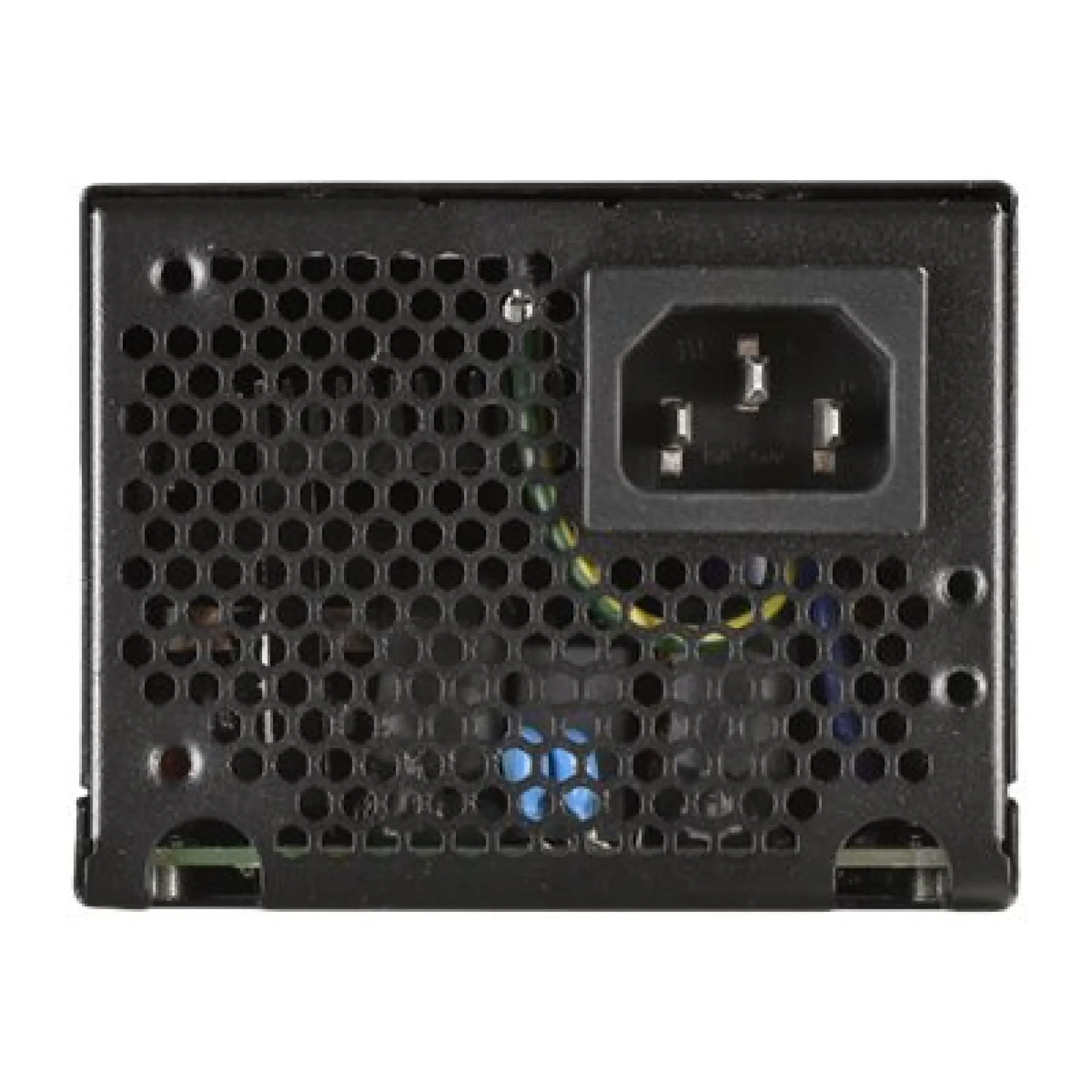

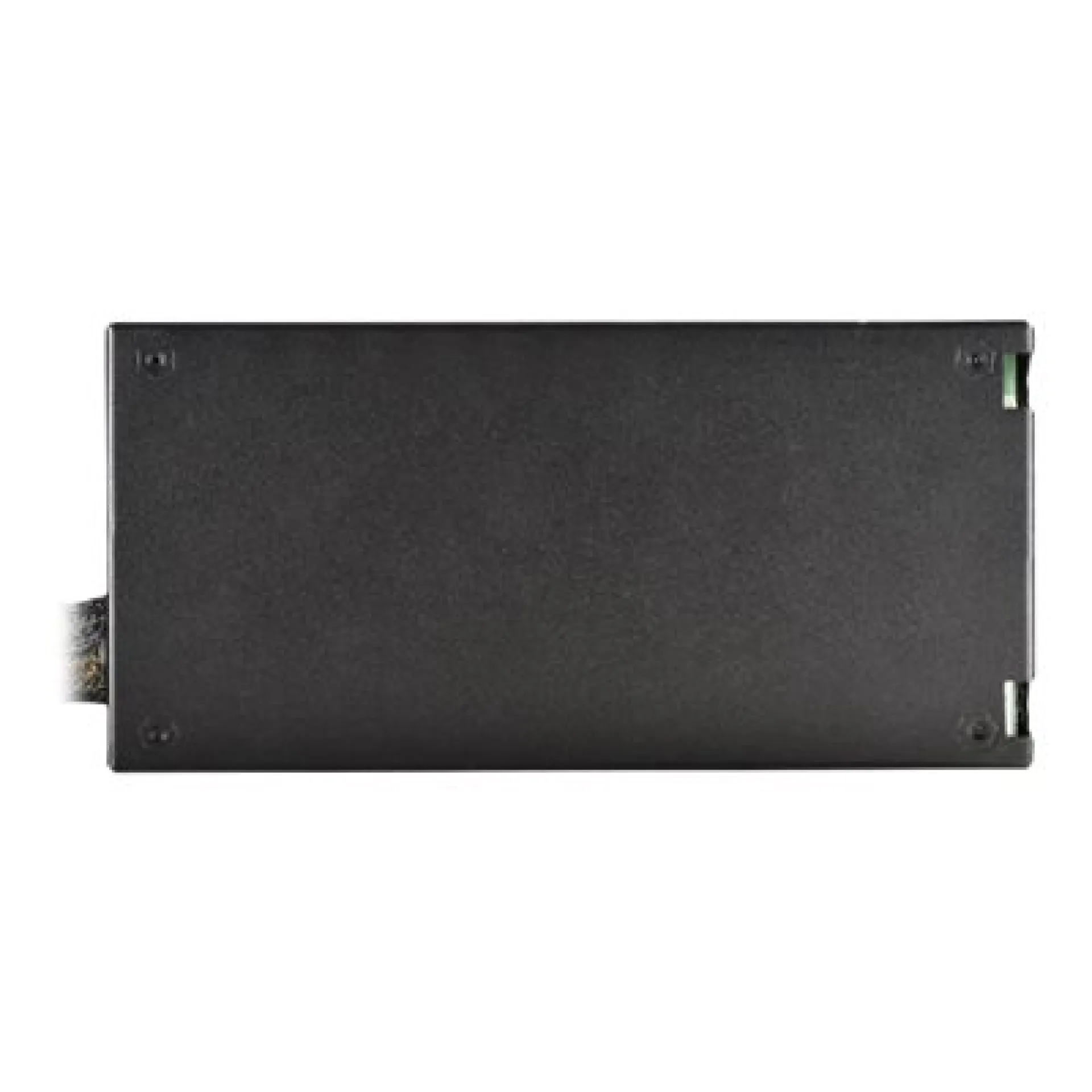

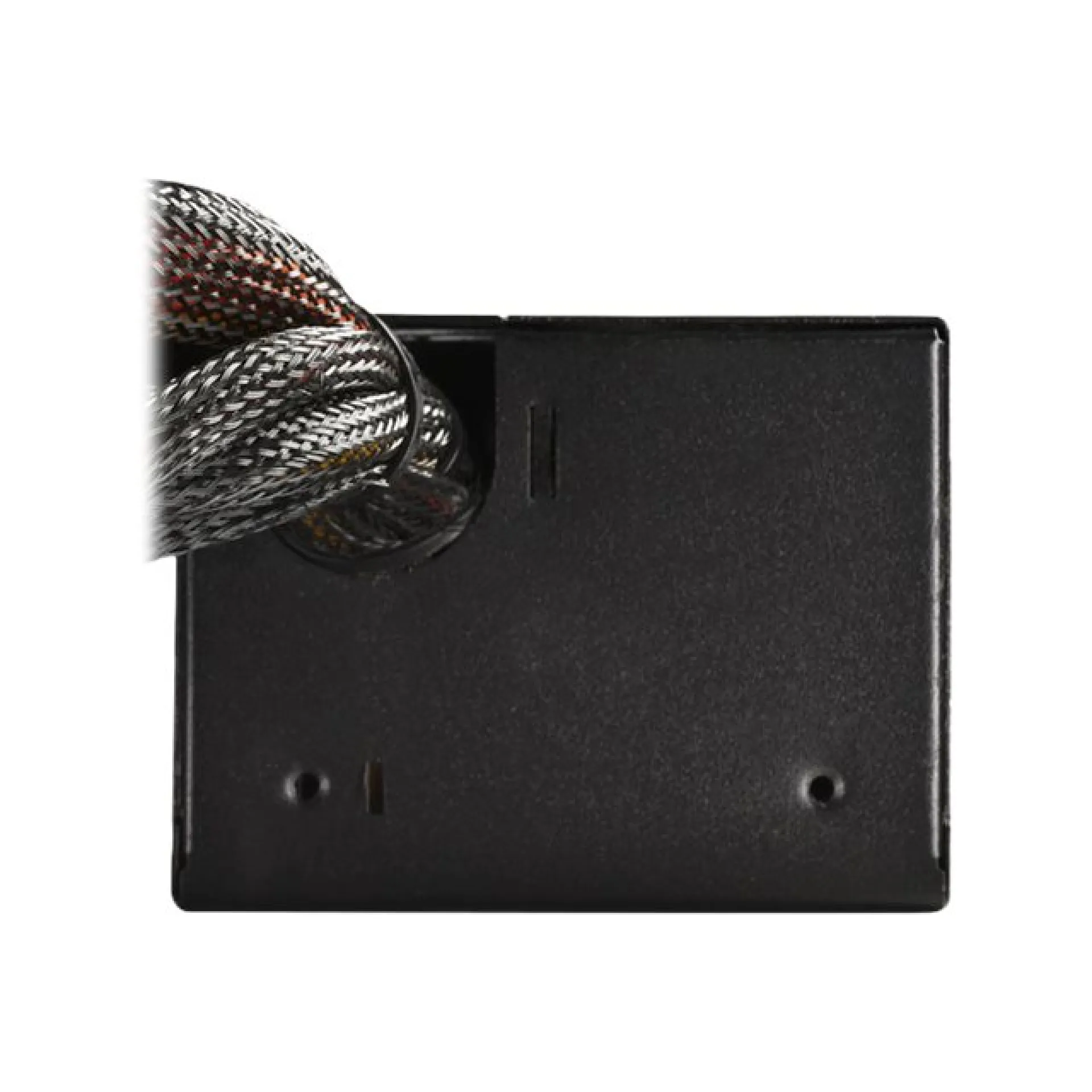

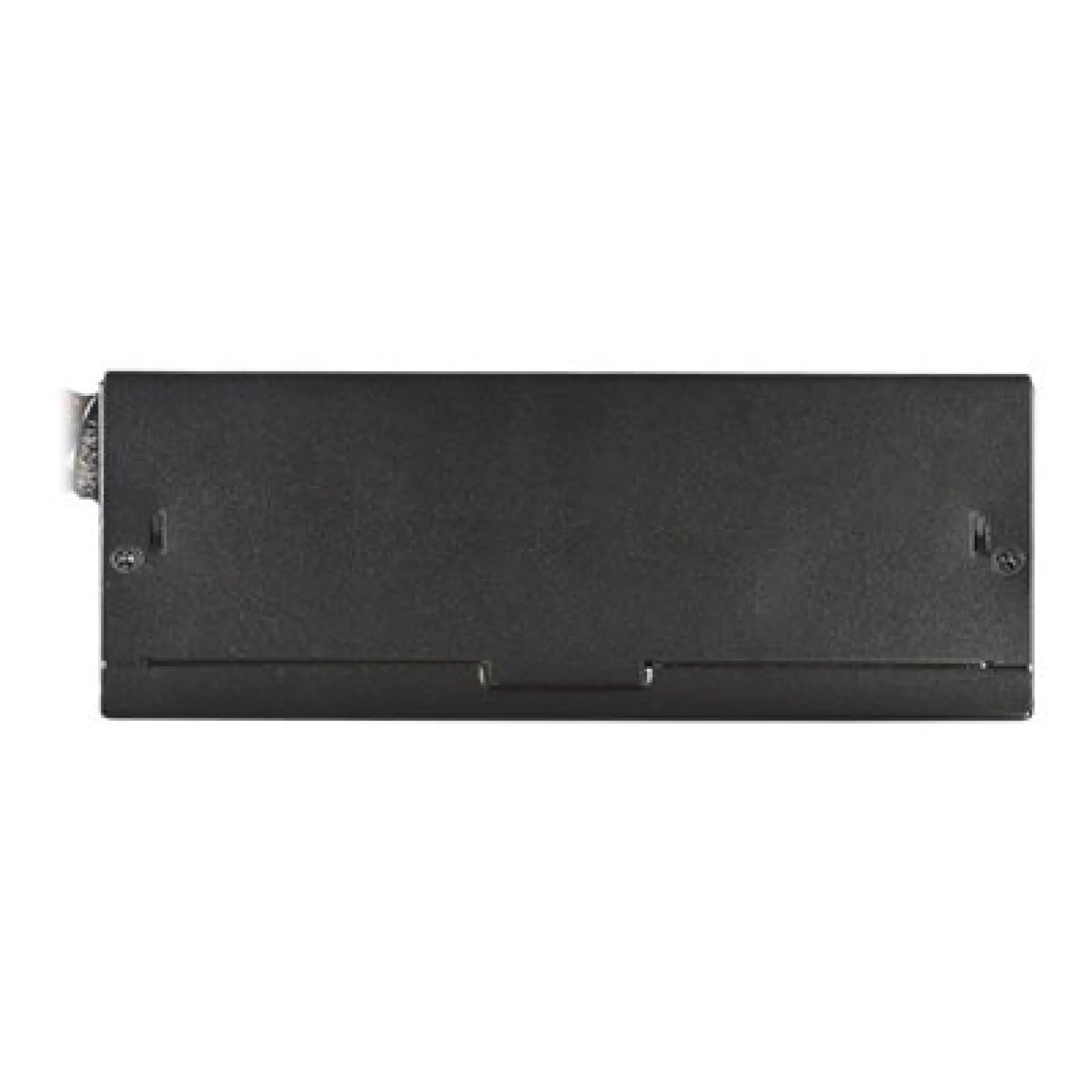

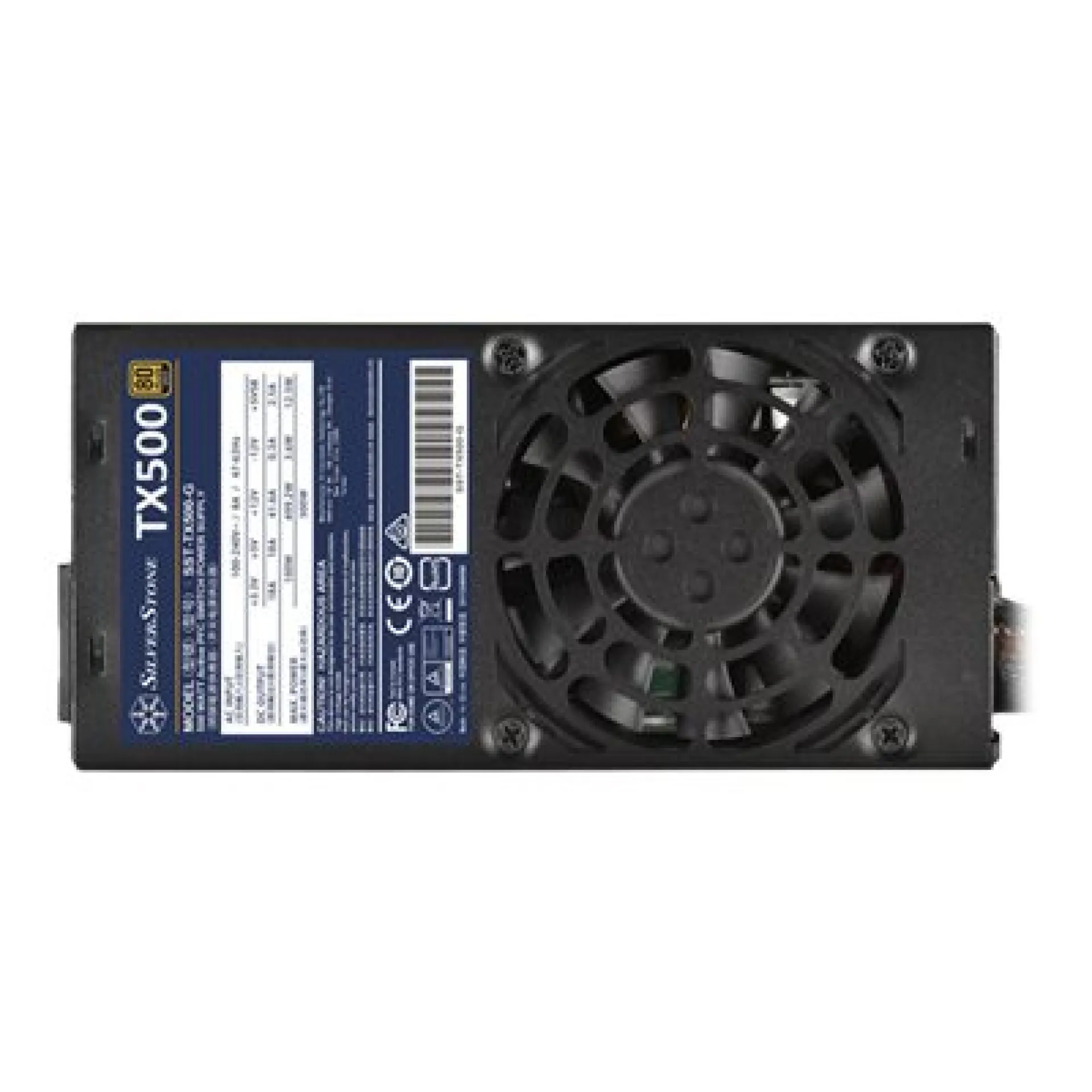

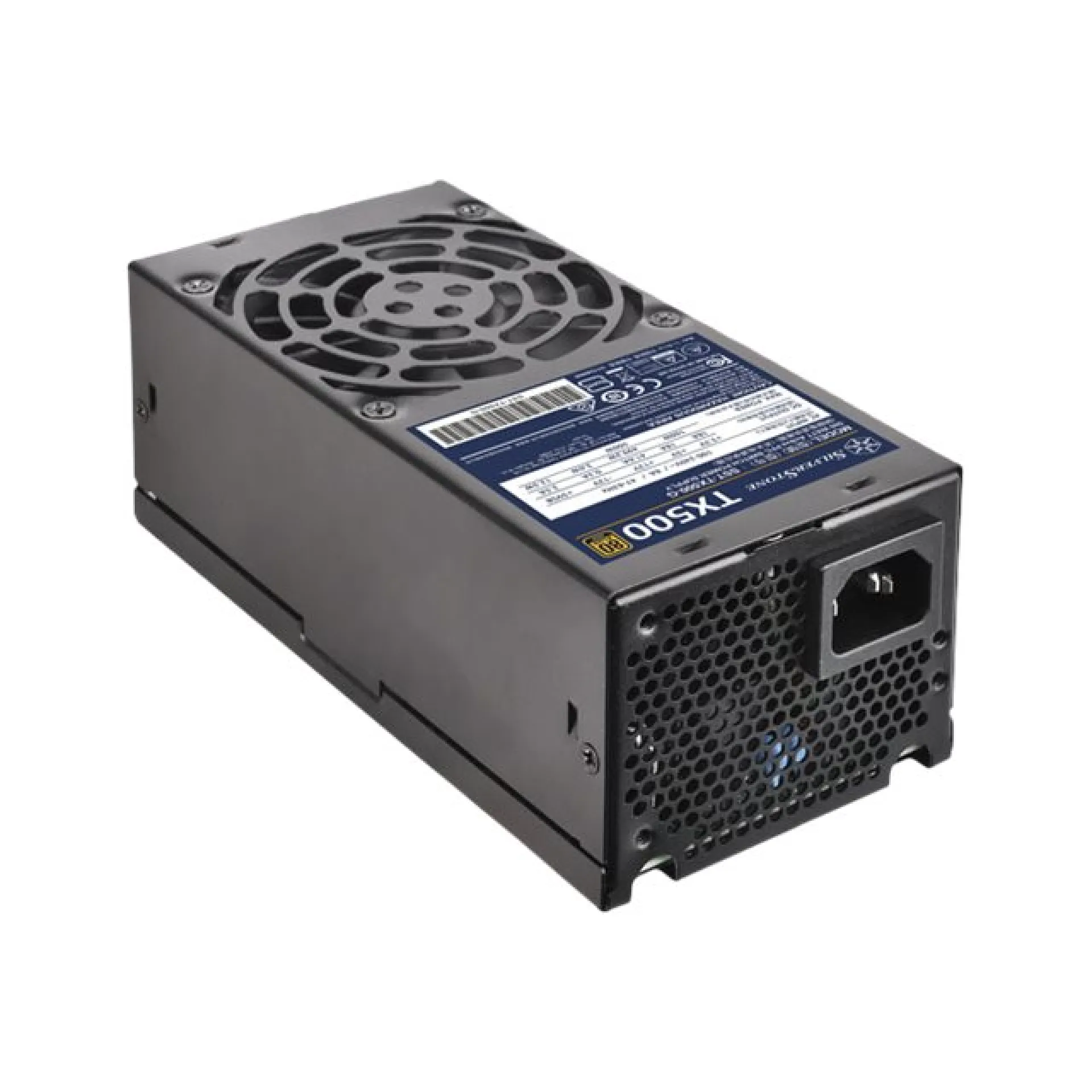

High-Efficiency TFX Power Supply for SFF Workstations and GPU Desktops with the SST-TX500-G
The SST-TX500-G is a 500W TFX-form-factor PSU engineered for dense desktop and workstation platforms where PSU bay depth, thermals, and stable +12V delivery directly impact system reliability. Designed for ATX12V v2.4 architectures, it supports modern CPU platforms requiring dual EPS power and GPU-enabled desktops that depend on multiple PCIe 6+2-pin leads for sustained load behavior.
With 80 PLUS Gold efficiency (up to 90% peak) and Active PFC, the SST-TX500-G reduces waste heat and improves power quality in compact chassis, helping maintain component boost clocks and lowering cooling requirements. A single +12V rail design simplifies power budgeting across CPU and GPU domains, while comprehensive protections (OCP, OPP, OVP, UVP, SCP, OTP) harden the system against transient events. Fixed cabling favors predictable airflow planning and rapid integration, and the wide 90–264V AC input range supports global deployment without PSU variants.
Why Choose the SST-TX500-G?
The SST-TX500-G delivers a practical density-to-performance ratio for space-constrained builds by combining TFX dimensions with enterprise-relevant connector coverage: dual EPS12V for high-core-count CPUs and 4x PCIe 6+2-pin for workstation-class GPUs. The SST-TX500-G is suited to standard non-redundant desktop nodes where efficiency, protection logic, and stable rail behavior matter more than modularity, enabling consistent rollouts across mixed compute profiles.
SilverStone focuses on electrically robust, thermally aware power designs that align with modern data centre standards for efficiency, safety, and operational consistency. The SST-TX500-G reflects this approach with a controlled acoustic profile via an 80mm fan and validated operating range from 0–50°C for real-world chassis conditions.
Key Applications:
- Small form factor workstations
- GPU-enabled desktop compute nodes
- ATX12V v2.4 general-purpose desktops
- Engineering and content creation systems
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment and cabling requirements for the SST-TX500-G, and you can extend the warranty up to 6 years to secure long-term operation across workstation fleets.
Technical details of SST-TX500-G
How long is the Warranty and how you can get technical support for SST-TX500-G
| Warranty: | 24 months (part) |
|---|---|
| RMA through customer: | yes |
| RMA Url: | https://www.silverstonetek.com/en/RMA/ |
| Description: | Customer must return the item first. Replacement or repaired item will be sent upon receipt and inspection of the defective item. |
| Support Portal: | https://support.happyware.com |
|---|
