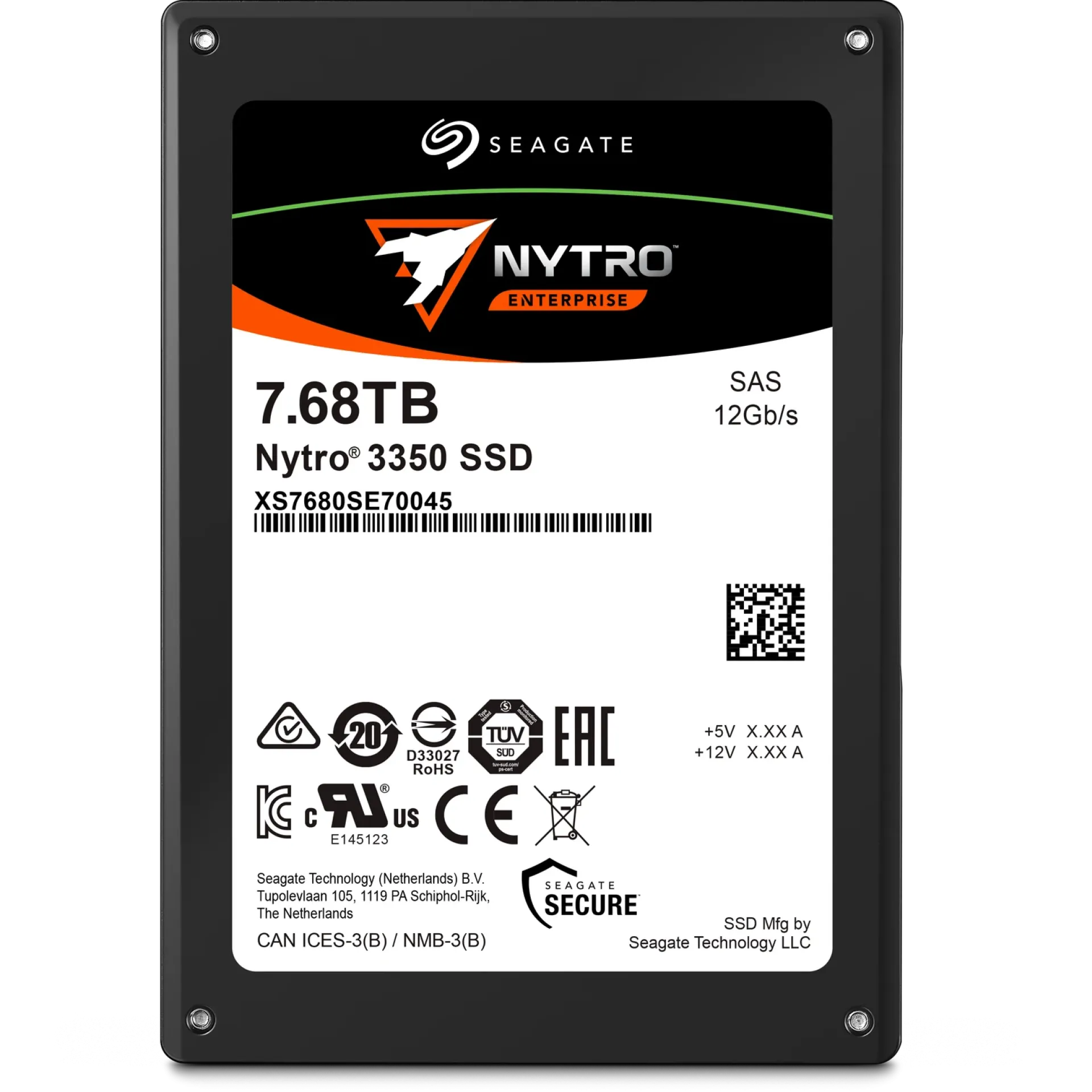

XS7680SE70045 Seagate Nytro 3350 7.68TB SAS 2.5" Server SSD

High-Performance 2.5in Dual-Port SAS Enterprise SSD for Tier-1 Read-Intensive Storage with the XS7680SE70045

The XS7680SE70045 is a Seagate Nytro 3350 7.68TB 2.5in internal SAS SSD engineered for Tier-1 read-intensive roles in servers and storage arrays where predictable latency and sustained throughput are primary design targets. With dual-port SAS connectivity, the XS7680SE70045 supports multipath I/O for high availability architectures, aligning with redundant controller designs and fault-tolerant backplanes in enterprise chassis.

Built on 3D TLC NAND, the XS7680SE70045 balances density and endurance for mixed service tiers, delivering up to 2200 MB/s read and 1800 MB/s write performance, with 4K random capability up to 250k read IOPS and 80k write IOPS to stabilize VM and database response times. An enterprise endurance profile rated at 1 DWPD over 5 years (14,000 TBW) helps maintain write discipline in read-dominant workloads, while 24x7 operational design and a 2.5M-hour MTBF support continuous duty cycles. Power efficiency is tuned for dense deployments, including a 4.6W idle profile to reduce per-node thermal load.

Why Choose the XS7680SE70045?

The XS7680SE70045 provides a practical density-to-performance ratio for consolidation projects that require consistent IOPS, resilient SAS paths, and encrypted data-at-rest without changing existing SAS infrastructures. For scale-out clusters and shared storage shelves, the XS7680SE70045 simplifies lifecycle planning by combining predictable endurance, dual-port availability characteristics, and operational reliability suited to enterprise change windows and capacity expansions.

Seagate designs Nytro enterprise SSDs with a focus on sustained performance under steady-state conditions, robust validation for storage arrays, and reliability metrics aligned to modern data centre availability requirements, enabling standardized deployment across server and SAN/SDS platforms.

Key Applications:

• Virtualization and VDI datastores
• Read-intensive databases
• Tier-1 application storage
• Software-defined storage caching and capacity tiers
• Secure data-at-rest compliance deployments

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for the XS7680SE70045 and extended warranty options up to 6 years to support long-term platform standardization and risk-controlled procurement.
