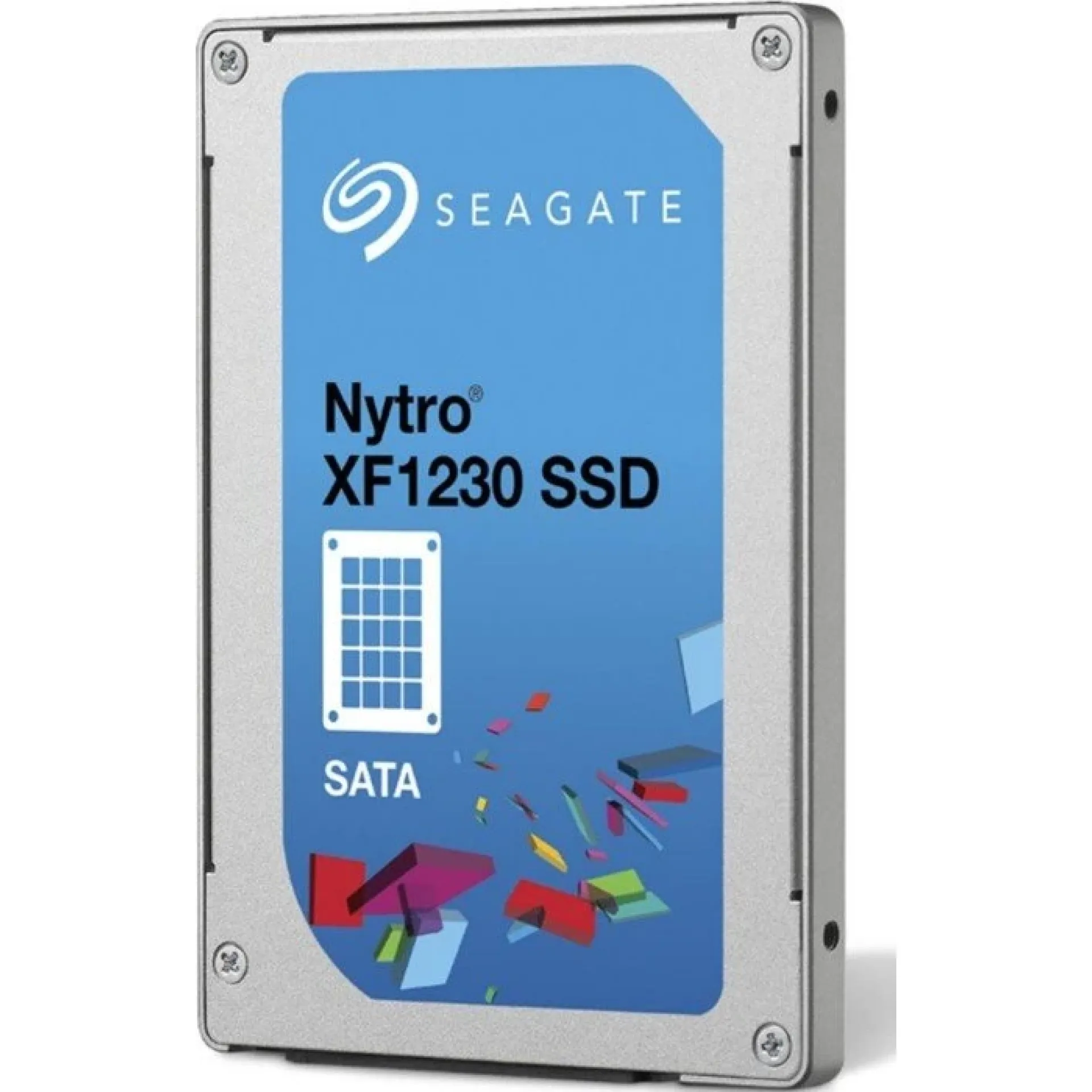

XF1230-1A0960 Seagate Nytro XF1230 960GB SATA 2.5" Server SSD

High-Performance 2.5-inch Enterprise SATA SSD for Read-Intensive Boot and Cache Tiers with the XF1230-1A0960

The XF1230-1A0960 is a Seagate Nytro XF1230 960GB 2.5-inch internal SATA SSD engineered for servers and appliances that prioritise deterministic read latency and broad platform compatibility. For CPU-dense rack systems and virtualised hosts where PCIe lanes are reserved for NICs and accelerators, the XF1230-1A0960 delivers a straightforward SATA integration path while maintaining enterprise-grade behaviour for always-on operation.

Built on MLC NAND with a read-intensive profile, the XF1230-1A0960 aligns with OS, boot, and content delivery tiers where random read responsiveness matters more than sustained write throughput. Power Loss Protection supports in-flight data protection during unexpected outages, while the drive’s endurance of 0.67 DWPD over 5 years (1,174 TBW) and 2.0M-hour MTBF target predictable lifecycle planning. With up to 560 MB/s sequential read and 4K read IOPS up to 98K, the architecture is optimised for fast service start-up, cache warm-up, and consistent read-heavy access patterns in SATA-based storage domains.

Why Choose the XF1230-1A0960?

The XF1230-1A0960 provides a pragmatic density-to-performance balance for enterprise environments that need reliable 2.5-inch SATA SSDs for scale-out boot volumes and read-biased application tiers. It supports straightforward drop-in replacement strategies across mixed fleets, enabling controlled refresh cycles without redesigning backplanes or storage controllers, and keeps operational risk low through proven enterprise reliability features.

Seagate designs the Nytro platform around sustained 24/7 duty cycles, consistent firmware behaviour, and data-centre-aligned qualification practices. This engineering approach helps the XF1230-1A0960 integrate cleanly into standard monitoring, maintenance, and spare-part models used in modern server operations.

Key Applications:

• Server boot and OS volumes
• Read-heavy database caching
• Content delivery and web tiers
• SATA SSD refresh in mixed fleets

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the XF1230-1A0960, helping you standardise boot and cache tiers efficiently, and you can extend the warranty up to 6 years to match enterprise lifecycle and support requirements.
