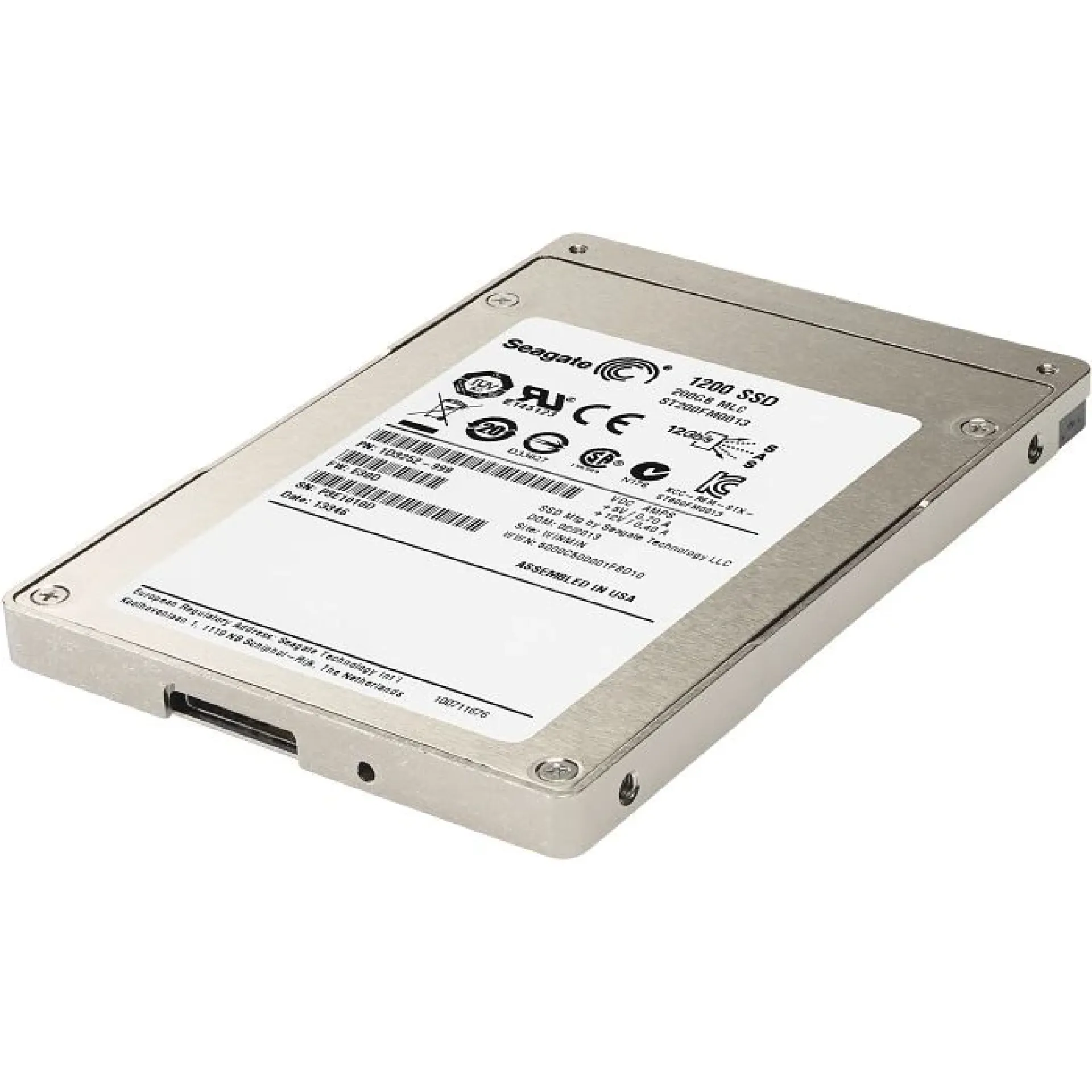

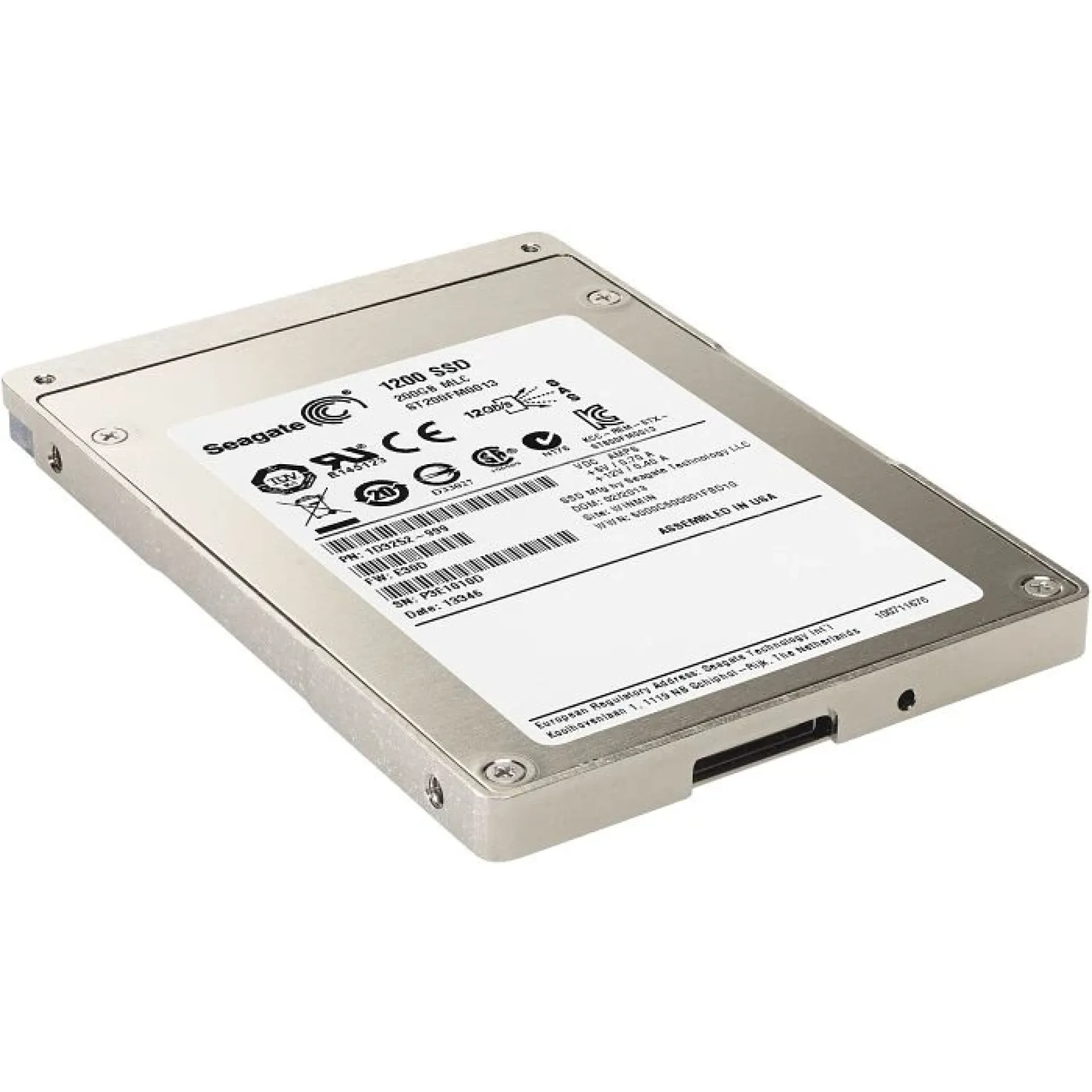

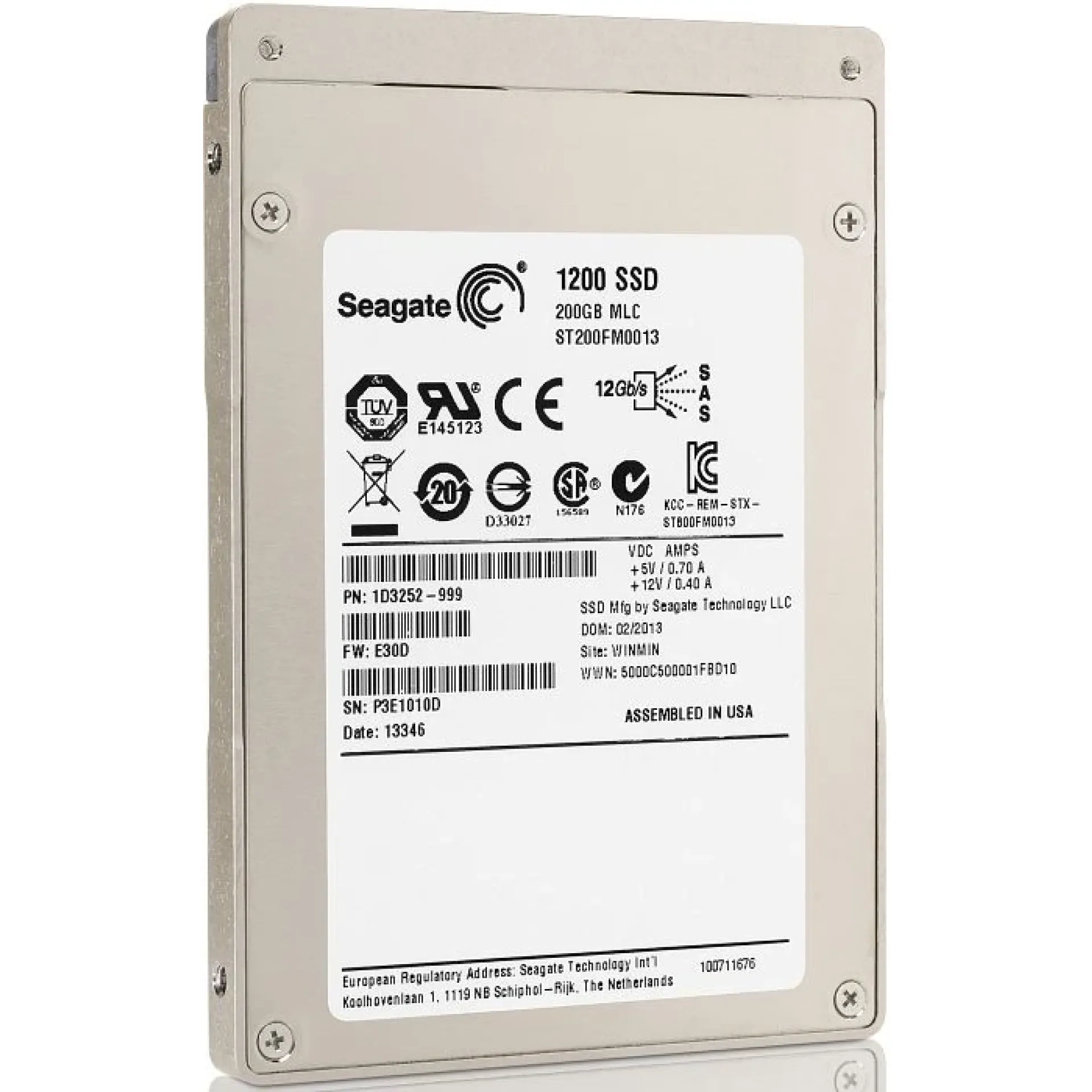

ST400FM0053 Seagate 1200 400GB SAS 2.5" Server SSD

High-Performance 2.5-inch SAS Enterprise SSD for hot-swap boot and write-intensive tiers with the ST400FM0053

The ST400FM0053 is a 2.5-inch SAS hot-swap enterprise SSD designed for predictable I/O behavior in server platforms where the CPU and memory are already optimized and storage latency becomes the limiting factor. Integrated into modern dual-socket x86 compute nodes, the ST400FM0053 complements DDR4/DDR5 memory architectures by sustaining low-queue-depth responsiveness for OS and service partitions while maintaining throughput headroom for mixed read/write activity.

In SAS backplanes and RAID controllers, the ST400FM0053 fits cleanly into existing PCIe expansion layouts by keeping storage on the SAS fabric while leaving PCIe lanes for NICs, HBAs, and accelerators. The 1200 Series MLC NAND is tuned for write-intensive operation with 10 DWPD endurance and a 5-year rating, supporting sequential performance up to 800 MB/s read and 640 MB/s write, plus up to 120,000/40,000 random 4K read/write IOPS for metadata, logging, and OLTP-adjacent workloads.

Why Choose the ST400FM0053?

The ST400FM0053 provides a high reliability, high endurance SSD tier where density-to-performance and predictable service levels matter more than raw capacity. For mirrored boot pools (RAID1/RAID10) and write-heavy datastores, the ST400FM0053 enables scalable deployment across many nodes, reduces maintenance windows through hot-swap serviceability, and supports 24/7 duty-cycle operation with controlled power behavior.

Seagate engineers the 1200 Series with an enterprise focus on endurance management, firmware consistency, and qualification for continuous operation in standard 2.5-inch SAS server bays. This approach aligns the ST400FM0053 with data center expectations for lifecycle stability, integration with established SAS ecosystems, and predictable operational characteristics across fleet deployments.

Key Applications:

• Server boot and OS RAID volumes
• Write-intensive logging and journaling
• Cache and metadata acceleration tiers
• Small-block OLTP datastores
• Edge and branch 24/7 servers

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your storage and RAID design requirements, and you can extend the warranty up to 6 years to protect long-lived server and edge deployments built around the ST400FM0053.
