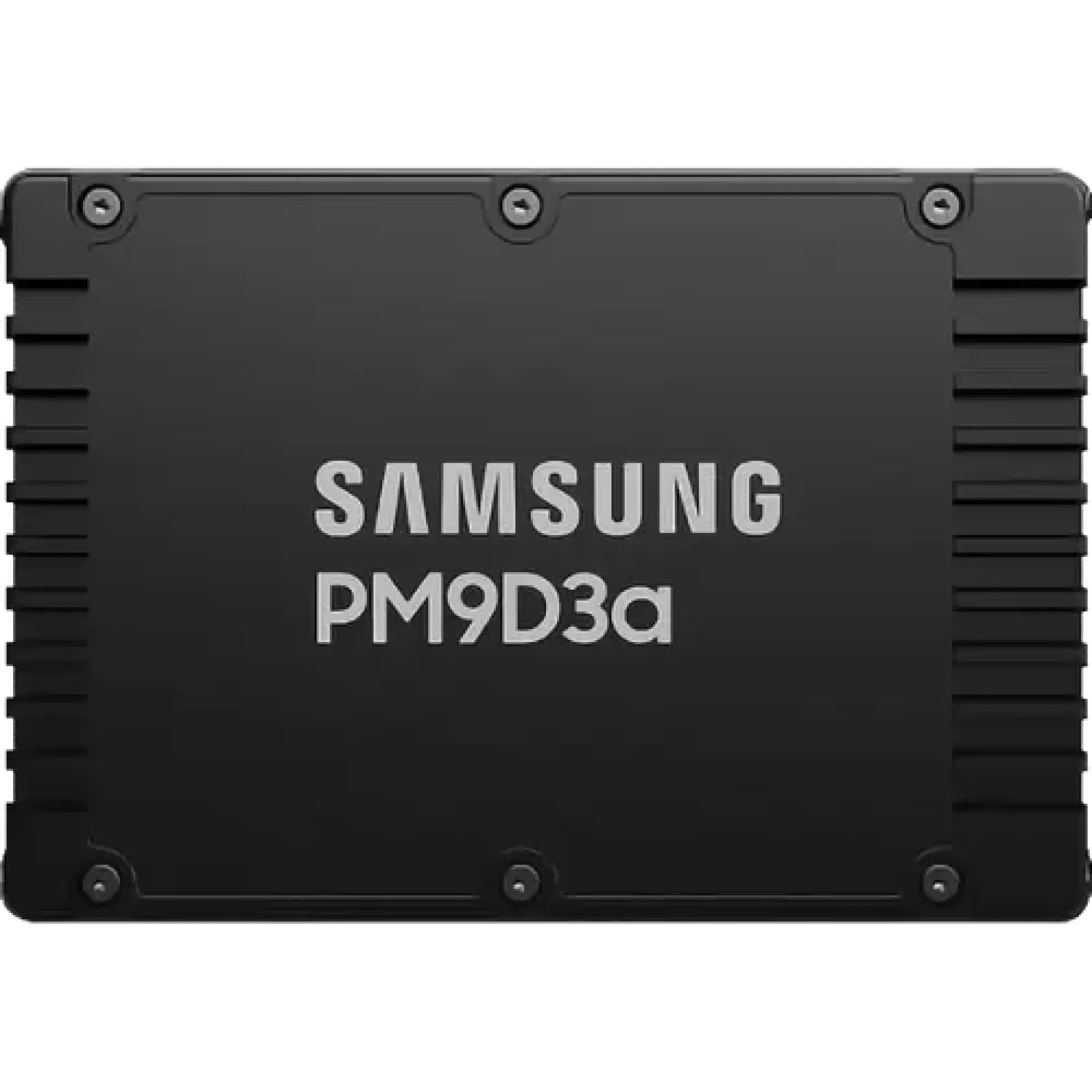

MZWL61T9HFLT-00AW7 Samsung PM9D3a 1.92TB U.2 NVMe 2.5" Server SSD

High-Performance U.2 NVMe Datacenter SSD featuring PCIe 4.0 throughput with the MZWL61T9HFLT-00AW7

The MZWL61T9HFLT-00AW7 is a Samsung PM9D3a-series datacenter NVMe SSD engineered for PCIe 4.0/NVMe server platforms where storage must sustain high queue-depth read activity with predictable latency. In U.2 2.5in form factor, the MZWL61T9HFLT-00AW7 integrates cleanly into standard hot-swap backplanes, enabling high-density NVMe tiers for modern CPU generations that expose sufficient PCIe lanes for parallel storage.

Architecturally, the MZWL61T9HFLT-00AW7 targets read-intensive datasets with up to 12,000 MB/s sequential read and up to 1,700,000 IOPS 4K read, while maintaining controlled write behavior (up to 3,500 MB/s sequential, 150,000 IOPS 4K) aligned to caching tiers, boot/data volumes, and database acceleration. The 1.92TB 3D TLC NAND design without DRAM cache optimizes power, cost, and thermal profiles for scale-out nodes, while 1 DWPD endurance for 5 years and 2.5M hours MTBF support continuous enterprise duty cycles.

Why Choose the MZWL61T9HFLT-00AW7?

The MZWL61T9HFLT-00AW7 delivers a practical density-to-performance ratio for NVMe backplanes, combining high read IOPS with enterprise reliability and a deployment model that scales from single-node performance tuning to fleet-wide standardization. With SED encryption support, the MZWL61T9HFLT-00AW7 is well suited for secure data-at-rest policies without disrupting existing PCIe 4.0 storage architectures.

Samsung designs the PM9D3a platform with datacenter-grade validation, firmware discipline, and consistency under multi-tenant I/O, aligning with contemporary rack server serviceability, hot-swap maintenance, and standard U.2 NVMe infrastructure.

Key Applications:

• Read-intensive databases
• NVMe caching tiers
• Virtualization boot and data volumes
• Secure data-at-rest deployments

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for the MZWL61T9HFLT-00AW7 and an extended warranty of up to 6 years to protect long-life storage investments in production clusters.
