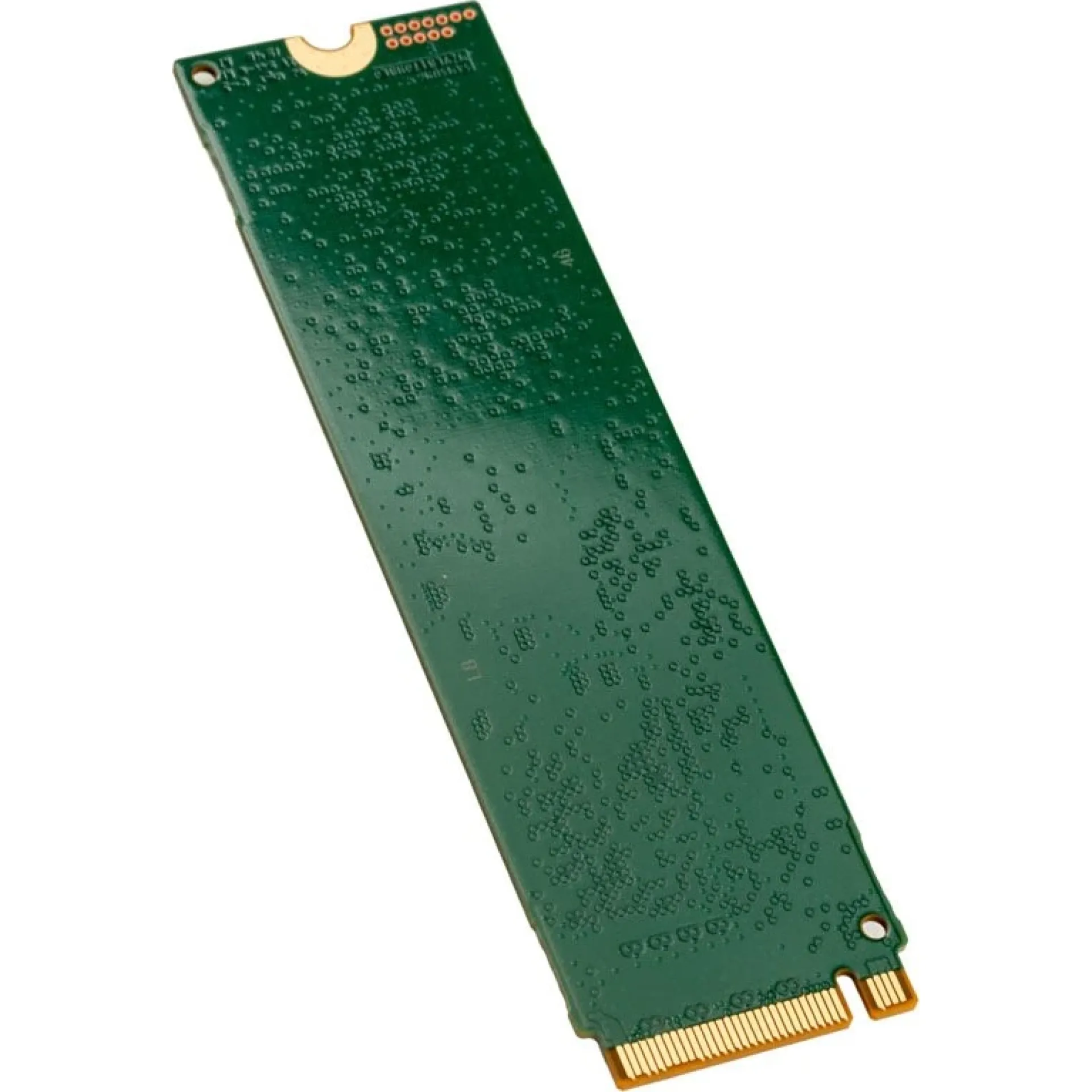

MZVLB1T0HBLR-00000 Samsung PM981a 1TB PCIe 3.0 x4 M.2 2280 Consumer SSD

Enterprise M.2 NVMe Boot and Cache SSD featuring PCIe 3.0 x4 efficiency with the MZVLB1T0HBLR-00000

The MZVLB1T0HBLR-00000 is a Samsung PM981a internal NVMe SSD in the M.2 2280 M-Key form factor, engineered for server and appliance deployments where predictable boot, fast local cache, and low operational overhead are essential. Using a PCIe 3.0 x4 interface, the MZVLB1T0HBLR-00000 aligns well with mainstream server platforms that reserve higher-generation lanes for GPUs or high-density NICs, while still delivering up to 3,500 MB/s sequential read and strong 4K responsiveness for OS and service workloads.

Its TLC NAND backed by a 1GB DRAM cache helps stabilize metadata access and sustain read-heavy behavior typical of VDI images, content delivery nodes, and application acceleration tiers. The MZVLB1T0HBLR-00000 also supports Self-Encrypting Drive capabilities with AES-256 and TCG Opal 2.0, enabling policy-driven data-at-rest protection in edge systems and controlled endpoints without relying solely on host CPU cycles. With 1.5M hours MTBF and low idle draw including L1.2 standby, the MZVLB1T0HBLR-00000 is designed for dense, always-on footprints where thermals and power budgets matter.

Why Choose the MZVLB1T0HBLR-00000?

The MZVLB1T0HBLR-00000 delivers a practical density-to-performance profile for boot and cache tiers, pairing PCIe 3.0 lane efficiency with enterprise-focused reliability and encryption. It scales cleanly across fleets of identical nodes, simplifies standardized imaging, and provides consistent latency characteristics suited to mixed service stacks and read-dominant acceleration layers.

Samsung applies a validation-first engineering approach across controller, firmware, and NAND integration to support stable behavior under continuous operation and to fit modern data center expectations for security, power management, and lifecycle consistency.

Key Applications:

• Server OS and hypervisor boot drives
• VDI local cache
• Read-heavy application acceleration
• Encrypted edge and endpoint storage

At Happyware - Server Hardware you benefit from bulk order discount options for fleet rollouts of the MZVLB1T0HBLR-00000 and the ability to extend the warranty up to 6 years to protect long-term infrastructure investments.
