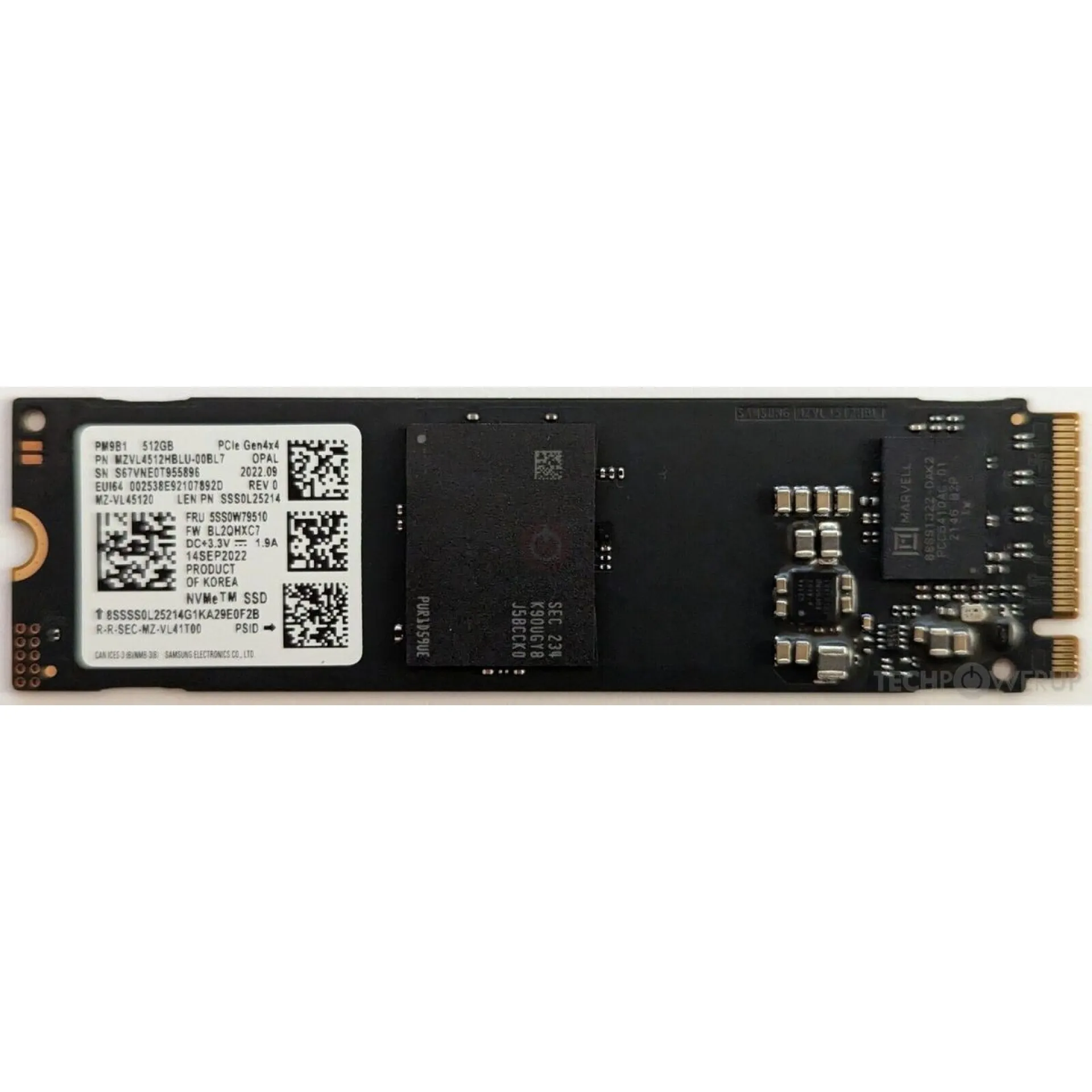

MZVL4256HBJD-00B07 Samsung PM9B1 256GB PCIe Gen 4 M.2 2280 Server SSD

*Picture may not be exactly the same as the product

Product line:

PM9B1

See all HDDs / SSDs

See other Samsung products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH5M2014-800262

Manufacturer Number:

MZVL4256HBJD-00B07

Brand:

Samsung

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MZVL4256HBJD-00B07

High-Performance M.2 2280 NVMe Boot and Cache SSD featuring PCIe Gen4 x4 efficiency with the MZVL4256HBJD-00B07

The MZVL4256HBJD-00B07 is a Samsung PM9B1 M.2 2280 (M-Key) NVMe SSD designed for PCIe Gen4 x4 client and workstation platforms where OS boot speed, application launch latency, and responsive desktop I/O are architectural priorities. In modern CPU platforms, the drive aligns with Gen4 NVMe lanes to reduce storage wait states and keep cores fed during mixed read-heavy workloads.

With 256GB 3D TLC NAND and a dedicated 256MB DRAM cache, the MZVL4256HBJD-00B07 is optimized for fast metadata access and predictable small-block behavior, supporting up to 240K/400K 4K IOPS (read/write) and up to 3300/1250 MB/s sequential throughput. This makes the MZVL4256HBJD-00B07 well suited for boot volumes, read-optimized caching, and embedded or edge designs where L1.2 low-power standby and 0.04W idle draw help control thermals and energy budgets without sacrificing NVMe responsiveness.

Why Choose the MZVL4256HBJD-00B07?

The MZVL4256HBJD-00B07 delivers a balanced density-to-performance profile for standardized M.2 slots, enabling rapid deployment across fleets while keeping storage on the PCIe fabric for low-latency access. With 150 TBW endurance (0.53 DWPD) and a 1.5M-hour MTBF target, the MZVL4256HBJD-00B07 supports enterprise procurement requirements for reliability and consistent boot behavior in distributed endpoints and workstation tiers.

Samsung engineering emphasizes controller firmware maturity, NAND management, and predictable power states to align with modern data centre and enterprise client standards. The MZVL4256HBJD-00B07 also integrates TCG Pyrite 2.0 security to support policy-driven device protection in managed environments.

Key Applications:

OS boot volumes for PCs and workstations
Read-optimized application and VDI caching
Edge gateways with low idle power targets
Embedded systems with moderate endurance needs

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your rollout requirements for the MZVL4256HBJD-00B07, and you can extend the warranty up to 6 years to improve lifecycle planning for managed endpoint and edge deployments.

Technical details of MZVL4256HBJD-00B07

Capacity:

256GB

Form Factor:

M.2 2280

Interface:

PCIe Gen 4

Speed Reading:

3300MB/s

Speed Writing:

1250MB/s

Total Bytes Written (TBW):

150TB

Drive Writes Per Day (DWPD):

0.53

Suitability:

Workstation

Memory Components:

3D-NAND TLC

Special features:

L1.2 Low-Power-Standby

Power Consumption Operation:

4.2W

Certificates:

TCG Pyrite 2.0

Height:

22mm

Cache Memory:

256 MB

How long is the Warranty and how you can get technical support for MZVL4256HBJD-00B07

Warranty:	24 months (part)
RMA through customer:	yes
RMA Url:	https://www.samsung.com/us/support/service/
Description:	Items must be returned first; no advance replacements. Guaranteed repair or replacement times may vary by product type. On-site service is available for specific products such as large home appliances and large TVs.
