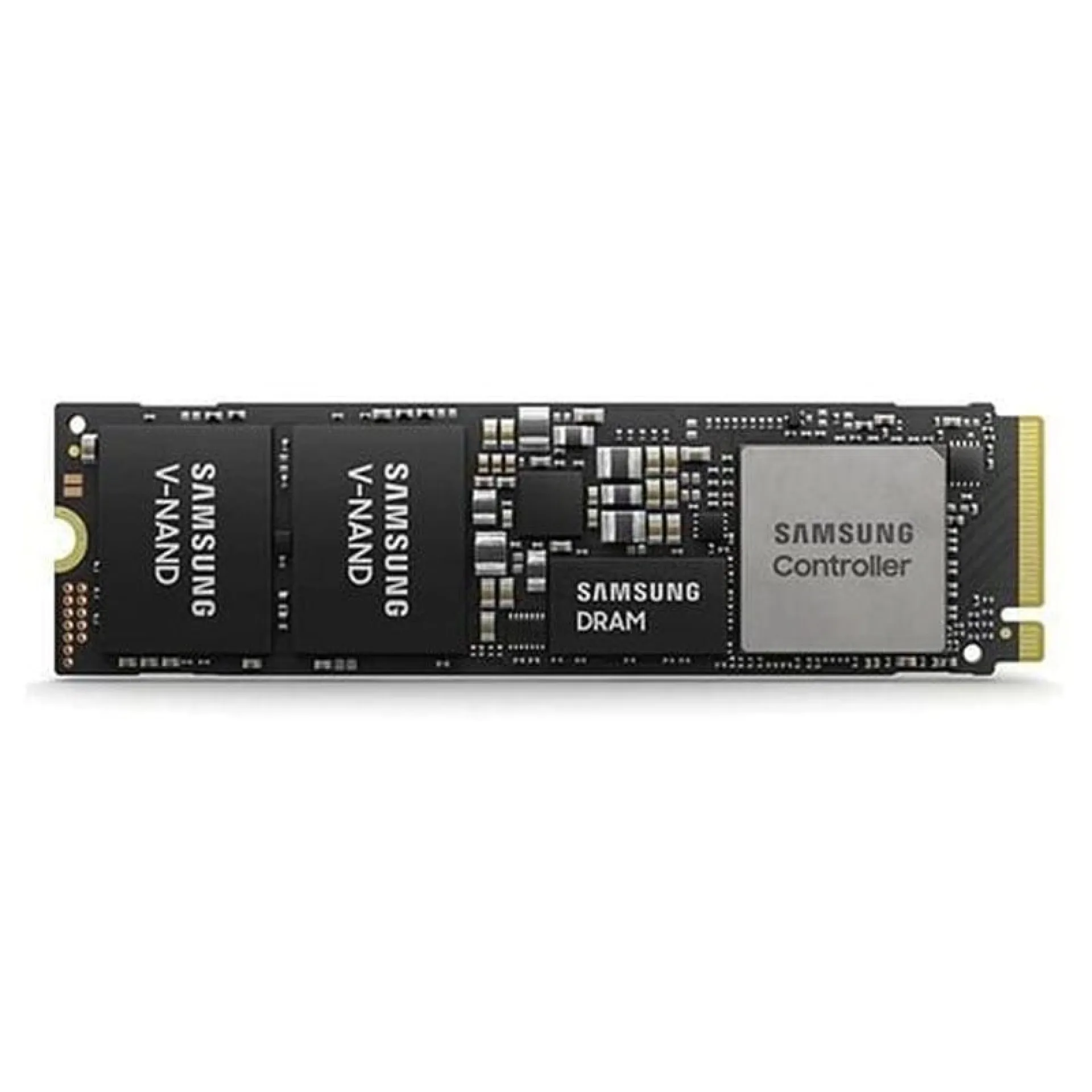

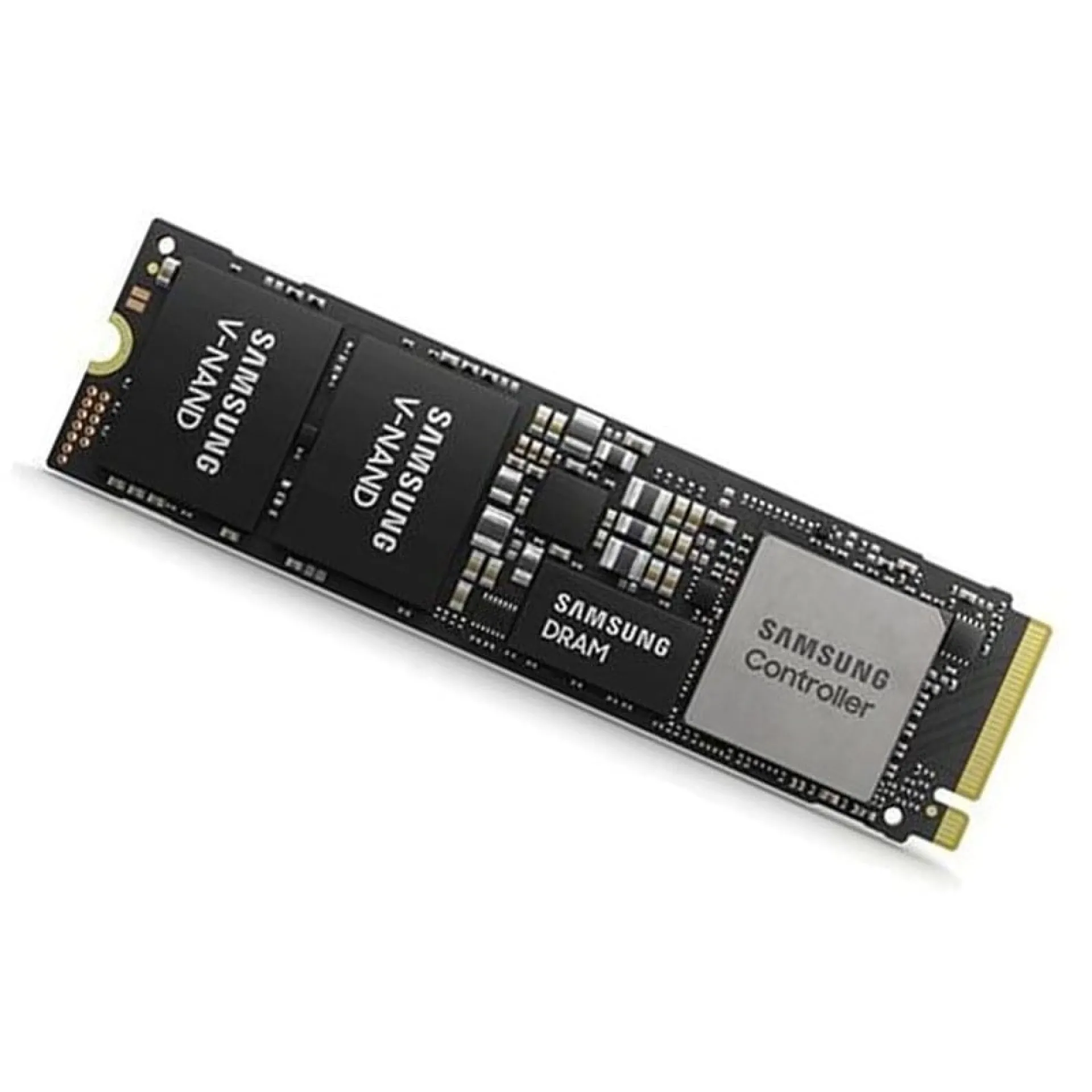

MZVL2512HCJQ-00B07 Samsung PM9A1 512GB PCIe Gen 4 M.2 2280 Server SSD

High-Performance M.2 2280 NVMe SSD featuring PCIe Gen4 x4 throughput with the MZVL2512HCJQ-00B07

The MZVL2512HCJQ-00B07 is a Samsung PM9A1 Series internal SSD engineered for servers and appliances that need compact, low-latency NVMe storage without sacrificing PCIe bandwidth. Designed around a PCIe Gen4 x4 link in an M.2 2280 M-Key form factor, the MZVL2512HCJQ-00B07 targets fast boot/OS partitions and responsive local data paths in dense compute nodes and edge systems.

With 512GB 3D TLC NAND and a 512MB cache, the MZVL2512HCJQ-00B07 supports read-intensive caching and tiering layers that sit close to CPU resources, reducing IO wait states for virtualization, web front ends, and general-purpose services. Its sequential capability up to 6,900 MB/s read and 5,000 MB/s write, plus up to 800K IOPS for 4K read/write, aligns well with modern PCIe Gen4 platforms where storage must keep pace with multi-core CPU scheduling and high-concurrency IO queues.

Why Choose the MZVL2512HCJQ-00B07?

The MZVL2512HCJQ-00B07 delivers a balanced density-to-performance profile for M.2 bays, enabling fast local storage in space-constrained systems while maintaining enterprise deployment logic around predictable endurance and security. With 300 TBW (0.54 DWPD, 3 years) and 1.5M hours MTBF, it supports scalable rollouts where reliability, consistent latency, and operational standardization are priorities.

Samsung designs the PM9A1 platform with disciplined firmware behavior, NAND management, and power efficiency features such as 0.035 W idle and L1.2 low-power standby, supporting modern data centre requirements for controlled thermals and sustained service stability. The MZVL2512HCJQ-00B07 also integrates SED capabilities with TCG Opal 2.0 and AES-256 for secure local storage in regulated environments.

Key Applications:

• Server boot and OS volumes
• Read-intensive cache and tiering
• Virtualization host local storage
• Web infrastructure and microservices
• SED/Opal-encrypted deployments

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MZVL2512HCJQ-00B07 deployment needs and an extended warranty option up to 6 years to protect long-lived infrastructure investments.
