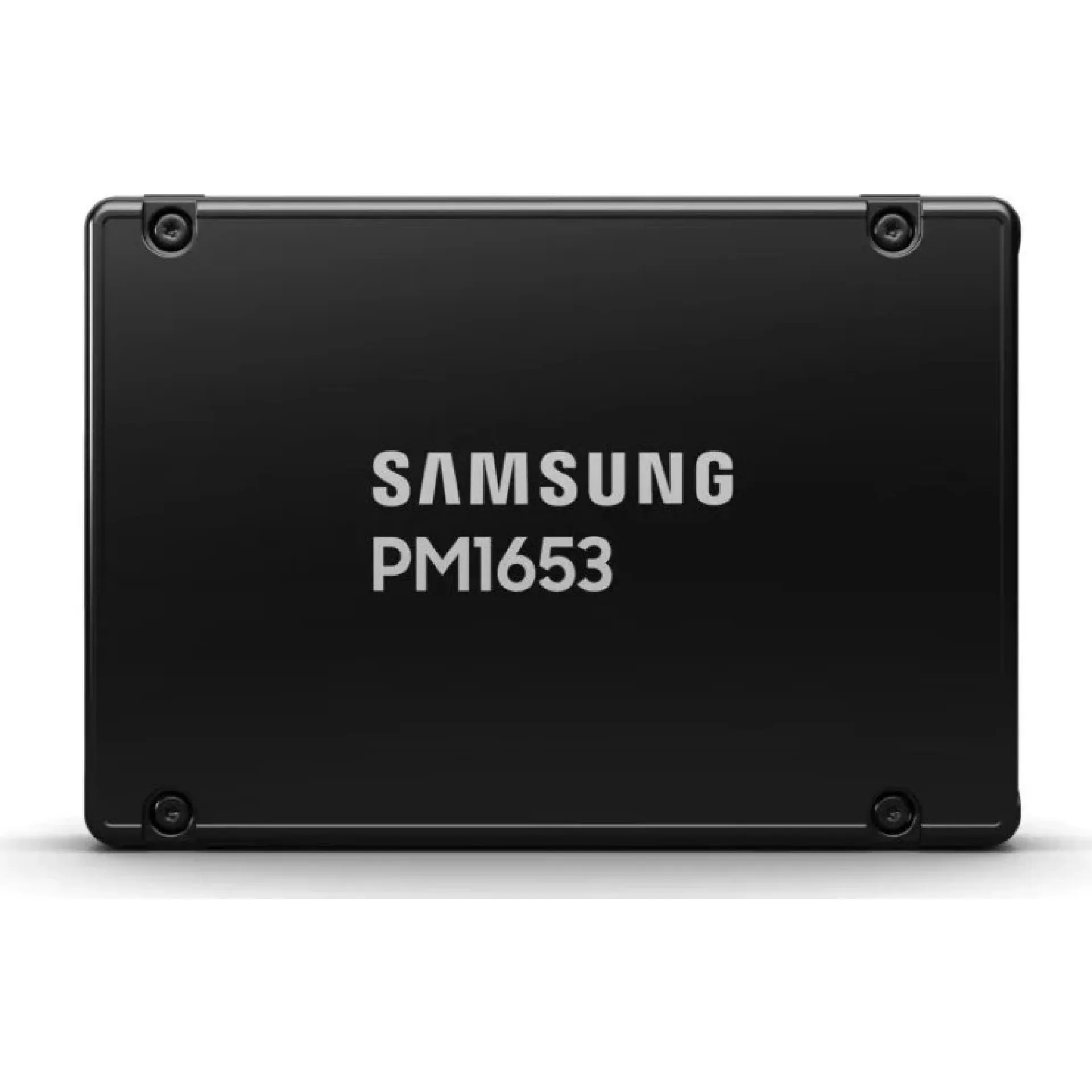

MZILG30THBLA-00A07 Samsung PM1653 30.72TB SAS 2.5" Server SSD

High-Density 2.5-inch SAS Enterprise SSD for Tier-0 Storage with the MZILG30THBLA-00A07

The MZILG30THBLA-00A07 is a 30.72TB 2.5-inch SAS enterprise SSD designed for latency-sensitive Tier-0/Tier-1 database data sets, log volumes, and consolidated virtualised storage where predictable performance under mixed workloads is mandatory. As a hot-swap capable drive, it aligns with serviceable server and storage architectures that require non-disruptive maintenance and consistent throughput across 24/7 duty cycles.

In SAS backplanes and dual-controller storage designs, the MZILG30THBLA-00A07 supports high queue-depth access patterns with up to 4,200 MB/s read and 3,300 MB/s write sequential bandwidth, alongside up to 800K/140K IOPS for 4K random read/write. TLC NAND is paired with enterprise firmware behaviour to balance density and sustained responsiveness, while endurance is specified at 1.019 DWPD for 5 years (57,139.2 TBW) to support write-intensive log and metadata activity. Integrated Power Loss Protection improves in-flight data integrity, and the platform targets long-life fleet deployment with 2.0M hours MTBF.

Why Choose the MZILG30THBLA-00A07?

The MZILG30THBLA-00A07 delivers a strong density-to-performance ratio for all-flash arrays and scale-out pools, reducing drive count and SAS slot consumption without sacrificing enterprise reliability. It scales cleanly in shared storage tiers, supports consistent service levels under contention, and enables secure deployment in regulated environments through hardware-based protection.

Samsung engineering emphasises predictable enterprise behaviour, qualification for continuous operation, and compatibility with modern data centre standards for availability, serviceability, and security assurance across mixed-vendor server and storage ecosystems.

Key Applications:

• Tier-0/Tier-1 database storage
• Transaction log and journal volumes
• Virtualisation and private cloud storage pools
• High-density all-flash arrays
• Scale-out storage nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for the MZILG30THBLA-00A07, and can secure an extended warranty up to 6 years to protect long-term procurement and standardised fleet operation.
