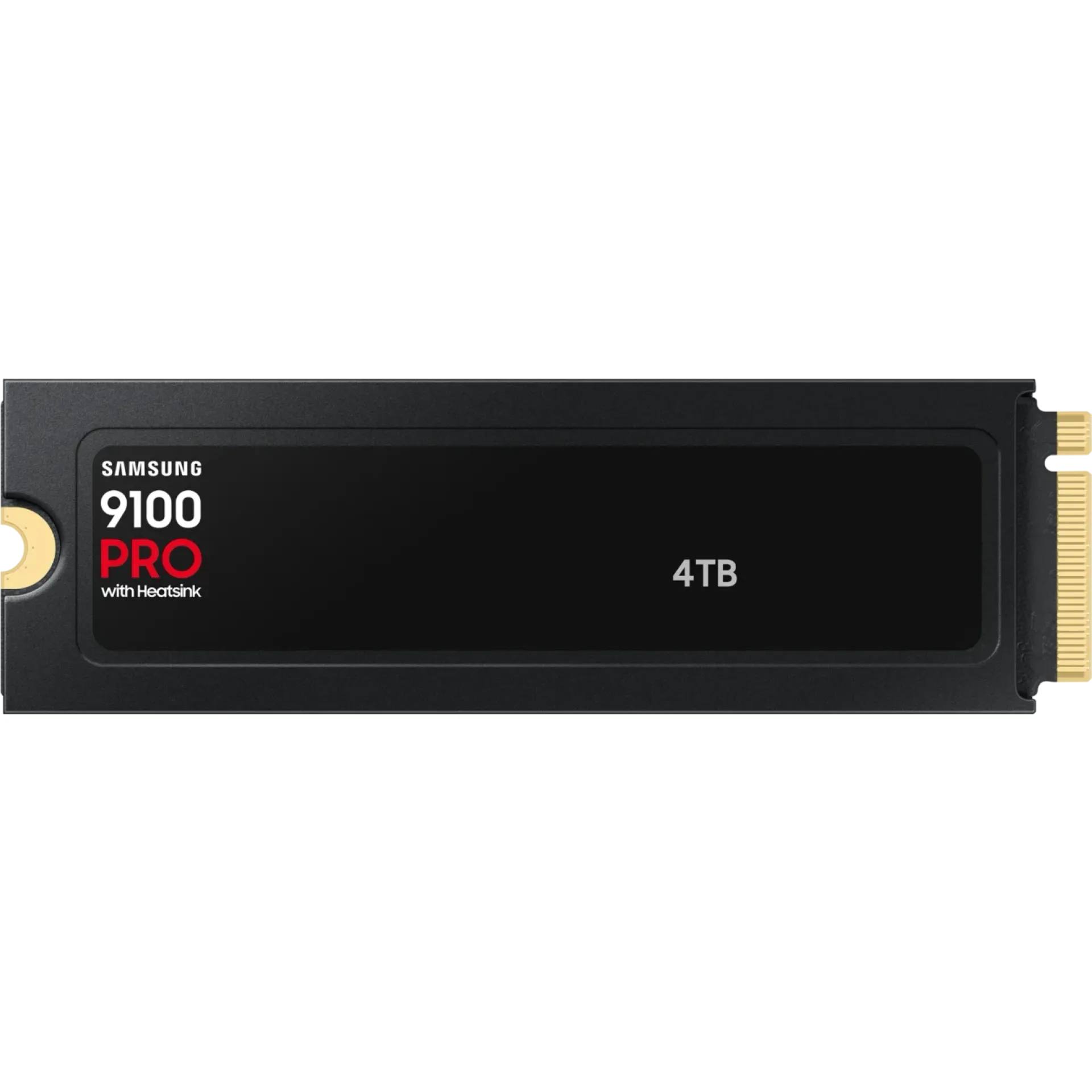

MZ-VAP4T0CW Samsung 9100 PRO 4TB PCIe 5.0 x4 M.2 2280 Consumer SSD

High-Performance M.2 2280 NVMe SSD featuring PCIe 5.0 x4 bandwidth with the MZ-VAP4T0CW

The MZ-VAP4T0CW is a Samsung 9100 PRO internal NVMe SSD designed for PCIe Gen5 x4 client and workstation platforms where storage latency and parallel queue depth directly affect build times, dataset staging, and application responsiveness. In modern CPU and GPU workstations, MZ-VAP4T0CW complements high-core-count processors and discrete accelerators by keeping the local data path saturated, supporting fast OS and application loads and high-IOPS scratch operations without forcing reliance on shared network storage.

Built in an M.2 2280 M-Key form factor, MZ-VAP4T0CW integrates TLC NAND with SLC caching and a 4GB DRAM cache to sustain consistent throughput under mixed read/write profiles. With sequential performance up to 14,800 MB/s read and 13,400 MB/s write, plus up to 2.2M/2.6M 4K IOPS, MZ-VAP4T0CW is well aligned for content creation pipelines, AI development workstations, and local dataset iteration. Integrated heatsink and low-power L1.2 standby help maintain stability in dense chassis designs, while endurance at 2,400 TBW and 1.5M hours MTBF supports continuous engineering workflows.

Why Choose the MZ-VAP4T0CW?

MZ-VAP4T0CW delivers a practical density-to-performance profile for Gen5-capable endpoints, enabling high queue-depth storage performance in a compact M.2 slot without expanding chassis complexity. MZ-VAP4T0CW also supports scalable deployment logic for standardized workstation builds, combining predictable endurance targets with security controls suited to enterprise asset management.

Samsung focuses on controller, firmware, and NAND co-engineering to optimize reliability, thermal behavior, and consistency under sustained workloads, aligning the platform with current data centre and enterprise endpoint standards for encryption, manageability expectations, and lifecycle planning.

Key Applications:

• Workstation OS and application drive
• Local scratch for video, CAD, and simulation
• AI/ML dataset staging and preprocessing
• Client-side encrypted endpoint storage

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout requirements for MZ-VAP4T0CW deployments, and you can extend the warranty up to 6 years to reduce operational risk across long workstation refresh cycles.
