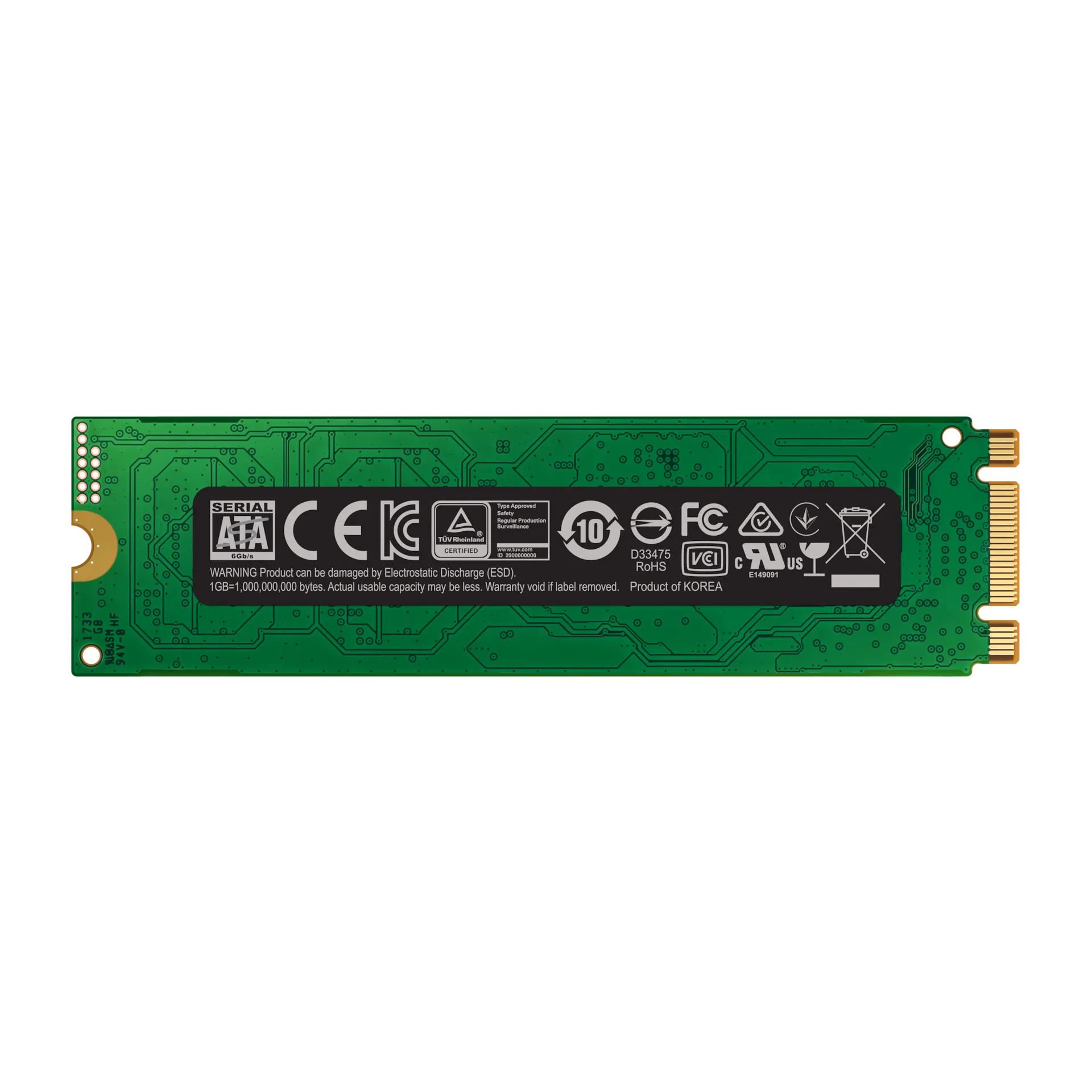

MZ-N6E500BW Samsung 860 EVO 500GB SATA M.2 2280 Consumer SSD

*Picture may not be exactly the same as the product

Product line:

860 EVO

See all HDDs / SSDs

See other Samsung products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH3M7138-249447

Manufacturer Number:

MZ-N6E500BW

Brand:

Samsung

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MZ-N6E500BW

High-Density M.2 2280 SATA SSD for OS and edge platforms with the MZ-N6E500BW

The MZ-N6E500BW is an internal M.2 2280 SATA SSD engineered for predictable boot and application responsiveness in client, notebook, and compact edge systems where 2.5-inch bays are unavailable. Its 500GB 3D NAND TLC architecture with the Samsung MJX controller and dedicated DRAM cache supports stable QoS for OS paging, application launch patterns, and read-heavy profiles that benefit from consistent low-latency access.

By using the SATA protocol over an M.2 (B+M Key) connector, the MZ-N6E500BW integrates cleanly into platforms that reserve PCIe lanes for networking, accelerators, or high-speed NVMe tiers. This makes it a practical architectural choice for branch appliances, micro-servers, and SFF desktops requiring a compact system volume without complicating PCIe topology. Sequential throughput up to 550MB/s read and 520MB/s write, with strong 4K IOPS, aligns well to VDI endpoints, lightweight database caches, and encrypted endpoint storage.

Why Choose the MZ-N6E500BW?

The MZ-N6E500BW delivers a balanced density-to-performance profile for enterprise fleets that standardize on M.2 SATA boot media while maintaining reliability and lifecycle governance. With 300TBW endurance, 1.5M-hour MTBF, and low typical power draw, the MZ-N6E500BW supports scalable deployment in thermally constrained chassis and remote locations with limited service windows.

Samsung designs the 860 EVO platform with controller, firmware, and NAND integration to sustain consistent behavior under mixed client workloads, emphasizing data integrity, power efficiency, and compatibility with modern endpoint and edge hardware standards.

Key Applications:

OS and application boot volumes
Edge and branch SFF systems
Encrypted endpoint storage
Read-optimized data sets and caches
VDI and thin-client persistence

At Happyware - Server Hardware you benefit from bulk order discount options for standardized rollouts of the MZ-N6E500BW across endpoints and edge nodes, and you can request non-binding offers tailored to your capacity planning and refresh cycles.

Technical details of MZ-N6E500BW

Capacity: 500GB

Form Factor: M.2 2280

Interface: SATA

Speed Reading: 550MB/s

Speed Writing: 520MB/s

Total Bytes Written (TBW): 300TB

Drive Writes Per Day (DWPD): 0.3290000000

Suitability: Consumer, Notebook

IOPS 4K Reading: 98K

IOPS 4K Writing: 90K

Memory Components: TLC

Special features: Shock Protection, IEEE 1667, TRIM Support, S.M.A.R.T., Garbage Collection Technology, TurboWrite technology, Samsung MJX Controller

Power Consumption Operation: 2.5W

Certificates: IEEE 1667, TCG Opal 2.0

Height: 2.38mm

Cache Memory: 512 MB

How long is the Warranty and how you can get technical support for MZ-N6E500BW

Warranty:	24 months (part)
RMA through customer:	yes
RMA Url:	https://www.samsung.com/us/support/service/
Description:	Items must be returned first; no advance replacements. Guaranteed repair or replacement times may vary by product type. On-site service is available for specific products such as large home appliances and large TVs.
