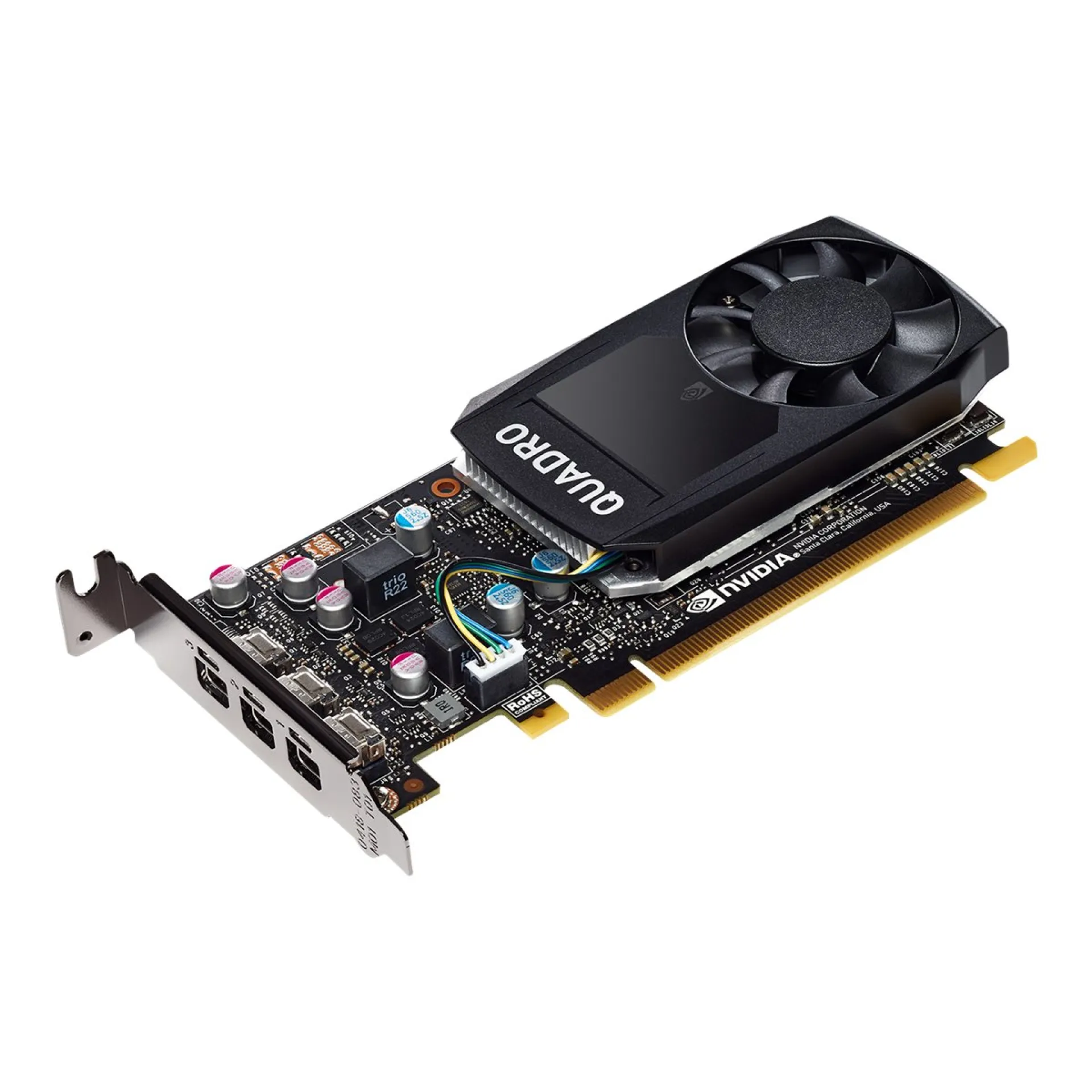

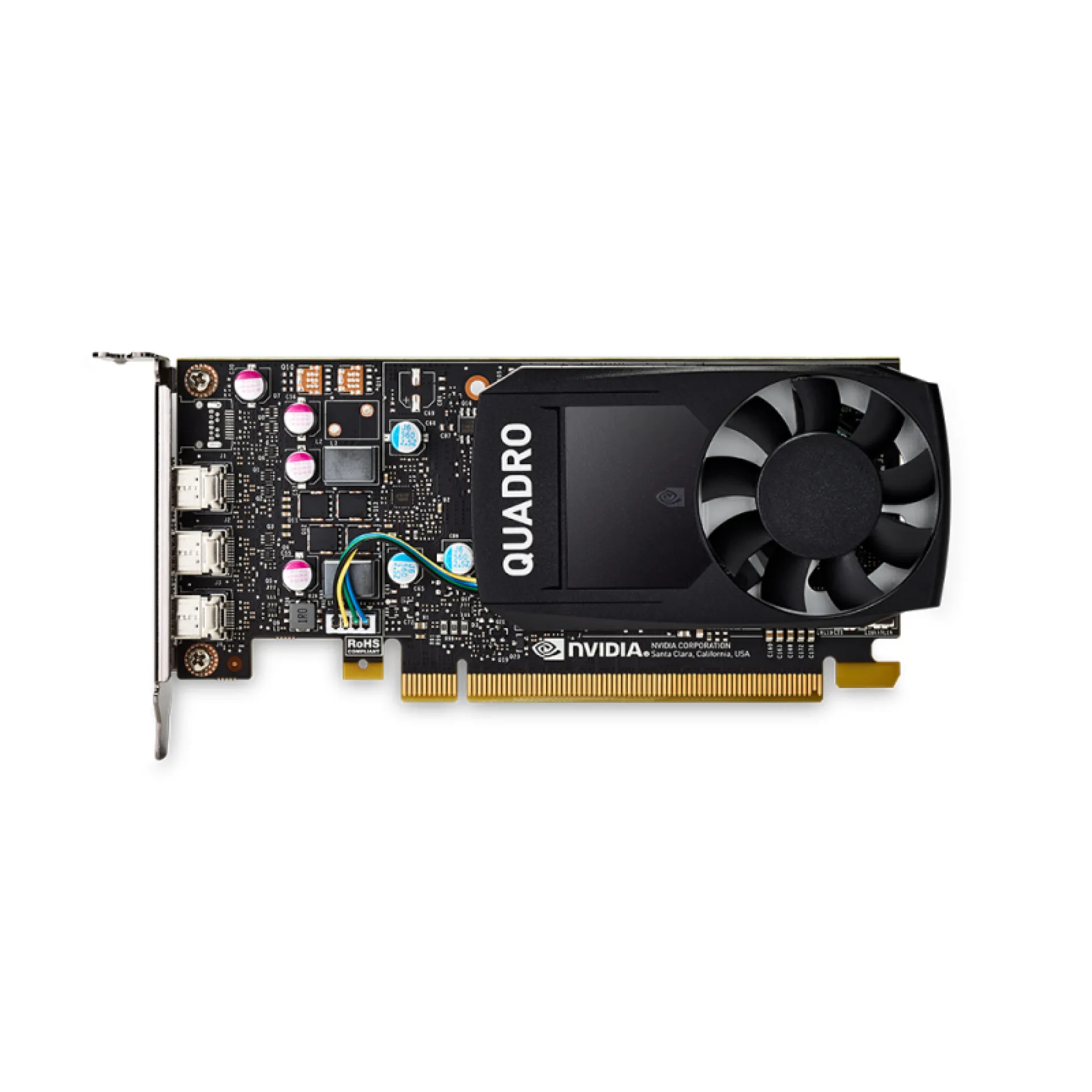

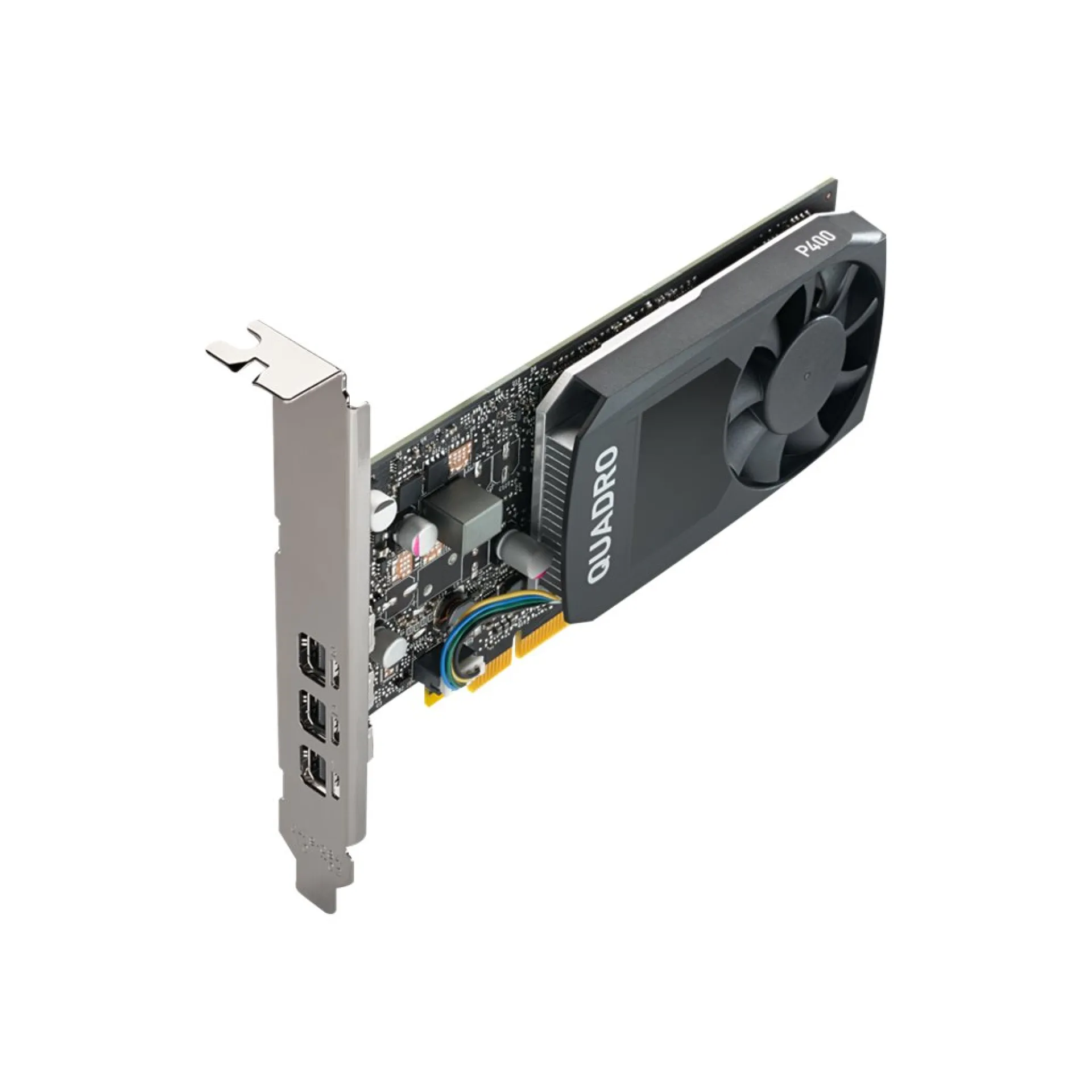

VCQP400V2-SB PNY Nvidia Quadro P400 2GB GDDR5 1170MHz 32GT/s Desktop GPU

Low-Profile Single-Slot Workstation GPU for Visualisation and Multi-Display with the VCQP400V2-SB

The VCQP400V2-SB is a PCIe 3.0 x16 add-in workstation GPU engineered for space-constrained systems that still require professional graphics stability and predictable driver behaviour. Based on NVIDIA Pascal, it delivers 256 CUDA cores with efficient boost behaviour and a 30W power profile, making it suitable for SFF workstations and dense edge deployments where thermal and power budgets are tightly managed.

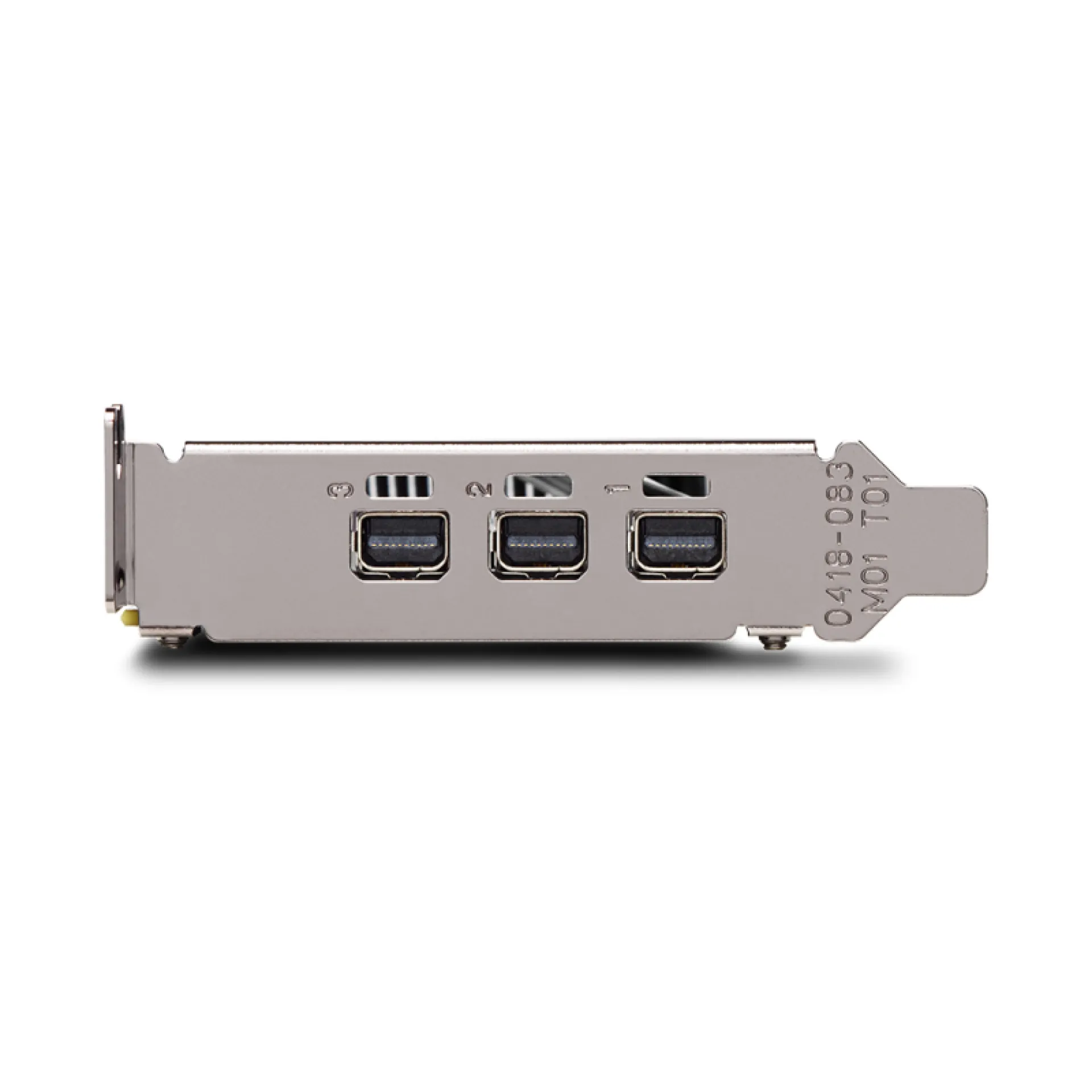

Its 2GB GDDR5 memory on a 64-bit interface provides the bandwidth needed for CAD/2D-3D viewport acceleration, UI-heavy engineering tools, and multi-display desktops without over-provisioning. The VCQP400V2-SB integrates three Mini DisplayPort 1.4 outputs and supports up to 5120 x 2880 resolution per display, enabling high-fidelity signage and control-room layouts, including NVIDIA Mosaic configurations. PCIe 3.0 connectivity ensures broad platform compatibility and deterministic expansion planning across mainstream workstation and server platforms.

Why Choose the VCQP400V2-SB?

The VCQP400V2-SB prioritises density-to-performance for professional visual workloads by combining a low-profile, single-slot mechanical design with enterprise-class APIs and content protection. It scales cleanly in multi-system rollouts where consistent display behaviour, reduced power draw, and straightforward serviceability are required, especially in rackmount edge nodes and compact workstations.

PNY focuses on validated workstation graphics implementations that align with modern data centre standards, emphasising reliable component sourcing, consistent firmware/driver integration, and long lifecycle stability for managed enterprise environments.

Key Applications:

• CAD and 2D/3D viewport acceleration
• Digital signage and video wall controllers
• Multi-display trading and operations desktops
• Space-constrained SFF workstations

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment requirements for the VCQP400V2-SB, and you can extend the warranty up to 6 years to protect long-term workstation and signage rollouts using the VCQP400V2-SB.
