VCG40608TFXXPB1 PNY Nvidia GeForce RTX 4060 8GB GDDR6 2460MHz 272GT/s Gaming GPU

Product line:

RTX 40 series

See all Video Editing GPUs

See other PNY products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH6G9564-955627

Manufacturer Number:

VCG40608TFXXPB1

Brand:

PNY

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

VCG40608TFXXPB1

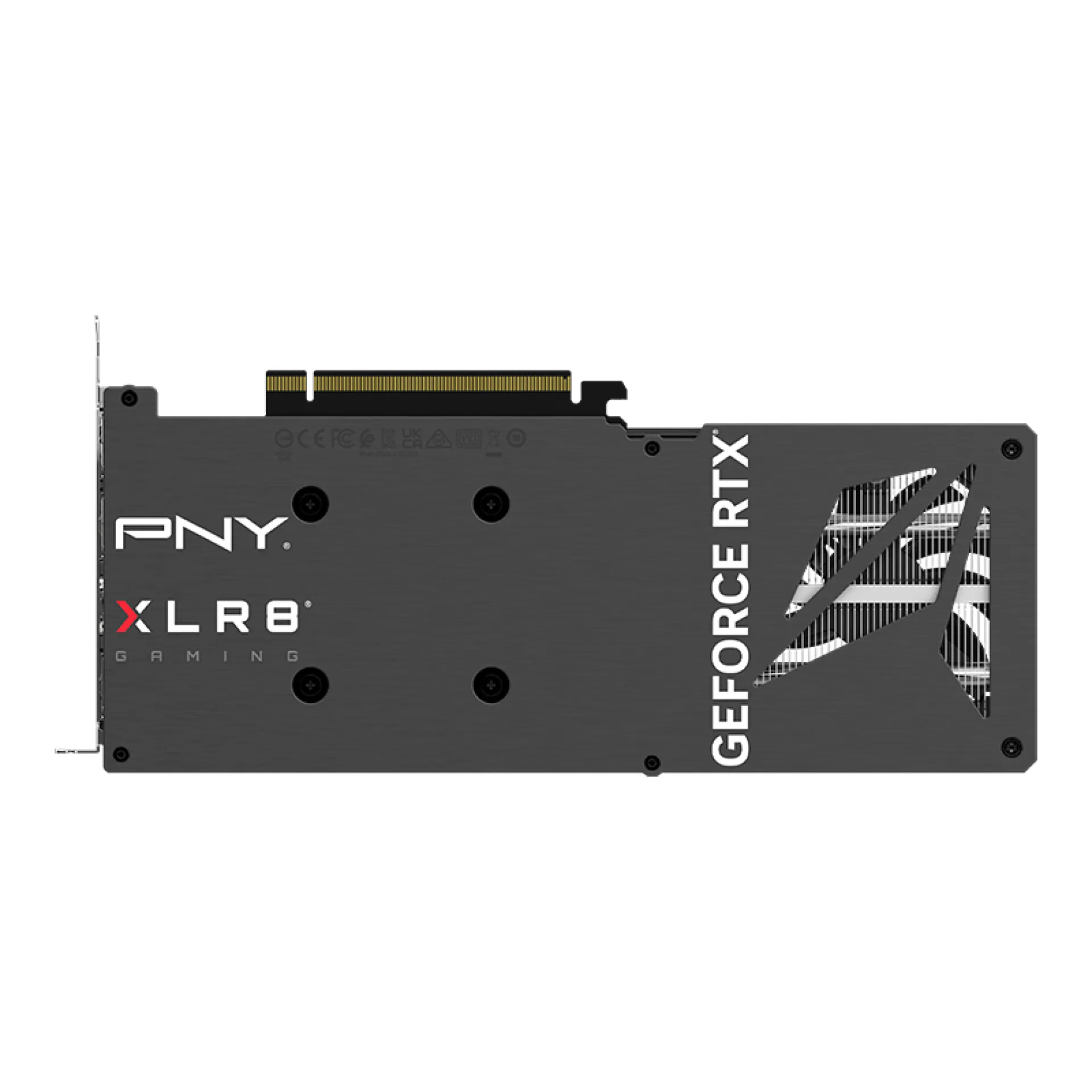

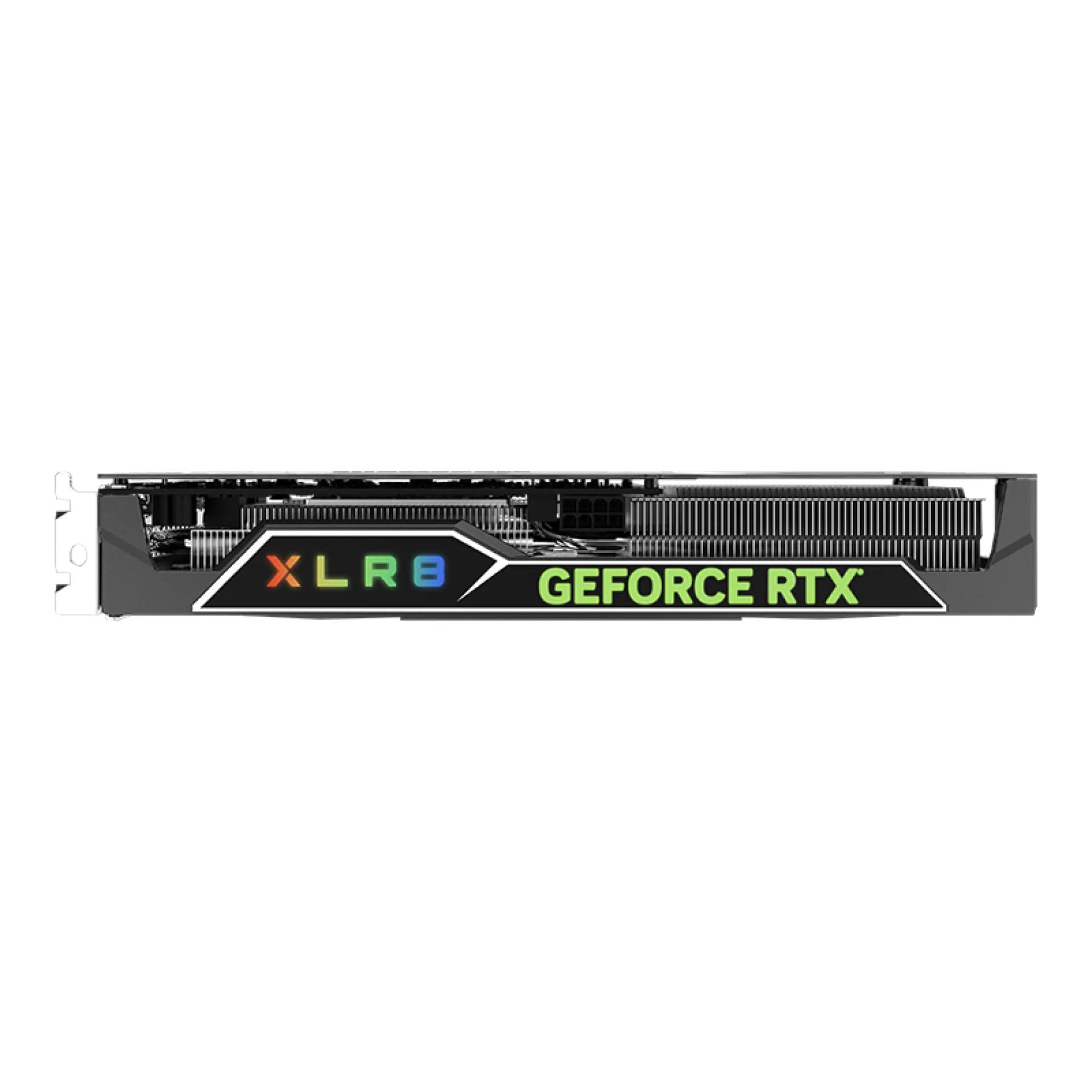

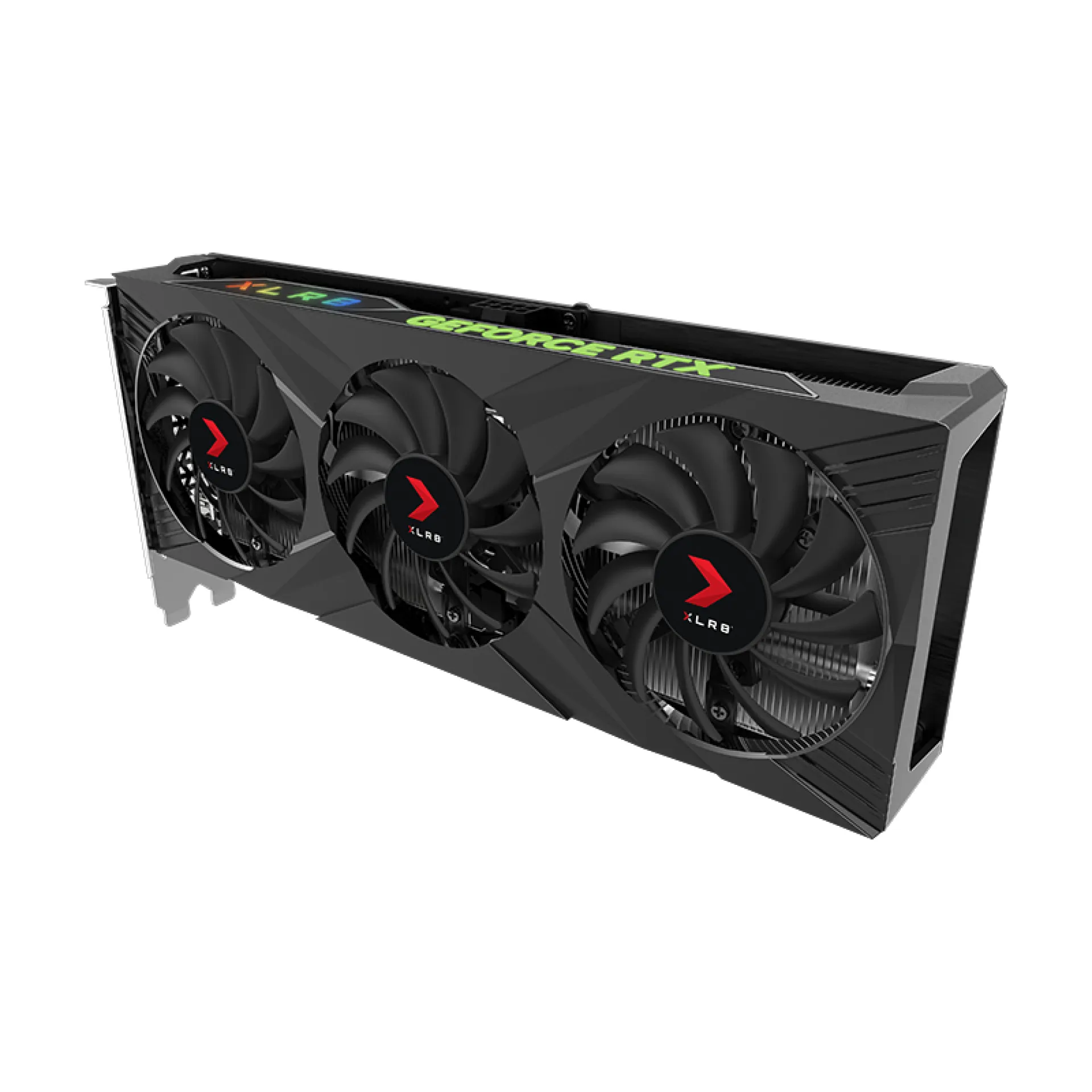

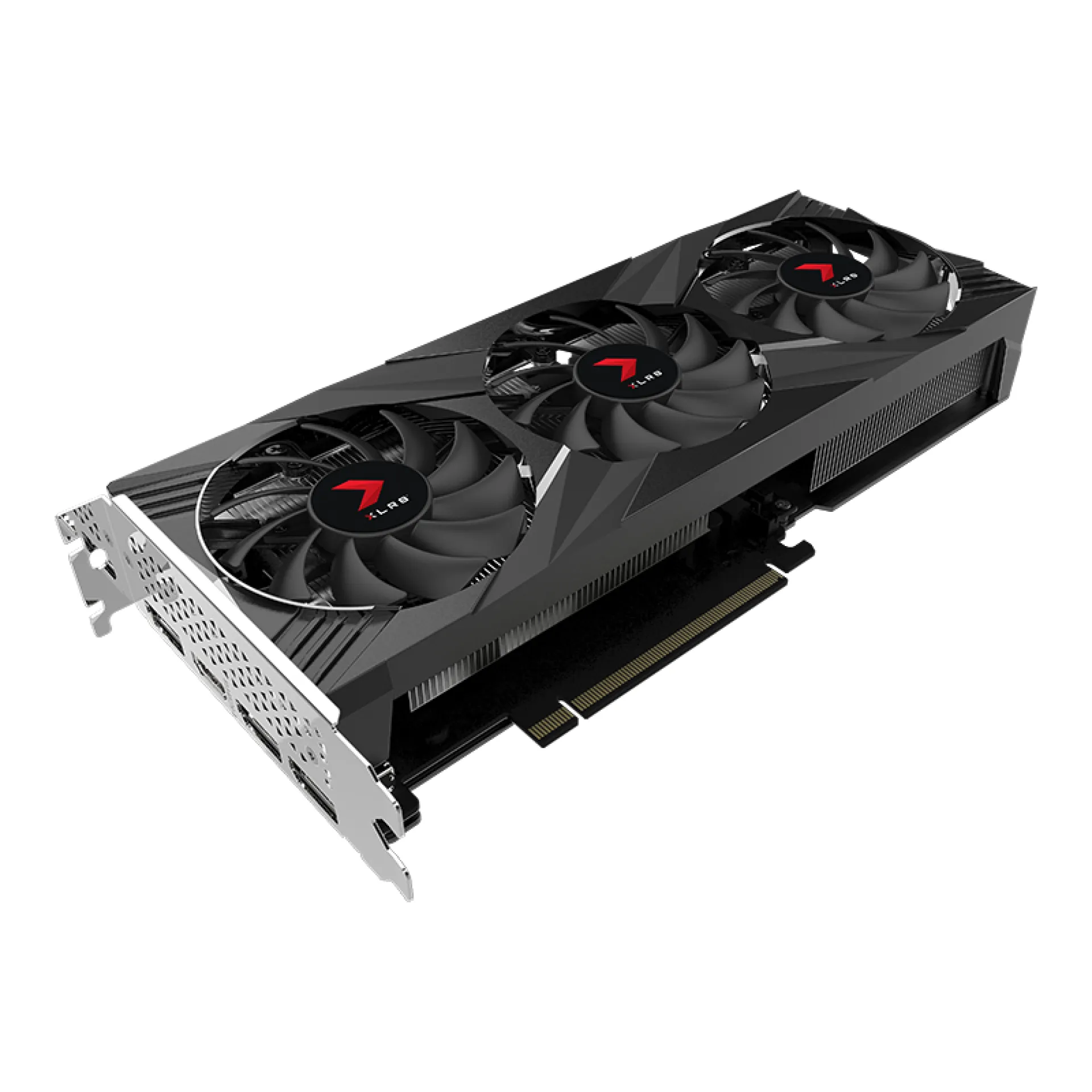

High-Performance Dual-Slot PCIe GPU Add-in Card for Ada Lovelace Acceleration with the VCG40608TFXXPB1

The VCG40608TFXXPB1 is a PNY PCIe GPU add-in card built on NVIDIA GeForce RTX 4060 (Ada Lovelace) to deliver efficient workstation-class graphics and compute in standard enterprise towers and rackmount GPU nodes. Its 5 nm architecture combines 3072 CUDA cores with 3rd Gen RT Cores and 4th Gen Tensor Cores, enabling predictable acceleration for visualization, media pipelines, and entry-scale AI development without requiring a specialized chassis.

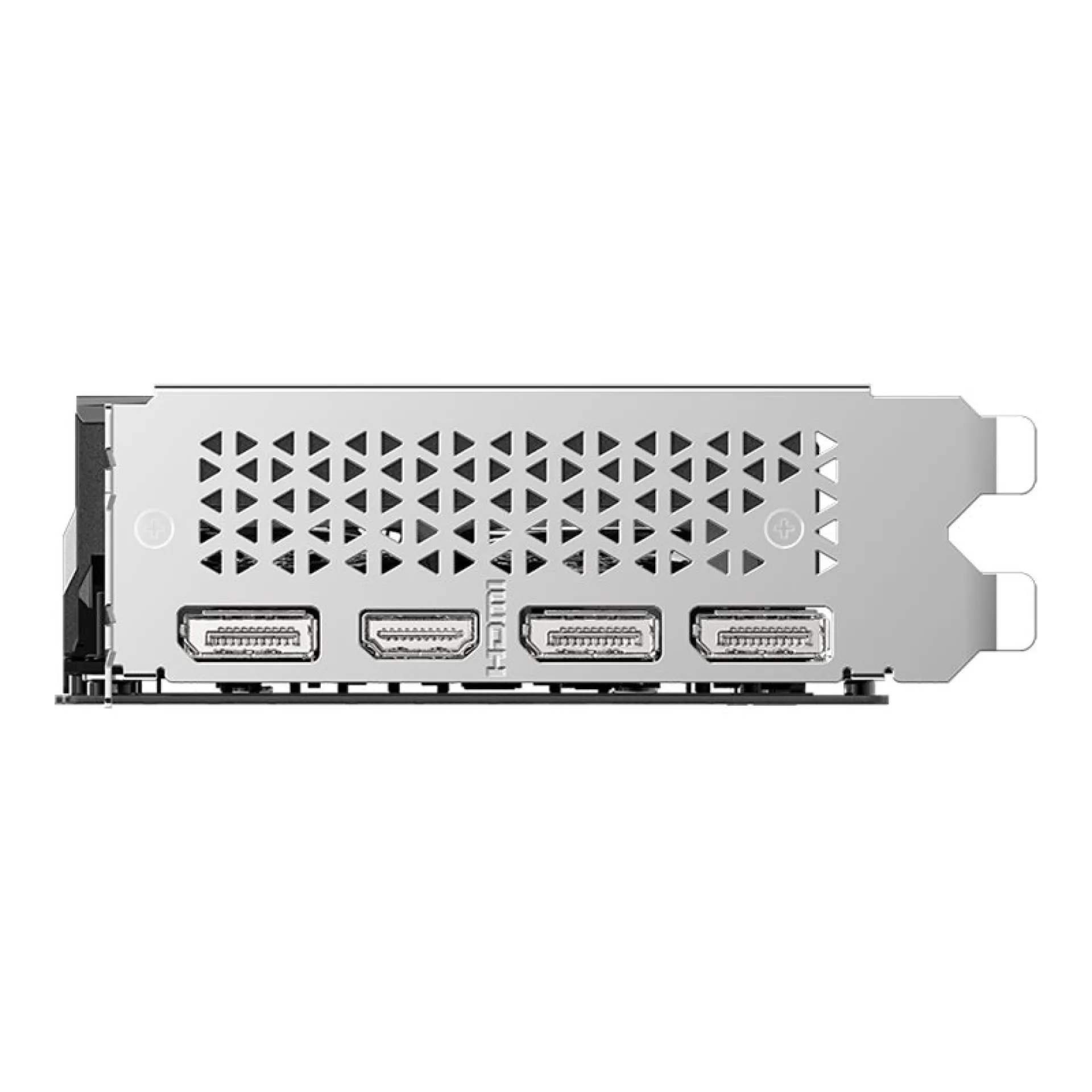

The VCG40608TFXXPB1 integrates 8GB GDDR6 on a 128-bit interface, providing a balanced memory subsystem for multi-app desktop density, GPU-assisted encoding, and CUDA experimentation. A PCIe 4.0 x16 mechanical interface (x8 electrical) supports modern server platforms while preserving expansion flexibility for NICs, storage HBAs, and additional GPUs. For endpoint-rich deployments, the card exposes 3x DisplayPort 1.4a and 1x HDMI 2.1a for up to 4 concurrent displays, supporting high-resolution dashboards and creative workflows with NVIDIA Studio driver alignment.

Why Choose the VCG40608TFXXPB1?

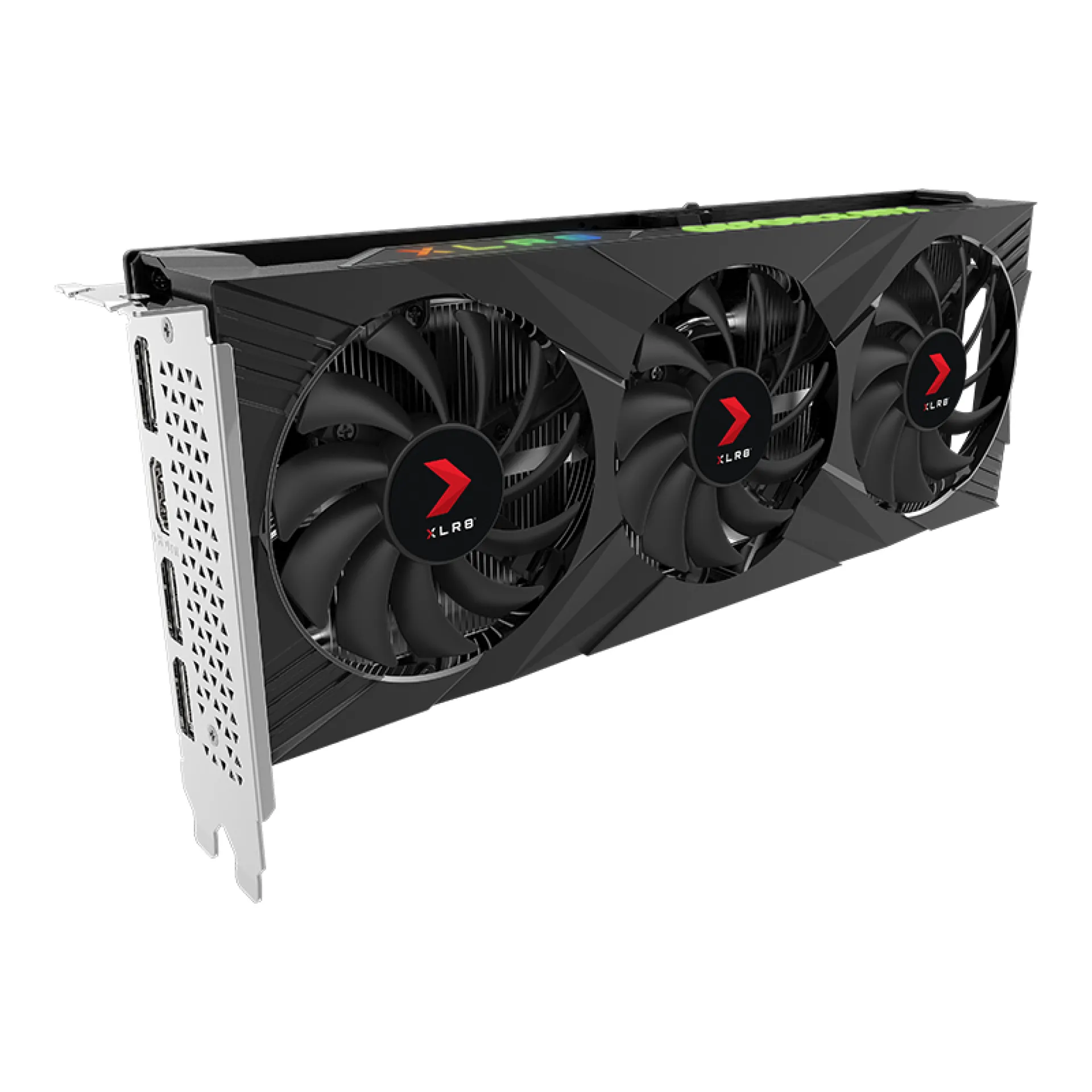

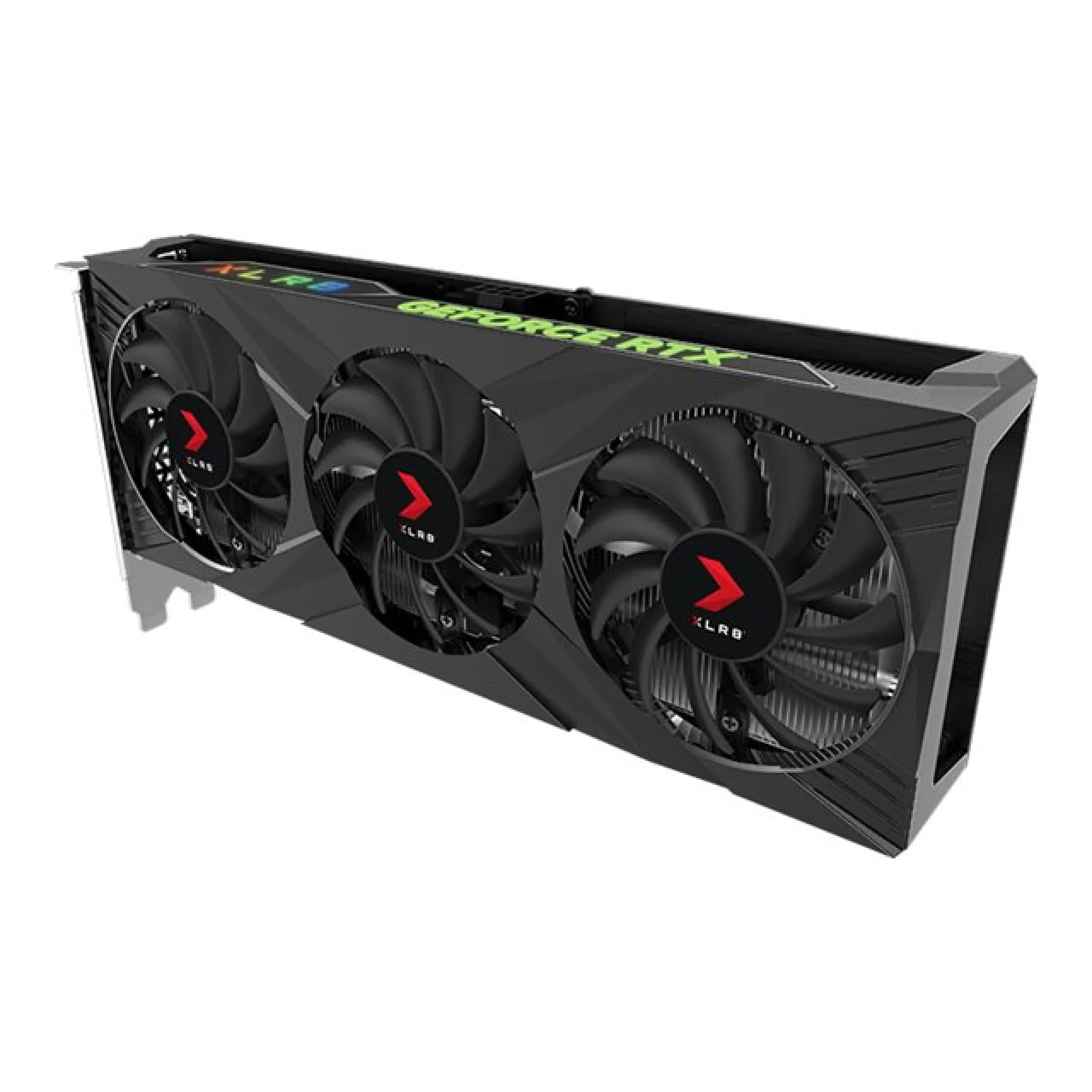

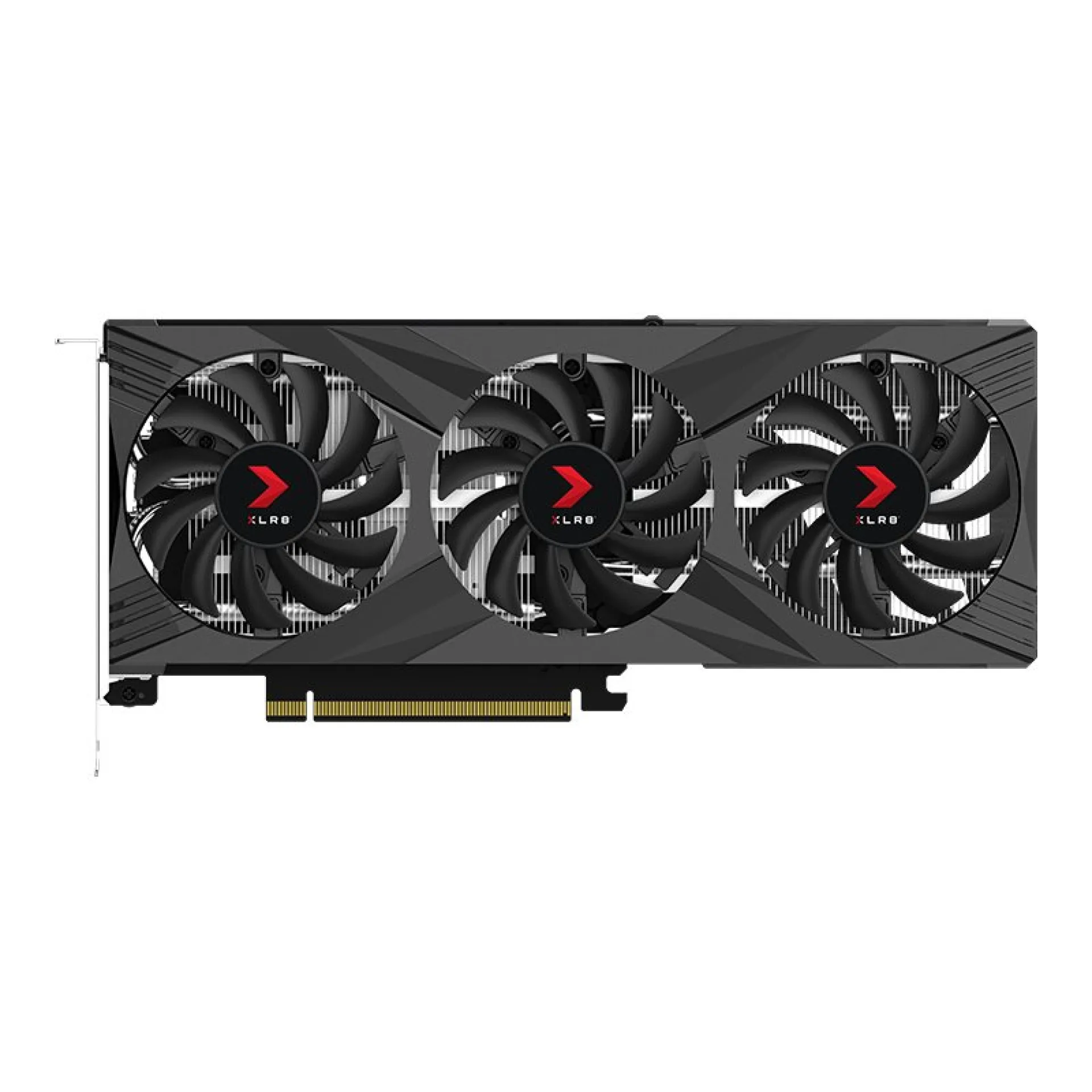

The VCG40608TFXXPB1 targets a strong density-to-performance ratio where IT teams need GPU capability per node without oversizing power and cooling. With 115W board power and a dual-slot, triple-axial-fan cooler, it fits common enterprise thermal envelopes while maintaining scalable deployment logic across VDI pods, content workstations, and compact inference labs.

PNY designs its add-in boards with an engineering focus on stable power delivery, validated thermals, and interoperability with contemporary PCIe platforms, aligning the VCG40608TFXXPB1 to operational consistency expected in managed data centre environments.

Key Applications:

VDI and multi-monitor knowledge worker acceleration
GPU-assisted video encoding and creative pipelines
Small-model inference and CUDA/Tensor Core prototyping
Visualization and real-time rendering workflows

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for the VCG40608TFXXPB1, and an extended warranty up to 6 years to secure long-term availability and service continuity for fleet deployments.

Technical details of VCG40608TFXXPB1

GPU Model: GeForce RTX 4060

Series: RTX 40 series

Memory Size: 8GB

Stream/CUDA Processors: 3072

Suitability: Gaming

Memory Type: GDDR6

Memory Bandwidth: 272GT/s

Base Clock: 1830MHz

Boost Clock: 2460MHz

FLOPS: 15.11 TFLOPS (FP16), 15.11 TFLOPS (FP32), 0.24 TFLOPS (FP64)

GPU slot width: Dual Slot

Architecture: Ada Lovelace

Form Factor: Full-Height

Resolution: 8K UHD (7680x4320)

Memory Interface: 128-bit

Chipset Manufacturer: NVIDIA

Manufacturing Process: 5nm

How long is the Warranty and how you can get technical support for VCG40608TFXXPB1

Warranty:	36 months (part)
RMA through customer:	yes
RMA Url:	https://www.pny.com/en-eu/legal/warranty-emea#:~:text=Period%20of%20warranty%3A,PNY%20GPU%20Servers%20%3A%203%20years
Description:	Items must be returned first. Standard return and replacement policy. No advance replacements or on-site service. In the first 12 Month should the RAM be handelt through the distributor.
