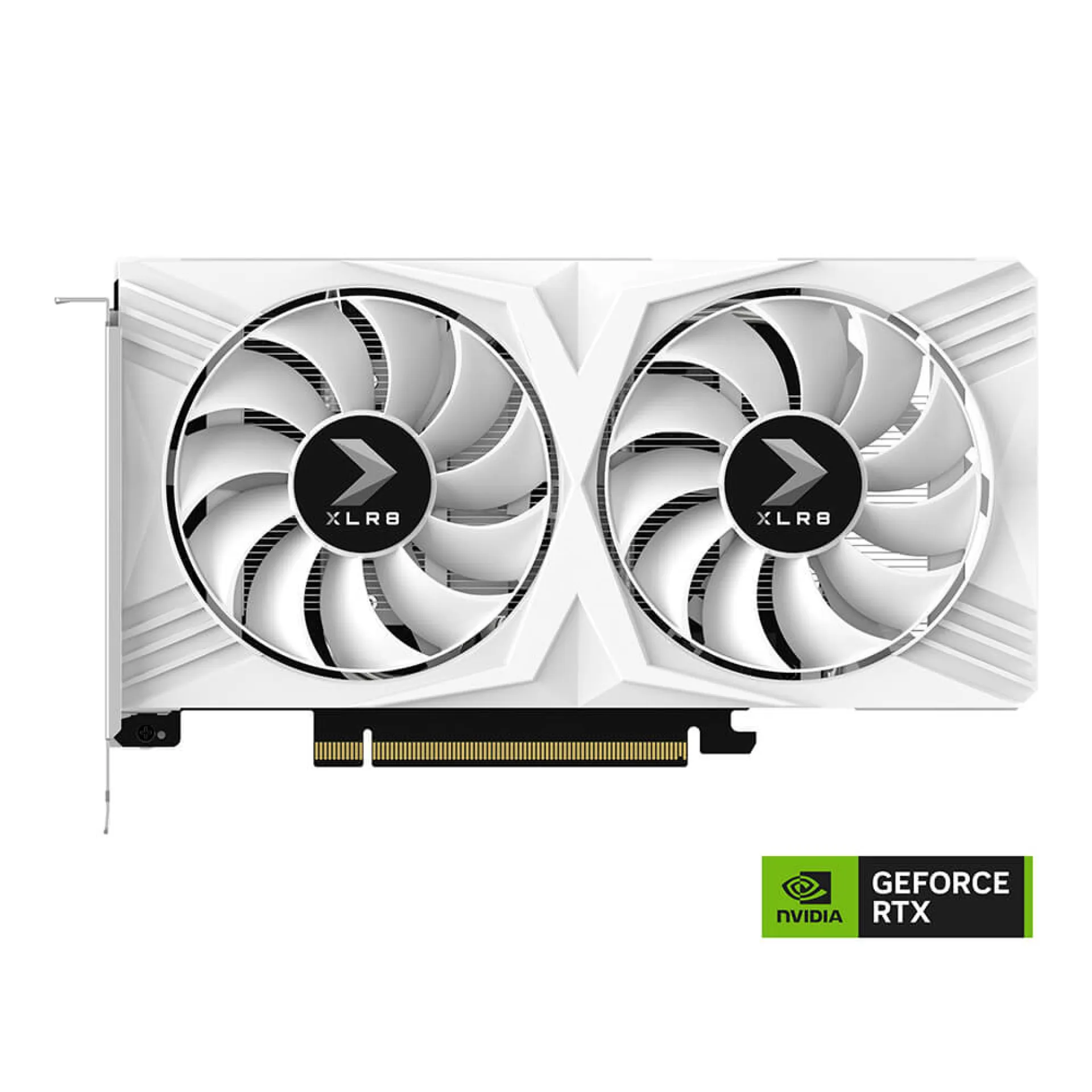

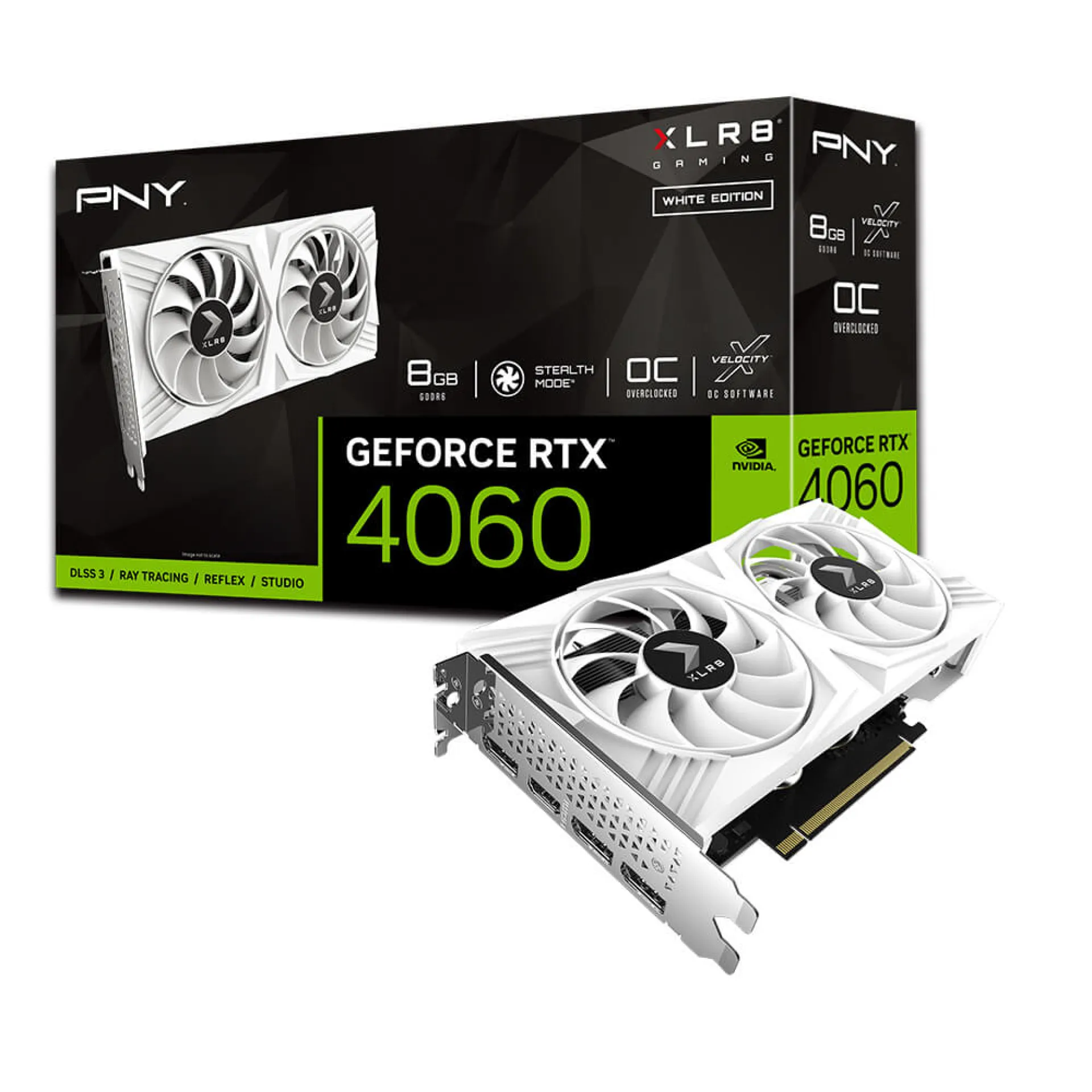

VCG40608DFWXPB1-O PNY Nvidia GeForce RTX 4060 8GB GDDR6 2475MHz 272GB/s GPU

High-Performance PCIe 4.0 Workstation GPU Add-in Card featuring Ada Lovelace efficiency with the VCG40608DFWXPB1-O

VCG40608DFWXPB1-O is a dual-slot, full-height PNY add-in graphics card designed to deliver predictable acceleration for CAD, light content creation, and CUDA-enabled development on modern workstation and edge server platforms. Based on NVIDIA GeForce RTX 4060 (Ada Lovelace, 4nm), VCG40608DFWXPB1-O provides 3072 CUDA cores with Tensor Core support, enabling responsive viewport performance and practical AI inference experimentation without over-provisioning power or space.

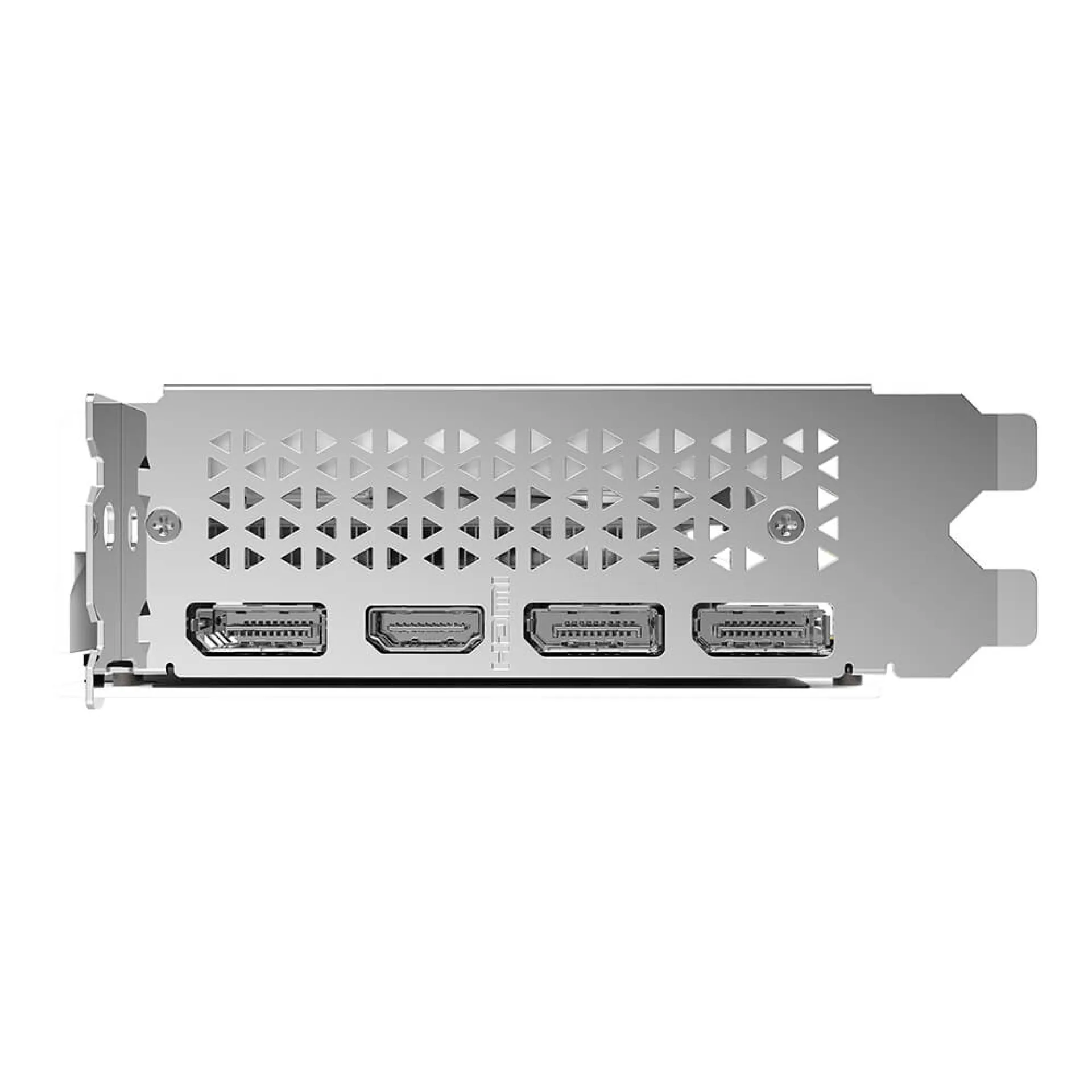

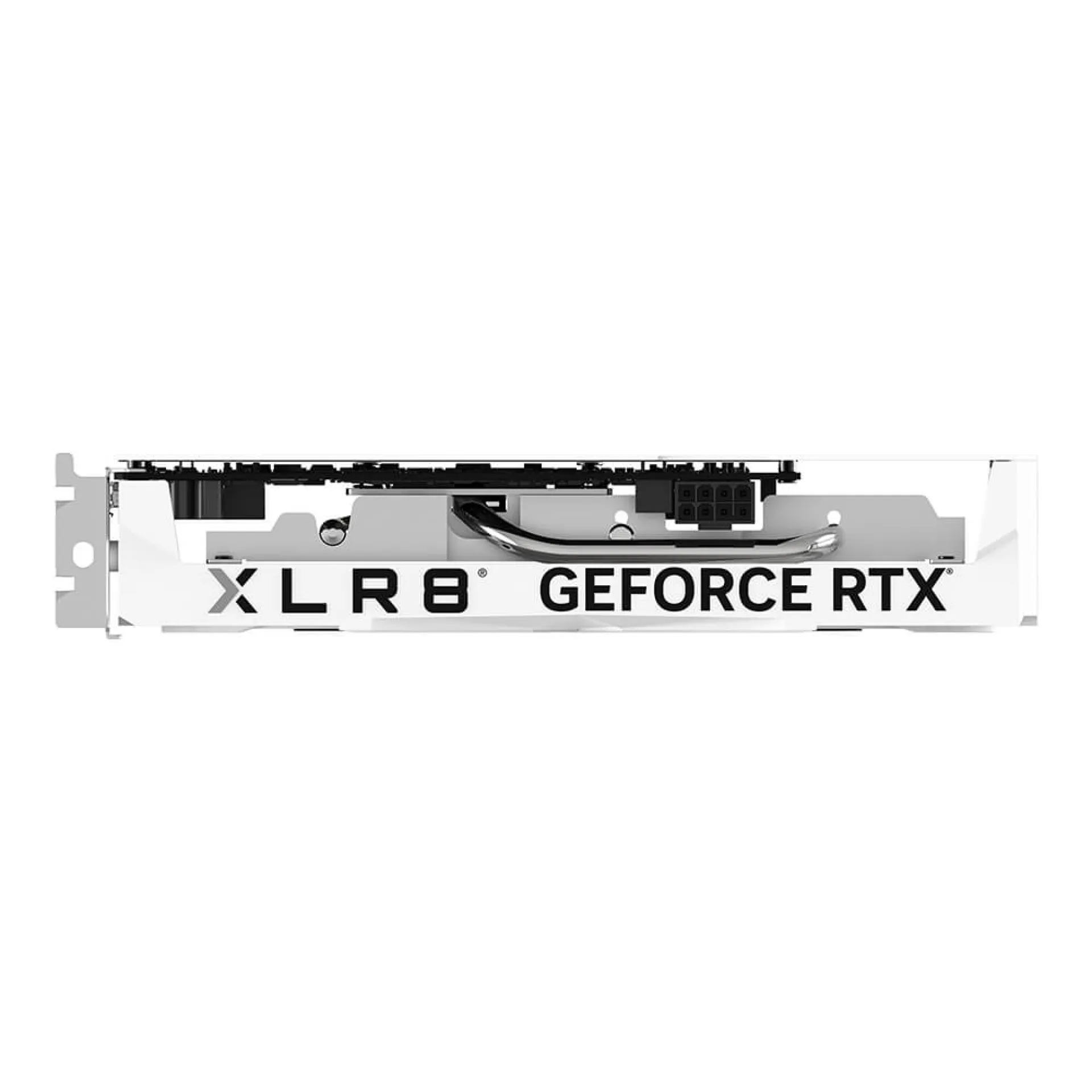

The 8GB GDDR6 memory subsystem on a 128-bit bus with 272GB/s bandwidth is tuned for consistent interactive workloads, GPU-accelerated rendering previews, and multi-application desktop pipelines. VCG40608DFWXPB1-O connects via PCIe 4.0 x8 (x16 mechanical), preserving PCIe lane budget for NVMe storage and high-speed networking in dense systems. For display and VDI endpoints, VCG40608DFWXPB1-O supports up to 4 outputs through 3x DisplayPort 1.4a and 1x HDMI 2.1a with HDCP, while the dual-fan heatsink and backplate help sustain clocks within typical workstation thermal envelopes at a 115W TDP using a single 8-pin PCIe connector.

Why Choose the VCG40608DFWXPB1-O?

VCG40608DFWXPB1-O is engineered for organizations that need GPU capability in standard chassis constraints, balancing density-to-performance for shared workstations, small form-factor towers, and edge deployments. VCG40608DFWXPB1-O integrates cleanly into PCIe 4.0 platforms, scales through repeatable card-level provisioning, and supports enterprise rollouts where stability, predictable power draw, and multi-display continuity are priorities.

PNY focuses on validated board design, controlled component selection, and manufacturing discipline to align with data centre and workstation operational standards, supporting consistent deployment outcomes across managed fleets.

Key Applications:

• CAD and 3D viewport acceleration
• Light content creation and GPU-accelerated editing
• CUDA development and AI inference prototyping
• Multi-monitor VDI and visualization endpoints

At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration and procurement requirements, helping you standardize VCG40608DFWXPB1-O across teams with clear delivery and deployment planning.
