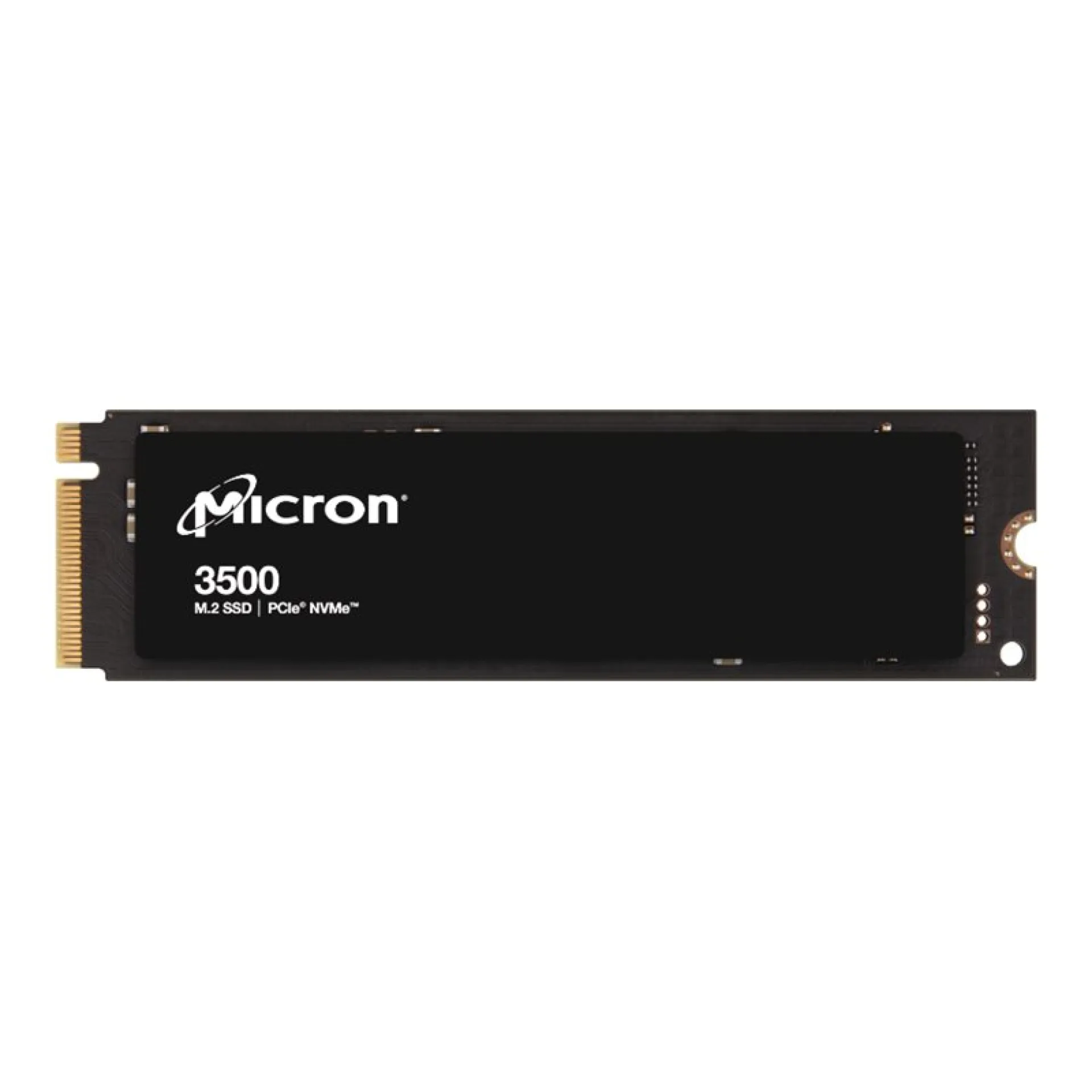

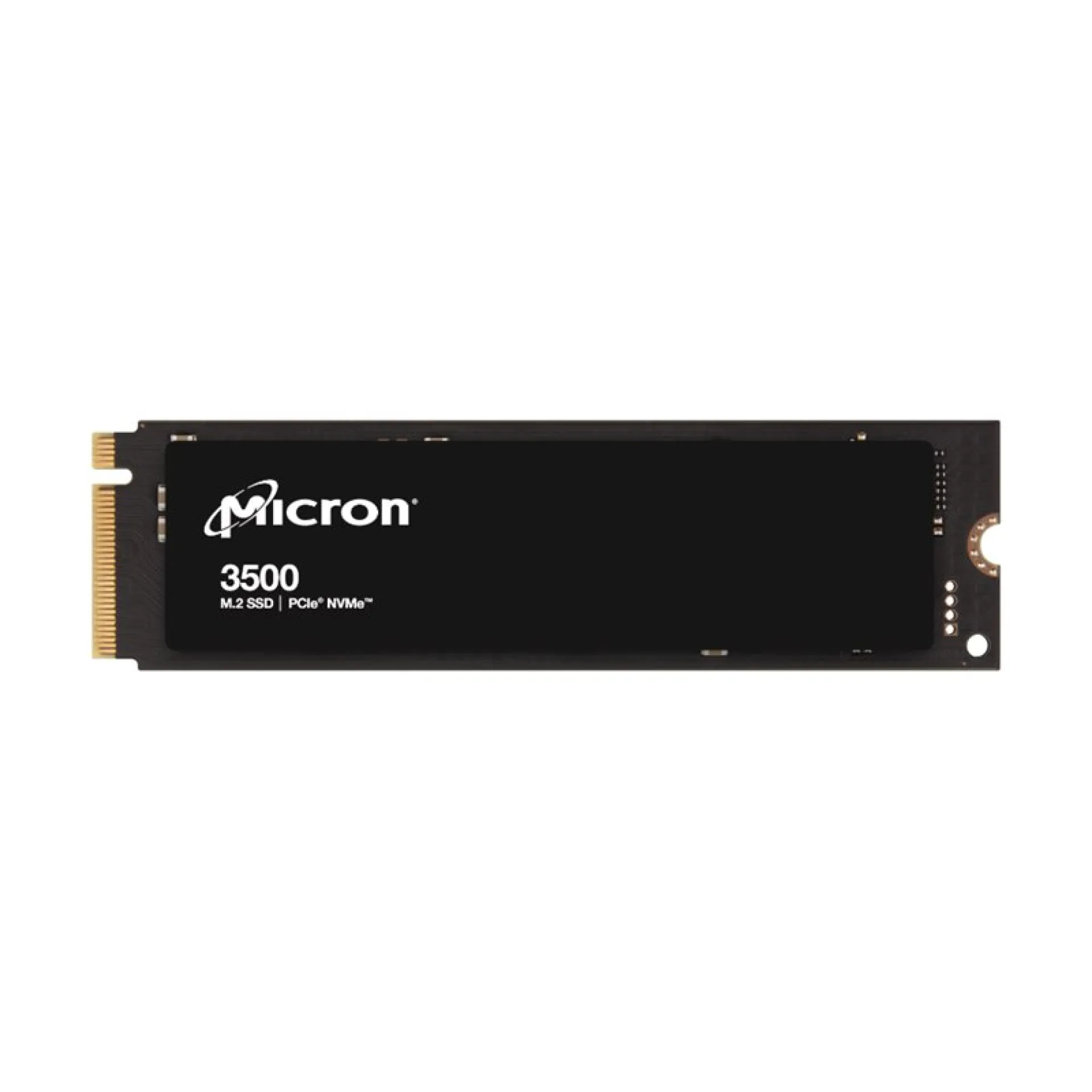

MTFDKBA512TGD-1BK1AABYYR Micron 3500 512GB PCIe 4.0 M.2 2280 Consumer SSD

*Picture may not be exactly the same as the product

Product line:

3500

See all HDDs / SSDs

See other Micron products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH9M2885-248062

Manufacturer Number:

MTFDKBA512TGD-1BK1AABYYR

Brand:

Micron

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MTFDKBA512TGD-1BK1AABYYR

High-Performance M.2 2280 NVMe SSD featuring PCIe Gen4 x4 throughput with the MTFDKBA512TGD-1BK1AABYYR

The MTFDKBA512TGD-1BK1AABYYR is a Micron 3500 Series internal M.2 NVMe SSD engineered for compact boot/OS and read-optimised cache roles in modern server and appliance platforms. In PCIe Gen4-capable CPU architectures, it delivers low-latency storage close to the compute complex, supporting fast provisioning, OS responsiveness, and rapid service recovery without consuming front-bay capacity.

Built on TLC NAND with NVMe 2.0 over PCIe Gen4 x4, the MTFDKBA512TGD-1BK1AABYYR aligns with dense systems where PCIe lane budgets and thermal envelopes matter. It supports sequential performance up to 7000 MB/s read and 5100 MB/s write, plus strong 4K random capability for metadata-heavy workloads. With 0.32 DWPD endurance, it is optimised for low-to-moderate write profiles such as boot, logging, content indexing, and read-mostly acceleration while maintaining predictable behaviour under sustained queue depth.

Why Choose the MTFDKBA512TGD-1BK1AABYYR?

The MTFDKBA512TGD-1BK1AABYYR provides a pragmatic density-to-performance balance for enterprise IT teams standardising on PCIe Gen4 NVMe across fleets. Its 512GB capacity targets OS images, hypervisor boot banks, and edge appliance footprints, while 2.0M hours MTBF and controlled power characteristics support reliable scale-out deployments in space- and power-constrained nodes.

Micron designs the 3500 Series with an enterprise reliability mindset, combining validated controller/firmware integration with consistent NAND management. The MTFDKBA512TGD-1BK1AABYYR adds platform-aligned security and manageability features including Secure Boot, digitally signed firmware, TCG Pyrite, S.M.A.R.T., device self-test, TRIM, and firmware upgradability to meet modern data centre governance requirements.

Key Applications:

Server boot and OS volumes
Hypervisor boot banks
Read-optimised caching tiers
Edge and network appliances
Secure infrastructure deployments

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for the MTFDKBA512TGD-1BK1AABYYR, and extended warranty options up to 6 years to protect long-lived infrastructure investments.

Technical details of MTFDKBA512TGD-1BK1AABYYR

Capacity: 512GB

Form Factor: M.2 2280

Interface: PCIe 4.0

Speed Reading: 7000MB/s

Speed Writing: 5100MB/s

Total Bytes Written (TBW): 300TB

Drive Writes Per Day (DWPD): 0.3200000000

Suitability: Server

IOPS 4K Reading: 680K

IOPS 4K Writing: 700K

Memory Components: TLC

Special features: End-to-End Data Protection, TRIM Support, S.M.A.R.T., NVM Express (NVMe), Digitally Signed Firmware, TCG Pyrite, Secure Boot, dynamic write acceleration, Host Controlled Thermal Management (HCTM), RAID Support, Device Self-test, Wear Leveling, Upgradable Firmware, Power Loss Protection (PLP)

Power Consumption Operation: 8.25W

Certificates: FCC, UKCA, UL, RCM, BSMI, VCCI, TUV, IC, UkrSEPRO, cUL

Height: 0.485cm

How long is the Warranty and how you can get technical support for MTFDKBA512TGD-1BK1AABYYR

Warranty:	36 months (part)
RMA Url:	https://www.micron.com/sales-support/sales/returns-and-warranties
Description:	Standard RMA processing requires an item to be returned first. No Advanced replacement as an option.
