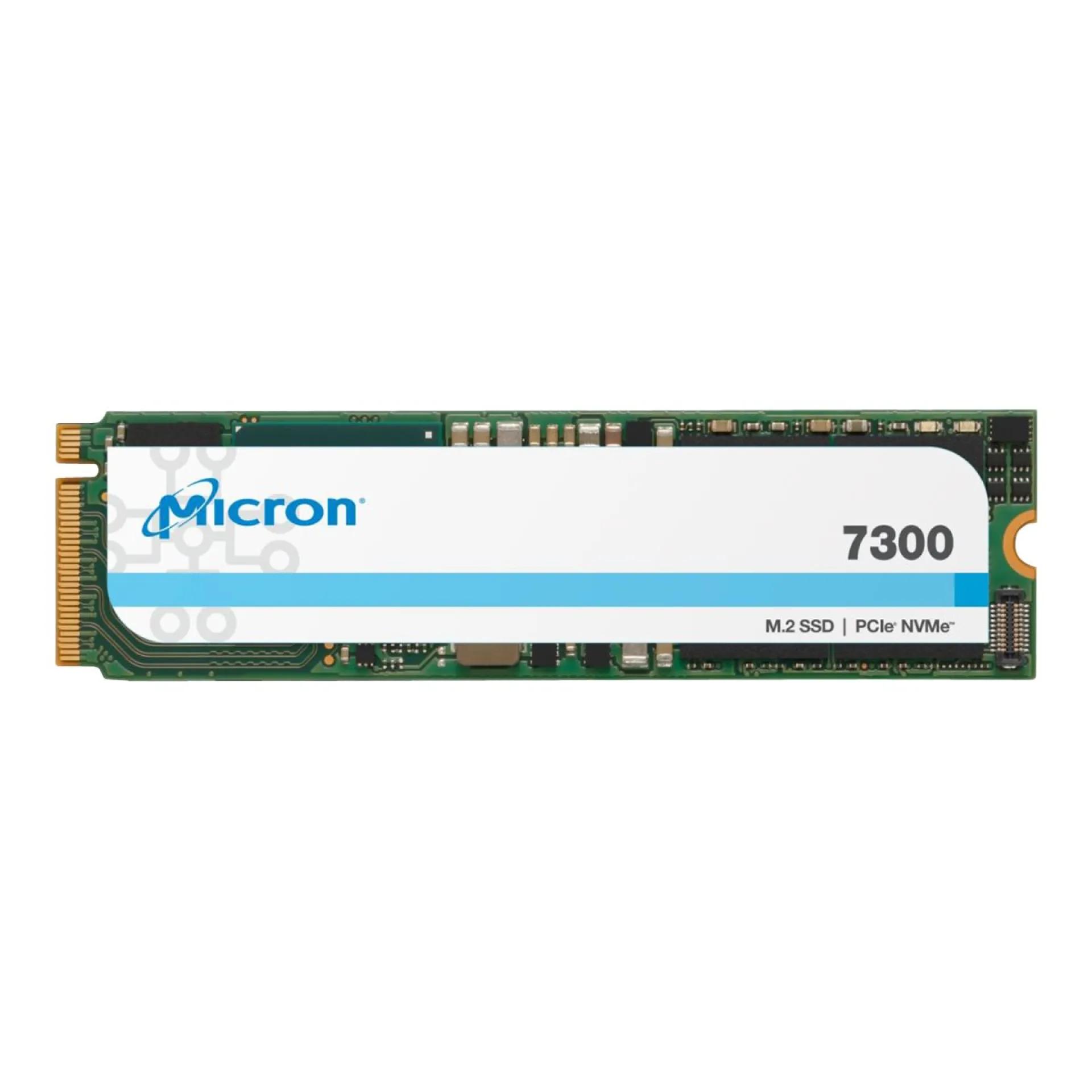

MTFDHBA800TDG-1AW1ZABYY Micron 7300 MAX 800GB PCIe 3.0 M.2 2280 Server SSD

*Picture may not be exactly the same as the product

Product line:

7300 MAX

See all M.2 SSDs

See other Micron products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH8M2254-285226

Manufacturer Number:

MTFDHBA800TDG-1AW1ZABYY

Brand:

Micron

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MTFDHBA800TDG-1AW1ZABYY

High-Performance M.2 2280 NVMe Enterprise SSD featuring PLP and SED security with the MTFDHBA800TDG-1AW1ZABYY

The MTFDHBA800TDG-1AW1ZABYY is an enterprise-class Micron 7300 MAX Series M.2 NVMe SSD designed for server platforms that require onboard flash with predictable behavior under mixed read/write conditions. Built on 3D TLC NAND and tuned for boot, cache, and write-intensive metadata paths, it supports consistent low-latency access patterns in virtualisation hosts and database logging tiers.

MTFDHBA800TDG-1AW1ZABYY connects via PCIe Gen3 x4 (M-Key) to integrate cleanly into modern x86 server and edge compute designs where PCIe lanes and thermal envelopes are constrained. Its architecture prioritises data integrity through power-loss protection and end-to-end data path protection, while RAIN-style redundancy features strengthen fault tolerance inside the flash translation layer. The SED design with AES-256 hardware encryption enables policy-driven drive sanitisation and secure provisioning without CPU overhead.

Why Choose the MTFDHBA800TDG-1AW1ZABYY?

MTFDHBA800TDG-1AW1ZABYY delivers a practical density-to-performance ratio in the M.2 form factor for platforms that cannot accommodate U.2/U.3 bays yet still require enterprise endurance and controlled failure domains. With 3 DWPD endurance, PLP-backed write completion, and enterprise telemetry, it scales from single-node appliances to high-volume server fleets where standardized boot media and resilient cache tiers reduce operational variance.

Micron applies a reliability-first engineering approach with conservative qualification, consistent firmware behavior, and alignment to data centre validation practices. For the Micron 7300 MAX family, this translates into stable QoS, long-life flash management, and security features that fit regulated environments.

Key Applications:

Server boot drives for rack and edge systems
Read/write caching tiers in virtualised hosts
Database logging and journaling volumes
Embedded NVMe storage for appliances

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment quantities for MTFDHBA800TDG-1AW1ZABYY and an extended warranty option up to 6 years to align the SSD lifecycle with your server refresh and support model.

Technical details of MTFDHBA800TDG-1AW1ZABYY

Capacity: 800GB

Form Factor: M.2 2280

Interface: PCIe 3.0

Speed Reading: 2400MB/s

Speed Writing: 700MB/s

Total Bytes Written (TBW): 4500TB

Drive Writes Per Day (DWPD): 3.0000000000

Suitability: Server

Encryption: Yes

IOPS 4K Reading: 220K

IOPS 4K Writing: 60K

Memory Components: TLC

Special features: End-to-End Data Protection, Hot Plug, RAID Support, Power Loss Protection (PLP)

Power Consumption Operation: 8.25W

Certificates: RoHS, FCC, WEEE, RCM, BSMI, KCC, VCCI, ICES, Morocco, TUV, AES-256, UkrSEPRO

How long is the Warranty and how you can get technical support for MTFDHBA800TDG-1AW1ZABYY

Warranty:	36 months (part)
RMA Url:	https://www.micron.com/sales-support/sales/returns-and-warranties
Description:	Standard RMA processing requires an item to be returned first. No Advanced replacement as an option.
