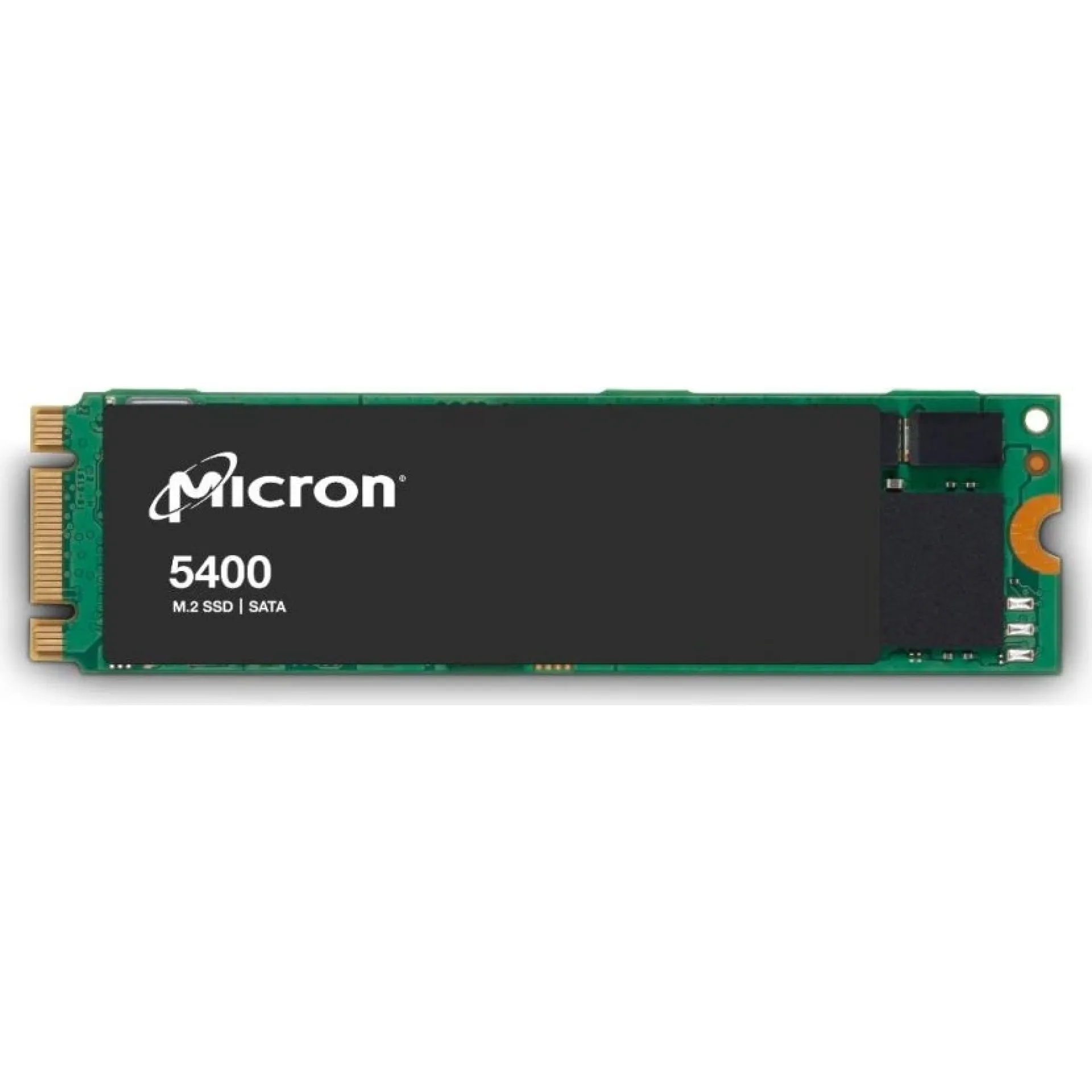

MTFDDAV480TGA-1BC15ABYYR Micron 5400 PRO 480GB SATA M.2 2280 Server SSD

Enterprise M.2 2280 SATA SSD for Read-Intensive Boot and Cache Tiers with the MTFDDAV480TGA-1BC15ABYYR

The Micron MTFDDAV480TGA-1BC15ABYYR is an enterprise SATA SSD in an M.2 2280 form factor engineered for consistent boot, cache, and OS-volume duties in servers and embedded appliances. As a 480GB Micron 5400 PRO drive using TLC NAND, it targets read-heavy profiles where predictable latency and steady-state behavior matter more than peak write throughput, while maintaining 24x7 continuous operation characteristics.

Designed for SATA host connectivity via a B+M key interface, the MTFDDAV480TGA-1BC15ABYYR integrates cleanly into platforms with constrained PCIe lane budgets, reserving PCIe expansion for GPUs, NVMe storage tiers, or high-speed networking. With sequential performance up to 540 MB/s read and 520 MB/s write and random performance up to 95K/37K IOPS (4K read/write), the MTFDDAV480TGA-1BC15ABYYR supports fast system start, responsive VDI images, and stable metadata or caching layers. Enterprise safeguards such as power loss protection and an endurance rating of 1.5 DWPD over 5 years (1320 TBW) align it with sustained operational cycles.

Why Choose the MTFDDAV480TGA-1BC15ABYYR?

The MTFDDAV480TGA-1BC15ABYYR provides a pragmatic density-to-performance ratio for boot and read-intensive tiers, enabling scalable deployments without over-allocating PCIe resources. Its enterprise reliability profile, including 3M hours MTTF and power-loss resilience, supports standardized rollouts across clustered servers and appliance fleets where uniform behavior and service continuity are critical.

Micron designs the 5400 PRO family with data center operational discipline, combining validated firmware, consistent component sourcing, and security-aligned feature sets that map to modern compliance requirements. The MTFDDAV480TGA-1BC15ABYYR further strengthens endpoint and server integrity with SED capabilities, AES-256 encryption, and TCG Opal support for policy-based drive management.

Key Applications:

• Server boot and OS volumes
• Cache tiers for appliances
• Read-heavy databases
• VDI and virtualization images
• Secure enterprise endpoints

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout plan for the MTFDDAV480TGA-1BC15ABYYR, helping you standardize configurations efficiently across projects. For multi-node deployments, bulk order discount options support cost-controlled scaling without compromising enterprise procurement requirements.
