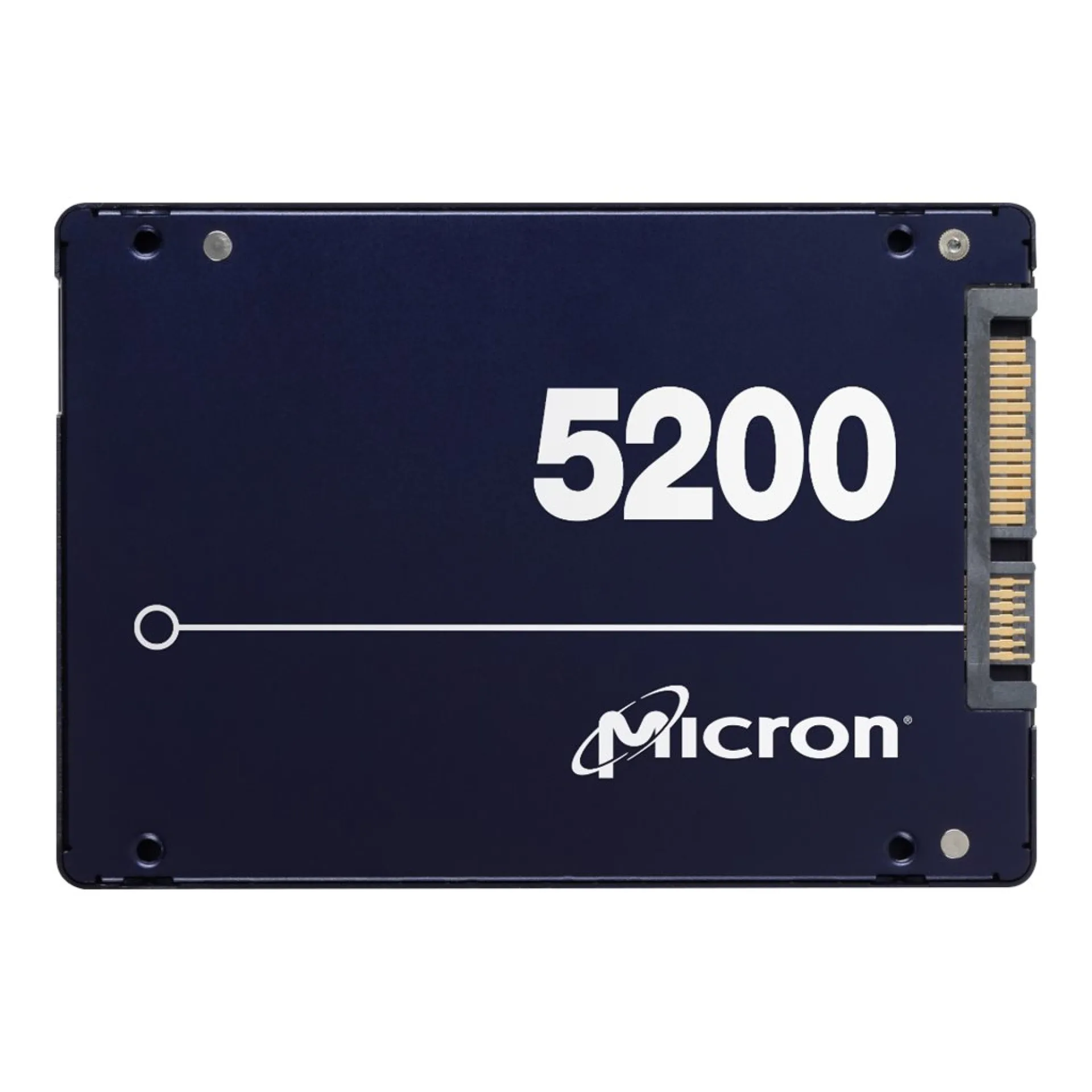

MTFDDAK240TDN-1AT1ZABYY Micron 5200 MAX 240GB SATA 2.5" Server SSD

*Picture may not be exactly the same as the product

Product line:

Micron 5200 MAX

See all SATA SSDs

See other Micron products

This product is currently not priced. Request a personalized quote now.

In stock

Happyware Article Number:

SH827205-249429

Manufacturer Number:

MTFDDAK240TDN-1AT1ZABYY

Brand:

Micron

Are you a reseller?

Do you have questions about this product MTFDDAK240TDN-1AT1ZABYY?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

MTFDDAK240TDN-1AT1ZABYY

High-Performance 2.5-inch Enterprise SATA SSD featuring power-loss protection with the MTFDDAK240TDN-1AT1ZABYY

MTFDDAK240TDN-1AT1ZABYY is a Micron 5200 MAX enterprise SATA SSD engineered as a resilient 2.5-inch, hot-plug internal drive for server boot volumes and read-centric application tiers where deterministic behavior matters more than peak interface bandwidth. Using TLC NAND with an endurance profile aligned to sustained write cycles, it supports mixed-write VM footprints and database logging while maintaining consistent QoS on SATA 6Gb/s backplanes.

In modern CPU platforms with high PCIe lane counts, MTFDDAK240TDN-1AT1ZABYY is typically deployed as a dedicated OS or tier-2 device to preserve NVMe resources for latency-critical datasets. Its end-to-end data path protection and integrated power-loss protection mitigate in-flight data risks during abrupt power events, while AES-256 hardware encryption and secure erase support data-at-rest controls without consuming host CPU resources. The hot-swap design simplifies serviceability in dense racks and remote edge nodes, reducing maintenance windows and accelerating node recovery.

Why Choose the MTFDDAK240TDN-1AT1ZABYY?

MTFDDAK240TDN-1AT1ZABYY provides an enterprise-validated balance of endurance, protection features, and predictable SATA interoperability for fleets that still standardize on 2.5-inch hot-plug bays. It enables a clean deployment model: isolate boot and logging duties on a drive built for sustained writes, keep higher-cost PCIe storage for primary data, and scale consistently across heterogeneous server generations.

Micron designs its data center SSDs with a focus on controlled firmware behavior, NAND management, and qualification for 24/7 operation. The platform aligns with common enterprise requirements for reliability, encryption, and power-event robustness in virtualized and distributed environments.

Key Applications:

Server OS boot and hypervisor volumes
VM infrastructure and mixed-write tiers
Database journaling and log workloads
Edge and remote deployments with PLP requirements

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your needs and the option to extend the warranty up to 6 years, supporting predictable lifecycle planning for deployments based on the MTFDDAK240TDN-1AT1ZABYY.

Technical details of MTFDDAK240TDN-1AT1ZABYY

Capacity:

240GB

Form Factor:

2.5"

Interface:

SATA

Speed Reading:

540MB/s

Speed Writing:

310MB/s

Total Bytes Written (TBW):

2200TB

Drive Writes Per Day (DWPD):

Suitability:

Server

Encryption:

Yes

Mean Time Between Failures (MTBF):

3000000

Special features:

End-to-End Data Protection Native Command Queuing (NCQ) S.M.A.R.T. Hot Plug Dynamic Wear Leveling upgradable firmware Static Wear Leveling Secure Erase Power Loss Protection (PLP)

Power Consumption Operation:

3.6W

Certificates:

RoHS WEEE BSMI KCC VCCI FCC Part 15 B ICES-003 IEC 60950-1 Second Edition KN32 KN35

Recording Process:

TLC

Height:

7mm

How long is the Warranty and how you can get technical support for MTFDDAK240TDN-1AT1ZABYY

Warranty:	36 months (part)
RMA Url:	https://www.micron.com/sales-support/sales/returns-and-warranties
Description:	Standard RMA processing requires an item to be returned first. No Advanced replacement as an option.
