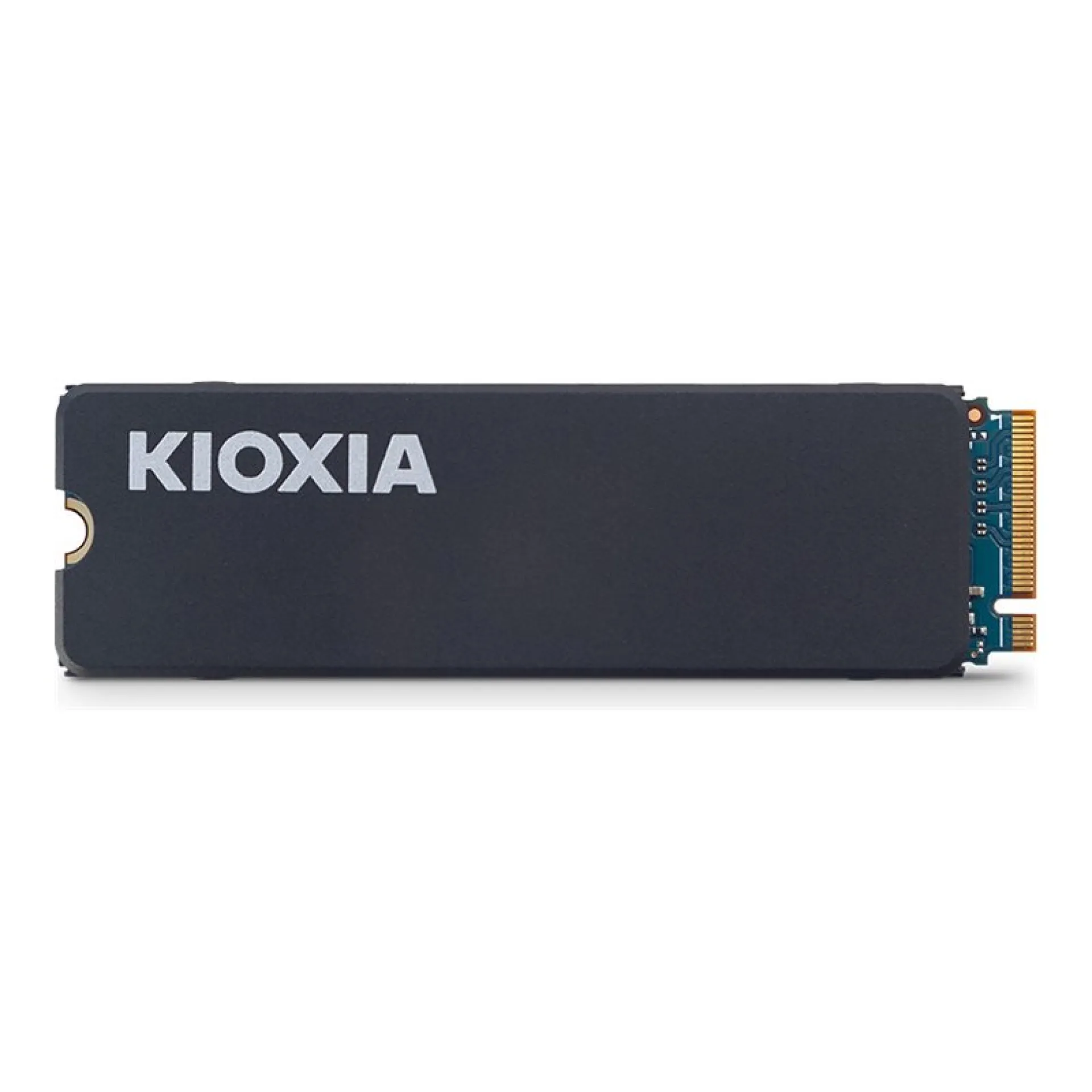

LSC11K2T04G8 Kioxia EXCERIA 2048GB PCIe Gen 4 M.2 2280 Server SSD

High-Performance M.2 2280 NVMe SSD featuring PCIe Gen4 x4 throughput with the LSC11K2T04G8

The LSC11K2T04G8 is a Kioxia EXCERIA NVMe M.2 2280 (M-Key) internal SSD engineered for workstation and general-purpose server boot or local application storage where low latency and compact integration matter. Using PCIe Gen4 x4 with NVMe 1.4, the drive aligns well with modern CPU platforms that expose direct PCIe lanes to M.2 slots, reducing protocol overhead and improving queue handling for mixed read/write activity.

Built on 2TB TLC NAND, the LSC11K2T04G8 balances capacity efficiency with predictable client and edge endurance targets, rated at 0.32 DWPD over 5 years and 1,200 TBW. Sequential performance up to 6,200 MB/s read and 4,900 MB/s write, combined with random performance up to 830K/450K IOPS (4K read/write), supports fast OS boot, VDI image loading, and application binary staging. An integrated heatsink and an efficient power profile (0.1W idle, up to 7.8W active, with L1.2 low-power standby) make the LSC11K2T04G8 suitable for dense systems where hot-swap is not required and thermal headroom is constrained.

Why Choose the LSC11K2T04G8?

The LSC11K2T04G8 delivers a strong density-to-performance ratio in a standard M.2 2280 footprint, enabling high-speed local storage without consuming a front-bay slot or adding cabling. For enterprise IT deployments, the architectural value is straightforward: low-latency PCIe Gen4 access, consistent data path behavior under NVMe 1.4, and reliability rated at 1.5M hours MTBF/MTTF support scalable rollouts across workstation fleets and edge nodes.

Kioxia designs SSDs with a focus on controller efficiency, NAND management, and long-term operational stability. Features such as TRIM and garbage collection help maintain sustained performance over time, while RoHS compliance supports alignment with modern data centre procurement standards.

Key Applications:

• Boot drive for servers and workstations
• VDI base images and content libraries
• Application binaries and patch repositories
• Edge computing local storage

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the LSC11K2T04G8, and the option to extend the warranty up to 6 years for additional security on your investment.
