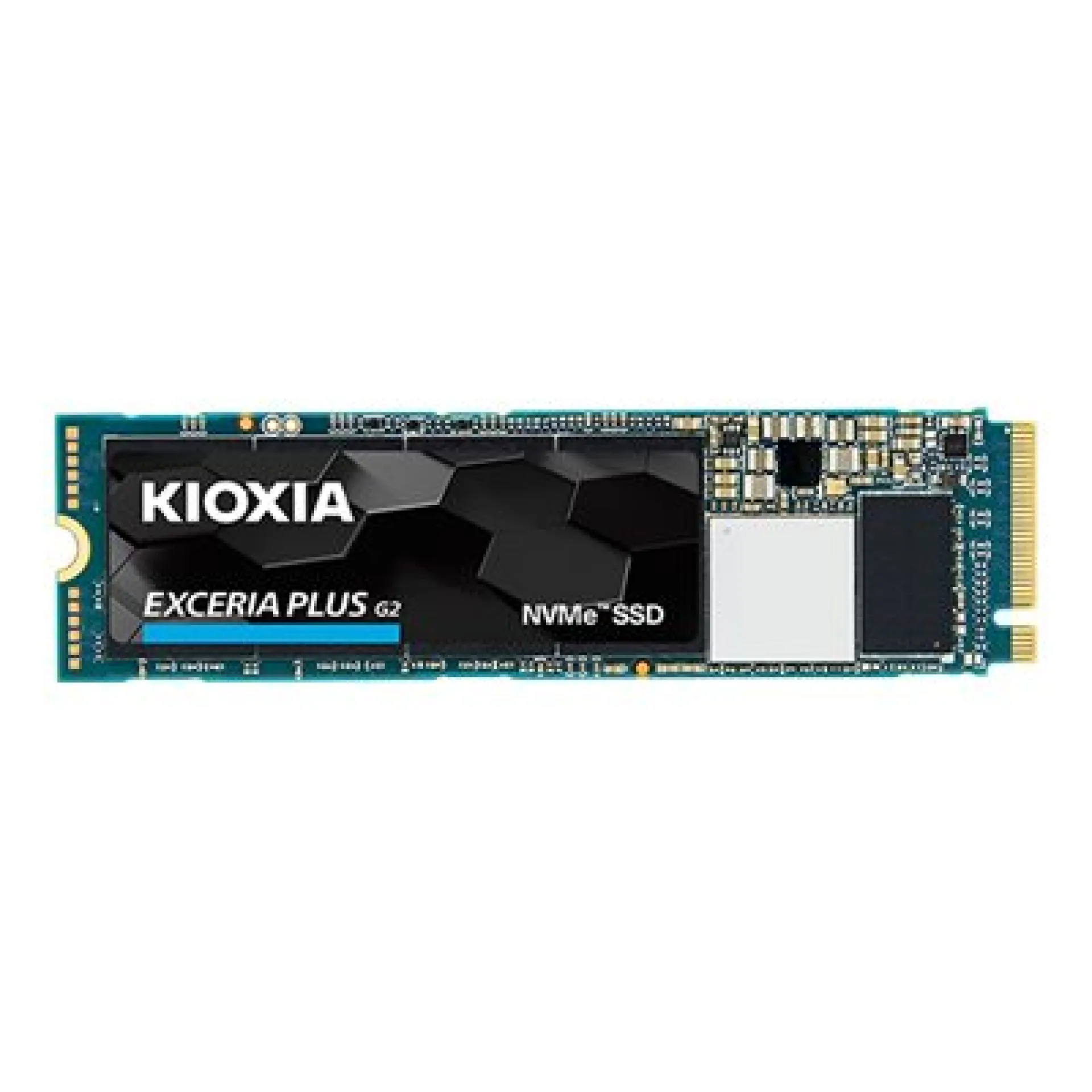

LRD20Z001TG8 Kioxia EXCERIA PLUS G2 1000GB NVME M.2 2280 SSD

*Picture may not be exactly the same as the product

Product line:

EXCERIA PLUS G2

See all HDDs / SSDs

See other Kioxia products

This product is currently not priced. Request a personalized quote now.

Out of stock

Happyware Article Number:

SH5M4374-568759

Manufacturer Number:

LRD20Z001TG8

Brand:

Kioxia

Are you a reseller?

Do you have questions about this product LRD20Z001TG8?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

LRD20Z001TG8

High-Performance M.2 2280 NVMe Client SSD for OS and Scratch Workloads with the LRD20Z001TG8

The LRD20Z001TG8 is a 1TB M.2 2280 (M-Key) NVMe SSD engineered for workstation and light server boot volumes where low latency and predictable responsiveness matter. Operating over PCIe with NVMe 1.3c, the LRD20Z001TG8 supports fast queue handling for modern CPU platforms and delivers a balanced architecture for mixed read/write activity typical of developer systems, VDI endpoints, and edge nodes.

Built on TLC 3D NAND, the LRD20Z001TG8 combines sequential throughput up to 3400 MB/s read and 3200 MB/s write with strong 4K random performance up to 680k/620k IOPS, enabling rapid OS launch, application paging, and local dataset staging. TRIM and background garbage collection help sustain steady-state behavior, while 400 TBW endurance and 1.5M hours MTBF align with enterprise reliability expectations for client-class NVMe deployments. With typical active power around 6.7W, the LRD20Z001TG8 fits thermally constrained M.2 slots without compromising storage responsiveness.

Why Choose the LRD20Z001TG8?

Choosing the LRD20Z001TG8 supports high density per node by delivering 1TB of low-profile NVMe storage in a standardized M.2 2280 footprint, simplifying scale-out workstation fleets and edge clusters. The LRD20Z001TG8 provides a pragmatic performance-to-endurance profile for OS, cache, and scratch tiers, helping administrators standardize builds while maintaining consistent boot and application behavior across systems.

Kioxia designs storage with disciplined flash management, compatibility focus, and reliability controls suited to modern data centre standards. The LRD20Z001TG8 reflects that approach through proven NAND technology, NVMe protocol maturity, and operational features that support stable performance over the drive lifecycle.

Key Applications:

Workstation OS and application drives
VDI endpoint caching
Developer build and test scratch space
Edge compute local storage
Content creation project staging

At Happyware - Server Hardware you benefit from 24/7 Customer Service to support qualification and rollout planning for the LRD20Z001TG8, and you can secure an Extended Warranty up to 6 years to align storage lifecycle coverage with enterprise refresh schedules.

Technical details of LRD20Z001TG8

Capacity:

1000GB

Form Factor:

M.2 2280

Interface:

NVME

Speed Reading:

3400MB/s

Speed Writing:

3200MB/s

Total Bytes Written (TBW):

400TB

Drive Writes Per Day (DWPD):

0.219

Memory Components:

TLC

Special features:

TRIM support 3D NAND Technology NVM Express (NVMe) Garbage Collection Technology

Power Consumption Operation:

6.7W

Height:

3.73mm

Cache Memory:

3.4 MB

How long is the Warranty and how you can get technical support for LRD20Z001TG8

Warranty:	36 months (part)
RMA through customer:	yes
RMA Url:	https://www.storrepair.com/kioxia/
Description:	Items must be returned first. No Advance replacement option. No delivery times are specificed.
