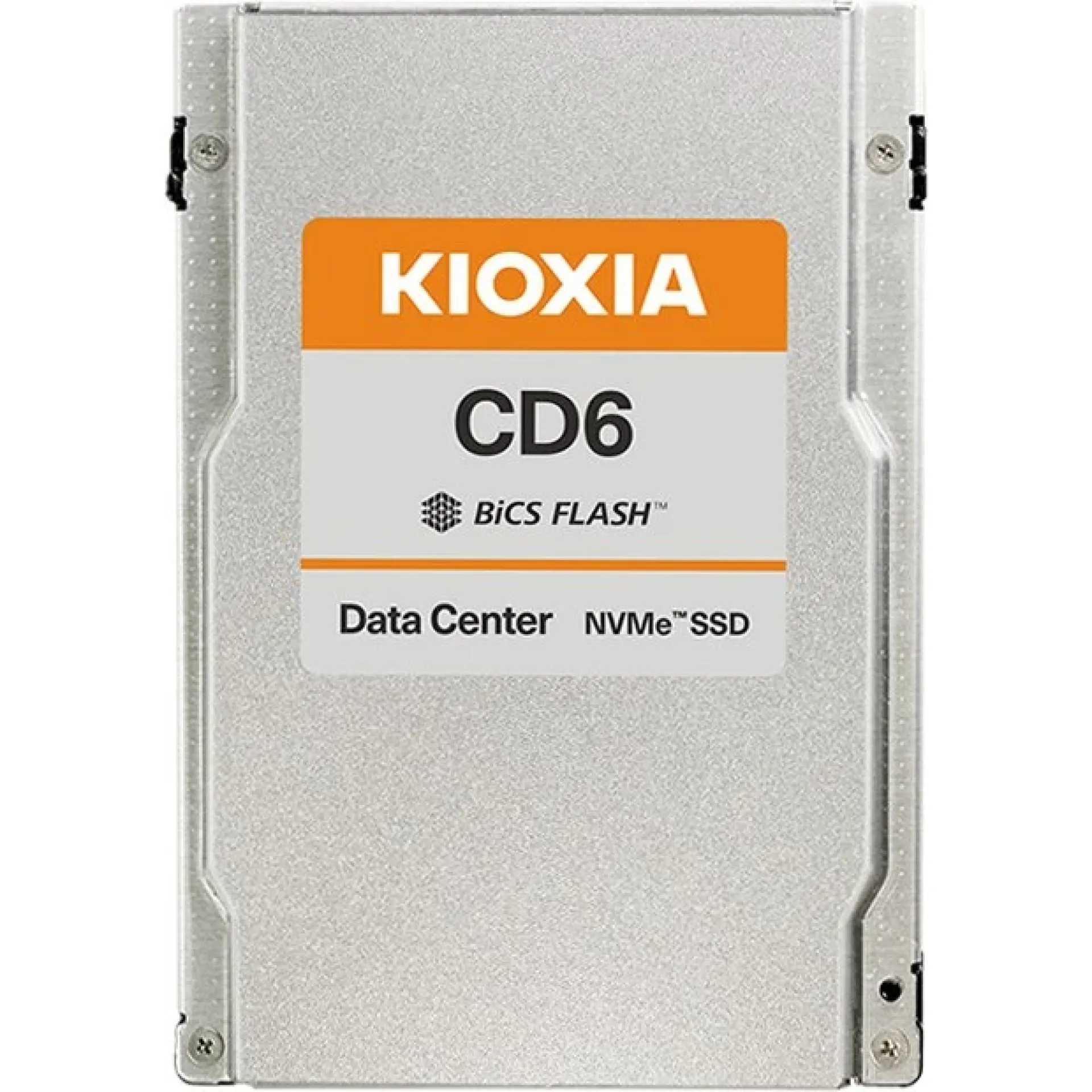

KCD6DLUL1T92 Kioxia CD6-R 1.92TB U.3 NVMe 2.5" Server SSD

High-Performance 2.5in U.3 NVMe Enterprise SSD for Read-Optimised Server Storage with the KCD6DLUL1T92

The KCD6DLUL1T92 is a 1.92TB 2.5in U.3 NVMe enterprise SSD engineered to accelerate read-intensive tiers in modern x86 server platforms, delivering high queue-depth responsiveness across PCIe-based storage fabrics. Built on Kioxia CD6-R Series TLC 3D NAND, KCD6DLUL1T92 targets predictable low-latency reads while maintaining controlled write performance for metadata, indexing, and log-related bursts typical of database and VDI access patterns.

Designed for U.3 backplanes, KCD6DLUL1T92 integrates cleanly into NVMe server bays and software-defined storage nodes where dense PCIe expansion must be balanced against power and thermal envelopes. Sequential throughput reaches up to 5800 MB/s read and 1150 MB/s write, while random performance scales to 700K IOPS 4K read, supporting caching tiers and boot/login storms without overprovisioning capacity. Enterprise safeguards include power-loss protection for in-flight data integrity, plus TCG Enterprise and AES-256 support for self-encrypting drive workflows and secure retirement processes.

Why Choose the KCD6DLUL1T92?

KCD6DLUL1T92 provides an efficient density-to-performance ratio for read-dominant workloads, enabling higher VM and query concurrency per server while preserving operational headroom. With 1 DWPD endurance for 5 years and 2.5M hours reliability, KCD6DLUL1T92 is suited to scale-out nodes where consistent behavior, predictable service levels, and straightforward U.3 serviceability are mandatory.

Kioxia designs enterprise flash with a focus on controlled latency, sustained workload consistency, and platform alignment with current data centre standards, including secure-by-design features and validation for continuous operation in multi-drive NVMe environments.

Key Applications:

• Read-intensive databases
• NVMe caching tiers
• VDI boot and login acceleration
• Software-defined storage nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored to your storage architecture and procurement cycles, plus an extended warranty option of up to 6 years to secure long-term deployment planning for KCD6DLUL1T92 rollouts.
