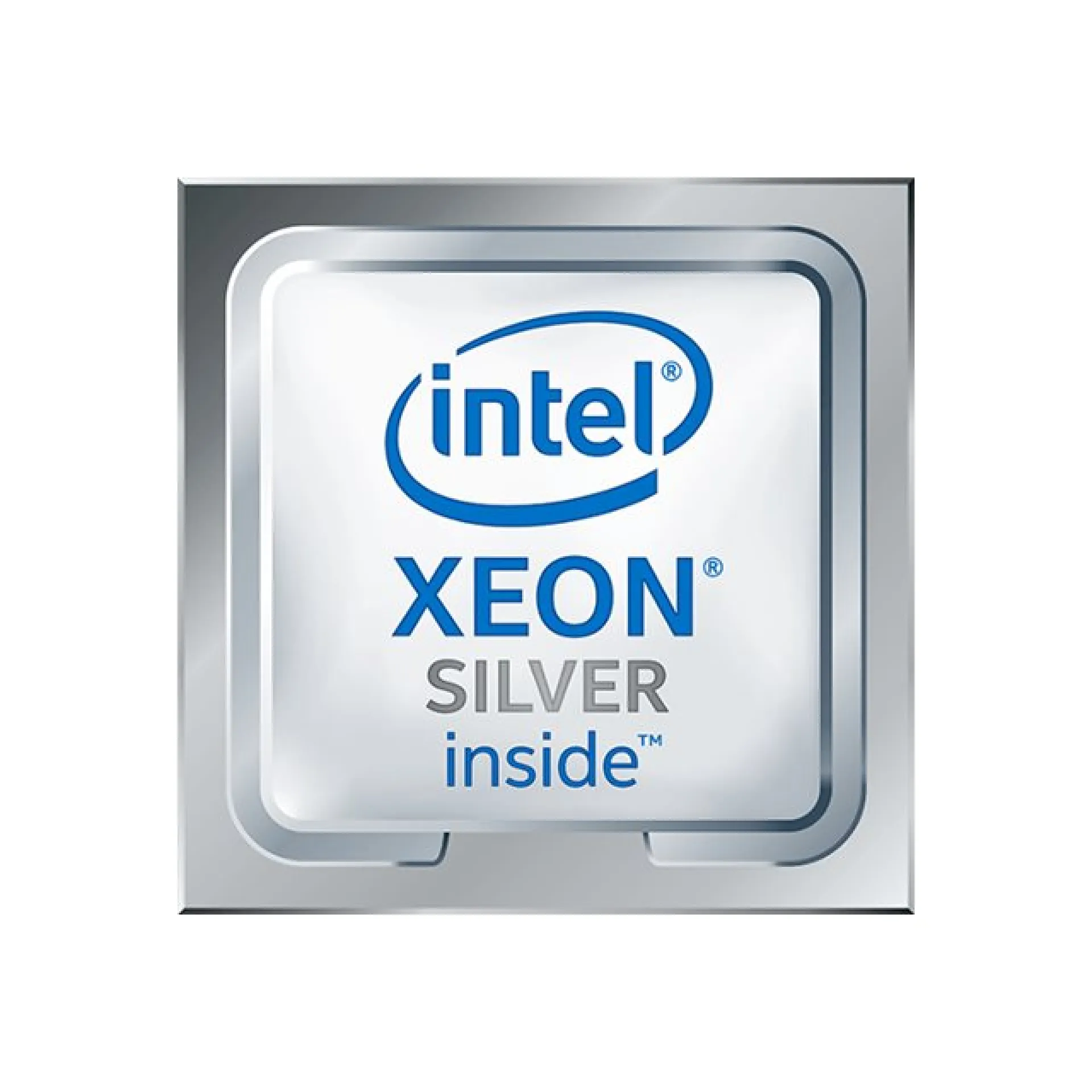

Intel Xeon Silver 4114 10 Cores 20 Threads 3GHz P (LGA 3647) BX806734114 Server CPU

*Picture may not be exactly the same as the product

Product line:

Xeon Silver

See all Intel Xeon Scalable

See other Intel products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH5C3581-177278

Manufacturer Number:

BX806734114

Brand:

Intel

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

Intel Xeon Silver 4114

Enterprise 2-Socket Server CPU Platform Efficiency with the Intel Xeon Silver 4114 (BX806734114)

The Intel Xeon Silver 4114 is a Skylake-SP LGA3647 processor designed for 2S scalable server platforms where predictable throughput, memory capacity, and virtualization features are prioritized over peak single-thread frequency. The Intel Xeon Silver 4114 integrates 10 cores and 20 threads with an 85W power envelope, enabling balanced node density for general-purpose racks without compromising enterprise-grade RAS requirements.

For infrastructure architects, the Intel Xeon Silver 4114 provides a practical mix of DDR4 memory bandwidth and ECC protection, scaling to large per-socket capacity for consolidation and HCI footprints. Expansion is driven by PCIe 3.0 lane availability per CPU for NICs, HBAs, NVMe backplanes, and accelerators where bandwidth planning is stable and cost-controlled. In storage-centric server designs, Intel VMD support helps standardize NVMe management flows, while AVX-512 and AES-NI accelerate vector processing and encryption in middleware, analytics, and secure multi-tenant environments.

Why Choose the Intel Xeon Silver 4114?

The Intel Xeon Silver 4114 is well-suited for dual-socket hosts that need consistent core density, high memory headroom, and a straightforward scalability profile across Intel C621/C622/C624/C627/C628 platforms. It supports enterprise deployment logic where platform uniformity, virtualized I/O, and power-aware performance per rack unit matter for long lifecycle operations.

Intel designs Xeon Scalable processors with validated platform interoperability, predictable firmware ecosystems, and hardware features that align with modern data center standards for isolation and manageability. With the Intel Xeon Silver 4114, IT teams can maintain consistent configuration baselines across clusters while leveraging mature LGA3647 server ecosystems.

Key Applications:

Virtualization hosts
Enterprise application servers
HCI and private cloud nodes
Scale-out web and middleware
Light analytics and ETL

At Happyware - Server Hardware you benefit from Non-Binding Offers tailored to Intel Xeon Silver 4114 server builds and an Extended Warranty up to 6 years to protect long-term platform availability in enterprise environments.

Technical details of Intel Xeon Silver 4114

L3 Cache: 13.75MB

Socket: P (LGA 3647)

Threads: 20

Family: Xeon

Code Name: Skylake

Cores: 10

Base Clock Speed: 2.2GHz

Boost Frequency: 3GHz

Max Supported Memory Speed: 2400 MHz

Memory Channels: 6-Channel

TDP (Thermal Design Power): 85W

ECC: Yes

Suitability: Server

Intergrated Graphics (iGPU): No iGPU

Cooler: No

Boxed / Tray: Boxed

Supported Chipset: C621, C622, C624, C627, C628

Hyper Threading: Yes

64-Bit Support: Yes

Serie: Xeon Silver

UPI Links [Intel]: 2

L2 Cache: 10MB

How long is the Warranty and how you can get technical support for Intel Xeon Silver 4114

Warranty:	36 months (part)
RMA Url:	https://supporttickets.intel.com/s/warrantyinfo?language=en_US
Description:	Items must be returned first before a replacement is sent. Intel does not offer on-site service as standard. Only for Boxed Processors.
