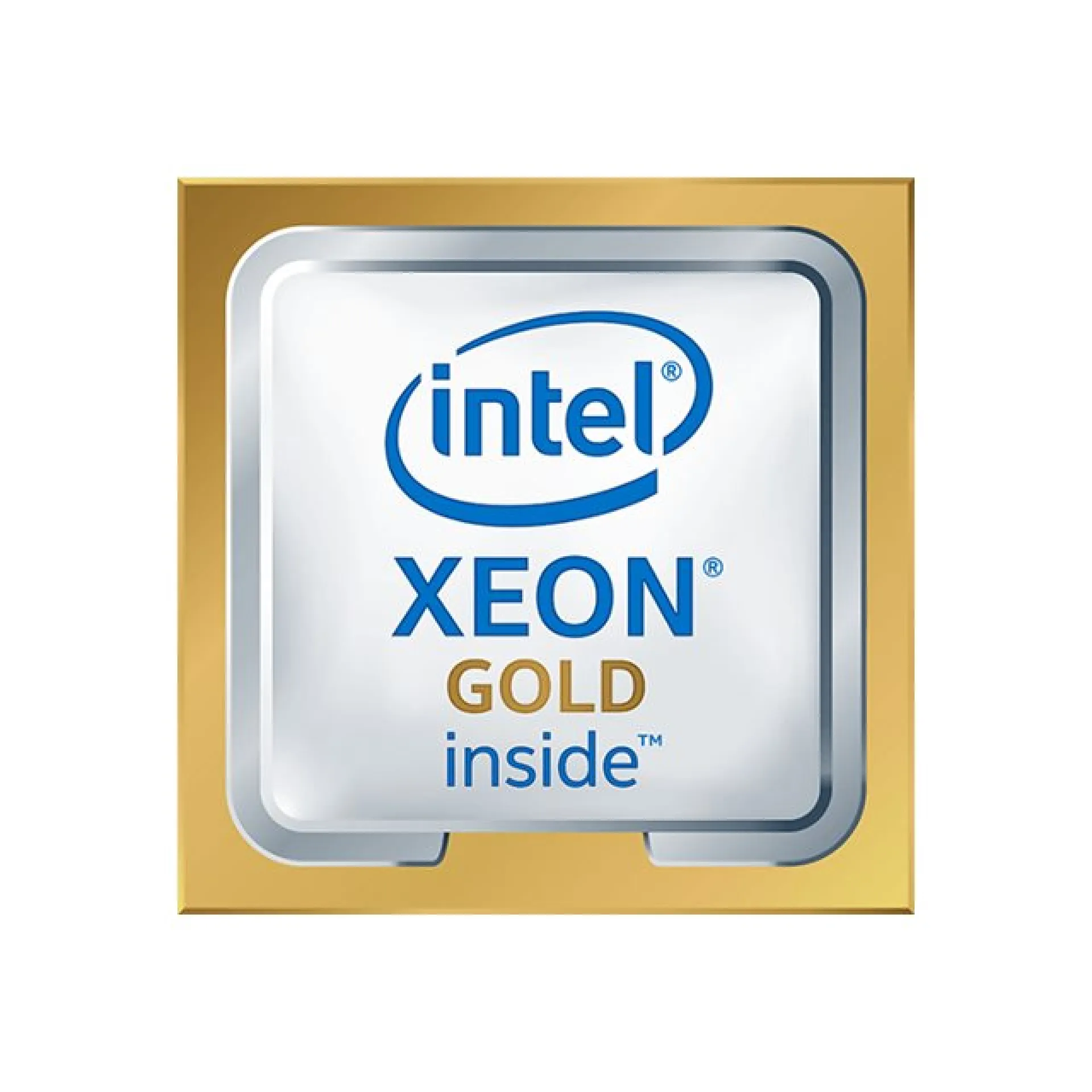

Intel Xeon Gold 6230T 20 Cores 40 Threads 3.9GHz P (LGA 3647) CD8069504283704 CPU

Enterprise Multi-Socket Server CPU featuring UPI Scale-Up Architecture with the Intel Xeon Gold 6230T (CD8069504283704)

The Intel Xeon Gold 6230T is a 2nd Gen Intel Xeon Scalable (Cascade Lake-SP) tray processor for LGA3647 platforms engineered for dual- and quad-socket servers where predictable throughput and platform longevity are required. With 20 cores and 40 threads, the Intel Xeon Gold 6230T targets consolidation-focused virtualization hosts and scale-up enterprise applications that benefit from balanced core density, cache hierarchy, and consistent all-core behavior.

Designed around a mature DDR4 ECC memory ecosystem, the Intel Xeon Gold 6230T supports large memory footprints up to 1TB (platform dependent) for VM density, in-memory services, and database buffer growth. Up to 48 CPU-attached PCIe lanes (platform dependent) enable flexible I/O topologies for high-bandwidth NICs, NVMe storage, and accelerator attachment, while Intel VMD streamlines NVMe management in modern server backplanes. Multi-socket scaling is supported via 3 UPI links, aligning the Intel Xeon Gold 6230T with 4S architectures where inter-socket bandwidth and NUMA-aware scheduling are critical. For analytics and inference, AVX-512 and Intel DL Boost provide instruction-level acceleration, complemented by hardware security and virtualization features such as AES-NI, VT-x, VT-d, and EPT.

Why Choose the Intel Xeon Gold 6230T?

The Intel Xeon Gold 6230T delivers an efficient density-to-performance profile for enterprise hosts that must scale vertically without sacrificing manageability or reliability. It is well-suited to standardized LGA3647 deployments that prioritize validated firmware stacks, predictable multi-socket behavior, and controlled expansion planning across PCIe and memory domains.

Intel designs Xeon platforms to align with data center operational requirements, emphasizing RAS capabilities, consistent instruction set support, and broad ecosystem compatibility for server boards, storage controllers, and NICs used in long-lived enterprise infrastructures.

Key Applications:

• Virtualization and private cloud hosts
• Scale-up database servers
• General-purpose enterprise compute
• AVX-512 analytics and inference
• Software-defined storage nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your LGA3647 server refresh or expansion plan, and can secure an extended warranty up to 6 years to protect multi-year infrastructure deployments built around the Intel Xeon Gold 6230T.
