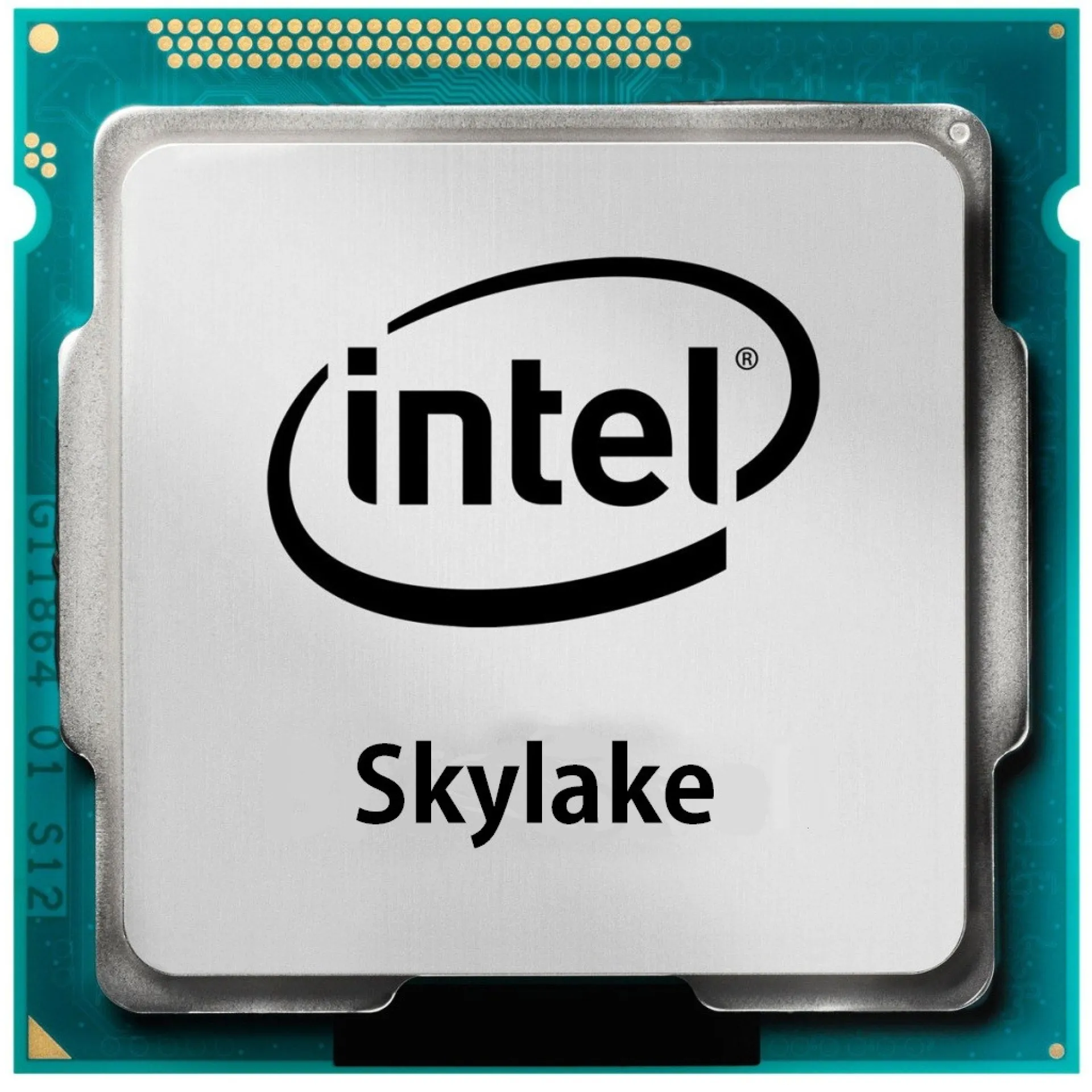

Intel Xeon E3-1270V5 4 Cores 8 Threads 4GHz H4 (LGA 1151) BX80662E31270V5 Server CPU

Enterprise 1S Server Processor for LGA1151 Platforms featuring Skylake Efficiency with Intel Xeon E3-1270V5 (BX80662E31270V5)

The Intel Xeon E3-1270V5 is a 1-socket LGA1151 server processor based on 6th Gen Intel Skylake, designed for dependable entry-server compute where predictable latency and platform stability matter. With 4 cores and 8 threads, the Intel Xeon E3-1270V5 aligns well with SMB infrastructure roles such as directory services, file/print, and lightweight application hosting that benefit from strong single-thread performance and consistent turbo behavior.

On the memory side, the Intel Xeon E3-1270V5 supports ECC DDR4 up to 64GB at up to 2133 MT/s, enabling error-correcting operation for always-on services and edge appliances where data integrity is mandatory. For I/O, PCIe 3.0 with up to 16 CPU lanes provides a clean expansion model for NICs, RAID/HBA controllers, and low-latency accelerator or capture cards, while storage architecture is typically realized via chipset SATA and controller-based RAID, optimized for cost-controlled capacity and serviceability. Security and virtualization extensions including AES-NI, VT-x, VT-d, EPT, TXT, and SGX support encrypted workloads and a practical virtualization lab profile.

Why Choose the Intel Xeon E3-1270V5?

The Intel Xeon E3-1270V5 delivers a balanced density-to-performance ratio for compact 1U/2U single-socket designs, pairing ECC memory reliability with efficient 80W thermal characteristics for predictable rack-level power planning. As a mature LGA1151 platform CPU for Intel C232/C236 ecosystems, it scales cleanly across standardized node builds and repeatable edge deployments.

Intel engineers this class of server processor for long-lived platforms, focusing on validation, instruction-set stability, and enterprise manageability alignment. The boxed Intel Xeon E3-1270V5 package (SKU BX80662E31270V5) simplifies integration by including a matched cooler for supported chassis and airflow profiles.

Key Applications:

• SMB infrastructure servers
• Domain and directory services
• Light virtualization lab hosts
• Security and network appliances
• Dedicated web and application services

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the Intel Xeon E3-1270V5, and you can extend the warranty up to 6 years to secure long-term operation in production and edge environments.
