Intel Xeon E3-1240V6 4 Cores 8 Threads 4.1GHz H4 (LGA 1151) BX80677E31240V6 Server CPU

Get extra volume discount for BX80677E31240V6 and save cash:

Quantity	Unit price
To 9	€399.06
To 19	€379.20 €399.06 (4.98% saved)
To 49	€371.20 €399.06 (6.98% saved)
From 50	€359.20 €399.06 (9.99% saved)

See all Server Processors

See other Intel products

€399.06

Out of stock

Happyware Article Number:

SH3C2376-895349

Manufacturer Number:

BX80677E31240V6

Brand:

Intel

Are you a reseller?

Do you have questions about this product BX80677E31240V6?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

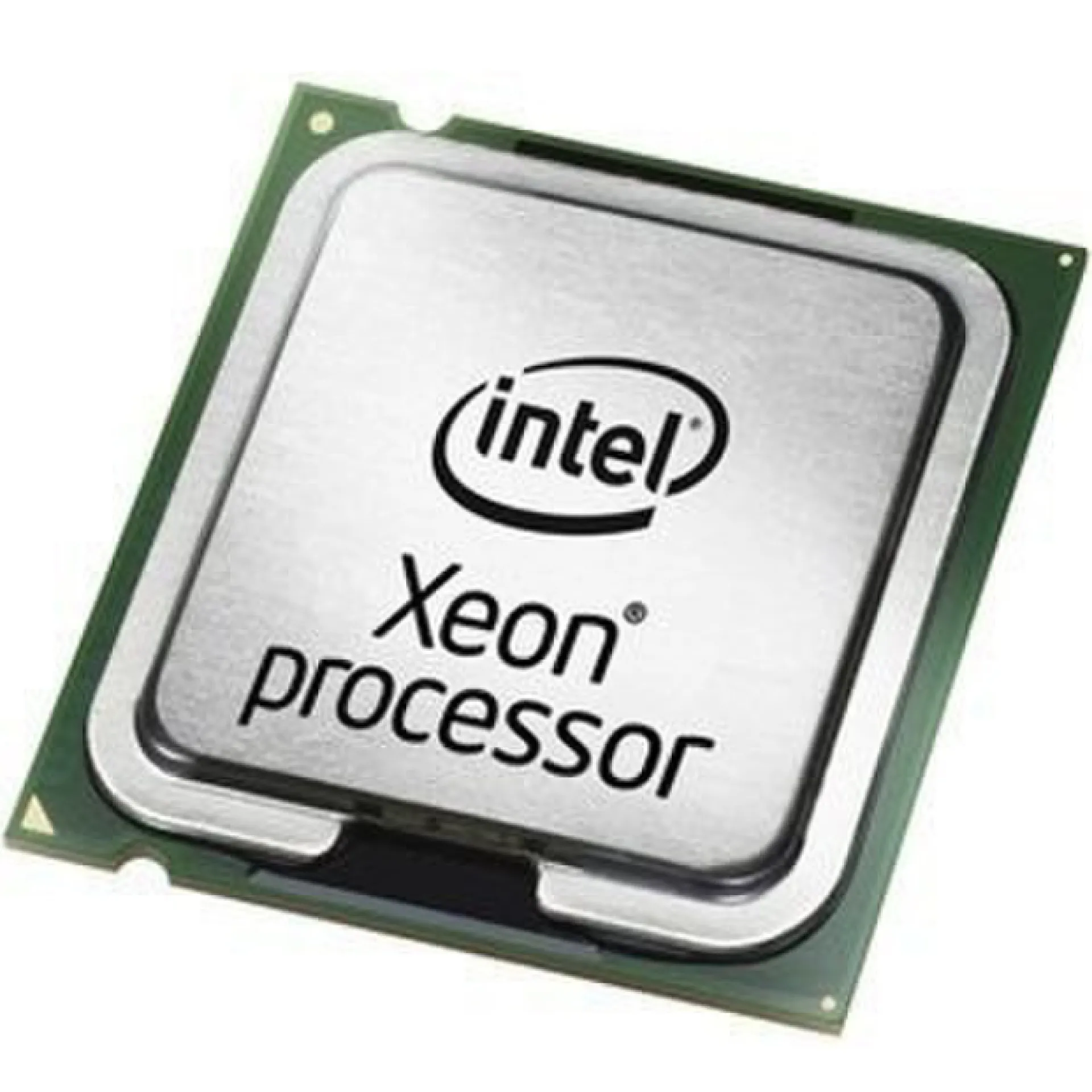

Intel Xeon E3-1240V6

High-Density 1S Server CPU Platform Enablement with the Intel Xeon E3-1240V6 (BX80677E31240V6)

The Intel Xeon E3-1240V6 is a socketed 1S server processor for the LGA1151 platform, engineered for compact enterprise servers and dedicated appliances where predictable per-core performance and ECC memory integrity are mandatory. Built on 7th Gen Kaby Lake, the Intel Xeon E3-1240V6 delivers a balanced 4-core/8-thread profile suited to edge consolidation and SMB infrastructure nodes without the overhead of multi-socket architectures.

With DDR4-2400 ECC support up to 64GB, the Intel Xeon E3-1240V6 aligns with C232/C236 server chipsets to provide a stable memory subsystem for directory services, web tiers, and security gateways. The CPU exposes 16 PCIe 3.0 lanes for deterministic I/O planning, enabling a straightforward topology for NICs, RAID/HBA controllers, or NVMe via carrier cards where platform design permits. As the Intel Xeon E3-1240V6 has no integrated graphics, deployments typically pair a discrete management/display solution or rely on BMC-based remote administration for headless server operation.

Why Choose the Intel Xeon E3-1240V6?

The Intel Xeon E3-1240V6 is selected for high utilization per rack unit in single-socket footprints, combining strong clock behavior with ECC reliability and a controlled 72W power envelope. The Intel Xeon E3-1240V6 integrates enterprise virtualization and security features such as VT-x/VT-d with EPT, AES-NI, and TXT to support hardened infrastructure roles and lightweight VM density with consistent performance.

Intel designs the Xeon E3 family around validation discipline, long-lived platform consistency, and chipset-level manageability expected in modern data centre standards. For C232/C236-based systems, the Intel Xeon E3-1240V6 supports mature driver stacks and predictable lifecycle planning across appliance and entry-server fleets.

Key Applications:

SMB single-socket servers
Lightweight virtualization hosts
Web and application services
Directory and identity services
Security appliances and firewalls

At Happyware - Server Hardware you benefit from Bulk Order Discount for standardized Intel Xeon E3-1240V6 rollouts across branches or appliance fleets, and you can extend the warranty up to 6 years to align coverage with enterprise refresh cycles.

Technical details of Intel Xeon E3-1240V6

L3 Cache:

8MB

Socket:

H4 (LGA 1151)

Threads:

Family:

Xeon

Code Name:

Kaby Lake

Generation:

7th

Cores:

Base Clock Speed:

3.7GHz

Boost Frequency:

4.1GHz

Max Supported Memory Speed:

2400 MHz

Memory Channels:

6-Channel

TDP (Thermal Design Power):

72W

ECC:

Yes

Suitability:

Server

Intergrated Graphics (iGPU):

No iGPU

Cooler:

Yes

Boxed / Tray:

Boxed

Supported Chipset:

C232 C236

Hyper Threading:

Yes

64-Bit Support:

Yes

Front Side Bus (FSB):

8kHz

L2 Cache:

1MB

How long is the Warranty and how you can get technical support for Intel Xeon E3-1240V6

Warranty:	36 months (part)
RMA Url:	https://supporttickets.intel.com/s/warrantyinfo?language=en_US
Description:	Items must be returned first before a replacement is sent. Intel does not offer on-site service as standard. Only for Boxed Processors.
