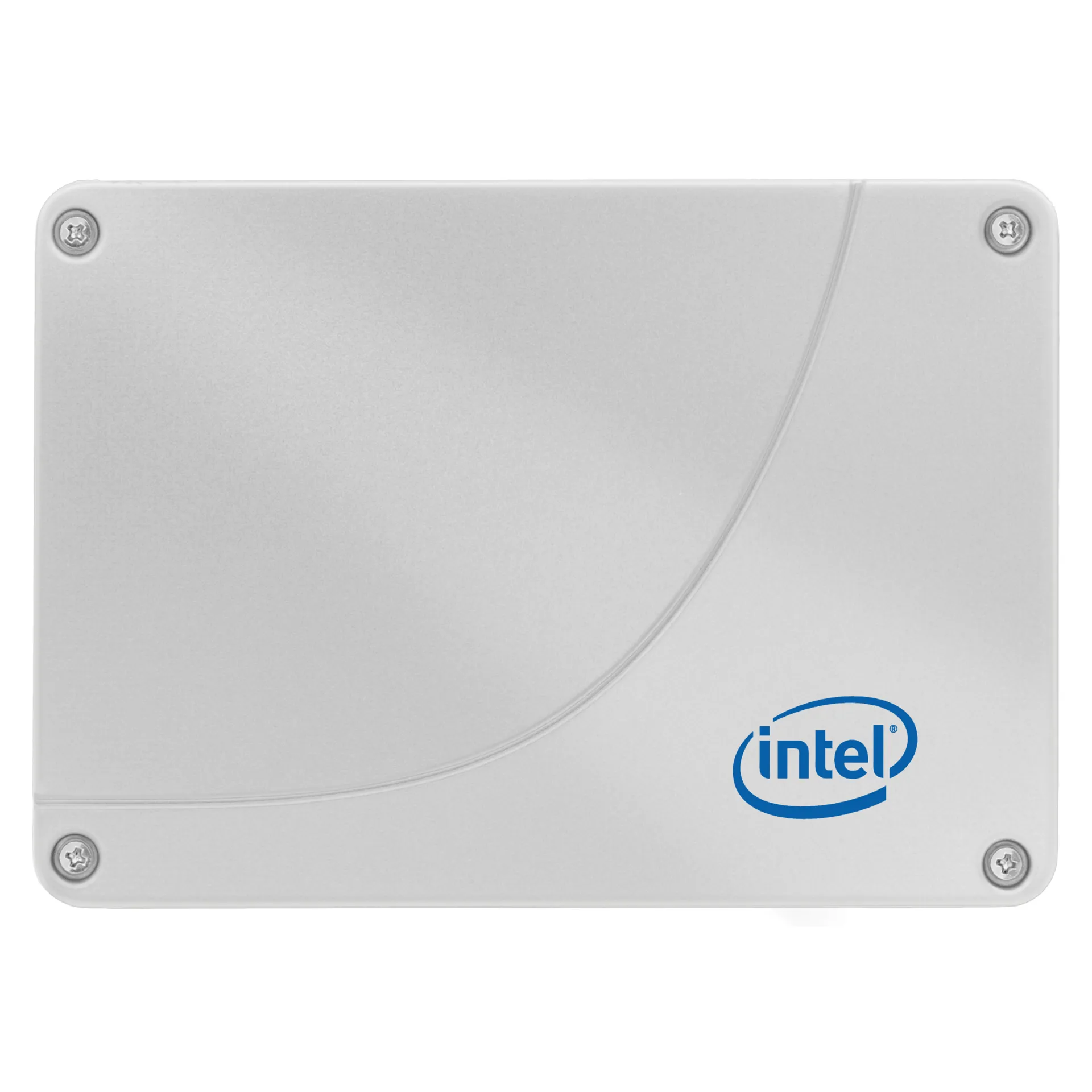

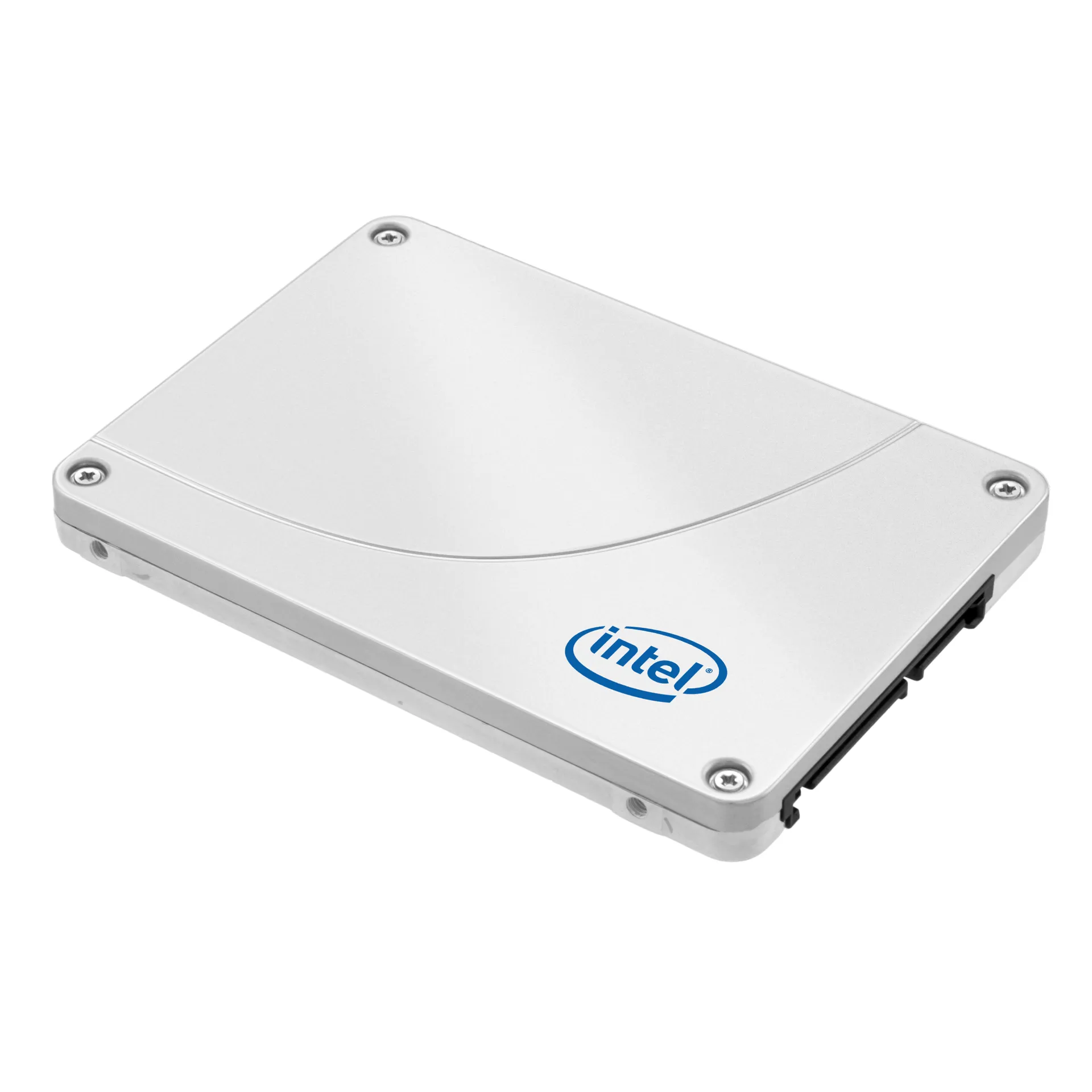

SSDSC2KB076TZ01 Intel D3-S4520 7.68TB SATA 2.5" Server SSD

High-Density 2.5in Enterprise SATA SSD platform with 3D TLC NAND and SED security using the SSDSC2KB076TZ01

The SSDSC2KB076TZ01 is a 7.68TB Intel enterprise SATA SSD designed to modernize storage tiers where CPU platforms and legacy backplanes still depend on 6Gb/s SATA connectivity. In mixed server environments, it provides consistent media behavior for boot volumes, read-intensive application data, and virtualization datastores without forcing a PCIe/NVMe redesign.

Architecturally, the SSDSC2KB076TZ01 leverages Intel 3D TLC NAND with enterprise firmware to balance throughput and predictable latency, reaching up to 550 MB/s read and 510 MB/s write with up to 86K/30K 4K IOPS. It integrates power-loss protection and end-to-end data path protection to safeguard in-flight writes and reduce silent data corruption risk, while 2.6 DWPD endurance aligns with read-optimized caching and repository workloads at scale. The 2.5in 7mm form factor supports high drive-count density in existing hot-swap chassis, maintaining standard SATA cabling and HBA/RAID integration.

Why Choose the SSDSC2KB076TZ01?

The SSDSC2KB076TZ01 delivers a practical density-to-performance ratio for SATA-constrained nodes, enabling capacity expansion and operational consistency across large fleets. With 2.0M hours MTBF, low idle power, and enterprise monitoring/logging, it supports predictable lifecycle planning and scalable rollouts in remote, edge, or core data center deployments.

Intel engineers the D3-S4520 family with a focus on data integrity, controlled thermal behavior, and firmware stability for continuous operation. The SSDSC2KB076TZ01 aligns with enterprise security and governance requirements through self-encrypting drive capabilities and standardized management expectations in modern data center environments.

Key Applications:

• Read-intensive server storage tiers
• Boot and media volumes
• Virtualization datastores
• Edge and remote office caching
• Content repositories
• Legacy SATA backplane SSD replacement

At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment quantities for the SSDSC2KB076TZ01 and an extended warranty option up to 6 years to secure long-term fleet operations.
