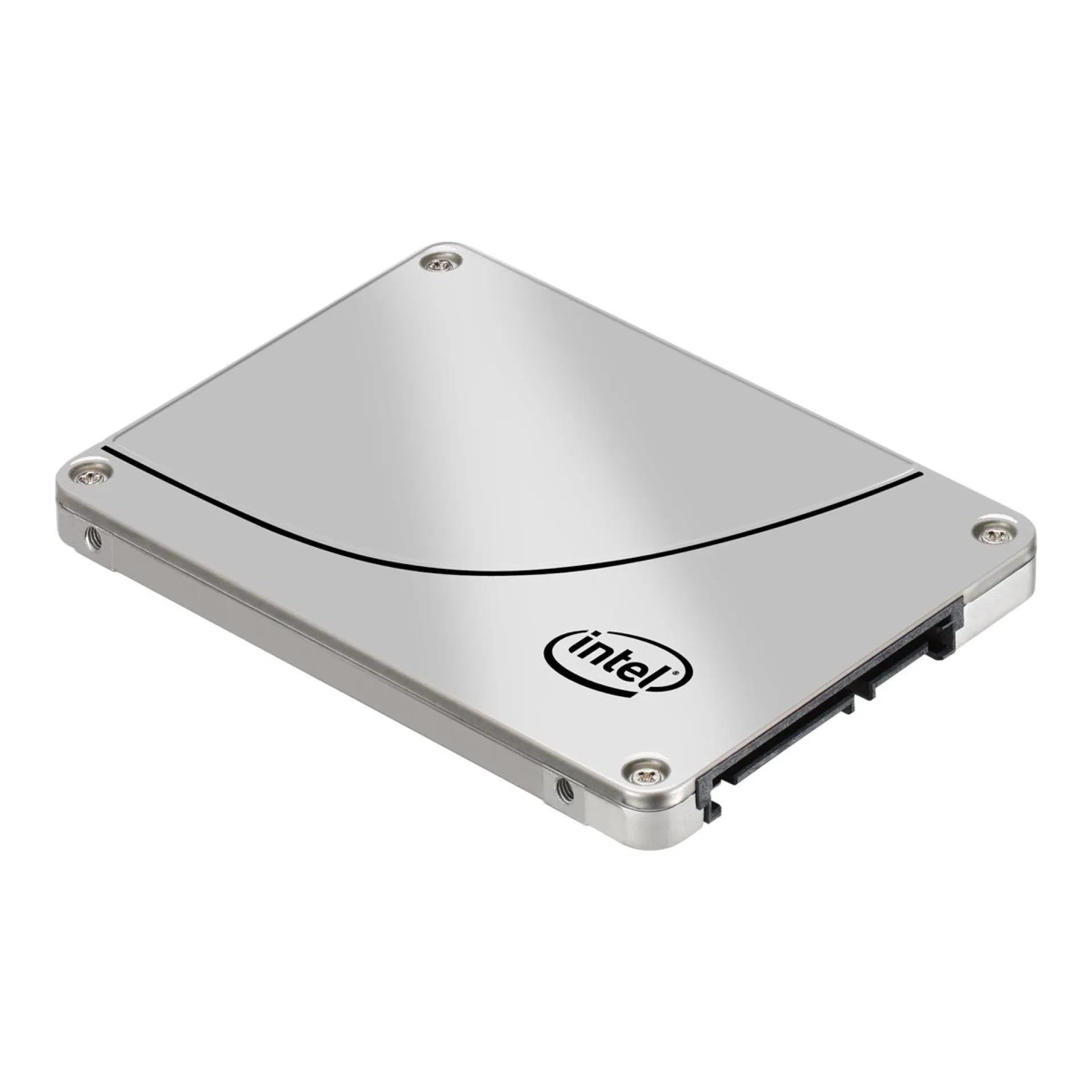

SSDSC2BB800G401 Intel DC S3500 Series 800GB SATA 2.5" Server SSD

High-Performance 2.5" Datacenter SATA SSD featuring read-optimized MLC NAND with the SSDSC2BB800G401

The SSDSC2BB800G401 is an 800GB Intel DC S3500 Series 2.5" SATA 6Gb/s SSD designed for enterprise nodes where CPU and memory resources are provisioned for application services, while storage is optimized for consistent, low-latency reads. In typical server boot and OS-drive roles, the SSDSC2BB800G401 supports predictable platform behavior for x86 virtualization hosts and general-purpose compute, keeping I/O scheduling stable under mixed background activity.

Built for legacy SATA backplanes and broad platform compatibility, the SSDSC2BB800G401 integrates cleanly into existing PCIe expansion strategies by freeing PCIe lanes for NICs, HBAs, or accelerators while still delivering up to 500 MB/s sequential read and strong 4K random read responsiveness. Intel enterprise firmware, 500MB cache, and end-to-end data protection focus on integrity and consistency, while enhanced power-loss data protection helps preserve in-flight data during unexpected outages.

Why Choose the SSDSC2BB800G401?

The SSDSC2BB800G401 provides an efficient density-to-performance balance for SATA-based fleets that need a reliable, read-centric SSD without redesigning the storage layer. With 0.308 DWPD endurance over 5 years (450 TBW), AES-256 encryption, and 2.0M hours MTBF, the SSDSC2BB800G401 scales as a standardized component for homogeneous server images, predictable maintenance windows, and controlled lifecycle management across racks.

Intel designs the DC S3500 family around datacenter reliability, emphasizing firmware validation, consistent latency behavior, and telemetry such as S.M.A.R.T. monitoring. This engineering approach aligns with modern operational standards for secure deployment, auditable storage health, and power-aware infrastructure planning.

Key Applications:

• Server boot and OS drives
• Read-centric virtualized hosts
• General-purpose datacenter nodes
• Light mixed-use workloads within endurance limits
• 2.5" SATA capacity upgrades in legacy bays

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout quantities for the SSDSC2BB800G401 and the option to extend warranty coverage up to 6 years to support long operating cycles in enterprise environments.
