M50FCP1UR204

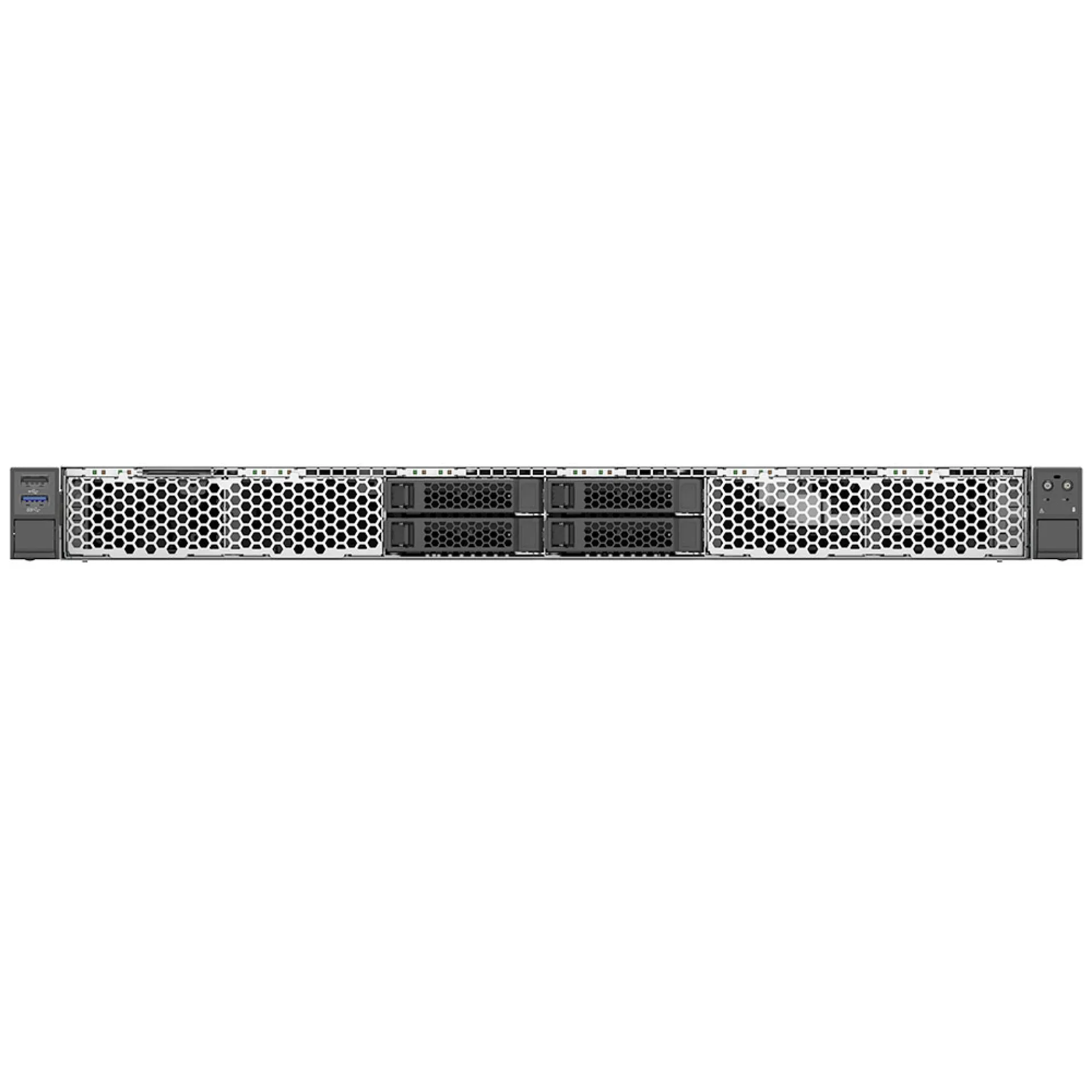

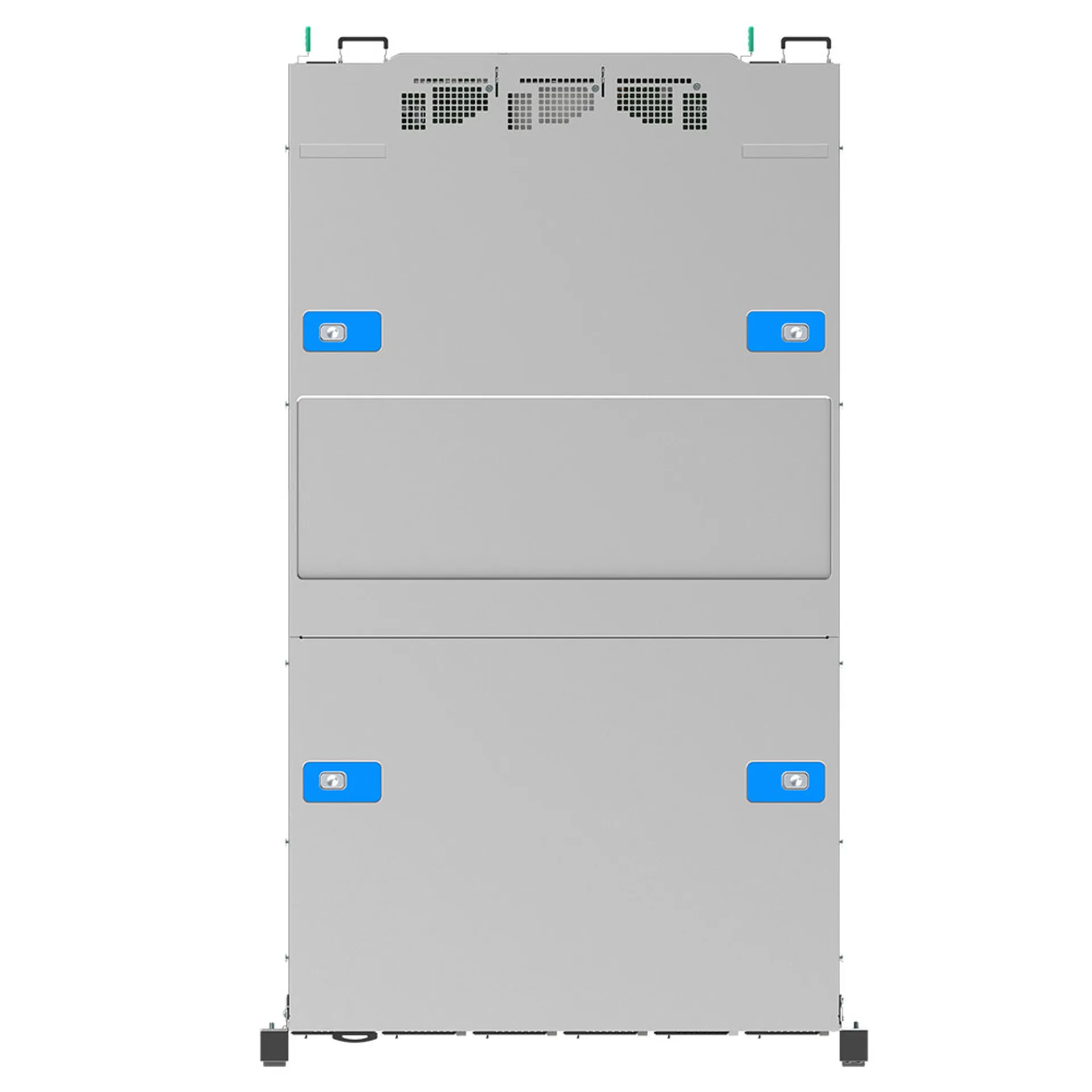

High-Density 1U Dual-Socket Rack Server Platform for Xeon Scalable compute with the M50FCP1UR204
The M50FCP1UR204 is a 1U rack server platform built around dual-socket LGA4677 for Intel Xeon Scalable 5th/4th Gen (Emerald/Sapphire Rapids), targeting balanced virtualization and scale-up CPU nodes where core density and deterministic airflow are critical. With up to 350W per socket and up to 128 cores total, the chassis is engineered for high sustained CPU throughput within a compact footprint.
DDR5 ECC RDIMM capacity is aligned to modern VM consolidation and memory-intensive services, exposing 32 DIMM slots across 8 channels per CPU for bandwidth and NUMA-aware scaling. PCIe 5.0 expansion via optional risers enables high-throughput adapters using 2x x16 and 1x x8 HHHL slots, complemented by an OCP NIC 3.0 PCIe 5.0 x16 slot for data plane flexibility. Storage architecture centers on 4x 2.5in front hot-swap bays supporting NVMe/SAS/SATA (with required backplane components), plus dual internal M.2 PCIe 3.0 x2 NVMe for resilient boot separation and clean serviceability.
Why Choose the M50FCP1UR204?
The M50FCP1UR204 delivers a pragmatic density-to-performance ratio for enterprises standardizing on dual-socket Xeon Scalable nodes, combining DDR5 bandwidth, PCIe 5.0 I/O headroom, and mixed-storage bay flexibility in 1U. The M50FCP1UR204 supports scalable deployment patterns from clustered virtualization to edge/ROBO footprints, while redundant cooling and power options reinforce uptime-oriented operations.
Intel designs the platform to align with current data centre expectations for remote management and maintainability, integrating an ASPEED AST2600 BMC with IPMI 2.0 and iKVM, plus a dedicated 1GbE management port. The M50FCP1UR204 also supports ECC memory and TPM header integration to fit controlled enterprise lifecycle and compliance requirements.
Key Applications:
- General-purpose virtualization clusters
- Scale-up CPU compute nodes
- ROBO and edge mixed-storage deployments
- High-throughput NIC and storage adapter hosting
At Happyware - Server Hardware you benefit from non-binding offers tailored to your M50FCP1UR204 configuration requirements and an extended warranty up to 6 years to secure long-term platform availability in production environments.
Technical details of M50FCP1UR204
How long is the Warranty and how you can get technical support for M50FCP1UR204
| Warranty: | 12 months (part) |
|---|---|
| RMA Url: | https://supporttickets.intel.com/s/warrantyinfo?language=en_US |
| Description: | Items must be returned first before a replacement is sent. Intel does not offer on-site service as standard. |
| Support Portal: | https://support.happyware.com |
|---|
