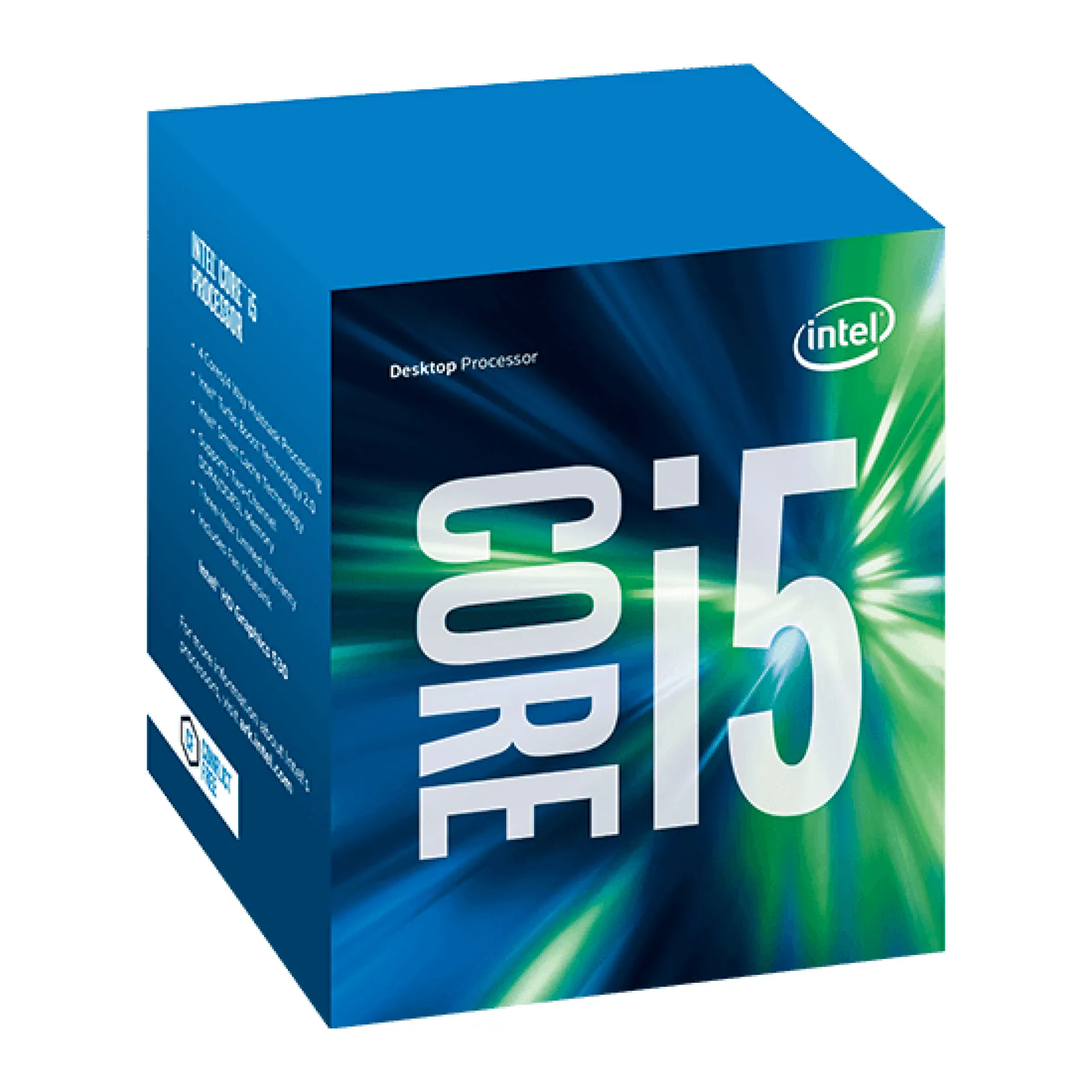

Intel Core i5-7500T 4 Cores 4 Threads 3.3GHz H4 (LGA 1151) CM8067702868115 CPU

*Picture may not be exactly the same as the product

Get extra volume discount for CM8067702868115 and save cash:

Quantity	Unit price
To 9	€271.33
To 19	€257.80 €271.33 (4.99% saved)
To 49	€252.40 €271.33 (6.98% saved)
From 50	€244.20 €271.33 (10% saved)

Product line:

Core i5

See all Server Processors

See other Intel products

€271.33

Out of stock

Happyware Article Number:

SH6C9862-600236

Manufacturer Number:

CM8067702868115

Brand:

Intel

Are you a reseller?

Do you have questions about this product CM8067702868115?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

Intel Core i5-7500T

Power-Efficient Edge and Branch Compute Processor Platform with Intel Core i5-7500T for LGA1151 1S Deployments

The Intel Core i5-7500T (SKU CM8067702868115) is a 7th Gen Kaby Lake desktop/embedded processor designed for enterprise edge nodes, branch appliances, and space-constrained client systems where predictable performance and low thermal output are mandatory. Built on a mature 14nm process, it delivers 4 cores and 4 threads with a 35W TDP, enabling higher density in compact chassis without overprovisioning cooling or power budgets.

Within an LGA1151 single-socket topology, the Intel Core i5-7500T supports DDR4 memory up to 64GB at up to 2400 MT/s, aligning well with lightweight virtualization and productivity-focused endpoints that benefit from higher memory capacity rather than high core counts. PCIe 3.0 connectivity provides up to 16 CPU lanes for controlled expansion, while integrated Intel HD Graphics 630 enables up to 3 displays for VDI endpoints, HMI panels, and operational consoles. Hardware features such as VT-x/VT-d, AES-NI, and AVX/AVX2 help the Intel Core i5-7500T accelerate secure virtualization, encrypted storage, and modern instruction paths when validated by the platform firmware.

Why Choose the Intel Core i5-7500T?

The Intel Core i5-7500T is selected when system architects need a balanced density-to-performance profile with low power draw, stable platform behavior, and straightforward 1S deployment logic. It fits standardized LGA1151 designs, scales through repeatable node builds, and supports controlled I/O planning for appliances and thin workstations where reliability and serviceability are prioritized.

Intel’s processor engineering emphasizes validated instruction-set capabilities, long-lived platform ecosystems, and predictable thermal characteristics that align with enterprise lifecycle management and modern data centre operational standards.

Key Applications:

Edge and branch virtualization hosts
Security and network appliances
VDI and productivity endpoints
Embedded control and HMI systems
Encrypted storage gateways

At Happyware - Server Hardware you benefit from non-binding offers tailored to your rollout requirements for Intel Core i5-7500T-based builds, with extended warranty options up to 6 years to secure long-term fleet stability.

Technical details of Intel Core i5-7500T

L3 Cache:

6MB

Socket:

H4 (LGA 1151)

Threads:

Family:

Core

Code Name:

Kaby Lake

Generation:

7th

Cores:

Base Clock Speed:

2.7GHz

Boost Frequency:

3.3GHz

Max Supported Memory Speed:

2400 MHz

Memory Channels:

6-Channel

TDP (Thermal Design Power):

35W

ECC:

Intergrated Graphics (iGPU):

Intel HD Graphics 630

Cooler:

Boxed / Tray:

Tray

Supported Chipset:

C232 C236 B150 B250 H110 H170 H270 Q150 Q170 Q250 Q270 Z170 Z270

Hyper Threading:

64-Bit Support:

Yes

Serie:

Core i5

Front Side Bus (FSB):

1151kHz

L2 Cache:

1MB

How long is the Warranty and how you can get technical support for Intel Core i5-7500T

Warranty:	12 months (part)
RMA Url:	https://supporttickets.intel.com/s/warrantyinfo?language=en_US
Description:	Items must be returned first before a replacement is sent. Intel does not offer on-site service as standard.
