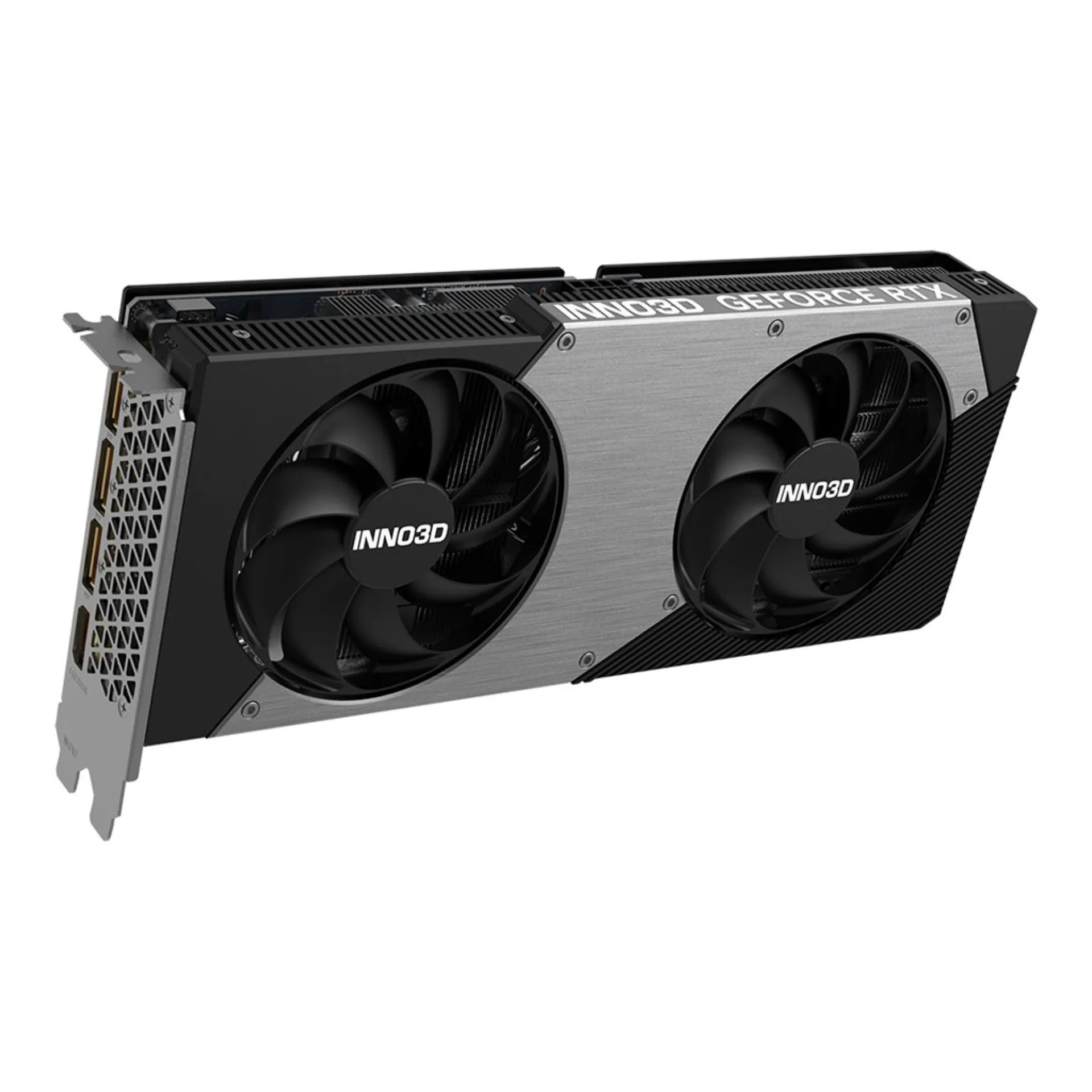

N506T2-16D7-191073N Inno3D Nvidia GeForce RTX 5060 Ti 16GB GDDR7 2602MHz 448GT/s Desktop GPU

High-Density PCIe 5.0 Desktop GPU Accelerator for Workstations and Developer Desktops with the N506T2-16D7-191073N

The N506T2-16D7-191073N is a dual-slot, SFF-ready PCIe GPU add-in card built around the NVIDIA Blackwell GeForce RTX 5060 Ti platform, delivering a balanced compute-and-graphics profile for enterprise workstations, local AI development, and multi-display VDI endpoints. Its 4th Gen RT cores and 5th Gen Tensor cores accelerate ray-traced visualization and CUDA-enabled experimentation, while the 4608 CUDA cores sustain throughput for rendering, simulation previews, and iterative model workflows.

With 16GB GDDR7 on a 128-bit interface and 448GB/s bandwidth, the N506T2-16D7-191073N supports memory-sensitive datasets and complex scenes without frequent host paging. The PCIe 5.0 x16 mechanical interface operating at x8 aligns well with modern CPU platforms by preserving lane budget for NVMe and high-speed I/O, while maintaining low-latency transfers. Display connectivity (HDMI 2.1b and 3x DisplayPort 2.1b UHBR20) enables up to 4 synchronized 8K-class outputs for visualization walls or engineering desktops, with HDCP 2.3 support where required.

Why Choose the N506T2-16D7-191073N?

The N506T2-16D7-191073N is engineered for predictable deployment in dense desktop and workstation fleets, combining a 180W power envelope and single 8-pin PCIe connector with a dual-fan axial design sized for constrained chassis. This results in a practical density-to-performance ratio for IT teams standardizing GPU capability across creators, CAD users, and developer desktops, while keeping expansion options and serviceability intact.

Inno3D focuses on consistent electrical design, thermal tuning, and mechanical fit to support enterprise uptime expectations and integration with current data centre and office standards, including modern display protocols and API compatibility such as DirectX 12 Ultimate and Vulkan 1.3.

Key Applications:

• 3D content creation and rendering
• CAD and design visualization
• Local AI inference and CUDA development
• Multi-monitor VDI graphics

At Happyware - Server Hardware you benefit from non-binding offers tailored to the N506T2-16D7-191073N deployment scope, enabling fast procurement planning for workstation rollouts. For long-lived fleets, an extended warranty up to 6 years helps align GPU lifecycle coverage with enterprise refresh cycles.
