N407S2-126XX-186162N Inno3D Nvidia GeForce RTX 4070 Super 12GB GDDR6X 2505MHz 504GB/s GPU

High-Performance Full-Height PCIe GPU Accelerator Card featuring Ada Lovelace compute with the N407S2-126XX-186162N

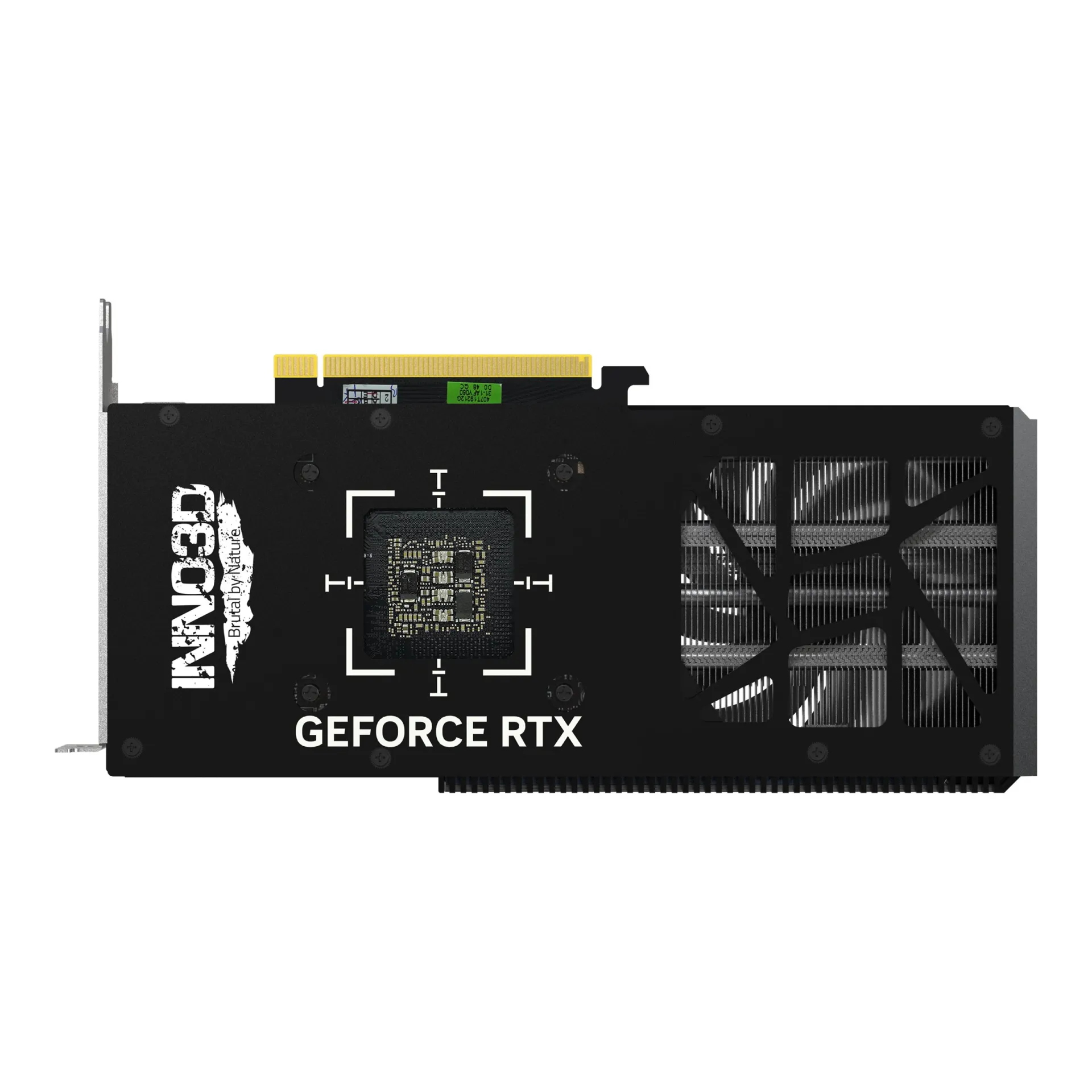

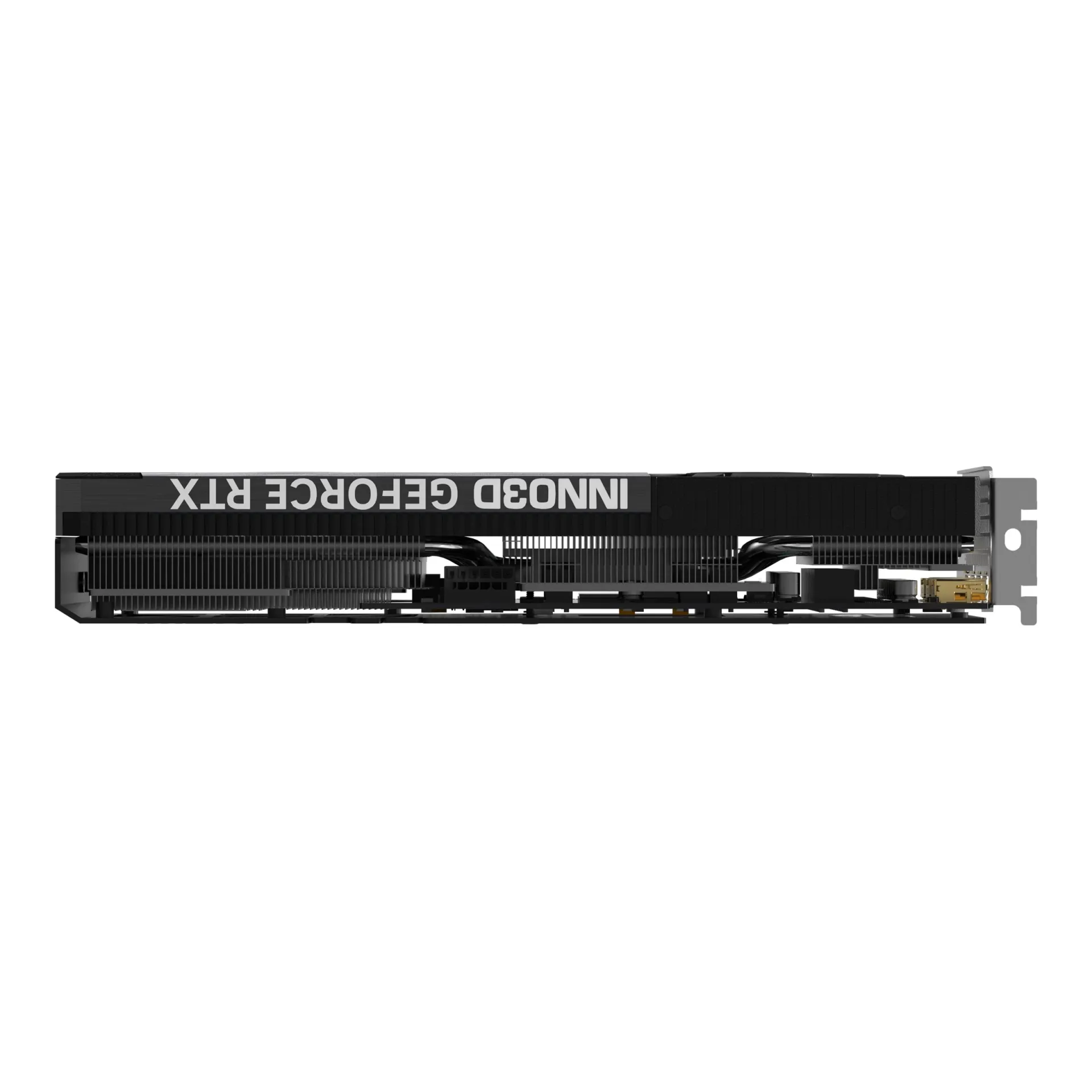

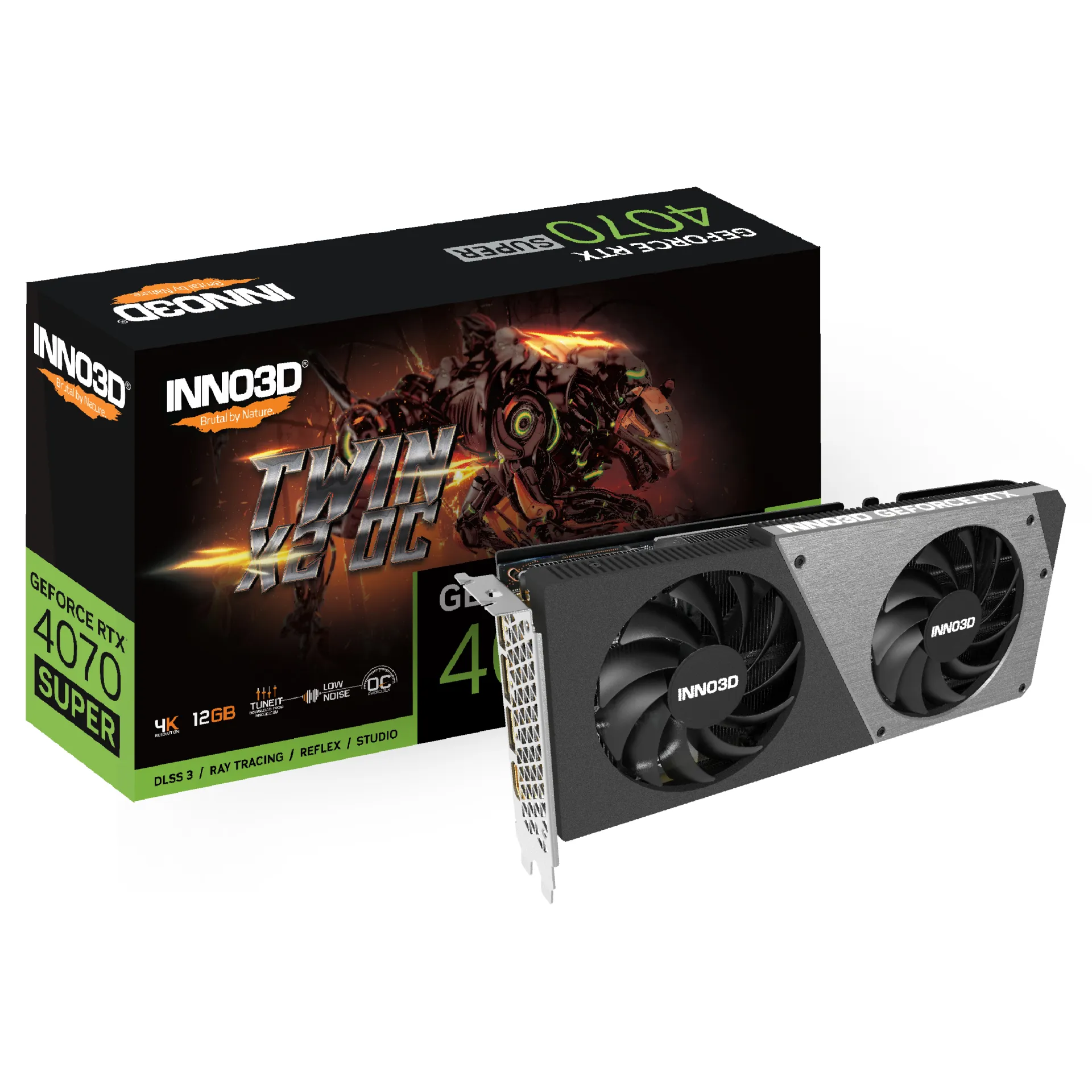

The N407S2-126XX-186162N is a full-height, dual-slot PCIe add-in GPU designed to bring NVIDIA Ada Lovelace acceleration into workstation and edge compute nodes where predictable thermals and standard expansion compatibility are required. Built around the GeForce RTX 4070 SUPER GPU, it delivers 7,168 CUDA cores with Tensor and RT capabilities for CUDA-accelerated pipelines, interactive visualization, and AI development workflows that benefit from fast iteration cycles.

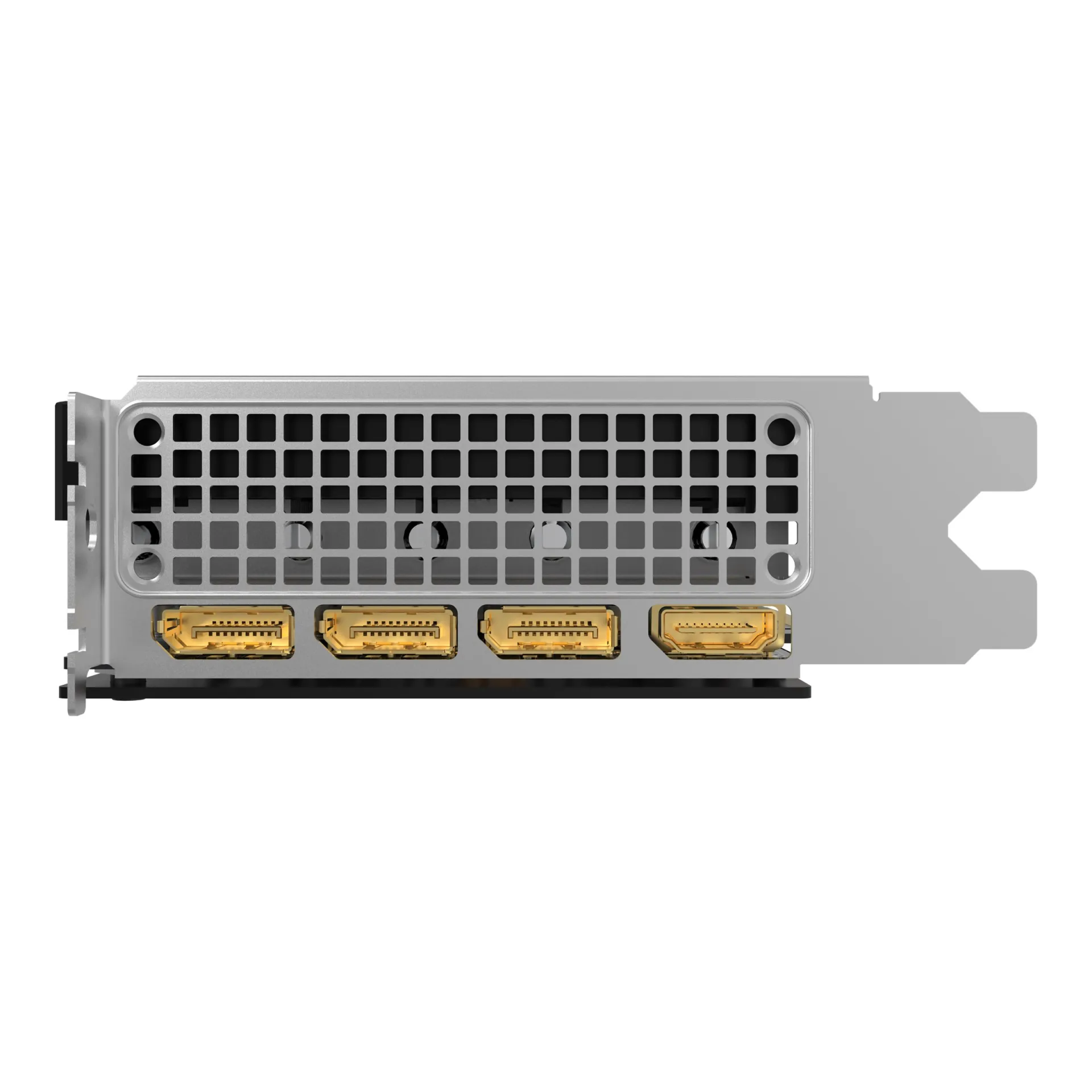

With 12GB GDDR6X on a 192-bit interface and 504GB/s memory bandwidth, the N407S2-126XX-186162N supports dense scene assets, mid-sized model inference, and high-frequency data movement between kernels without excessive host round-trips. The PCIe 4.0 x16 interface provides balanced host-to-device throughput for mixed CPU/GPU workloads, while the 220W power profile and single 12VHPWR connector simplify integration into certified workstation chassis and compact rackmount GPU workstations. For display and visualization, the N407S2-126XX-186162N exposes 1x HDMI 2.1a and 3x DisplayPort 1.4a to drive up to 4 displays, including 8K pipelines, with modern API support such as DirectX 12 Ultimate, Vulkan 1.3, and OpenGL 4.6.

Why Choose the N407S2-126XX-186162N?

The N407S2-126XX-186162N provides an efficient density-to-performance ratio for teams standardizing on PCIe GPU acceleration across multiple workstation classes. It scales cleanly through existing PCIe expansion strategies, supports enterprise deployment logic through consistent power and form-factor constraints, and enables reliable acceleration for visualization, rendering, and AI prototyping without moving to specialized server GPU platforms.

Inno3D focuses on practical board engineering for sustained operation, emphasizing predictable cooling, stable power delivery, and compatibility with current workstation and data centre integration standards, including modern display connectivity and security features such as HDCP.

Key Applications:

• 3D rendering and ray-traced visualization
• CAD/CAE acceleration
• Content creation and video pipelines
• Local AI inference and CUDA prototyping
• Multi-display operator consoles up to 8K
