XV23-VC0-AAJ1 Gigabyte
2U NVIDIA MGX GPU Server Platform optimised for Arm CPU throughput with XV23-VC0-AAJ1 Gigabyte
The XV23-VC0-AAJ1 Gigabyte is a 2U single-node GPU server based on the NVIDIA MGX design and the dual NVIDIA Grace CPU Superchip platform, engineered for AI training and inference nodes that rely on PCIe Gen5 GPU acceleration. Two Grace S1 processors connected via NVLink-C2C deliver a high-bandwidth, cache-coherent Arm compute base that pairs effectively with PCIe-attached accelerators while maintaining predictable performance under mixed CPU/GPU pipelines.

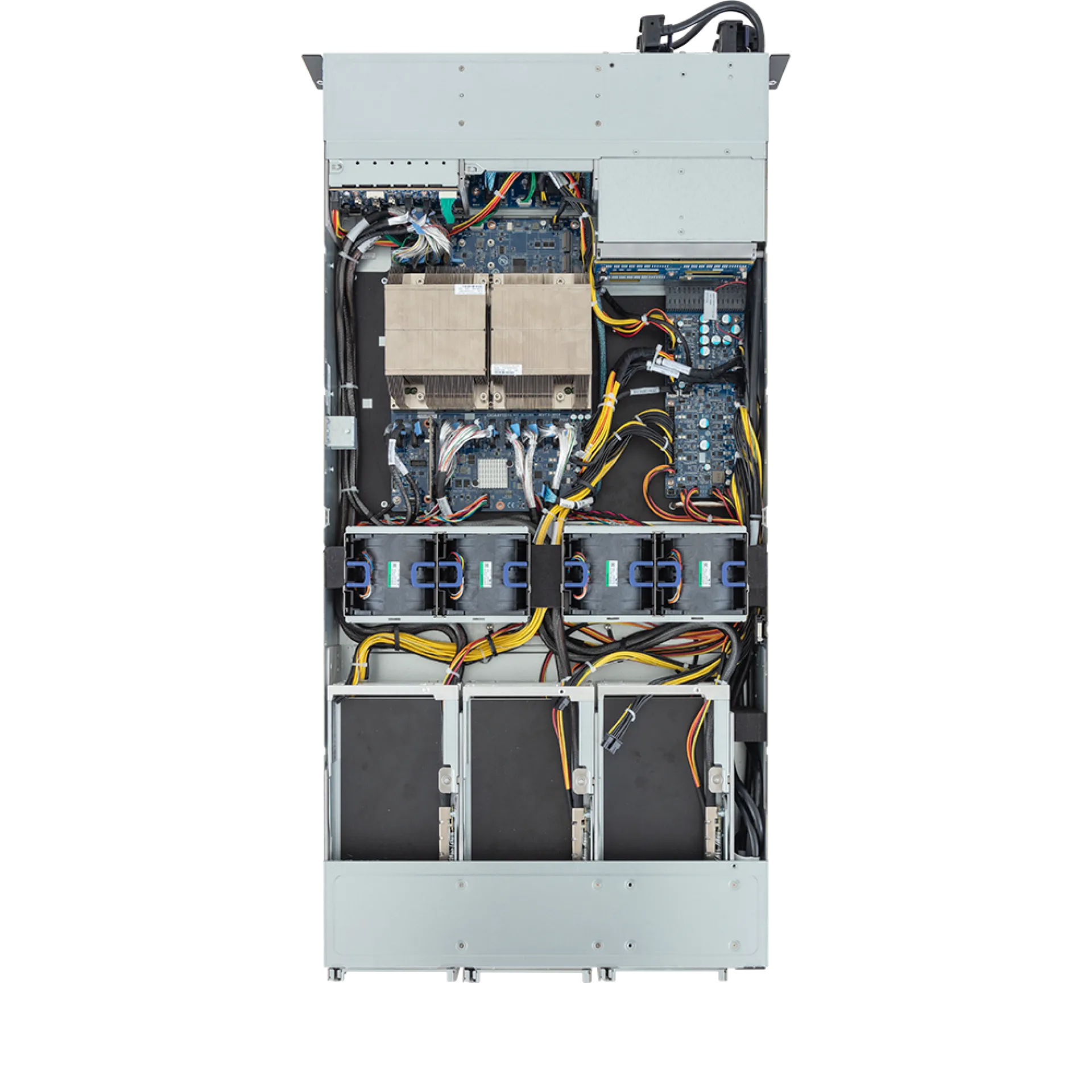

In the XV23-VC0-AAJ1 Gigabyte, Grace-attached LPDDR5X ECC memory scales up to 960GB to maximise memory bandwidth per watt, which is decisive for simulation, graph analytics, and other memory-bound HPC workloads. Expansion is built around 6 PCIe Gen5 x16 FHFL cabled slots, enabling up to 4 GPU installations while preserving serviceability and airflow in a dense 2U footprint. Storage is NVMe-centric with 2 front hot-swap 2.5" Gen5 bays plus 2 internal PCIe Gen5 x4 M.2 slots, supporting low-latency data staging without relying on SAS or RAID controller overhead.
Why Choose the XV23-VC0-AAJ1 Gigabyte?
The XV23-VC0-AAJ1 Gigabyte provides a balanced density-to-performance profile by combining Grace memory bandwidth, PCIe Gen5 expansion, and a BMC-managed operational model for repeatable rack-scale deployment. Its 2+2 redundant 80 PLUS Titanium power design and modular GPU-ready layout support scalable growth from prototype inference to clustered HPC nodes with consistent servicing workflows.
Gigabyte applies a server engineering approach focused on validated thermals, component interoperability, and datacentre-aligned management, using the ASPEED AST2600 BMC with IPMI and HTML5 KVM to support remote provisioning, monitoring, and lifecycle operations consistent with modern enterprise standards.
Key Applications:
- PCIe GPU AI training and inference
- HPC simulation and modelling
- Memory-bandwidth-bound analytics
- Arm-based cloud and HCI nodes
- Remote-managed enterprise clusters
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your XV23-VC0-AAJ1 Gigabyte rollout plan and an extended warranty of up to 6 years to secure long-term operation for mission-critical GPU and HPC deployments.
Technical details of XV23-VC0-AAJ1 Gigabyte
How long is the Warranty and how you can get technical support for XV23-VC0-AAJ1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
