W773-W80-AAF1 Gigabyte

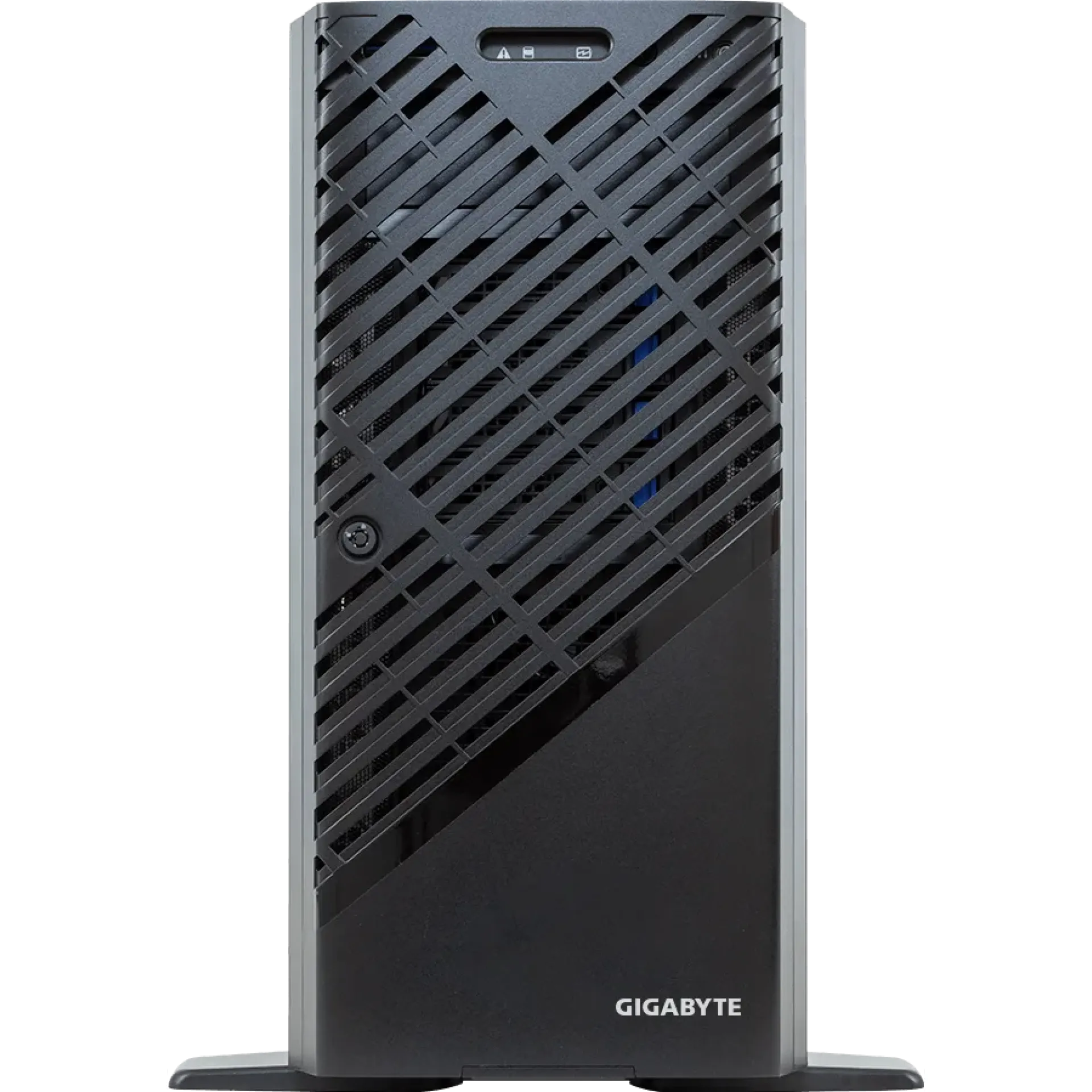

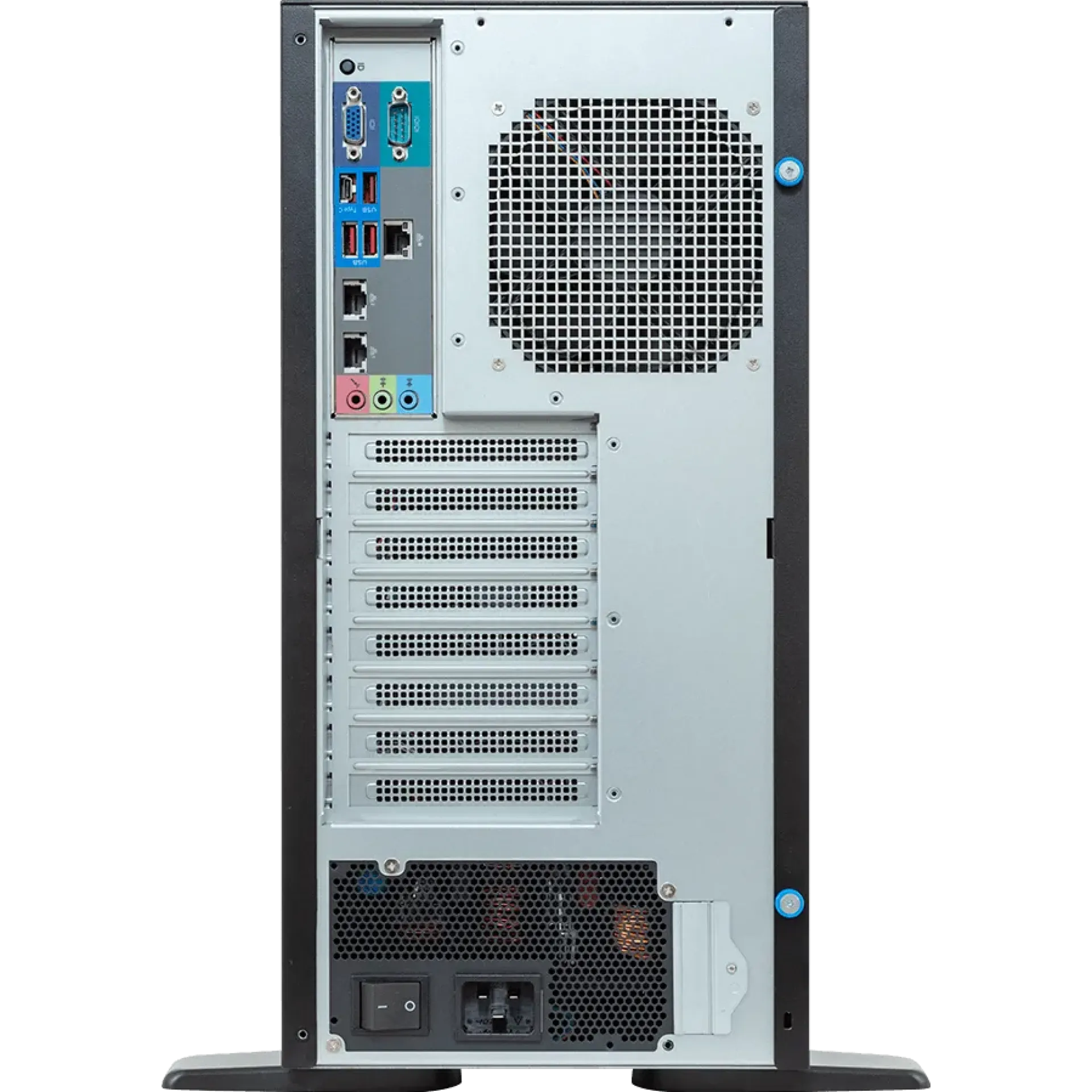

High-Performance GPU Workstation Tower platform for multi-accelerator development with W773-W80-AAF1 Gigabyte

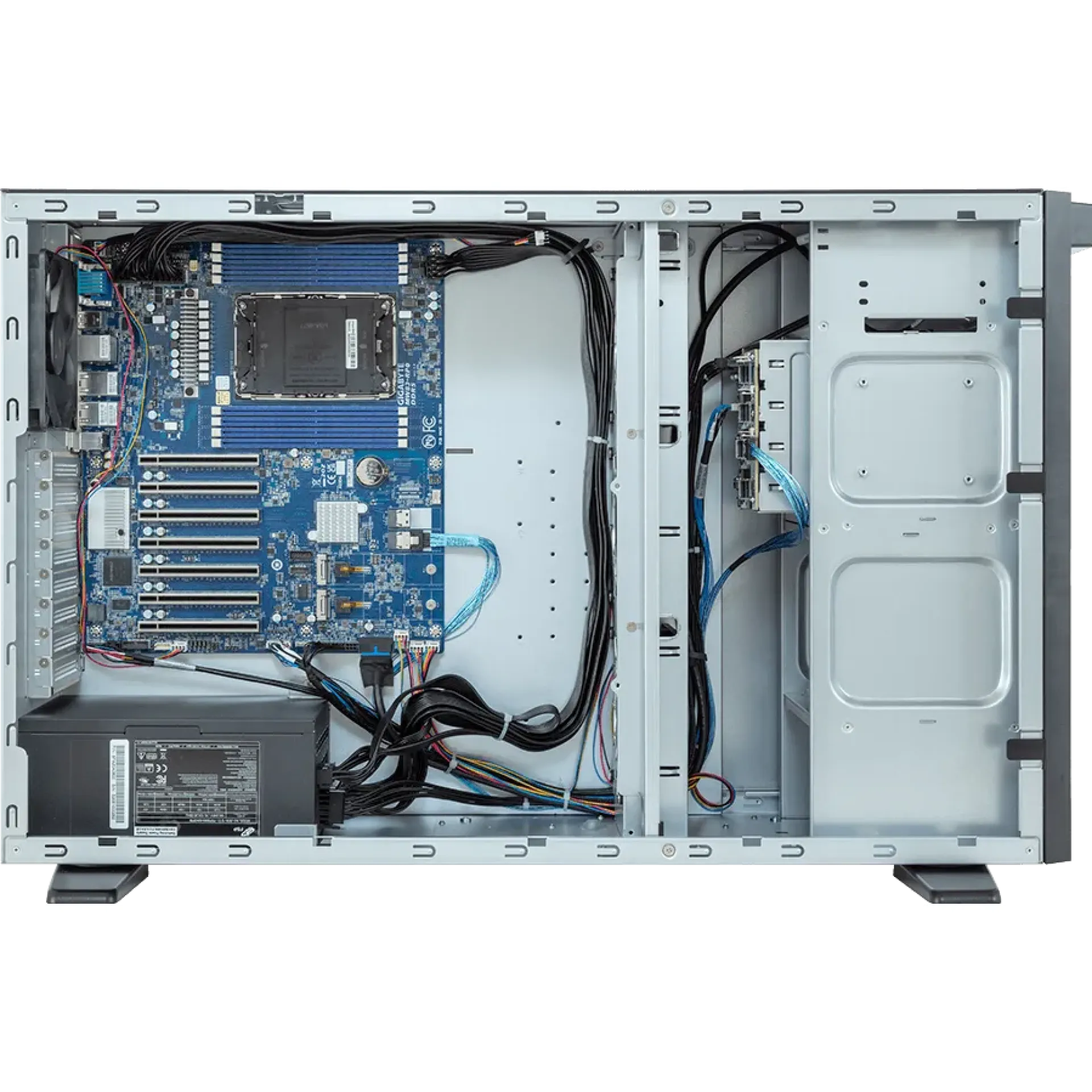

The W773-W80-AAF1 Gigabyte workstation tower is engineered as a single-socket Intel Xeon W platform on the Intel W790 chipset, targeting workstation-scale AI training, inference validation, and deep learning prototyping where PCIe bandwidth and memory integrity are decisive. Built around LGA4677 Xeon W-2400/2500/3400/3500 (Sapphire Rapids/Refresh), it supports high core counts and sustained CPU power envelopes to keep multiple PCIe GPUs fed under mixed CPU/GPU pipelines.

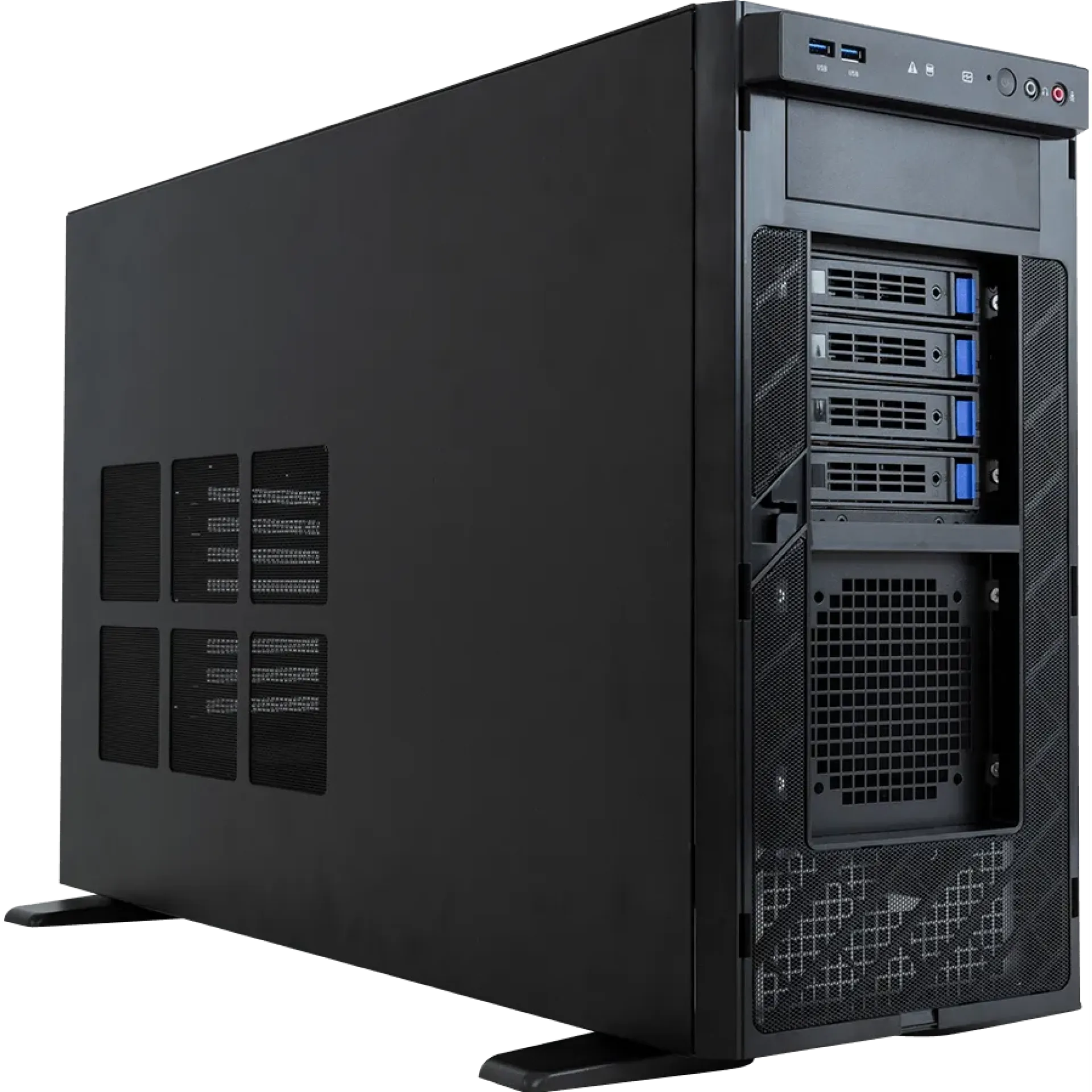

For memory-intensive model development and preprocessing, the W773-W80-AAF1 Gigabyte implements DDR5 ECC RDIMM with up to 8 DIMM slots and an 8-channel memory architecture (platform-dependent), enabling stable capacity scaling and reduced soft-error risk. Expansion is centred on PCIe Gen5 with 5x PCIe 5.0 x16 plus additional PCIe 4.0 x16 physical slots, allowing up to 4x dual-slot Gen5 GPUs (configuration dependent) and high-throughput add-in cards. Storage combines 4x hot-swap 2.5"/3.5" SATA bays with 2x M.2 2280 PCIe 4.0 x4 NVMe for fast scratch, datasets, and OS separation, backed by Intel SATA RAID options for basic resiliency.
Why Choose the W773-W80-AAF1 Gigabyte?
The W773-W80-AAF1 Gigabyte balances tower serviceability with near-server class I/O density, making it practical for lab deployment, edge AI build-outs, and engineering teams needing multi-GPU scalability without rack integration overhead. Dual 10GbE plus dedicated BMC networking supports fast data ingress and predictable remote operations, while PCIe Gen5 headroom preserves upgrade paths across accelerator generations.
Gigabyte designs this platform with data-centre-aligned management and validation, integrating an ASPEED AST2600 BMC with IPMI and HTML5 KVM, a discrete management port, and an optional TPM 2.0 path to fit enterprise security baselines and controlled lifecycle operations.
Key Applications:
- Multi-GPU AI training and prototyping
- Local AI inference and model serving validation
- Deep learning development with PCIe GPUs
- GPU-accelerated simulation and rendering
- High-throughput data preprocessing
At Happyware - Server Hardware you benefit from non-binding offers tailored to your target GPU, memory, and storage configuration for the W773-W80-AAF1 Gigabyte, plus extended warranty options up to 6 years to secure long-term workstation deployments.
Technical details of W773-W80-AAF1 Gigabyte
How long is the Warranty and how you can get technical support for W773-W80-AAF1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
