W773-H5D-AAF1 Gigabyte

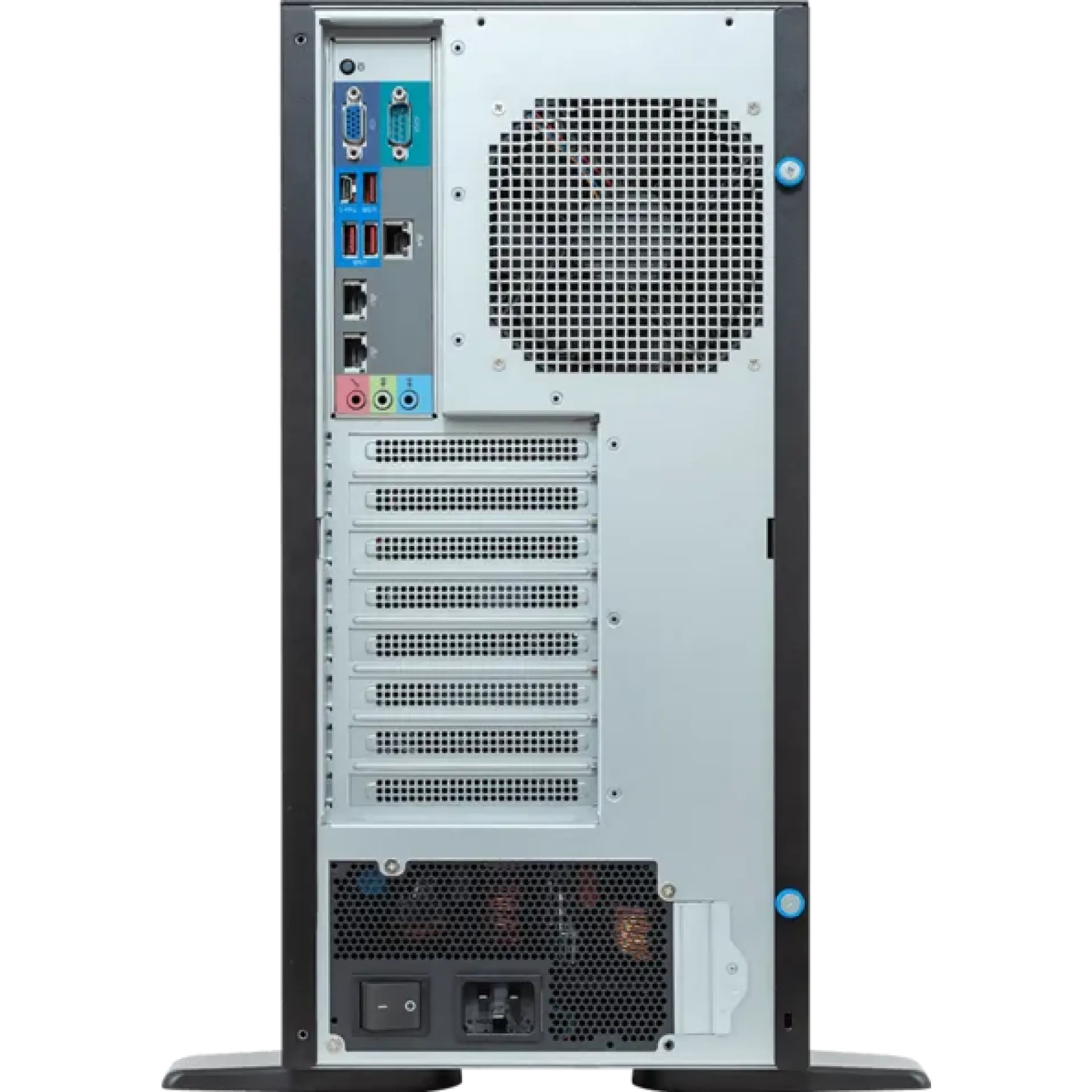

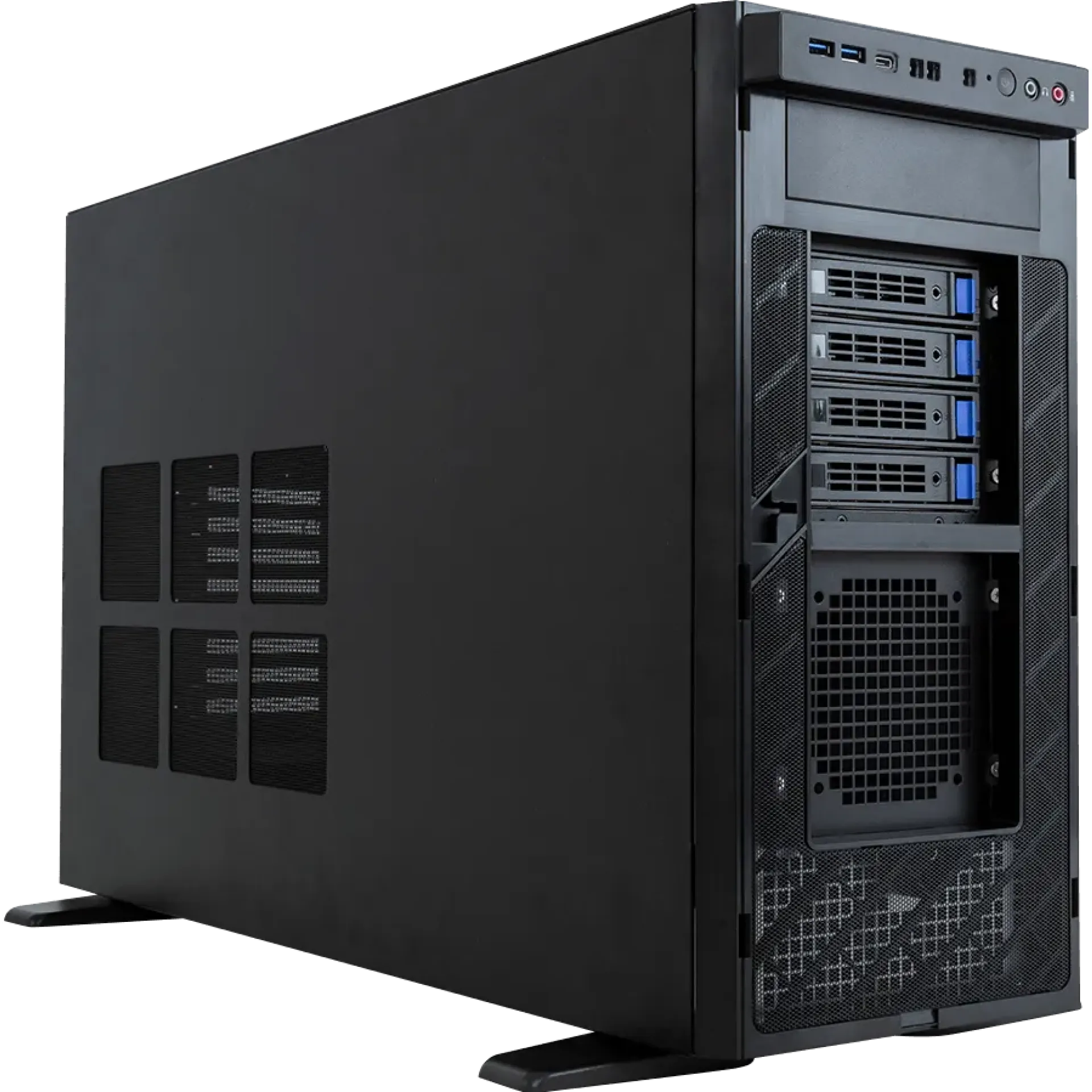

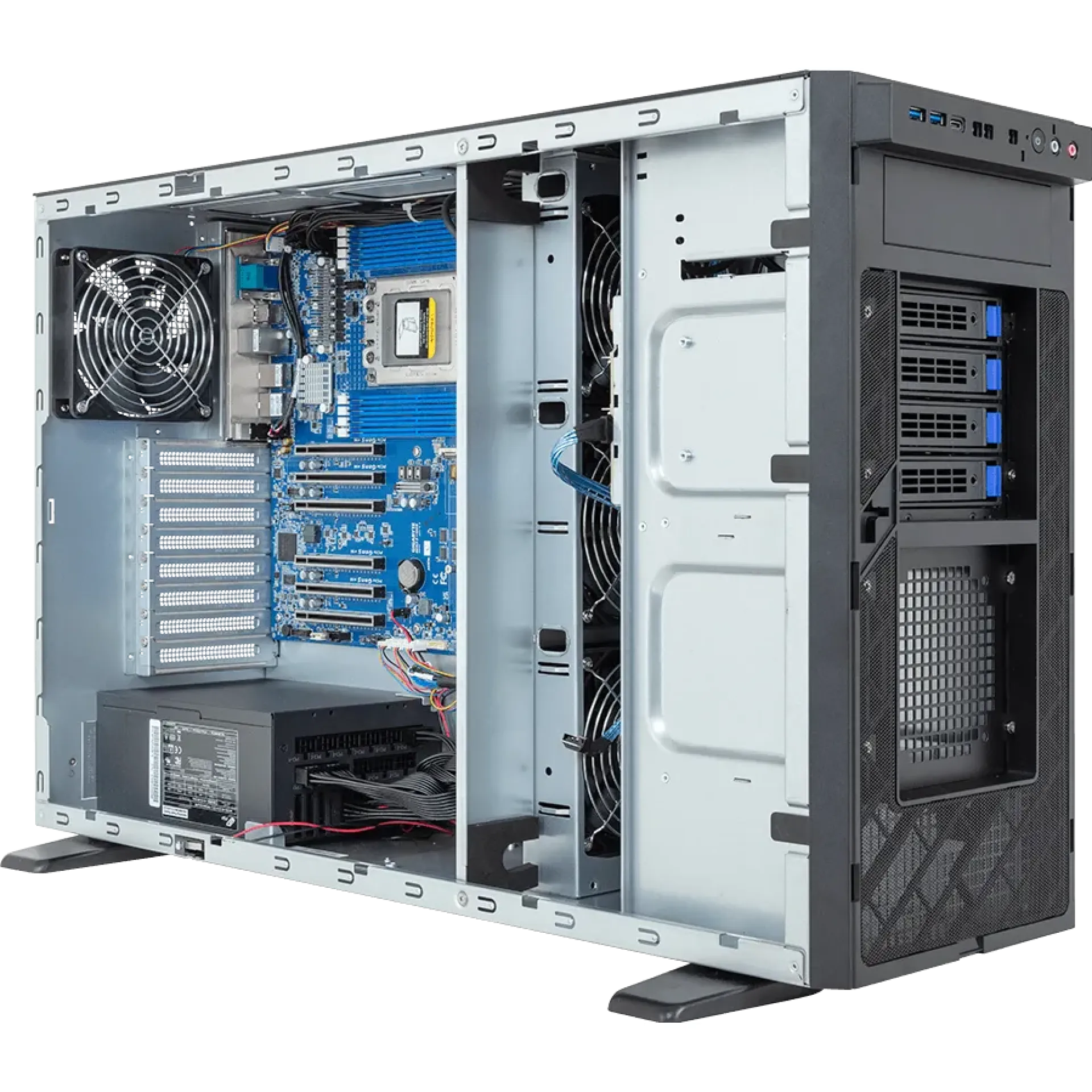

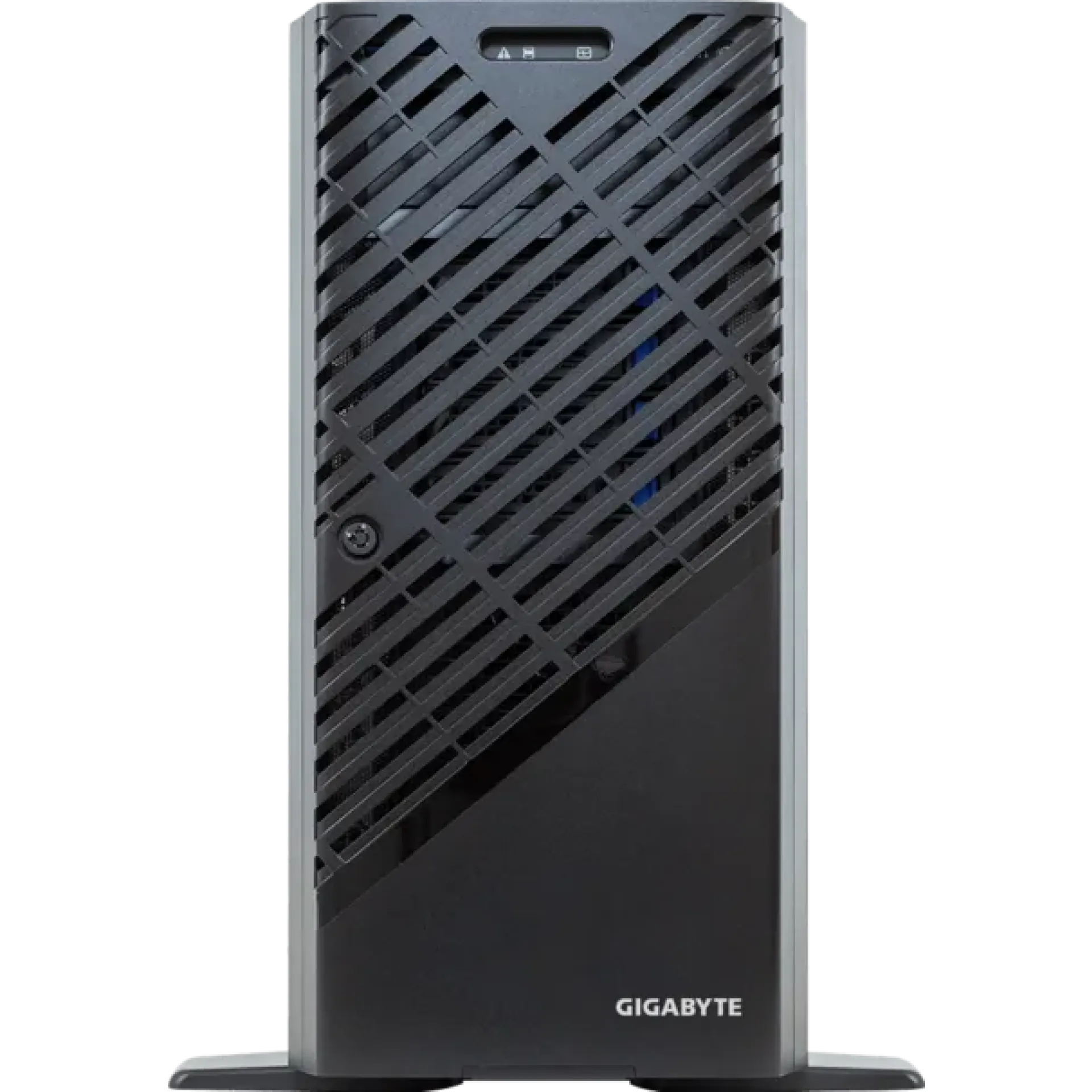

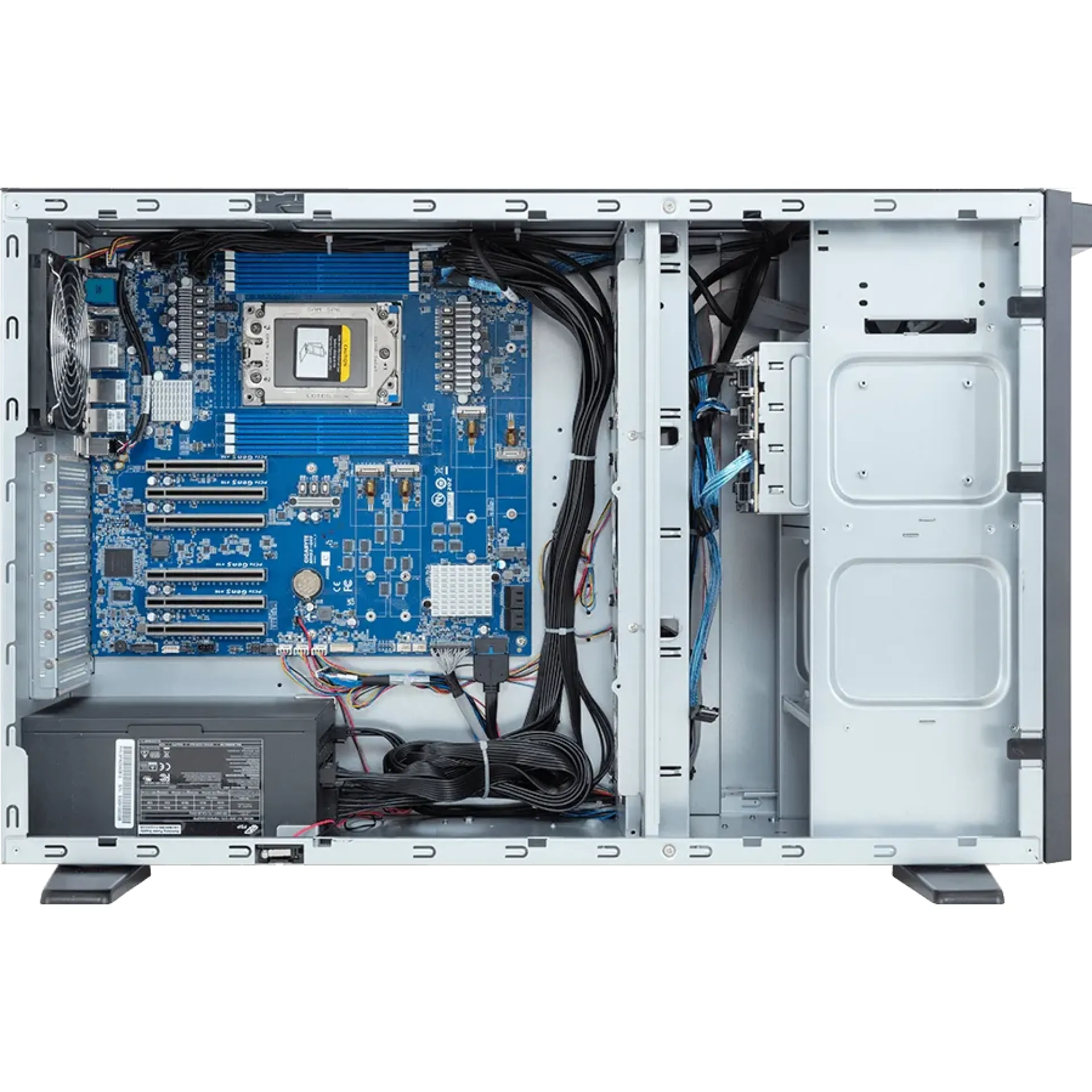

High-Performance Tower Workstation Barebone with multi-GPU PCIe 5.0 expansion using the W773-H5D-AAF1 Gigabyte
The W773-H5D-AAF1 Gigabyte barebone is engineered as a 1-socket AMD WRX90 (sTR5) platform for Ryzen Threadripper PRO 9000WX/7000WX CPUs, delivering up to 96 cores for CPU-dense HPC and technical computing while retaining workstation-friendly serviceability. Its 8-channel DDR5 RDIMM ECC architecture across 8 DIMM slots scales memory bandwidth and capacity for simulation, rendering, and AI preprocessing where deterministic performance and data integrity are mandatory.
For accelerator-led builds, W773-H5D-AAF1 Gigabyte provides 6 PCIe 5.0 x16 mechanical slots to support high-throughput GPU and NIC/HBA expansion, enabling balanced lane allocation for multi-GPU inference, visualization, or mixed CPU/GPU workflows. Storage is optimized for low-latency scratch and dataset staging with 4 PCIe 5.0 x4 NVMe M.2 slots, while optional hot-swap SATA bays support capacity tiers; NVMe/SAS in the front bays is enabled via add-in storage controllers to match project-specific IO profiles. Integrated connectivity includes dual 10GbE plus a dedicated BMC management port for out-of-band operations.
Why Choose the W773-H5D-AAF1 Gigabyte?
The W773-H5D-AAF1 Gigabyte platform targets a high density-to-performance ratio in a pedestal form factor, consolidating CPU cores, ECC memory bandwidth, and PCIe 5.0 expansion into a single deployable node. It is designed for scalable growth from initial GPU configurations to broader IO and storage tiers, with IPMI/HTML5 KVM management to standardize enterprise provisioning, monitoring, and remote remediation.
Gigabyte applies server-grade engineering to workstation platforms, emphasizing validated component interoperability, consistent firmware management, and alignment with modern data centre operational standards. The design integrates ASPEED AST2600 BMC management, RAID capability, and optional TPM support to fit controlled enterprise environments.
Key Applications:
- Multi-GPU AI training and inference
- Visual computing and GPU rendering
- HPC simulation and technical computing
- High-throughput NVMe scratch and staging
- Virtualization and lab consolidation
At Happyware - Server Hardware you benefit from non-binding offers tailored to your W773-H5D-AAF1 Gigabyte configuration goals and bulk order discount options for standardized multi-node rollouts across teams or sites.
Technical details of W773-H5D-AAF1 Gigabyte
How long is the Warranty and how you can get technical support for W773-H5D-AAF1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
