S452-Z30 Gigabyte Single EPYC 7002 4U 6NS452Z30MR-00-A Server Barebone
Get extra volume discount for 6NS452Z30MR-00-A and save cash:
| Quantity | Unit price |
|---|---|
|
€3,590.00
|
|
| To 4 |
€3,520.00
€3,590.00
(1.95% saved)
|
| To 9 |
€3,450.00
€3,590.00
(3.9% saved)
|
| From 10 |
€3,380.00
€3,590.00
(5.85% saved)
|
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Rev-A00
Product line:Gigabyte S Series
€3,590.00
Do you need help or a free consultation regarding our Services?
Your contact
S452-Z30 Gigabyte

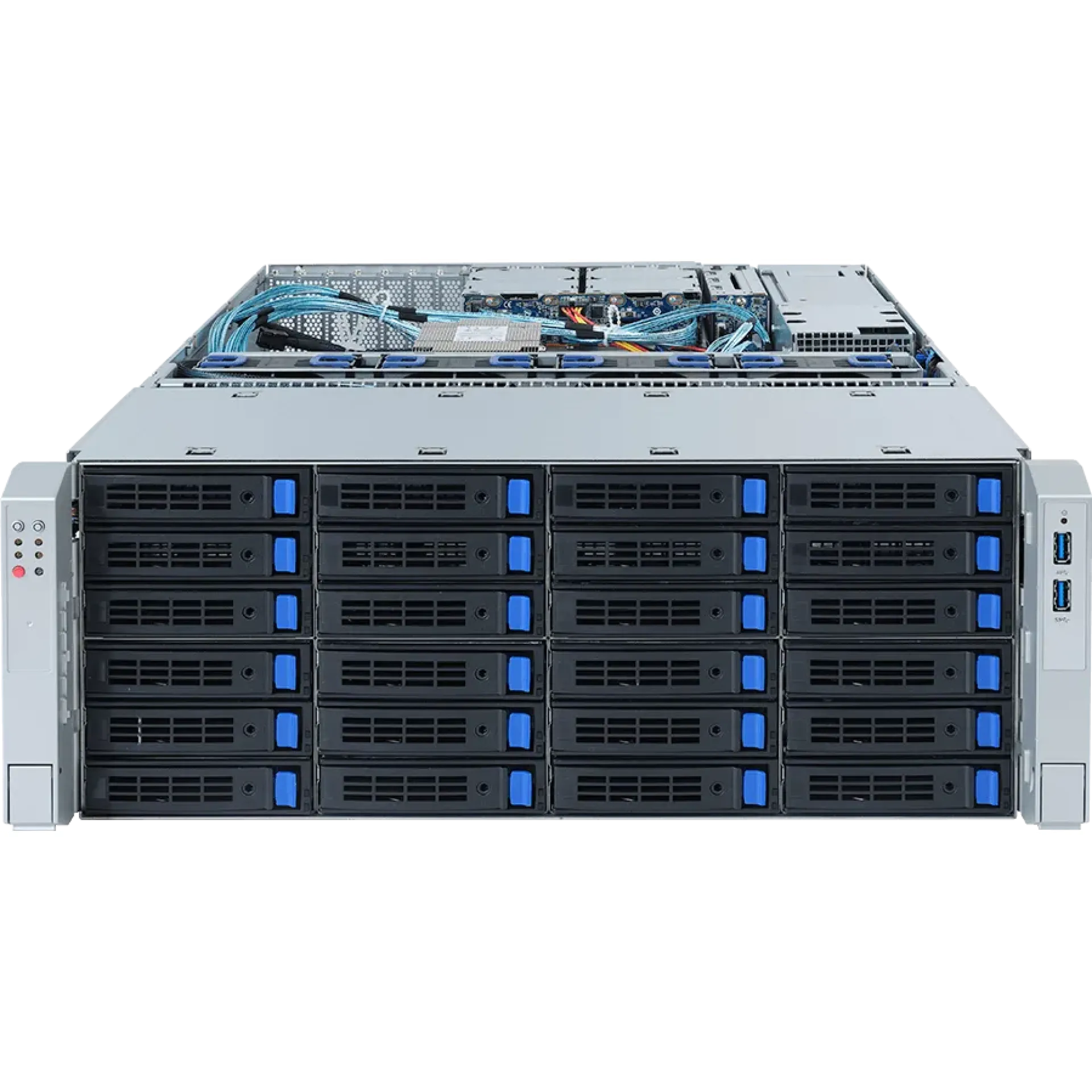

High-Density 4U Storage Server Barebone engineered for scale-out storage with the S452-Z30 Gigabyte platform
The S452-Z30 Gigabyte barebone is a 4U, single-socket storage server designed to maximize drive density while maintaining predictable serviceability for software-defined storage. Built on AMD EPYC 7003/7002 (SP3), it supports up to 64 cores to balance Ceph OSD compute, checksum/offload needs, and compression workloads without overprovisioning CPU.

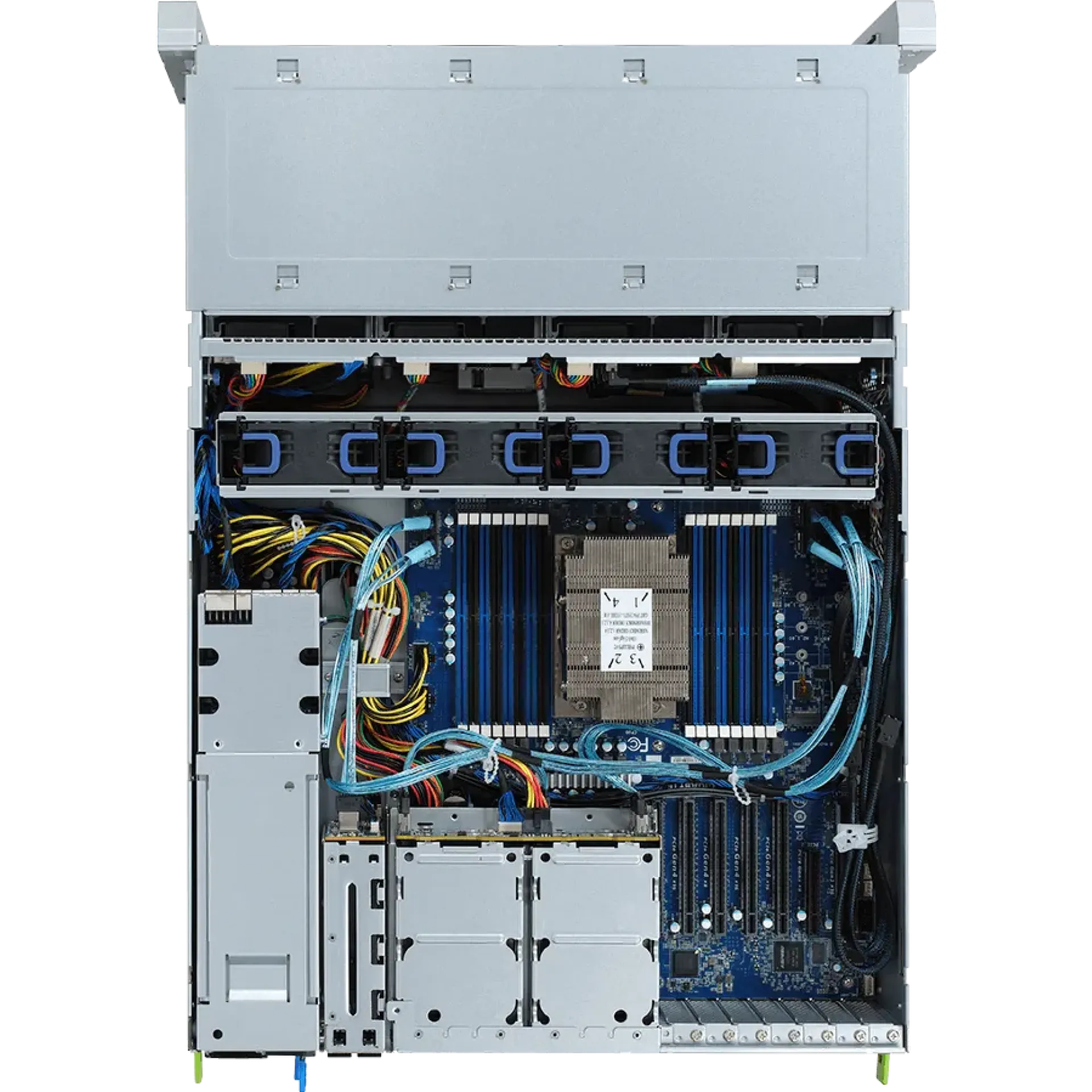

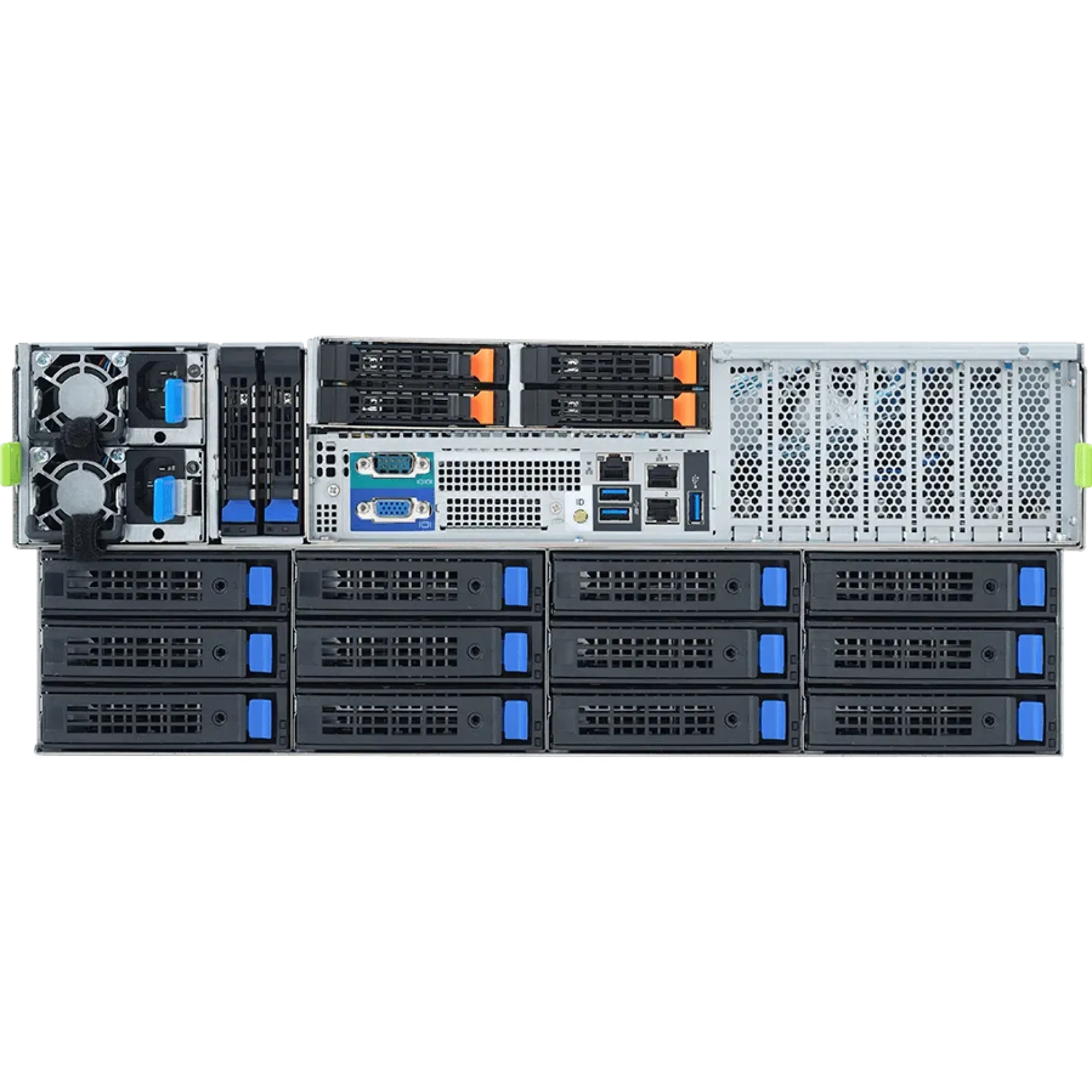

S452-Z30 Gigabyte uses an 8-channel DDR4 ECC memory architecture with up to 16 DIMM slots to sustain high metadata and caching performance at node scale. For expansion, multiple PCIe Gen4 x16 slots provide bandwidth headroom for SAS HBAs/RAID adapters and high-speed NICs, complemented by an OCP NIC 2.0 mezzanine for standardized network upgrades. Storage architecture is optimized around 42 hot-swap bays with hybrid SAS/SATA front and rear capacity plus NVMe-ready rear SSD positions; a Broadcom SAS35x48 expander enables consistent SAS 12Gb/s or SATA 6Gb/s fan-out, while dual internal PCIe Gen3 x4 M.2 NVMe slots isolate boot media from the data plane.
Why Choose the S452-Z30 Gigabyte?
S452-Z30 Gigabyte delivers a strong density-to-performance ratio for capacity tiers, combining 42-bay scaling with enterprise reliability features such as ECC memory, out-of-band management, and redundant power. The platform fits predictable node-based growth models, allowing storage architects to standardize on a repeatable chassis for cluster expansion and maintenance windows.
Gigabyte engineers this system with a data centre-first philosophy focused on component validation, remote manageability via ASPEED AST2500 BMC with IPMI/remote KVM, and power efficiency through dual hot-swap 80 PLUS Platinum PSUs, aligning the S452-Z30 Gigabyte design with modern operational and availability requirements.
Key Applications:
- Ceph and object storage nodes
- Data lakes and scale-out file storage
- Backup and archive repositories
- Capacity-optimized HCI storage tiers
- Virtualized storage infrastructure
At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment requirements for the S452-Z30 Gigabyte and the option to extend the warranty up to 6 years to protect long-lifecycle storage investments.
Technical details of S452-Z30 Gigabyte
How long is the Warranty and how you can get technical support for S452-Z30 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
