R284-A90-IAL1 Gigabyte

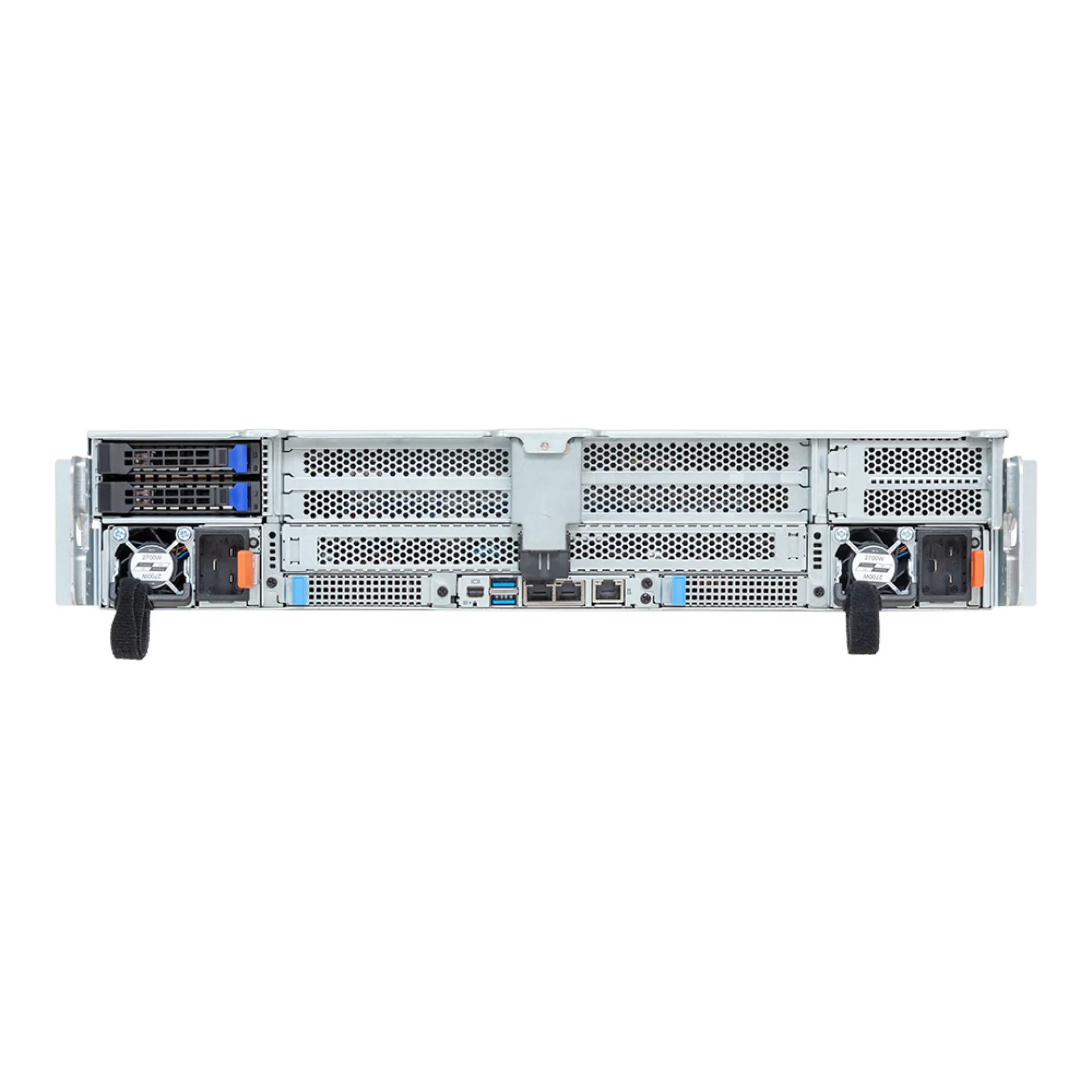

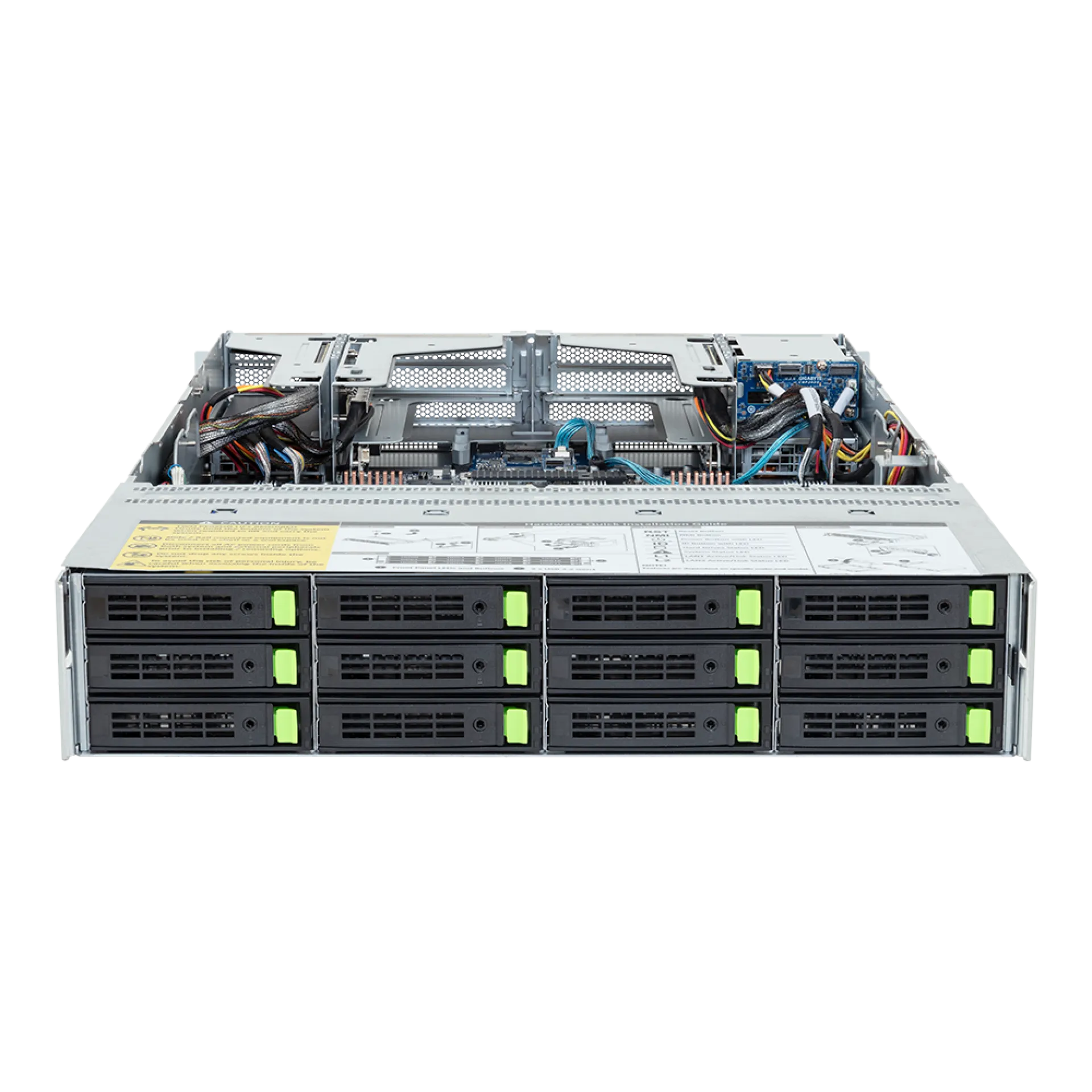

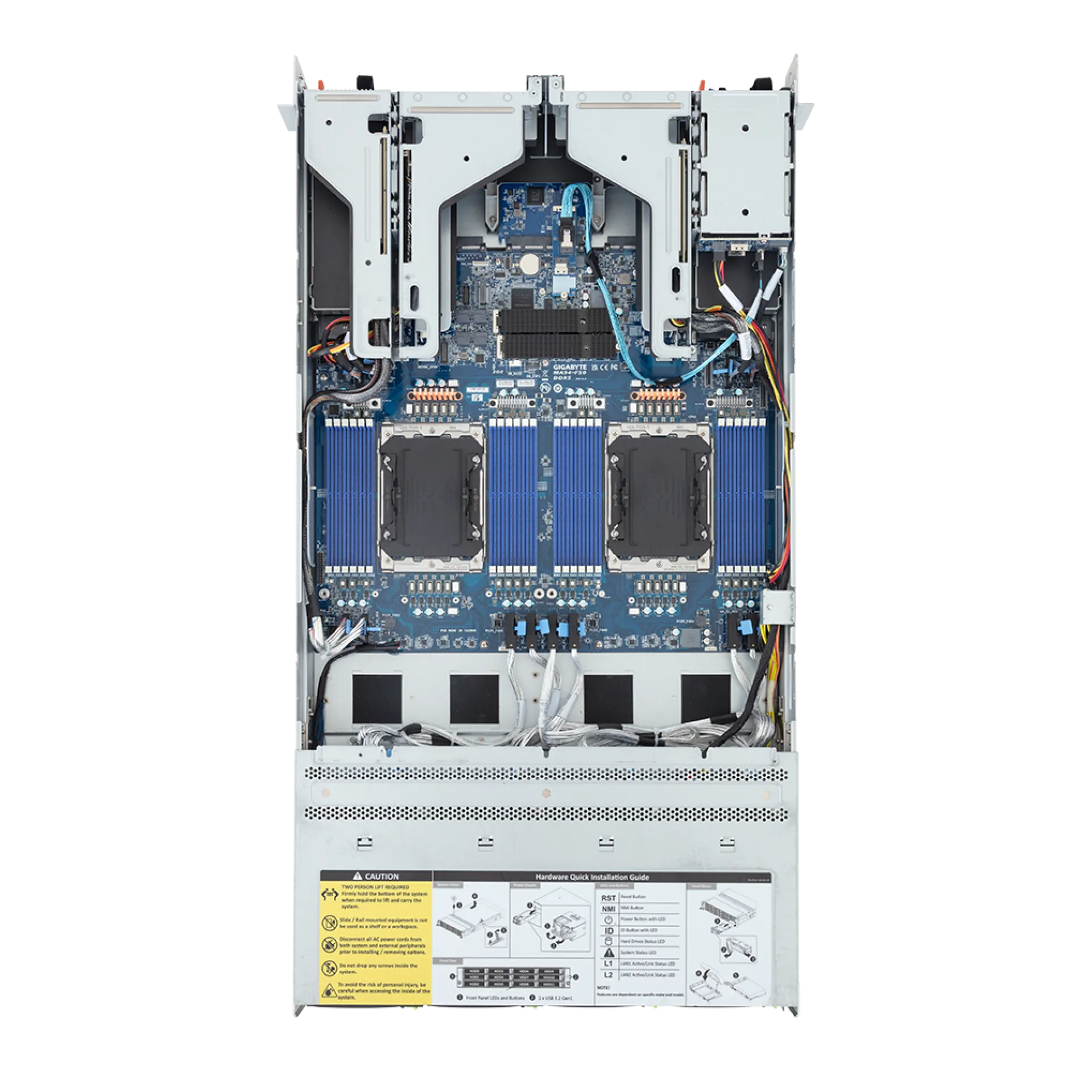

High-Density 2U Immersion-Ready Dual-Socket Rack Server Barebone with the R284-A90-IAL1 Gigabyte
The R284-A90-IAL1 Gigabyte is a 2U rack server barebone engineered for immersion-cooled deployments that demand sustained high TDP operation and PCIe Gen5 bandwidth. Built on the dual-socket Intel Xeon 6 platform (Socket BR LGA7529), it targets private cloud virtualisation nodes, edge aggregation appliances, and high-density compute racks where thermal headroom directly translates into predictable performance.
For memory-intensive consolidation and in-memory services, the R284-A90-IAL1 Gigabyte provides a DDR5 ECC Registered architecture with 24 DIMM slots supporting RDIMM or MRDIMM, aligned to the Xeon 6 multi-channel design and scalable up to 6TB. Expansion is focused on modern accelerator and NIC topologies with multiple PCIe Gen5 x16 slots plus dual OCP NIC 3.0 PCIe 5.0 x16 interfaces for high-throughput networking and NCSI management. Storage is designed around a 12+2 hot-swap layout: 12 front bays with a hybrid backplane for NVMe Gen5 x4 or SATA or SAS-4 plus 2 rear 2.5-inch hot-swap SATA/SAS bays, complemented by onboard M.2 for fast boot and local NVMe tiers; RAID is enabled via add-in controllers or VROC as required by the chosen media mix.
Why Choose the R284-A90-IAL1 Gigabyte?
The R284-A90-IAL1 Gigabyte delivers an enterprise-focused balance of socket density, memory capacity, and PCIe Gen5 I/O, optimised for immersion-cooled racks that must sustain up to 500W CPUs per socket without throttling. Its modular networking and storage enable scalable configurations that map cleanly to cluster growth, while hot-swap serviceability supports predictable maintenance windows in high-uptime environments.
Gigabyte designs this platform around data centre operational standards, combining robust power delivery with redundant 80 PLUS Titanium hot-swap PSUs and a management stack based on ASPEED AST2600 BMC with IPMI and HTML5 KVM for consistent remote lifecycle control.
Key Applications:
- Hybrid and private cloud virtualisation clusters
- Immersion-cooled high TDP compute nodes
- Edge aggregation and network service appliances
- NVMe Gen5 storage-heavy compute tiers
At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment targets for the R284-A90-IAL1 Gigabyte, and can secure an extended warranty of up to 6 years to align procurement with long lifecycle operations.
Technical details of R284-A90-IAL1 Gigabyte
How long is the Warranty and how you can get technical support for R284-A90-IAL1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
