R284-A90-AAL2 Gigabyte Dual Xeon 6 SoC 2U 6NR284A90DR000AAL2 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Gigabyte R Series
Not available
Do you need help or a free consultation regarding our Services?
Your contact
R284-A90-AAL2 Gigabyte

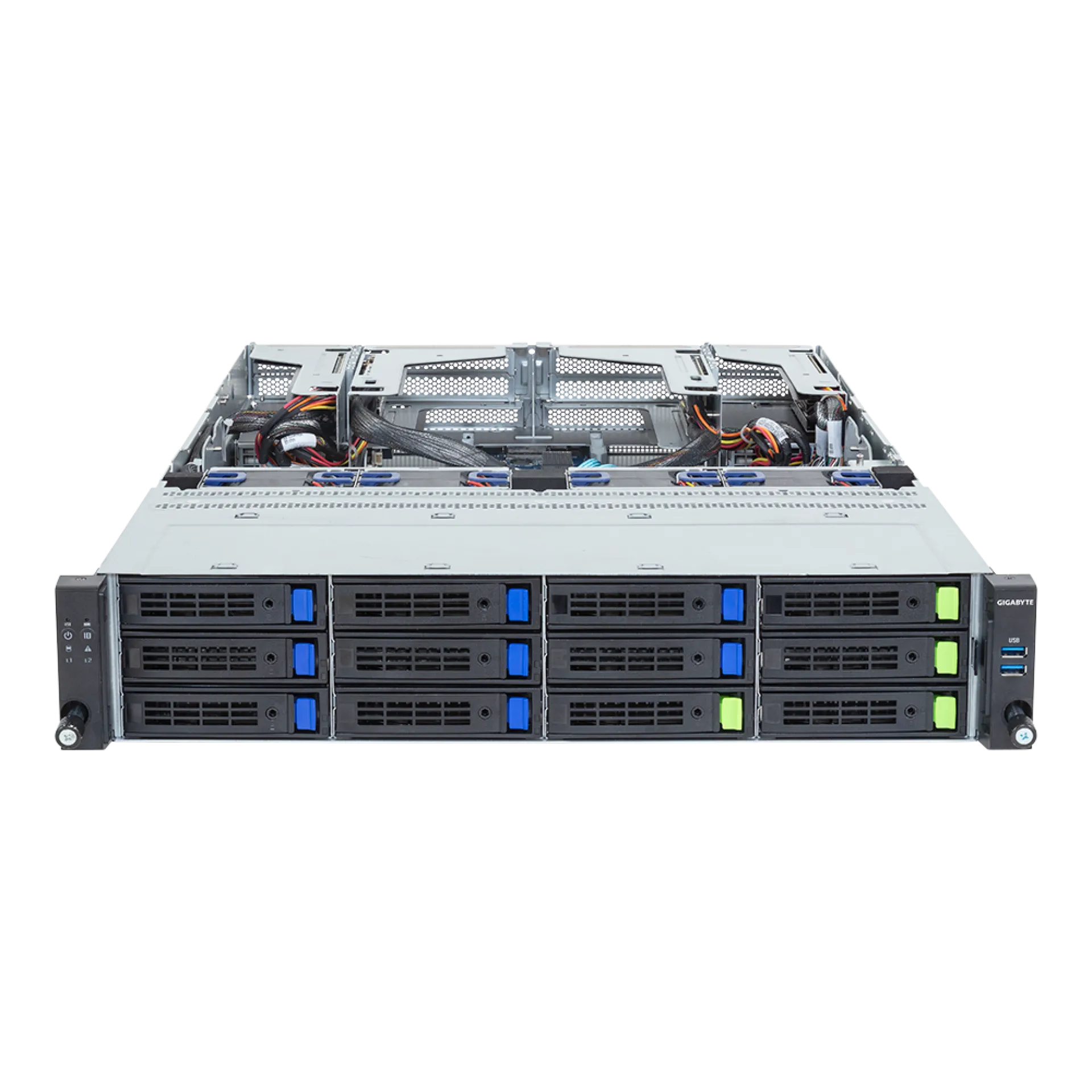

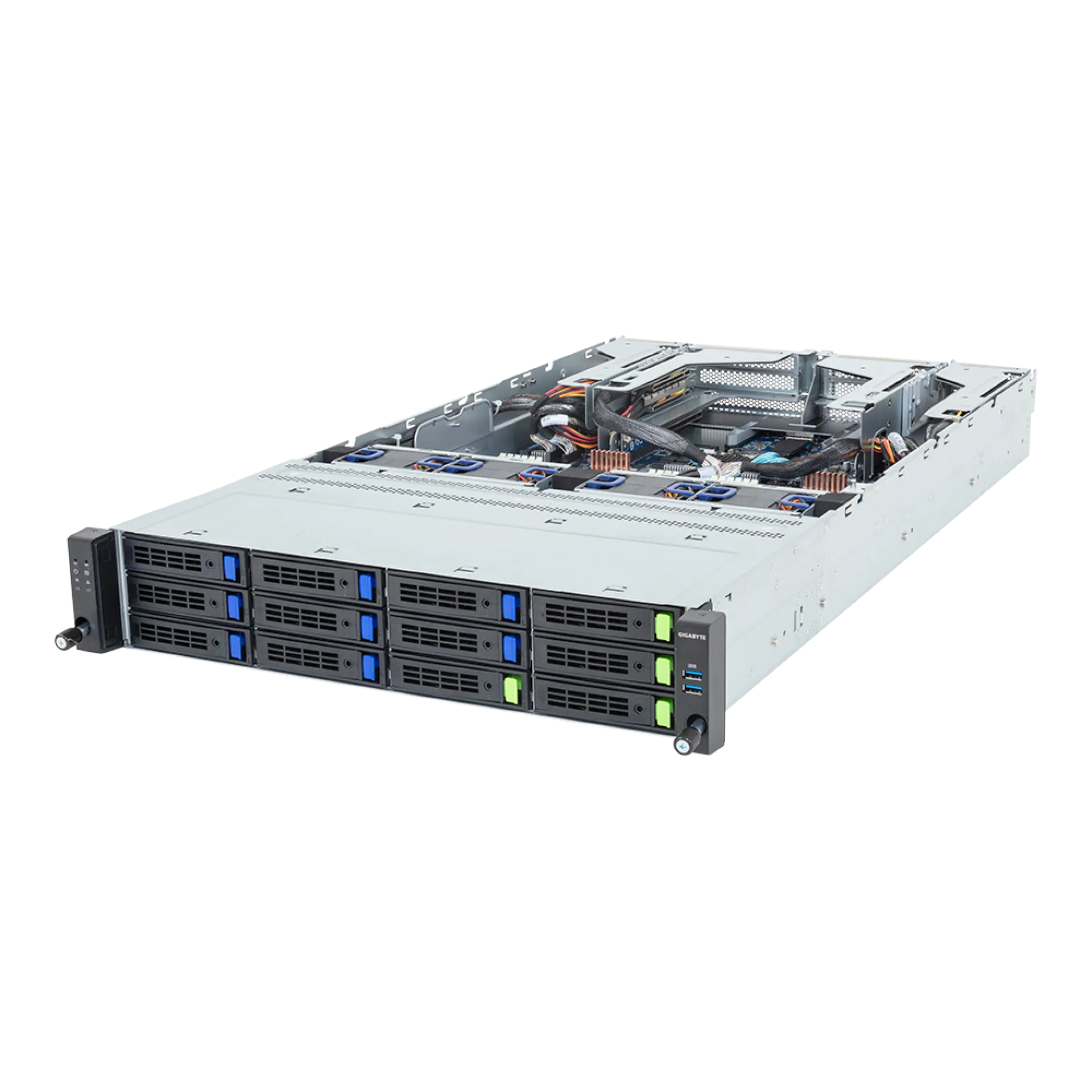

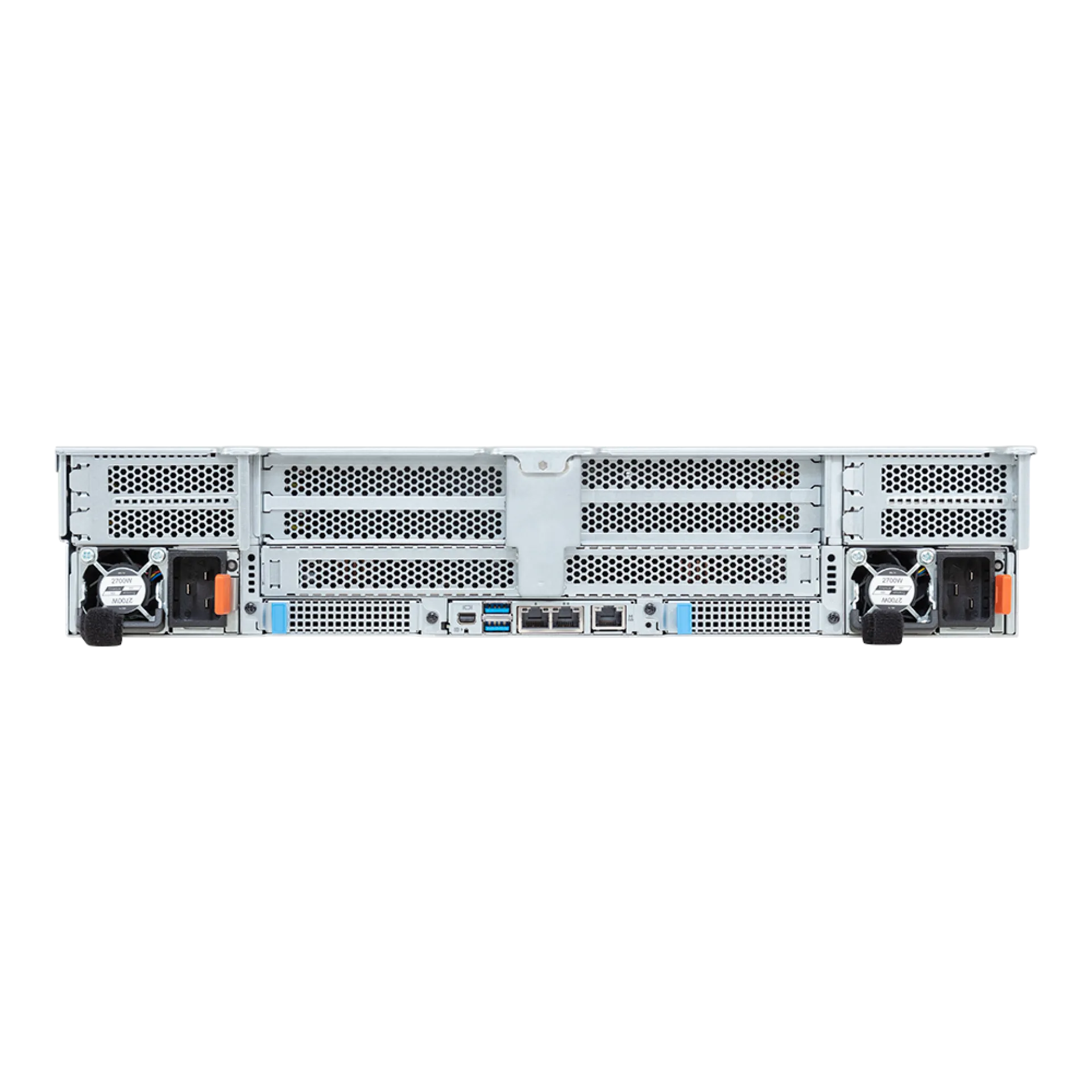

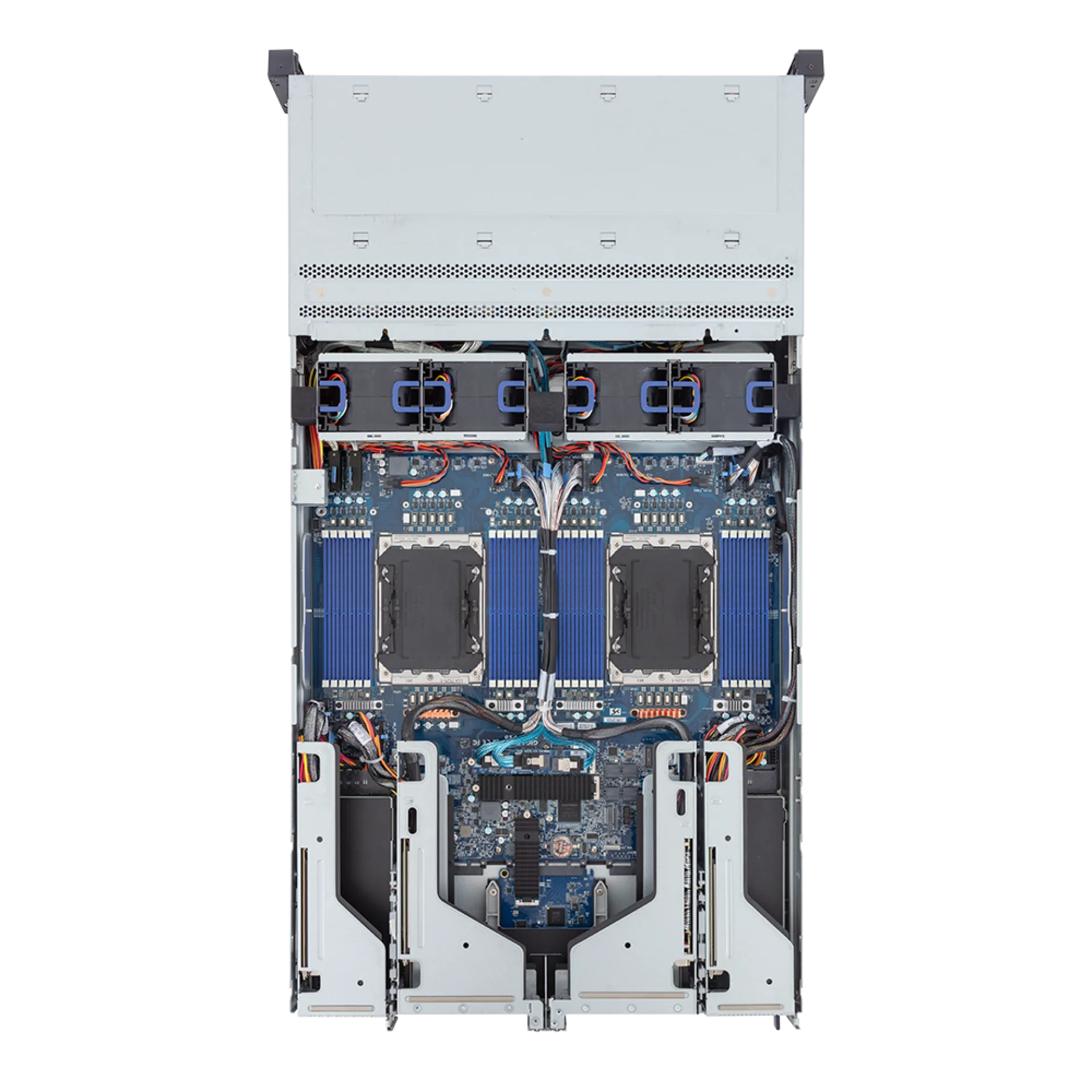

High-Density 2U Dual-Socket Intel Xeon 6 Rack Server Barebone optimised for cloud and storage with R284-A90-AAL2 Gigabyte
R284-A90-AAL2 Gigabyte is a 2U dual-socket platform built around Intel Xeon 6 (Granite Rapids, Socket BR/LGA7529), targeting high core density and sustained power envelopes up to 500W per CPU for consolidation-heavy virtualisation and clustered compute. Its memory subsystem scales through 24 DDR5 ECC RDIMM/MRDIMM slots, enabling up to 6TB across a 12-channel-per-CPU architecture to keep bandwidth aligned with multi-VM and data services that stress NUMA locality and memory throughput.
Designed for modern IO patterns, R284-A90-AAL2 Gigabyte provides extensive PCIe Gen5 expansion to balance accelerator, networking, and storage controllers, including multiple x16 mechanical slots for GPU-capable deployments and additional low-profile lanes for infrastructure cards. Storage flexibility supports software-defined architectures with 12 hot-swap bays spanning NVMe/SATA/SAS tiers, optional SAS-4 24Gb/s via HBA, and 3 onboard M.2 (PCIe Gen5) positions to separate boot and cache from data planes while preserving front-bay capacity.
Why Choose the R284-A90-AAL2 Gigabyte?
R284-A90-AAL2 Gigabyte delivers a pragmatic density-to-performance profile for private cloud and SDS nodes by combining dual-socket Xeon 6 compute, DDR5 capacity headroom, and PCIe Gen5 lane availability in a serviceable 2U footprint. Enterprise deployment logic is reinforced through OCP NIC 3.0 readiness, NCSI-capable networking paths, redundant Titanium power, and out-of-band management for scalable fleet operations.
Gigabyte applies a data centre engineering approach focused on validated platform thermals, tool-efficient service access, and standards-aligned management using an ASPEED AST2600 BMC with IPMI and HTML5 KVM, supporting consistent provisioning and lifecycle control across mixed workloads.
Key Applications:
- Hybrid and private cloud virtualisation hosts
- Software-defined storage with NVMe and SAS/SATA tiers
- Clustered compute and infrastructure services
- OCP NIC 3.0-ready edge or core networking nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your R284-A90-AAL2 Gigabyte configuration requirements and can extend the warranty up to 6 years to protect long-term data centre deployments.
Technical details of R284-A90-AAL2 Gigabyte
How long is the Warranty and how you can get technical support for R284-A90-AAL2 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
Customer reviews about R284-A90-AAL2 Gigabyte
Login
- Express shopping
- Save your data and settings
- Order overview and shipping information
- Manage your newsletter subscription
Similar/Alternative Products

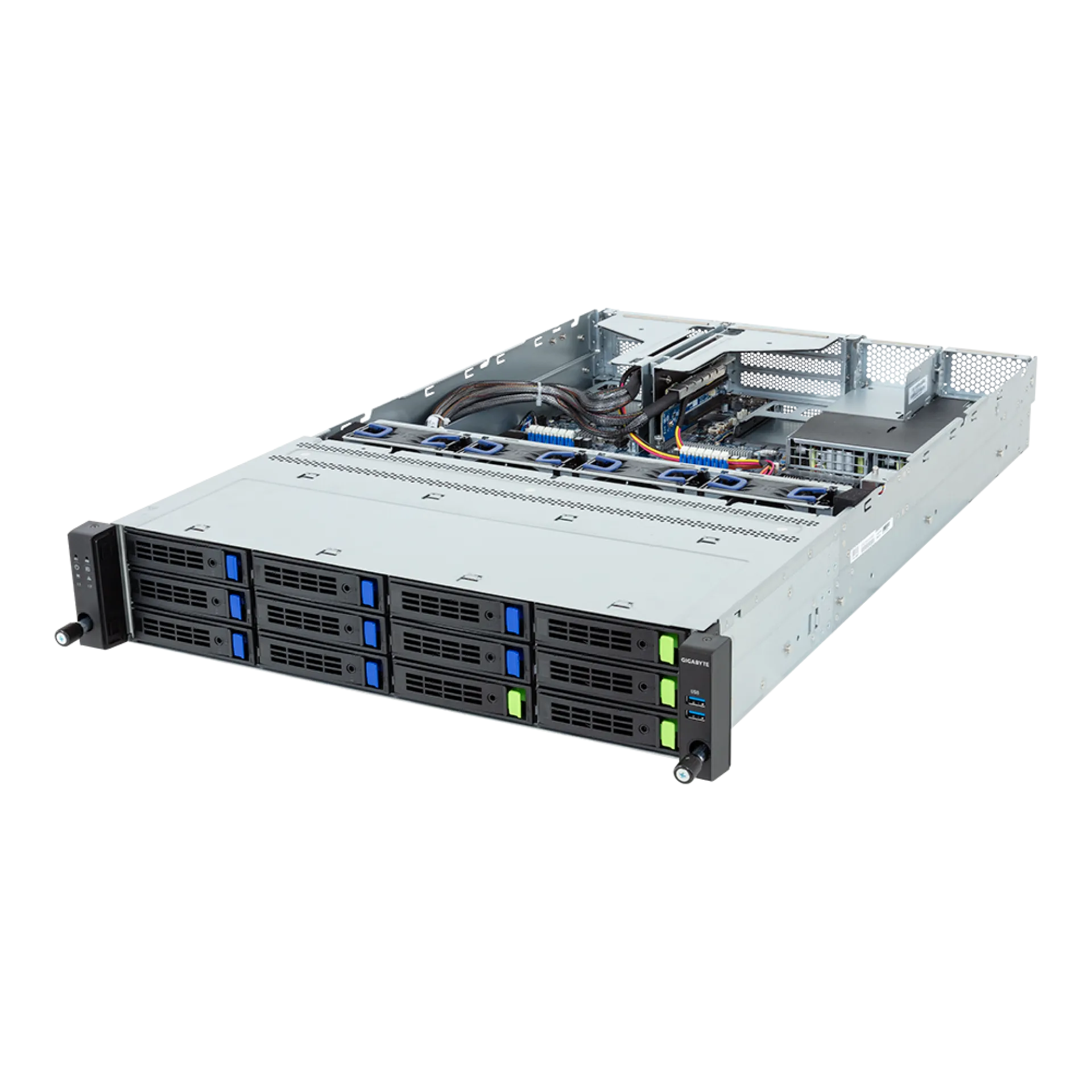

R263-Z34-AAH1 Gigabyte Single EPYC 9004 2U 6NR263Z34DR000ACH1 Server Barebone
