R283-Z96-AAJ1 Gigabyte
High-Throughput 2U Dual-Socket NVMe Storage and Cloud Node with the R283-Z96-AAJ1 Gigabyte

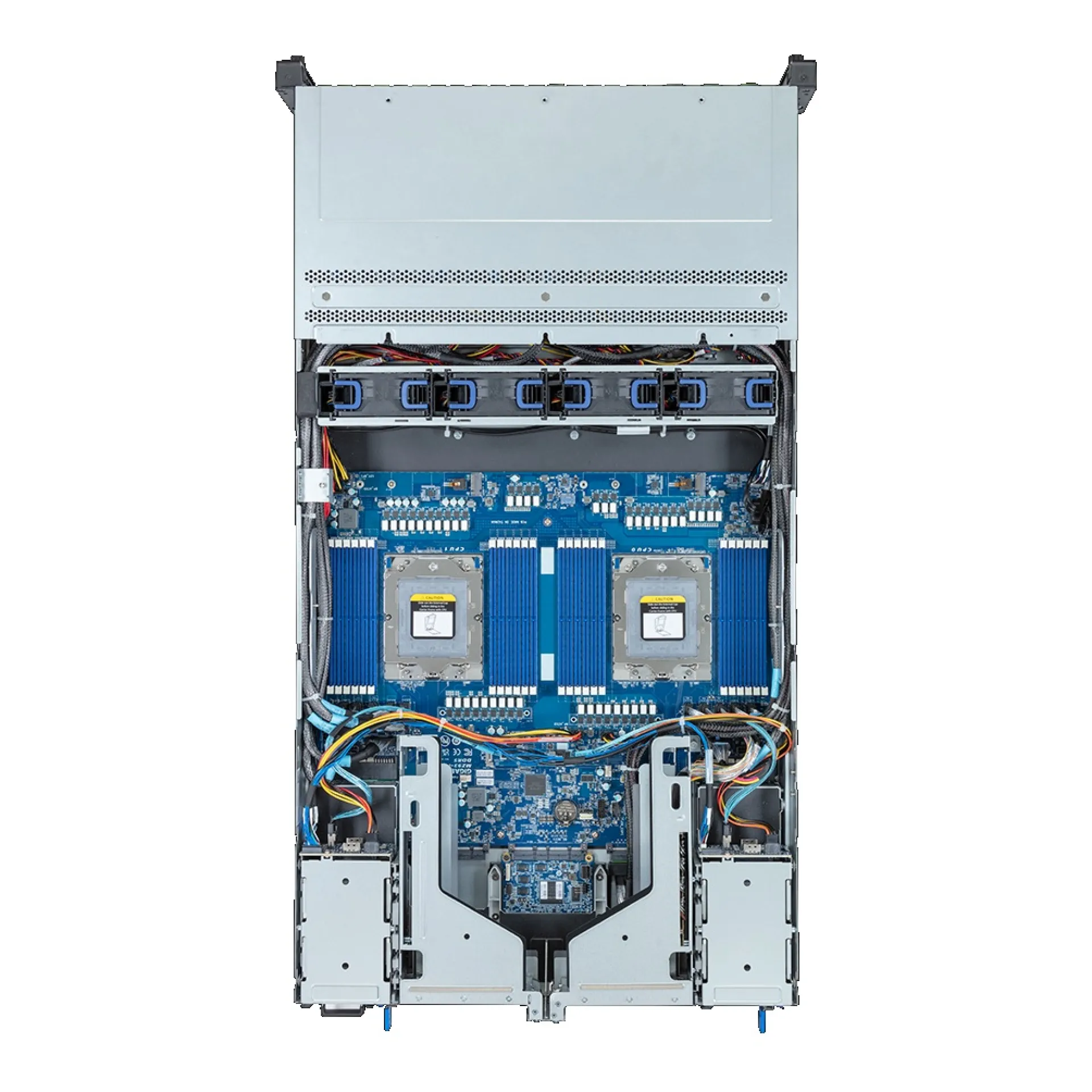

The R283-Z96-AAJ1 Gigabyte is engineered as a 2U barebone platform for dual-socket AMD EPYC 9005/9004 (SP5) deployments where PCIe Gen5 lane availability and front-access NVMe density define the system design. With support for up to 24 DDR5 RDIMM ECC channels per node, the architecture targets high core consolidation and large memory footprints for virtualisation clusters, software-defined storage controllers, and NVMe-heavy database tiers.

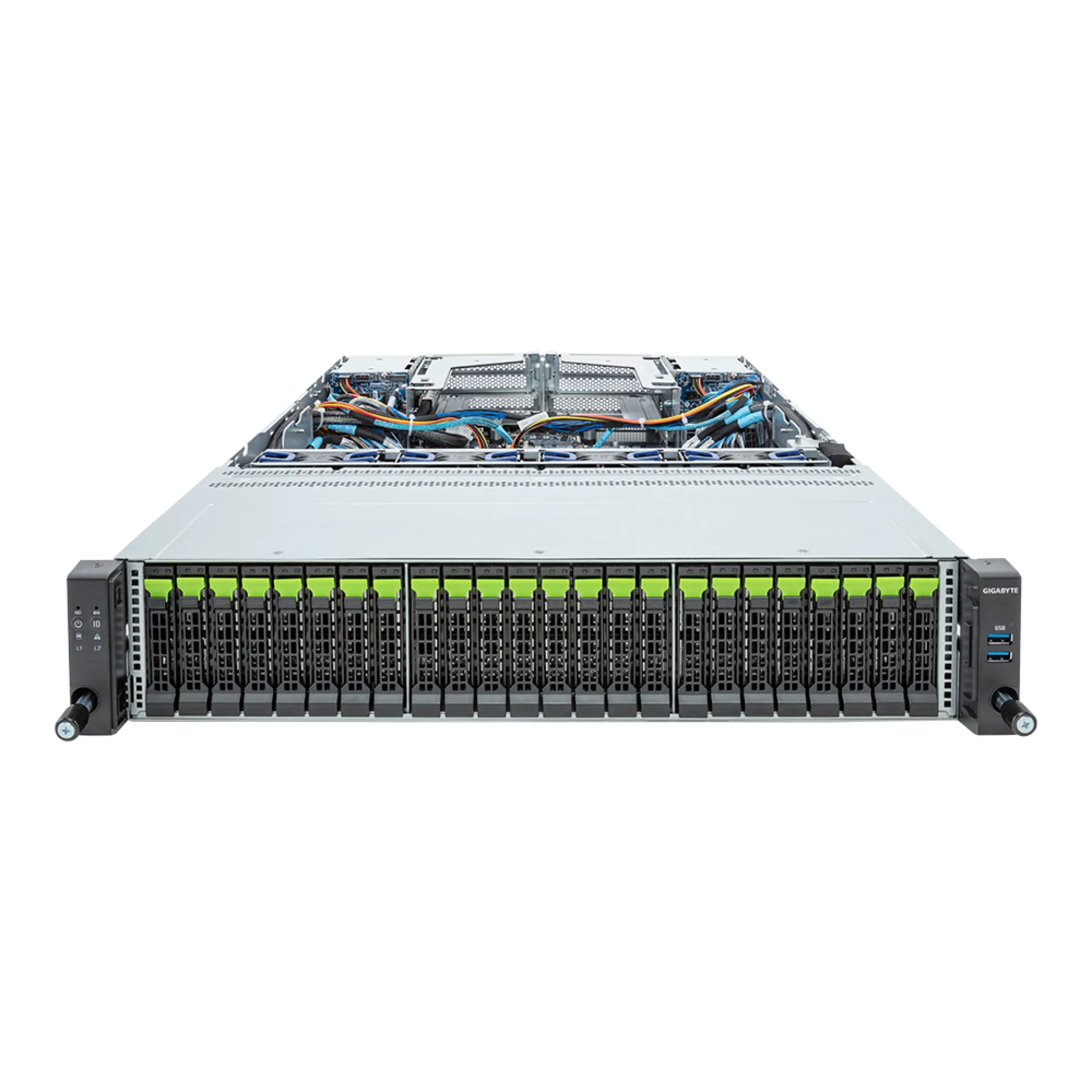

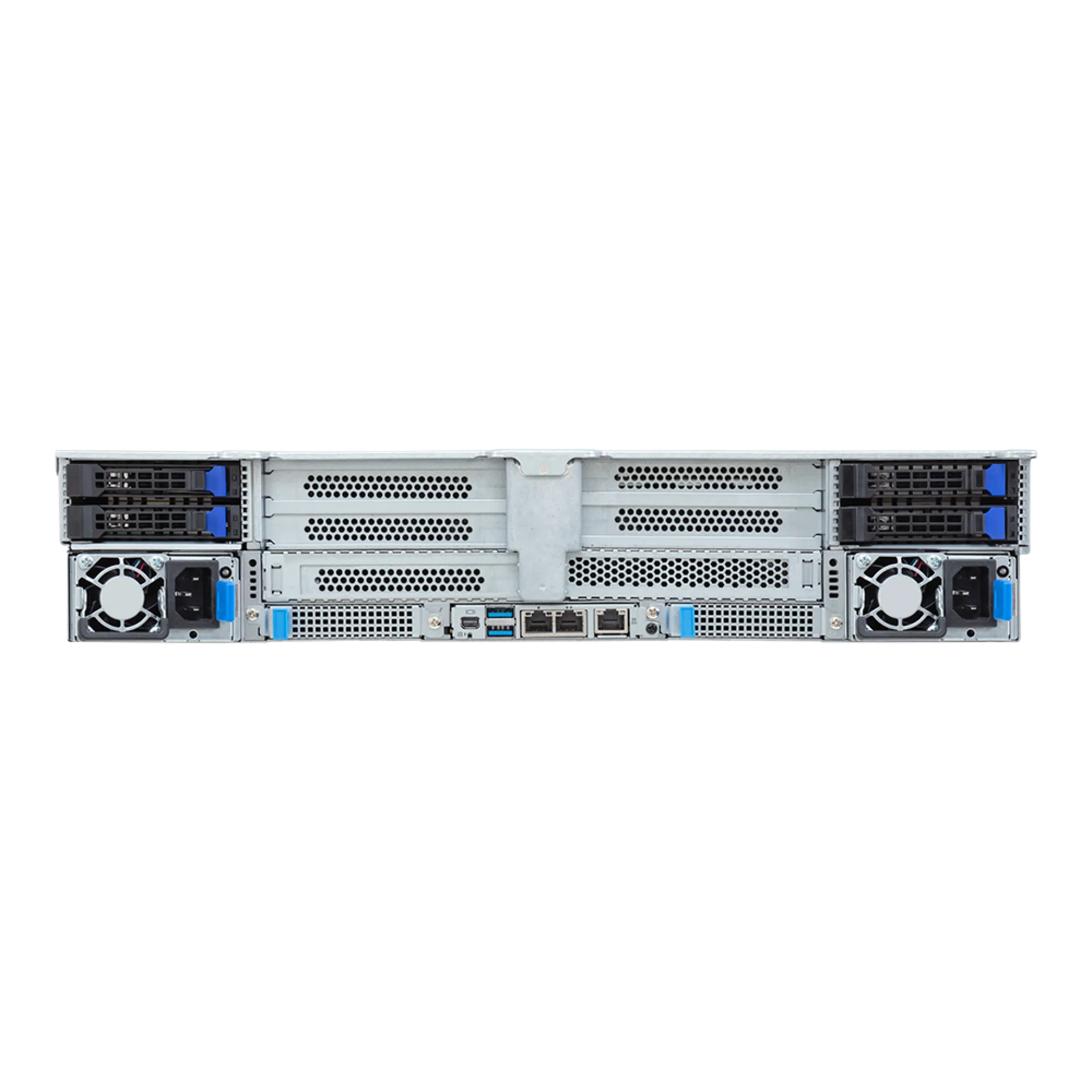

Storage topology is optimised around 24 hot-swap 2.5" NVMe bays, each mapped as PCIe Gen5 x4 to sustain parallel I/O without oversubscription, complemented by 4 additional hot-swap 2.5" SATA/SAS bays for capacity or service media (SAS via HBA). Internal dual M.2 NVMe enables separated boot and cache design, while a PCIe 5.0 x16 FHHL slot supports high-bandwidth adapters or NVMe RAID acceleration. Network architecture blends onboard 1GbE for baseline connectivity with OCP 3.0 modular NIC slots to align port count and speeds to leaf-spine standards.
Why Choose the R283-Z96-AAJ1 Gigabyte?
The R283-Z96-AAJ1 Gigabyte delivers a practical density-to-performance ratio by combining dual EPYC scalability with a Gen5 NVMe front plane, reducing node count for the same IOPS and core targets. Redundant Titanium PSUs, BMC-based remote administration, and modular OCP 3.0 networking support predictable scaling in mixed storage and private cloud racks.
Gigabyte designs this platform with serviceability and data centre compliance in mind, pairing hot-swap drive access, IPMI/HTML5 KVM management via an AST2600 BMC, and options such as TPM and add-in RAID to meet enterprise operational and governance requirements.
Key Applications:
- Software-defined storage
- NVMe database clusters
- Virtualisation and private cloud
- Network services with OCP 3.0 NICs
At Happyware - Server Hardware you benefit from non-binding offers tailored to your R283-Z96-AAJ1 Gigabyte configuration and an extended warranty of up to 6 years to secure long-term platform availability in production environments.
Technical details of R283-Z96-AAJ1 Gigabyte
How long is the Warranty and how you can get technical support for R283-Z96-AAJ1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
