R263-Z37-AAH1 Gigabyte Single EPYC 9004 2U 6NR263Z37DR000ACH1 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Rev-3.x
Product line:Gigabyte R Series
Do you have questions about this product 6NR263Z37DR000ACH1?
R263-Z37-AAH1 Gigabyte

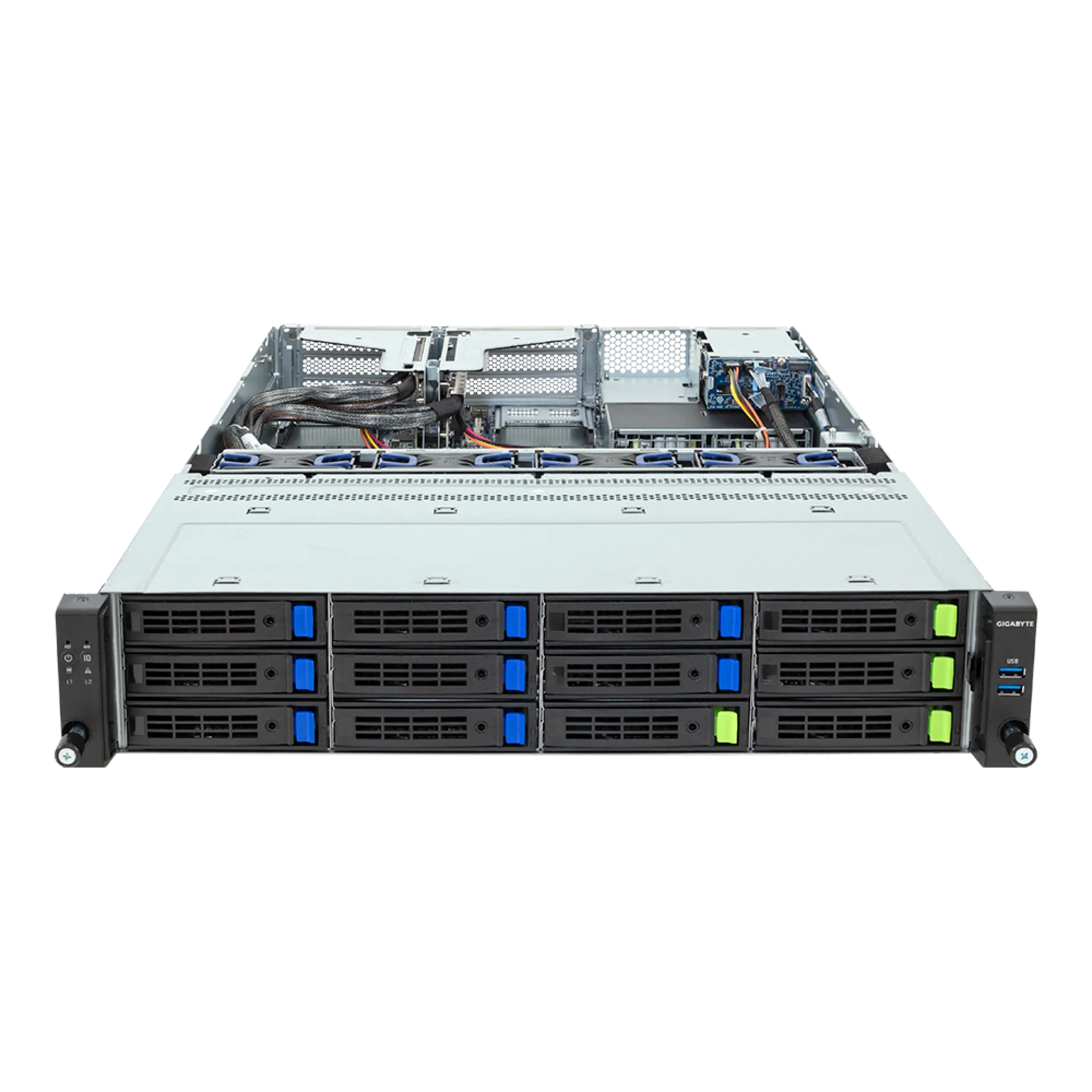

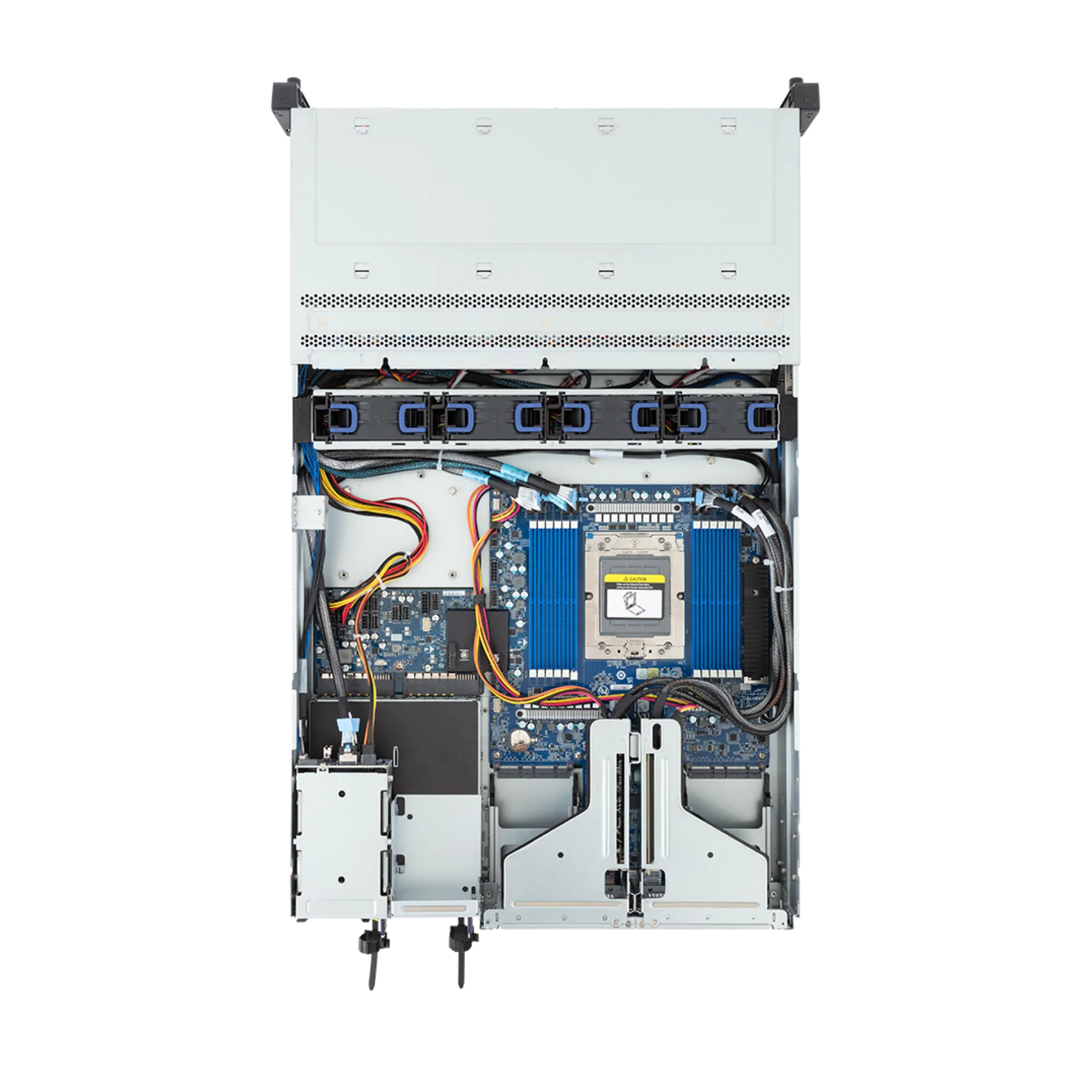

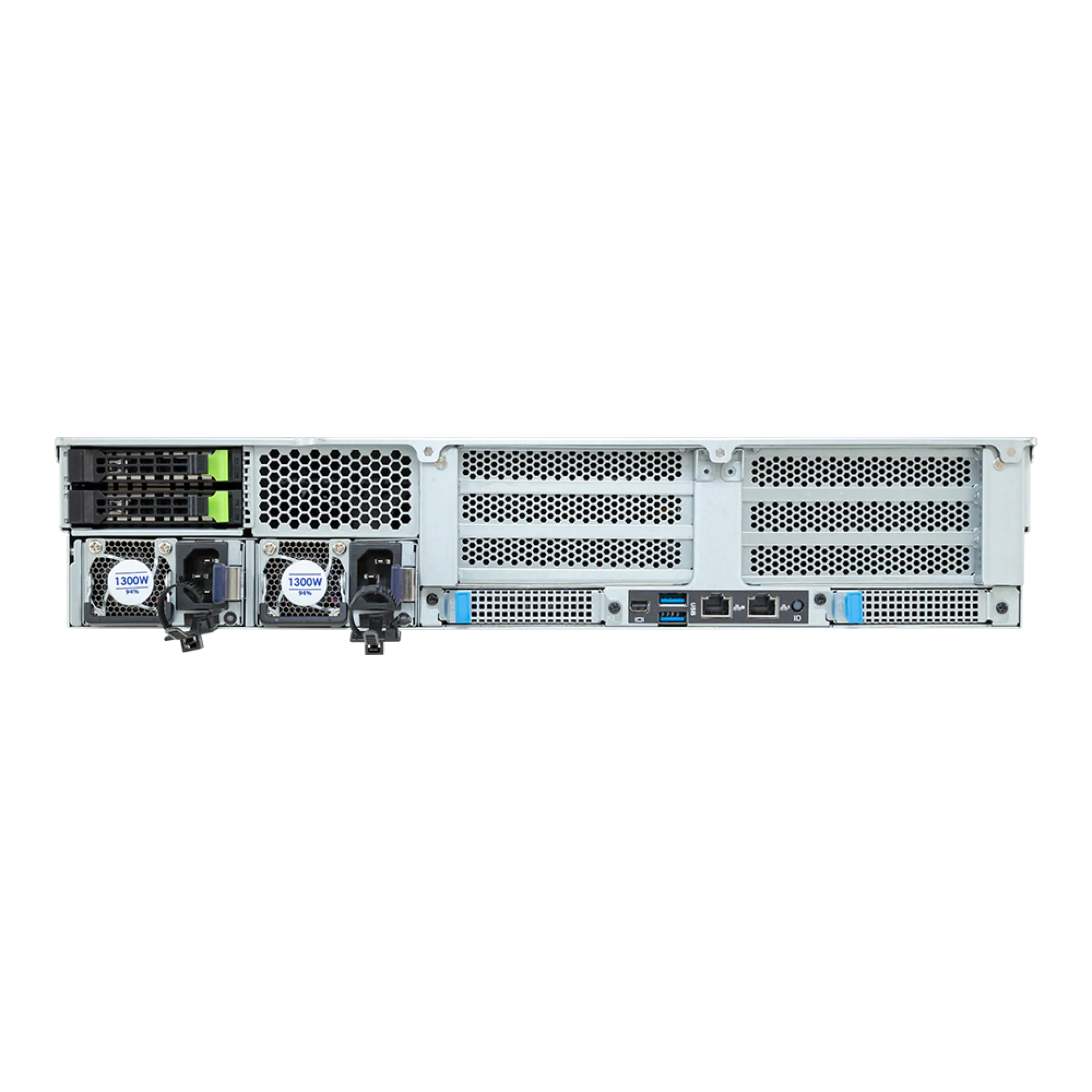

High-Density 2U NVMe-Centric Rack Server Barebone for AMD EPYC SP5 with the R263-Z37-AAH1 Gigabyte
The R263-Z37-AAH1 Gigabyte is a 2U single-node R-Series barebone engineered around AMD EPYC 9005/9004 (Turin/Genoa) on SP5 to deliver high core density with sustained PCIe Gen5 I/O for storage and accelerator-heavy deployments. With a CPU power envelope up to 500W (configuration and ambient dependent), the platform targets consolidation where compute throughput and deterministic I/O are equally critical.
Memory is built on a 12-channel DDR5 ECC RDIMM architecture across 12 DIMM slots, enabling high bandwidth per socket for virtualization, software-defined storage control planes, and data-plane services. Expansion is optimized for modern fabrics and devices: PCIe 5.0 risers provide up to 4 x16 FHHL slots for GPUs or accelerators, while dual OCP NIC 3.0 SFF connectors support PCIe Gen5 network adapters for high-throughput east-west traffic. Storage is NVMe-centric by design, combining front and rear hot-swap bays capable of PCIe Gen5 NVMe, with SAS/SATA flexibility via add-in controllers, and an M.2 PCIe Gen3 NVMe module for clean OS isolation.
Why Choose the R263-Z37-AAH1 Gigabyte?
The R263-Z37-AAH1 Gigabyte delivers a strong density-to-performance ratio by aligning EPYC SP5 compute, DDR5 bandwidth, and PCIe Gen5 lane economics into a balanced 2U footprint. It scales cleanly from NVMe tiering nodes to GPU-capable edge/core compute through standardized PCIe and OCP expansion, while redundant Titanium-class power and out-of-band management support predictable enterprise operations.
Gigabyte designs this platform with serviceability and data center compliance in mind, combining hot-swap subsystems, ASPEED AST2600 BMC management with IPMI and HTML5 KVM, and optional TPM 2.0 integration to align with modern security and lifecycle requirements.
Key Applications:
- Software-defined storage and NVMe tiering
- Virtualisation and private/hybrid cloud
- High-throughput networking services
- GPU/accelerator-capable edge/core compute
- NVMe-backed database and analytics nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the R263-Z37-AAH1 Gigabyte, and extended warranty options up to 6 years to protect long-term infrastructure investments.
Technical details of R263-Z37-AAH1 Gigabyte
How long is the Warranty and how you can get technical support for R263-Z37-AAH1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
