R263-Z34-AAH1 Gigabyte

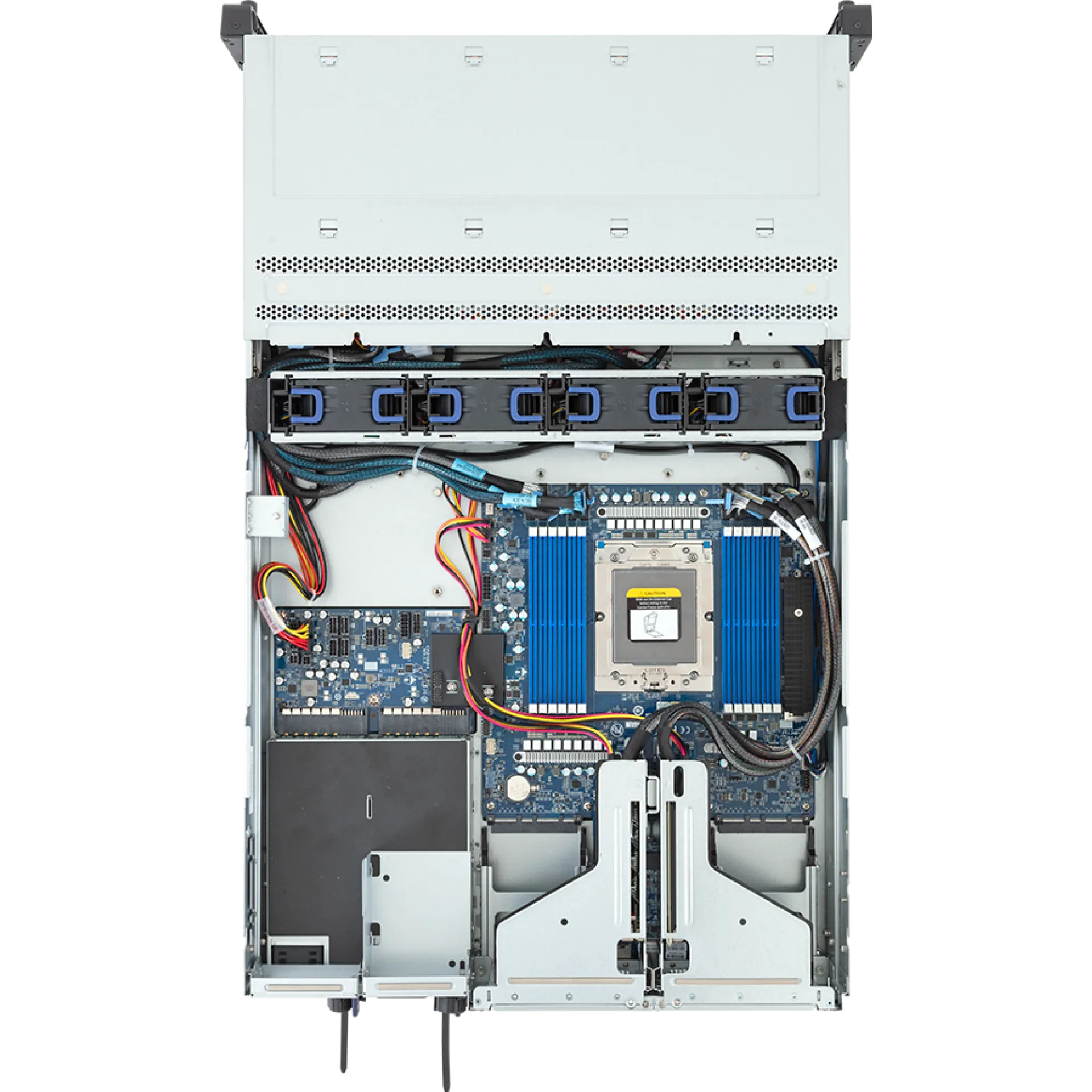

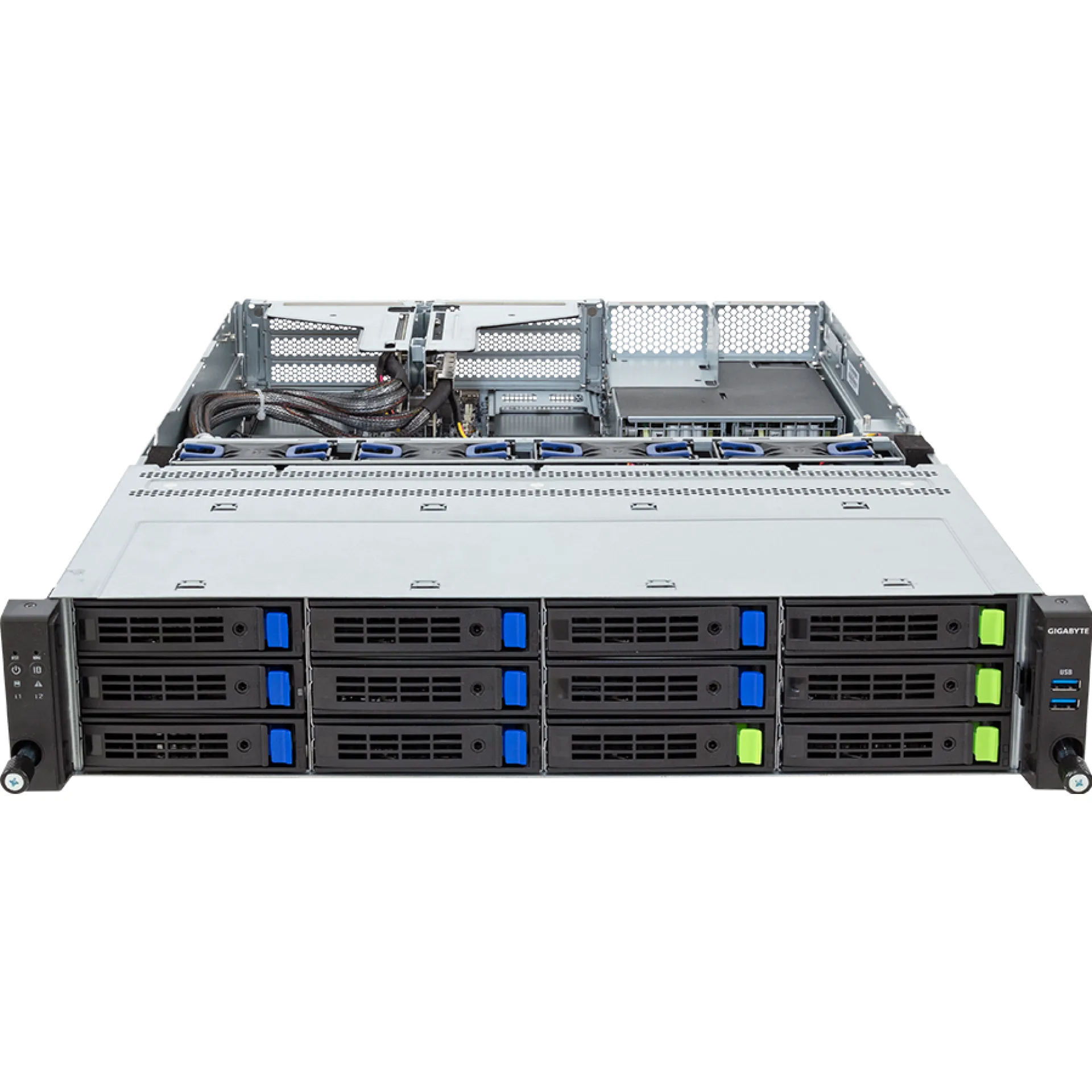

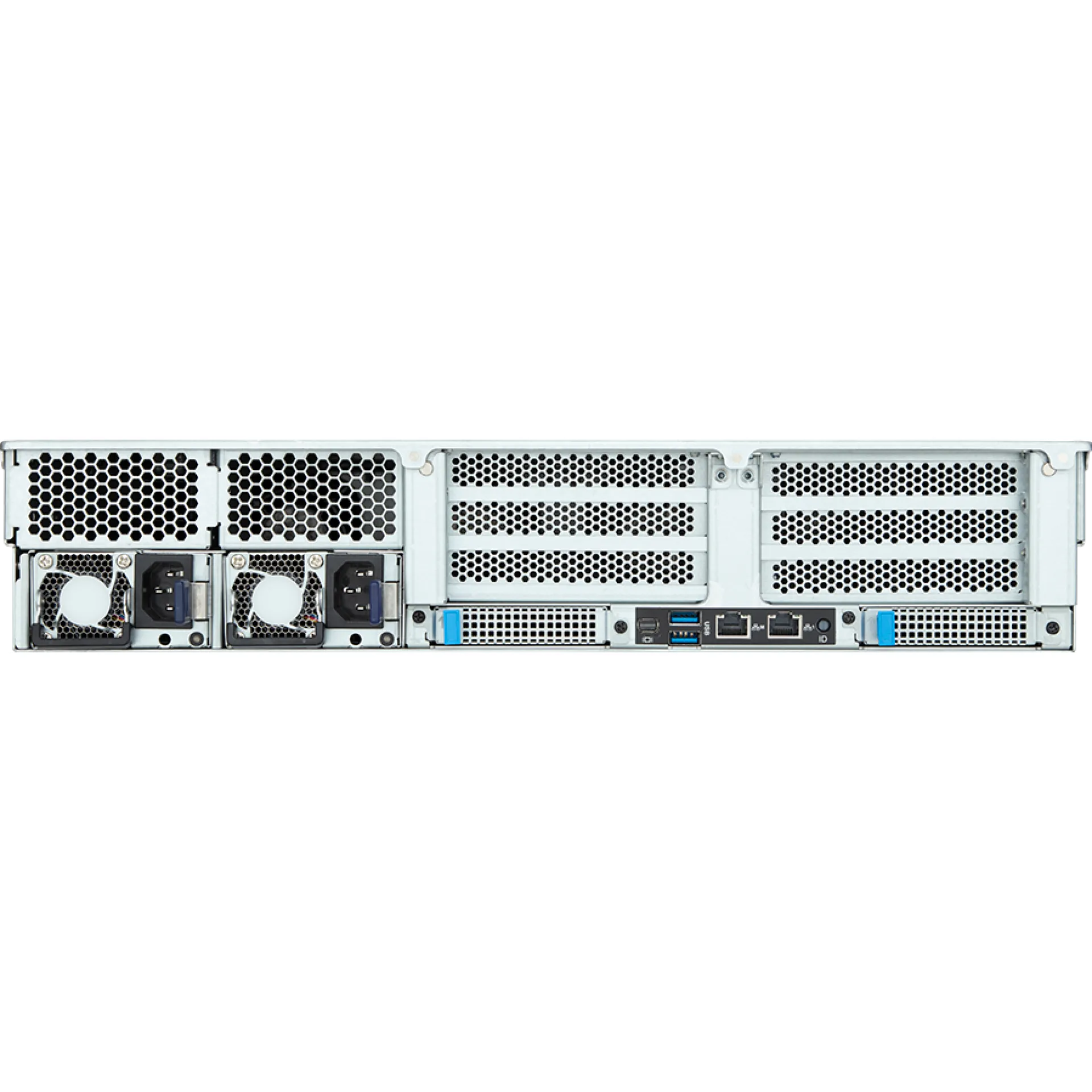

High-Density 2U Single-Socket AMD SP5 Rack Server Platform with hybrid front storage in the R263-Z34-AAH1 Gigabyte barebone
The R263-Z34-AAH1 Gigabyte is a 2U single-socket barebone engineered around the AMD EPYC 9005/9004 SP5 platform, enabling high core density and sustained throughput for virtualization, private cloud compute, and data aggregation roles. Its 12-channel DDR5 ECC RDIMM memory architecture with 12 DIMM slots supports large in-memory footprints and predictable latency under multi-tenant workloads, aligning well with VMware/Citrix and enterprise Linux deployments.
For I/O-intensive designs, the R263-Z34-AAH1 Gigabyte combines PCIe Gen5 expansion with a flexible hybrid 12-bay front hot-swap storage plane. Configurable bay groups support NVMe via PCIe Gen5 x4, or SATA/SAS with optional SAS-4 (24Gb/s) HBA, allowing architects to mix performance tiers without changing chassis. Four PCIe 5.0 x16 FHHL slots and dual OCP NIC 3.0 PCIe 5.0 x16 slots provide headroom for high-bandwidth networking, storage controllers, or accelerators, while a dedicated BMC management port and IPMI/HTML5 KVM streamline remote operations.
Why Choose the R263-Z34-AAH1 Gigabyte?
The R263-Z34-AAH1 Gigabyte delivers a pragmatic density-to-performance profile by concentrating EPYC compute, DDR5 capacity, and PCIe Gen5 lanes into a 2U footprint with serviceable front-access storage. This architecture scales cleanly from compute-heavy clusters to mixed storage nodes, with redundant Titanium-class power and out-of-band management supporting consistent uptime and standardized fleet deployment.
Gigabyte focuses on data-center-ready engineering with validated server subsystems, thermally aware mechanical design for high-TDP CPUs, and management integration that aligns with modern provisioning and lifecycle practices across heterogeneous enterprise environments.
Key Applications:
- Enterprise virtualization clusters
- Hybrid/private cloud compute nodes
- Software-defined storage and HCI
- NVMe/SAS tiered storage servers
- Network services and data aggregation
At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration goals for the R263-Z34-AAH1 Gigabyte, ensuring the right balance of storage backplane, controllers, and OCP 3.0 networking for your deployment. Extended warranty options up to 6 years add planning security for long lifecycle data center rollouts.
Technical details of R263-Z34-AAH1 Gigabyte
How long is the Warranty and how you can get technical support for R263-Z34-AAH1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
