R263-S30-AAH1 Gigabyte Single Xeon Scalable 5th Gen 2U 6NR263S30DR000AAH1 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Gigabyte R Series
Do you have questions about this product 6NR263S30DR000AAH1?
R263-S30-AAH1 Gigabyte

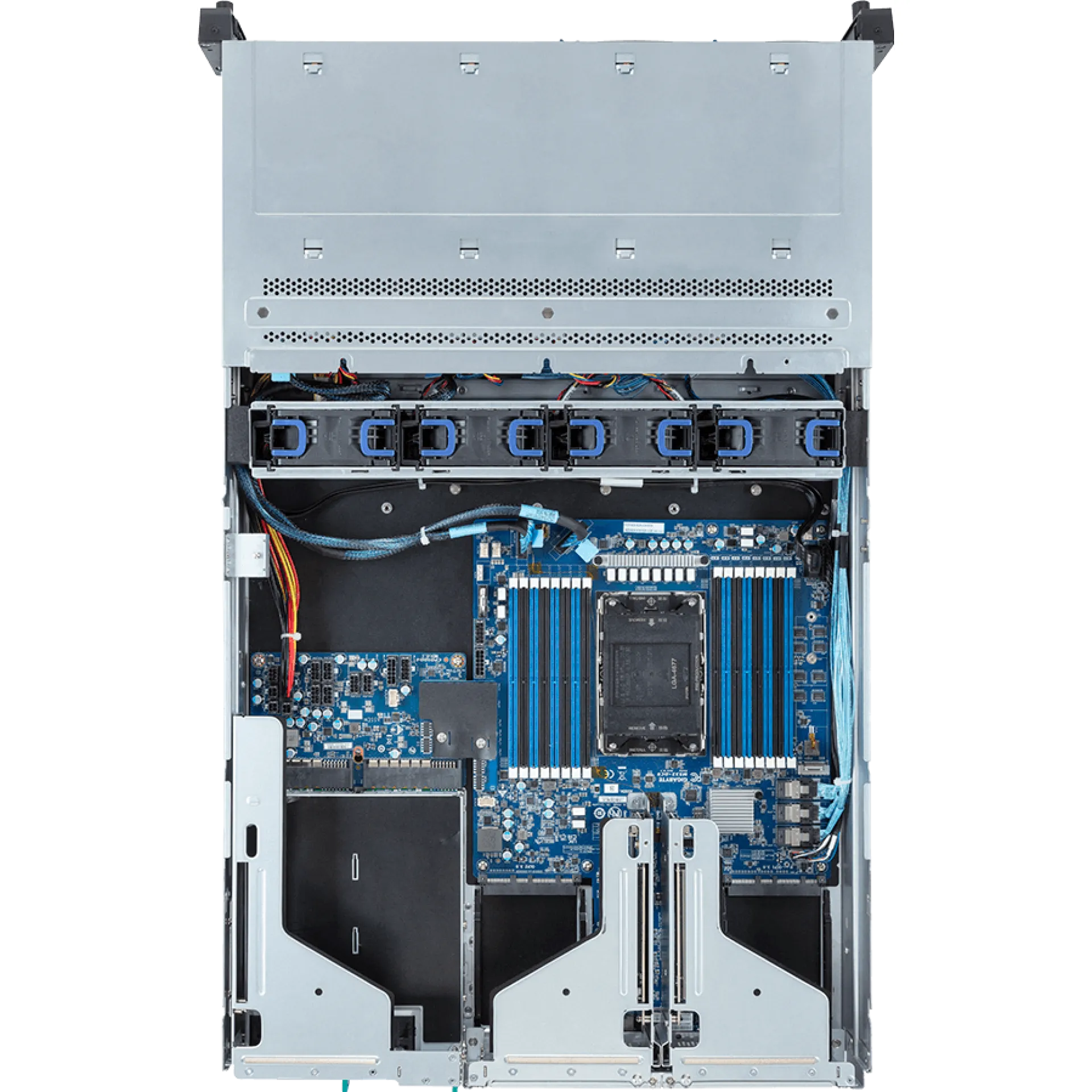

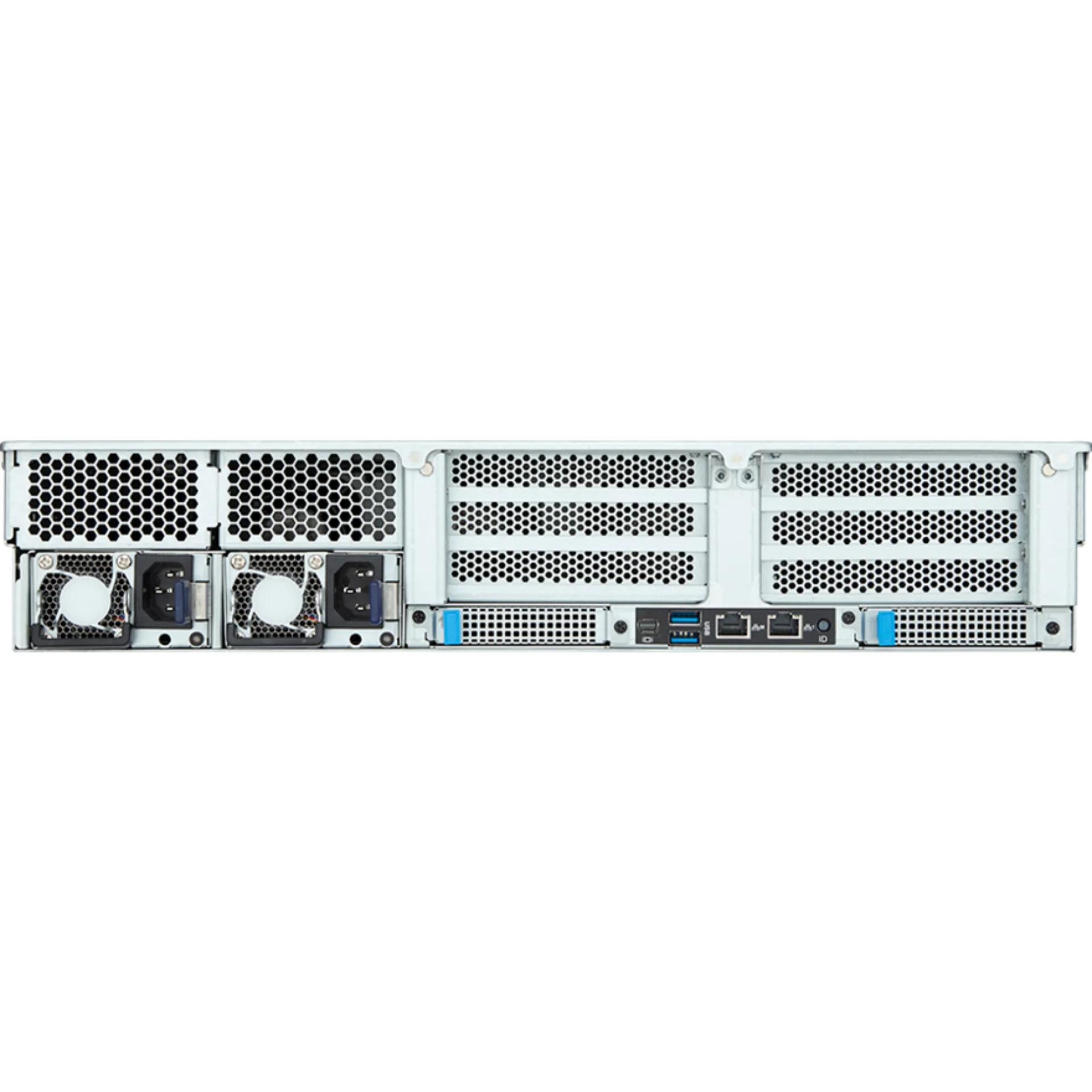

High-Density 2U Single-Socket Rack Server Barebone with PCIe Gen5 Expansion using the R263-S30-AAH1 Gigabyte
The R263-S30-AAH1 Gigabyte barebone is engineered as a 2U, single-socket LGA4677 platform for Intel Xeon Scalable 5th/4th Gen processors, pairing high core density with streamlined serviceability for enterprise rack deployments. With an Intel C741 chipset foundation, the design targets balanced compute, I/O, and storage bandwidth for virtualization clusters, private cloud nodes, and general-purpose application tiers.
To sustain memory-bound workloads, R263-S30-AAH1 Gigabyte provides DDR5 ECC RDIMM capability across an 8-channel architecture and 16 DIMM slots, enabling large in-memory footprints while maintaining predictable RAS behavior. The I/O layout prioritizes modern acceleration and network flexibility through PCIe Gen5, including full-height, half-length x16 slots suited for high-throughput adapters, plus dual OCP 3.0 NIC slots for scalable east-west bandwidth. Storage is optimized for mixed-media designs: up to 12 hot-swap bays support a combination of Gen4 NVMe and SAS/SATA, while an M.2 NVMe boot device isolates OS and cache from data tiers.
Why Choose the R263-S30-AAH1 Gigabyte?
The R263-S30-AAH1 Gigabyte delivers a strong density-to-performance profile by concentrating PCIe Gen5 expansion, OCP 3.0 networking, and front-access hot-swap storage in a 2U envelope, reducing node count without sacrificing service workflows. Its architecture scales cleanly from compute-focused hosts to storage-heavy software-defined nodes, supported by redundant 80 PLUS Titanium power and out-of-band management for consistent operational control.
Gigabyte designs enterprise platforms with a focus on validated component interoperability, remote lifecycle management, and adherence to modern data centre requirements such as redundant power domains, BMC-based administration, and modular I/O that can evolve with network and storage roadmaps.
Key Applications:
- Enterprise virtualization and private cloud nodes
- Database and application serving
- Software-defined storage and backup targets
- Network and security appliance hosting
- Edge aggregation with OCP 3.0 NIC flexibility
At Happyware - Server Hardware you benefit from non-binding offers tailored to your R263-S30-AAH1 Gigabyte deployment goals, helping you standardize configurations across projects. For fleet rollouts, bulk order discount options support cost-controlled scaling while keeping the platform consistent.
Technical details of R263-S30-AAH1 Gigabyte
How long is the Warranty and how you can get technical support for R263-S30-AAH1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
