R184-S92-AAV1 Gigabyte Dual Xeon 6 SoC 1U 6NR184S92DR000AAV1 Server Barebone
Do you have a major deal consisting of various components? Then you're at the right place!
We offer you the best prices for your purchase:
- - If you already have an account with us, please log in. If you don't have an account, you can apply for one here.
- - simply collect your required items in the desired quantity in CART, and click the 'GET QUOTATION' button. and you're done!
- - You will receive your offer within the next 24 hours on working days.
Gigabyte R Series
Do you have questions about this product 6NR184S92DR000AAV1?
R184-S92-AAV1 Gigabyte
High-Density 1U Dual-Socket Rack Server Barebone featuring PCIe 5.0 I/O with the R184-S92-AAV1 Gigabyte
The R184-S92-AAV1 Gigabyte is a 1U rack server barebone engineered for high-density virtualization and compute consolidation on the dual-socket Intel Xeon 6 platform (Socket E2/LGA4710). With DDR5 ECC Registered memory across 32 DIMM slots and an 8-channel-per-CPU layout, it is designed to sustain high VM counts and memory-intensive services while maintaining predictable reliability characteristics expected in enterprise racks.

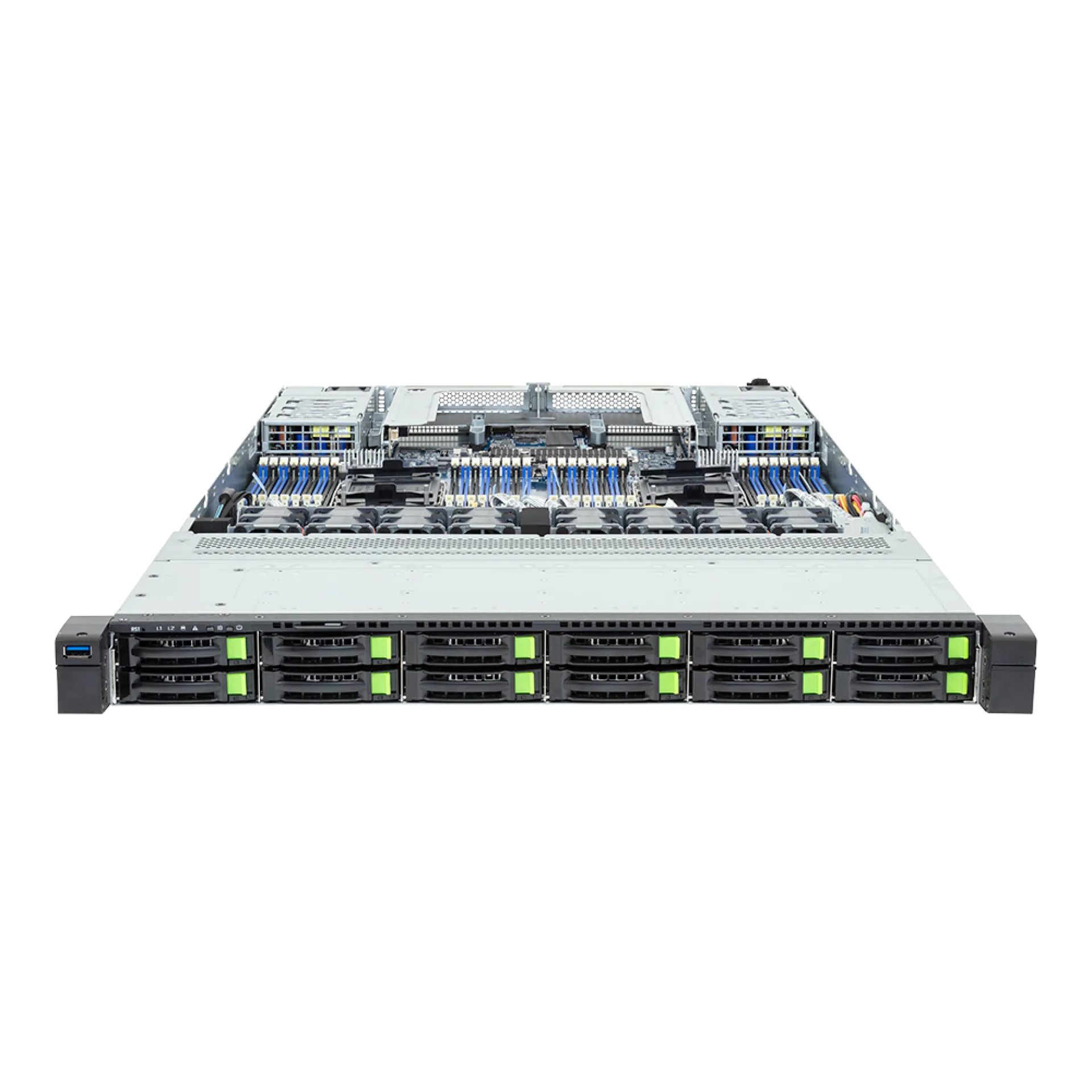

Gen5 expansion and storage are central to the R184-S92-AAV1 Gigabyte architecture: PCIe 5.0 FHHL x16 riser slots support high-throughput adapters, while dual OCP NIC 3.0 SFF connectors enable scalable network fabrics with NCSI support. For storage, 12 front 2.5in hot-swap bays allow NVMe PCIe Gen5 x4 or SATA/SAS-4 with an appropriate controller, and three onboard M.2 NVMe PCIe Gen5 slots provide flexible boot and cache tiers. Remote operations are addressed with the ASPEED AST2600 BMC, IPMI, and HTML5 KVM for lights-out lifecycle management.
Why Choose the R184-S92-AAV1 Gigabyte?
The R184-S92-AAV1 Gigabyte targets a strong density-to-performance profile by pairing dual 350W-class CPUs with Gen5 I/O, enabling consolidation without sacrificing peripheral bandwidth. Redundant 1600W 80 PLUS Titanium hot-swap power supplies support uptime requirements, while a modular approach to RAID (add-in cards and Intel VROC key header) allows the platform to scale from simple boot mirroring to higher-performance arrays.
Gigabyte designs server barebones with an emphasis on serviceability, validated component interoperability, and modern data centre alignment, combining standardized management interfaces with practical front-access storage and expansion paths suited to continuous operation.
Key Applications:
- Virtualization host nodes
- Private cloud compute pools
- NVMe-backed infrastructure services
- Edge/core network services
- General-purpose compute consolidation
At Happyware - Server Hardware you benefit from non-binding offers tailored to your deployment plan for the R184-S92-AAV1 Gigabyte and the option to extend the warranty up to 6 years to protect long-lifecycle infrastructure investments.
Technical details of R184-S92-AAV1 Gigabyte
How long is the Warranty and how you can get technical support for R184-S92-AAV1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
