R183-Z90-AAD1 Gigabyte
High-Density 1U Dual-Socket SP5 Rack Server Barebone for Cloud Compute with the R183-Z90-AAD1 Gigabyte

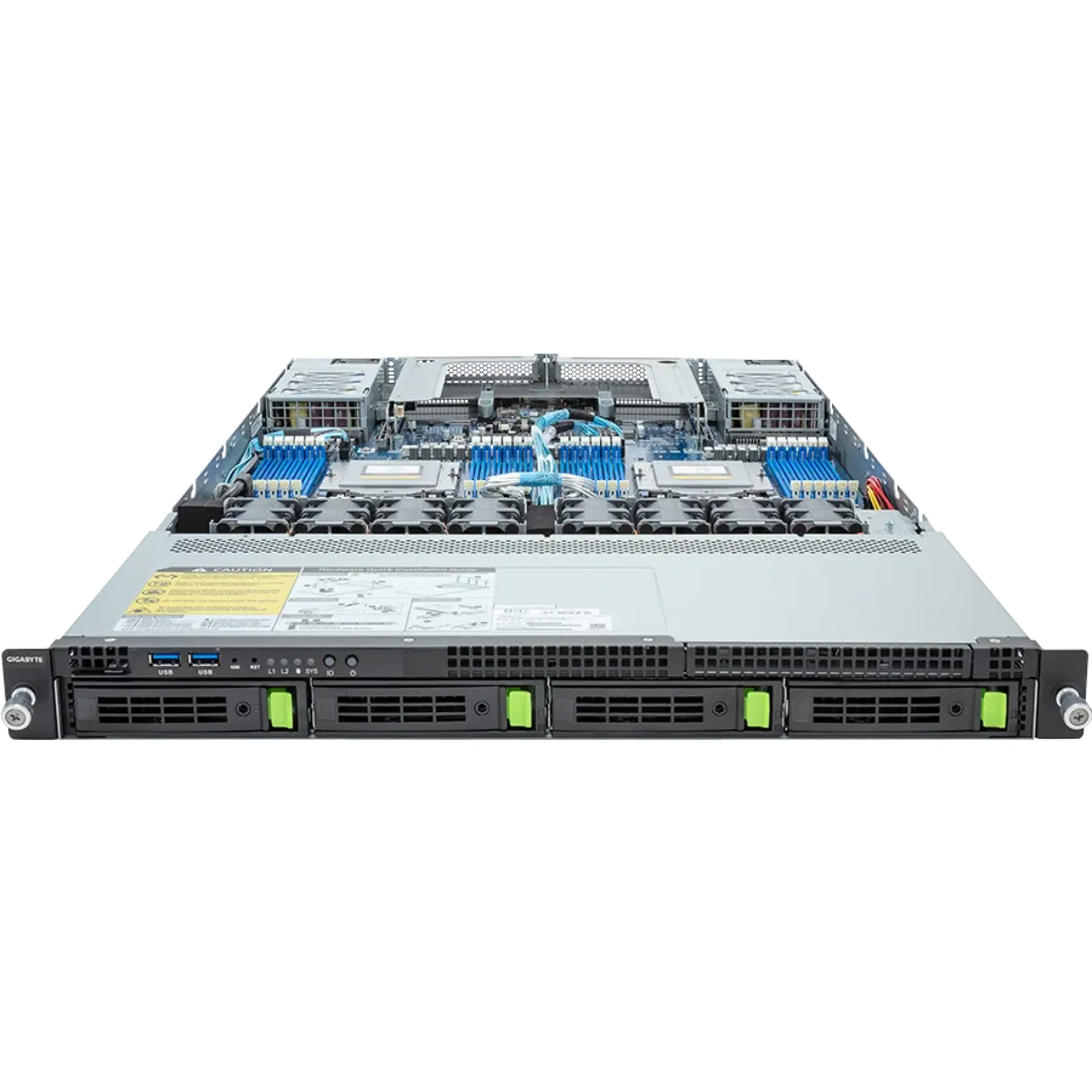

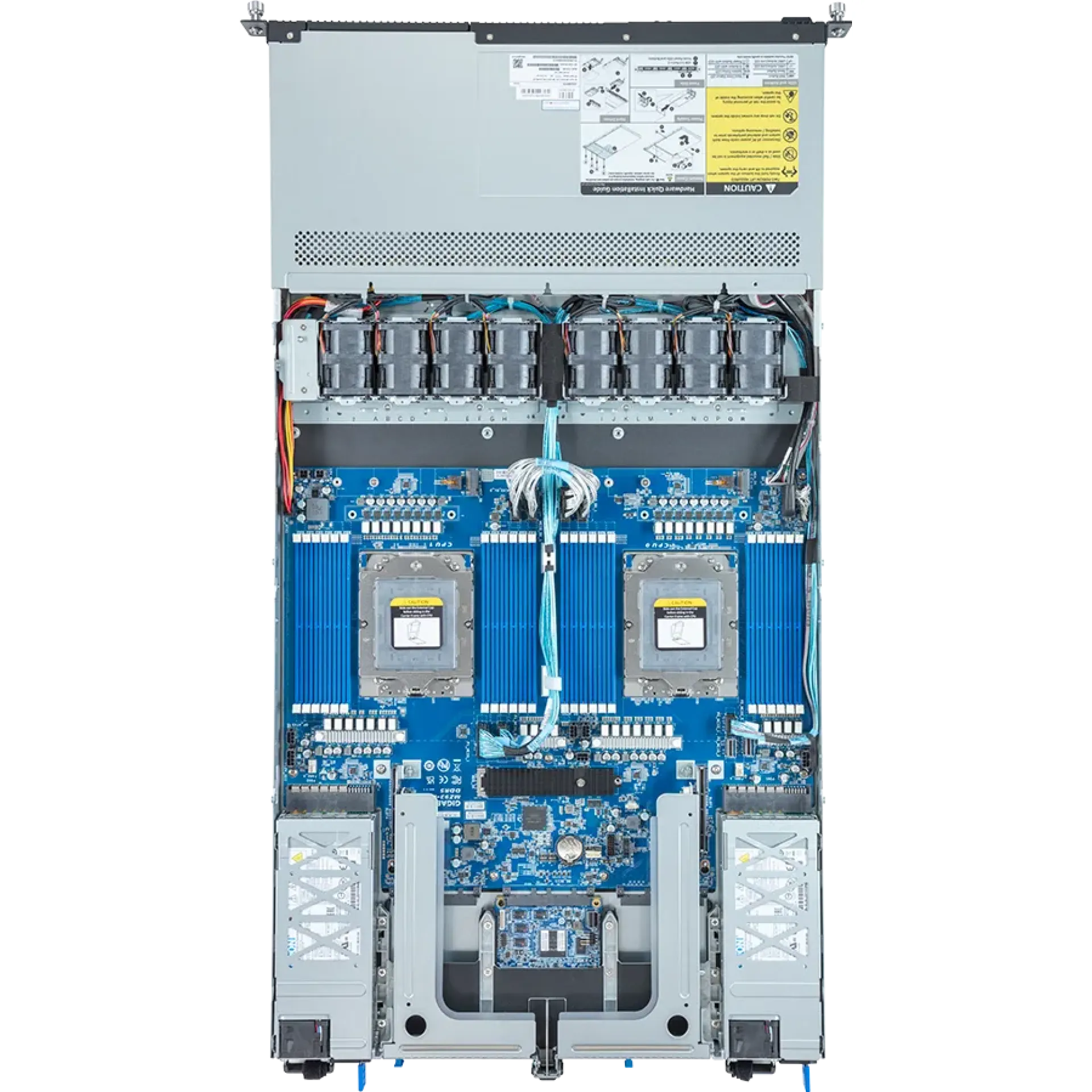

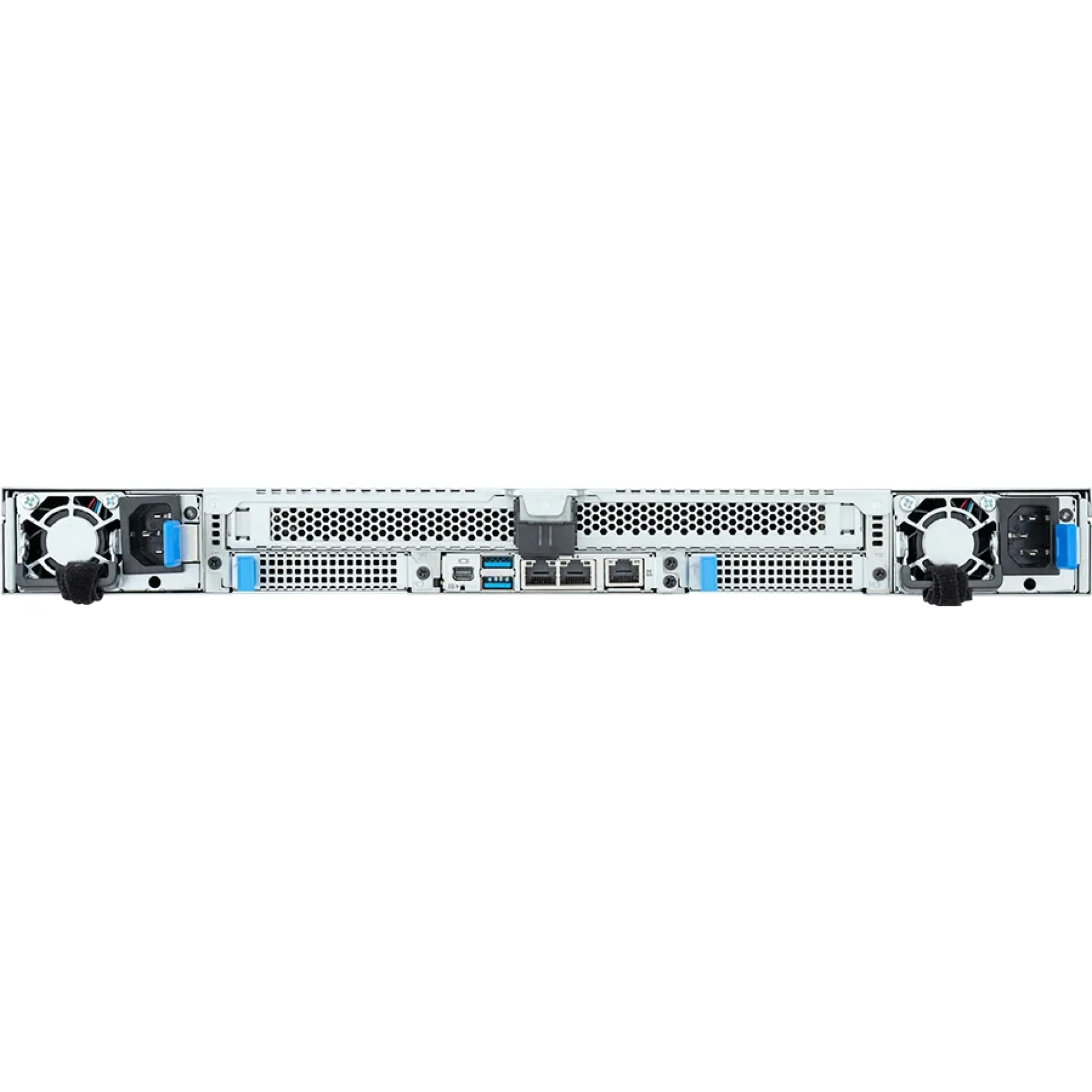

The R183-Z90-AAD1 Gigabyte (SKU: 6NR183Z90DR000ACD1) is a 1U rack server barebone engineered around the AMD EPYC 9005/9004 SP5 platform to deliver high core density within strict power and space envelopes. With support for up to 2 processors and up to 192 cores total, the design targets consolidation, virtualised infrastructure, and scale-out private cloud nodes where predictable throughput and remote operability are mandatory.
Memory architecture is optimised for bandwidth and capacity using DDR5 ECC RDIMM across 24 DIMM slots, enabling up to 6TB and 12-channel per CPU access patterns for latency-sensitive services. The R183-Z90-AAD1 Gigabyte combines front hot-swap bays that can be configured for NVMe (PCIe Gen4 x4) or SATA, plus internal M.2 NVMe for OS separation. For expansion, PCIe Gen5 connectivity is exposed via riser-based x16 slots and dual OCP NIC 3.0 SFF, aligning I/O scalability with modern NICs, storage controllers, and appliance functions.
Why Choose the R183-Z90-AAD1 Gigabyte?
The R183-Z90-AAD1 Gigabyte is positioned for enterprises needing a balanced 1U density-to-performance ratio: high CPU throughput, DDR5 capacity scaling, and PCIe Gen5 lanes in a serviceable chassis. Redundant 1600W hot-swap power and an AST2600 BMC with IPMI and HTML5 KVM support reliable remote deployment, consistent lifecycle operations, and standardised fleet management.
Gigabyte server engineering focuses on platform longevity, validated thermals, and modular I/O options that align with data centre standards for redundant power, hot-swap storage, and out-of-band management. The R183-Z90-AAD1 Gigabyte integrates these fundamentals to support repeatable builds across cloud, edge, and enterprise racks.
Key Applications:
- Hybrid and private cloud compute nodes
- Virtualisation and enterprise consolidation
- NVMe-backed high-IOPS application tiers
- Network services and security appliances
- Remote managed branch infrastructure
At Happyware - Server Hardware you benefit from non-binding offers tailored to the R183-Z90-AAD1 Gigabyte configuration and procurement scope, helping you standardise builds across projects. Extended warranty options up to 6 years add planning security for long lifecycle deployments.
Technical details of R183-Z90-AAD1 Gigabyte
How long is the Warranty and how you can get technical support for R183-Z90-AAD1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
