R183-S94-AAH2 Gigabyte
High-Density 1U Dual-Socket Rack Server Barebone for PCIe 5.0 Expansion with the R183-S94-AAH2 Gigabyte
The R183-S94-AAH2 Gigabyte is a 1U dual-socket barebone platform designed for scalable enterprise compute nodes using Intel Xeon Scalable 5th Gen Emerald Rapids or 4th Gen Sapphire Rapids processors on the Intel C741 chipset, enabling high core density without compromising I/O. With support for up to 350W TDP per CPU, the architecture suits virtualization hosts and cloud control-plane or worker nodes that need deterministic performance under sustained load.

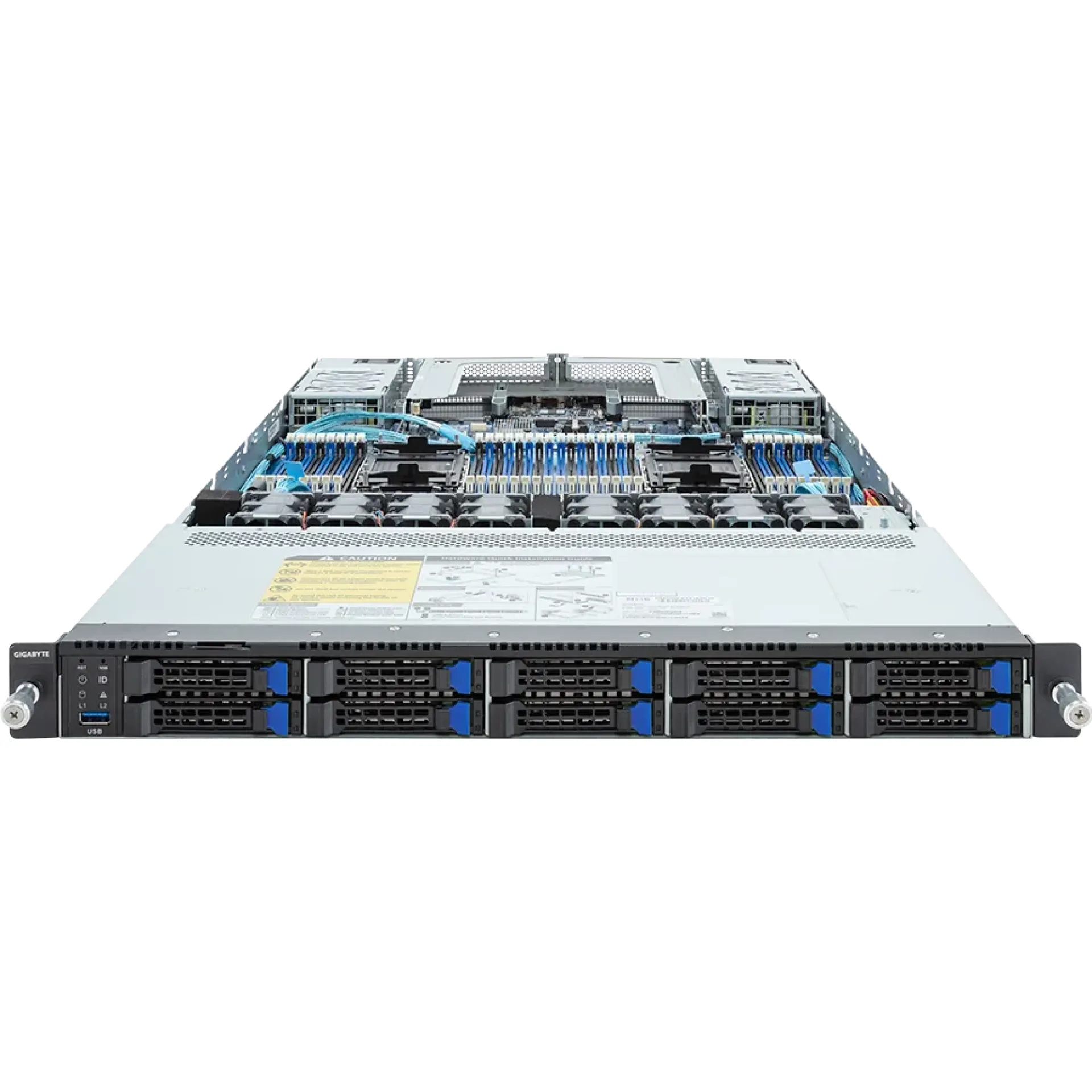

Memory is optimized for consolidation and in-memory workloads through DDR5 ECC RDIMM across 32 DIMM slots, delivering 8-channel per CPU bandwidth and a capacity ceiling up to 8TB for larger VM footprints and cache-heavy services. PCIe 5.0 connectivity is engineered into the base design: 2x full-height, half-length PCIe 5.0 x16 slots plus 2x OCP NIC 3.0 PCIe 5.0 x16 slots support high-speed NICs, DPUs, or storage/accelerator adapters. The storage plane provides 10x 2.5in hot-swap bays with SATA 6Gb/s or SAS 12Gb/s via add-in HBA, complemented by Intel SATA RAID and a VROC key header for flexible boot and data-tiering layouts.
Why Choose the R183-S94-AAH2 Gigabyte?
The R183-S94-AAH2 Gigabyte balances compute density and front-access serviceability, pairing a modern DDR5 and PCIe 5.0 platform with enterprise management and redundant power for predictable operations at scale. It is a practical building block for standardized 1U racks where repeatable node design, rapid replacement, and consistent I/O profiles matter for fleet deployment.
Gigabyte engineering prioritizes data-centre-aligned component validation, modular expansion paths, and remote management via an ASPEED AST2600 BMC with IPMI and HTML5 KVM, supporting controlled lifecycle operations and lights-out administration. The R183-S94-AAH2 Gigabyte also integrates dedicated management networking and optional TPM 2.0 readiness to align with modern platform security expectations.
Key Applications:
- Hybrid and private cloud compute nodes
- Virtualization consolidation (VMware, Citrix, Linux, Windows Server)
- Virtualized network functions and edge services
- Firewall and routing infrastructure
- General-purpose dense 1U compute with flexible NIC expansion
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the R183-S94-AAH2 Gigabyte, enabling accurate configuration and procurement alignment. For fleet rollouts, Bulk Order Discount options support cost-effective standardization across rack-scale installations.
Technical details of R183-S94-AAH2 Gigabyte
How long is the Warranty and how you can get technical support for R183-S94-AAH2 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
