R164-S32-AAH1 Gigabyte
High-Density 1U Storage-Optimised Rack Server with PCIe 5.0 I/O and hot-swap bays using R164-S32-AAH1 Gigabyte
The R164-S32-AAH1 Gigabyte is a 1U single-socket platform built for software-defined storage and disaggregated infrastructure where predictable latency and serviceability matter. It leverages the Intel Xeon 6 family (Granite Rapids or Sierra Forest, Xeon 6500/6700 series) to balance core density with I/O throughput, making it well-suited for cache-heavy NVMe tiers alongside capacity media.

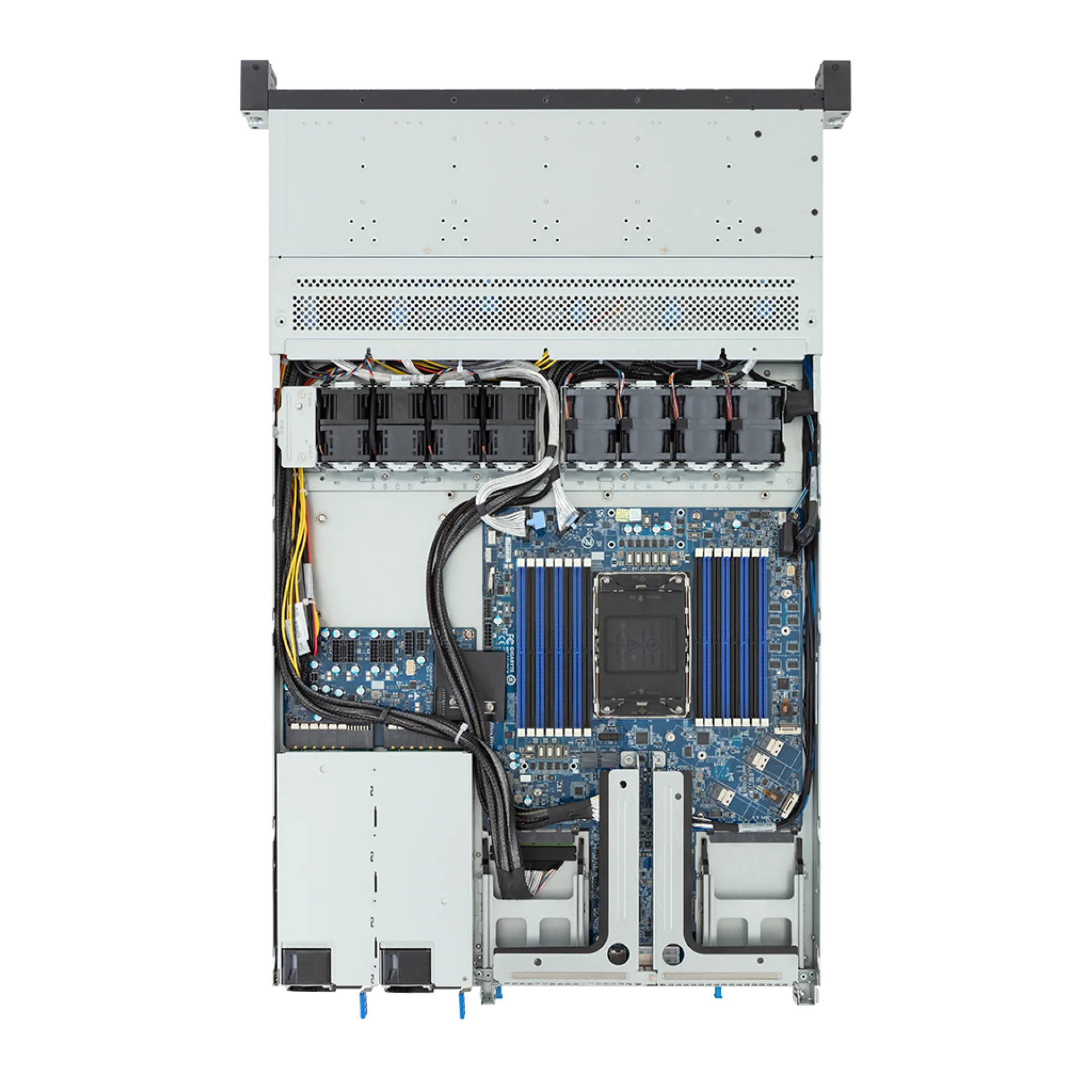

Architecturally, R164-S32-AAH1 Gigabyte combines 16 DDR5 DIMM slots with ECC RDIMM/MRDIMM support to sustain metadata, caching, and virtualization storage layers up to 4TB. A 12-bay 2.5in hot-swap front plane supports multi-protocol NVMe, SATA, and SAS (including SAS-4 alignment), enabling flexible mixed-media pools. For expansion, PCIe Gen5 is available through a full-height x16 slot plus dual OCP NIC 3.0 SFF PCIe 5.0 x16 interfaces, while dual M.2 NVMe PCIe Gen5 sockets isolate OS boot from data devices and reduce operational risk.
Why Choose the R164-S32-AAH1 Gigabyte?
The R164-S32-AAH1 Gigabyte delivers a strong density-to-performance profile by concentrating multi-protocol 2.5in bays and PCIe 5.0 lanes into a 1U footprint, allowing storage nodes to scale horizontally with consistent operational patterns. Redundant 80 PLUS Titanium power, out-of-band management, and modular I/O options support enterprise reliability and phased growth in private and hybrid cloud deployments.
Gigabyte engineers the R Series around data centre standards, focusing on thermal stability, validated component interoperability, and remote operability. With an ASPEED AST2600 BMC providing IPMI and HTML5 KVM, the R164-S32-AAH1 Gigabyte integrates cleanly into lights-out operations and standard provisioning workflows.
Key Applications:
- Software-defined storage nodes
- NVMe cache plus SATA/SAS capacity tiers
- Virtualisation storage layer for private/hybrid cloud
- Edge and core service appliances with dense 2.5in bays
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your R164-S32-AAH1 Gigabyte rollout and an extended warranty of up to 6 years to secure long lifecycle operation in production environments.
Technical details of R164-S32-AAH1 Gigabyte
How long is the Warranty and how you can get technical support for R164-S32-AAH1 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
