R164-AG0-AAV1 Gigabyte Single Xeon 6 SoC 1U 6NR164AG0DR000AAV1 Server Barebone

Get extra volume discount for 6NR164AG0DR000AAV1 and save cash:

Quantity	Unit price
	€3,547.33
To 4	€3,477.00 €3,547.33 (1.98% saved)
To 9	€3,406.00 €3,547.33 (3.98% saved)
From 10	€3,335.00 €3,547.33 (5.99% saved)

Product line:

Gigabyte R Series

See all Rackmount Servers 1U

See other Gigabyte products

€3,547.33

In stock

Happyware Article Number:

SH1B4611-798861

Manufacturer Number:

6NR164AG0DR000AAV1

Brand:

Gigabyte

Are you a reseller?

Do you have questions about this product 6NR164AG0DR000AAV1?

Our team of server experts will be happy to help you to ensure you purchase the right product.

Description Technical details Warranty & Technical Support Reviews Bulk Deals

R164-AG0-AAV1 Gigabyte

High-Density 1U PCIe Gen5 Compute Barebone for Xeon 6 Expansion with R164-AG0-AAV1 Gigabyte

R164-AG0-AAV1 Gigabyte is a 1U rack server barebone engineered for single-socket Intel Xeon 6 (Granite Rapids) deployments where PCIe Gen5 bandwidth and front-access serviceability are primary design requirements. The LGA7529 platform supports Xeon 6900 with P-cores up to 500W, aligning the chassis for virtualization control-plane nodes, edge orchestration, and general-purpose compute that depends on accelerator, NIC, or storage expansion rather than dual-socket density.

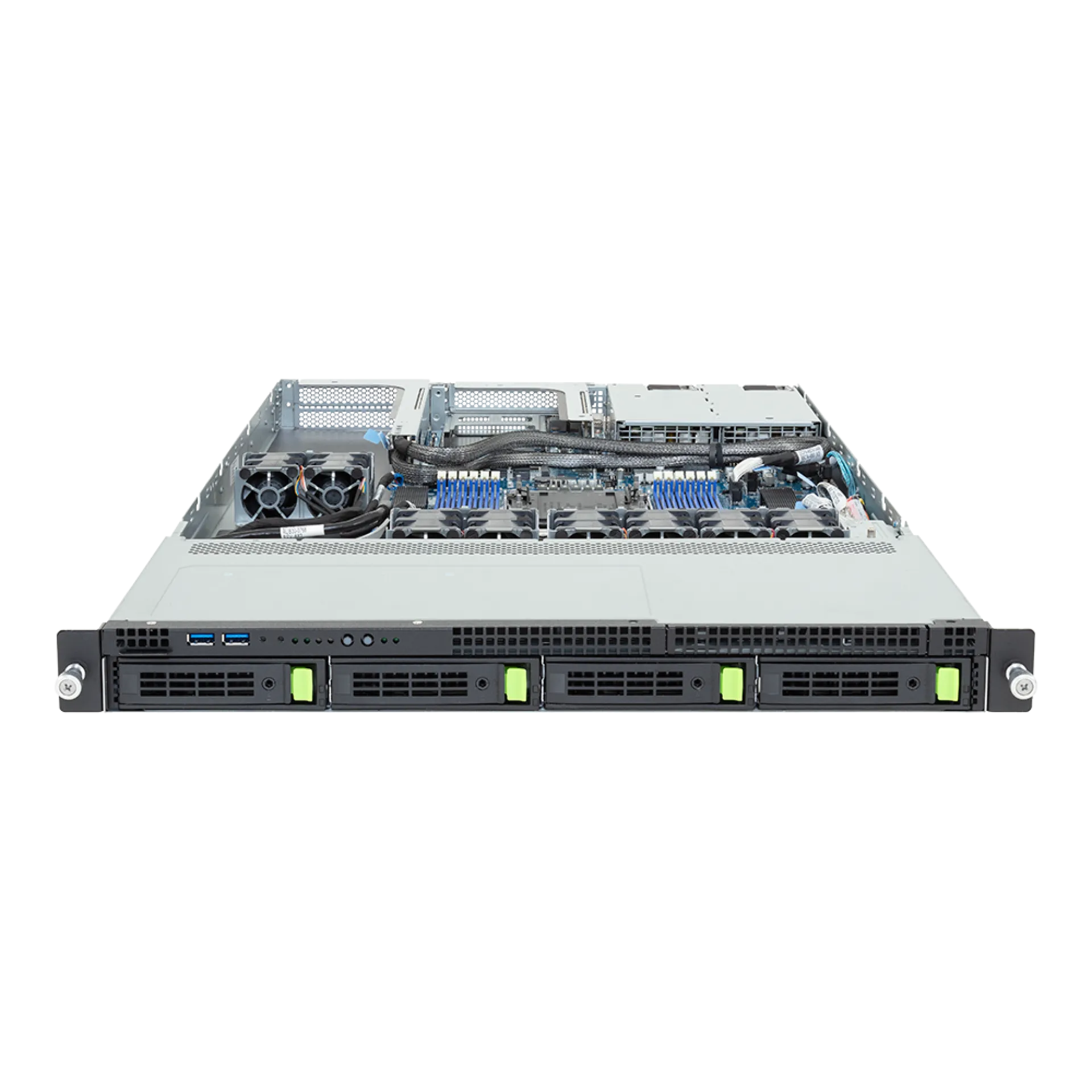

The memory subsystem in R164-AG0-AAV1 Gigabyte provides 12 DDR5 ECC RDIMM/MRDIMM slots scaling to 3TB, enabling higher VM consolidation and in-memory control services with predictable error handling. PCIe Gen5 I/O is optimized through multiple full-height x16 slots plus an OCP NIC 3.0 SFF interface, keeping lane budget focused on deterministic throughput. Storage design balances flexibility and uptime: 4 front hot-swap bays accept 2.5”/3.5” NVMe/SAS/SATA media, while dual M.2 NVMe PCIe Gen5 slots support fast boot or cache tiers; RAID can be implemented via add-in controller and Intel VROC key support.

Why Choose the R164-AG0-AAV1 Gigabyte?

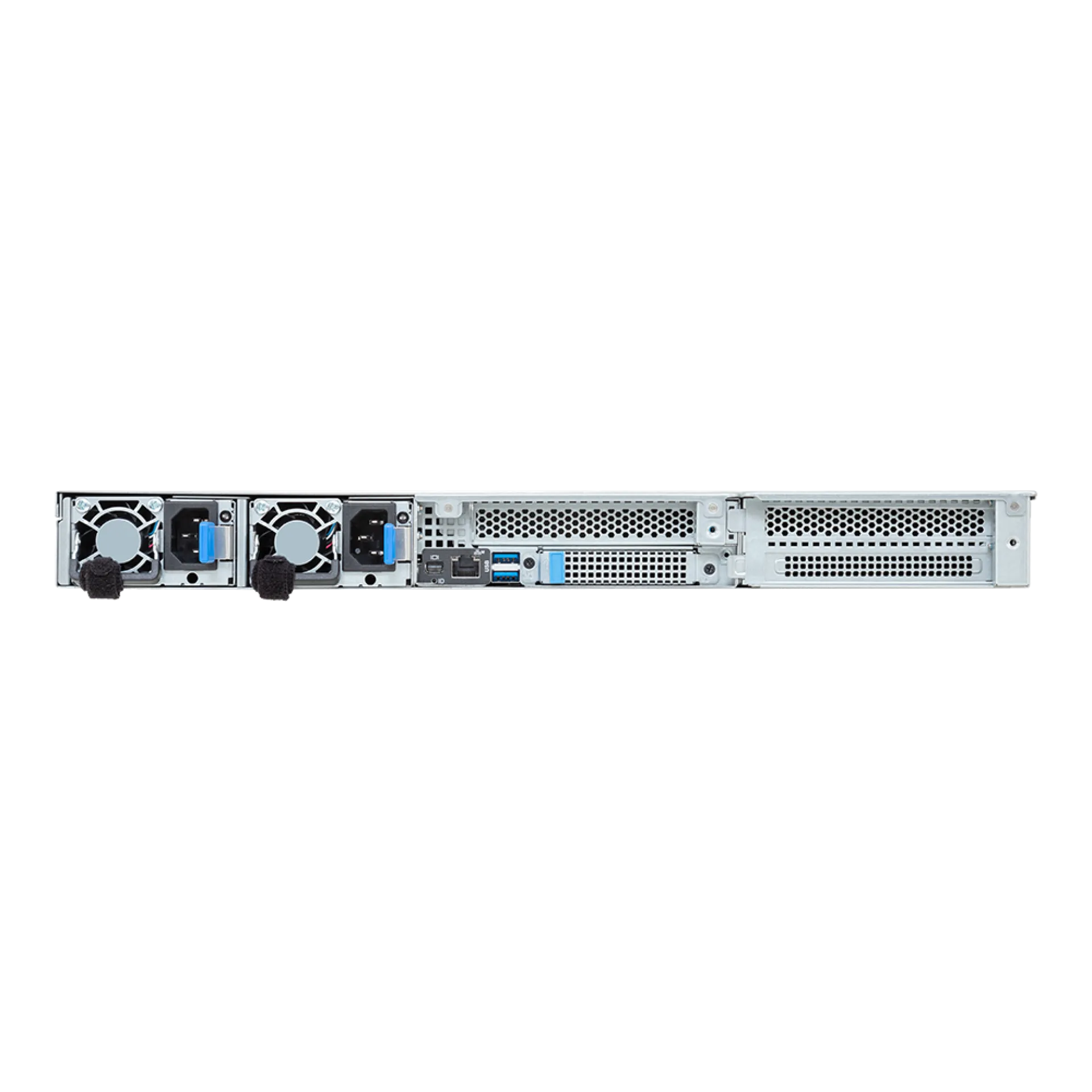

R164-AG0-AAV1 Gigabyte delivers a clear density-to-performance profile for enterprises standardizing on 1U nodes with high PCIe Gen5 expansion and controlled thermals for up to 500W CPUs. Redundant 1600W 80 PLUS Titanium power, hot-swap service points, and a mezzanine-based networking path support scalable rollouts where NIC selection varies by rack role, while out-of-band management reduces operational overhead.

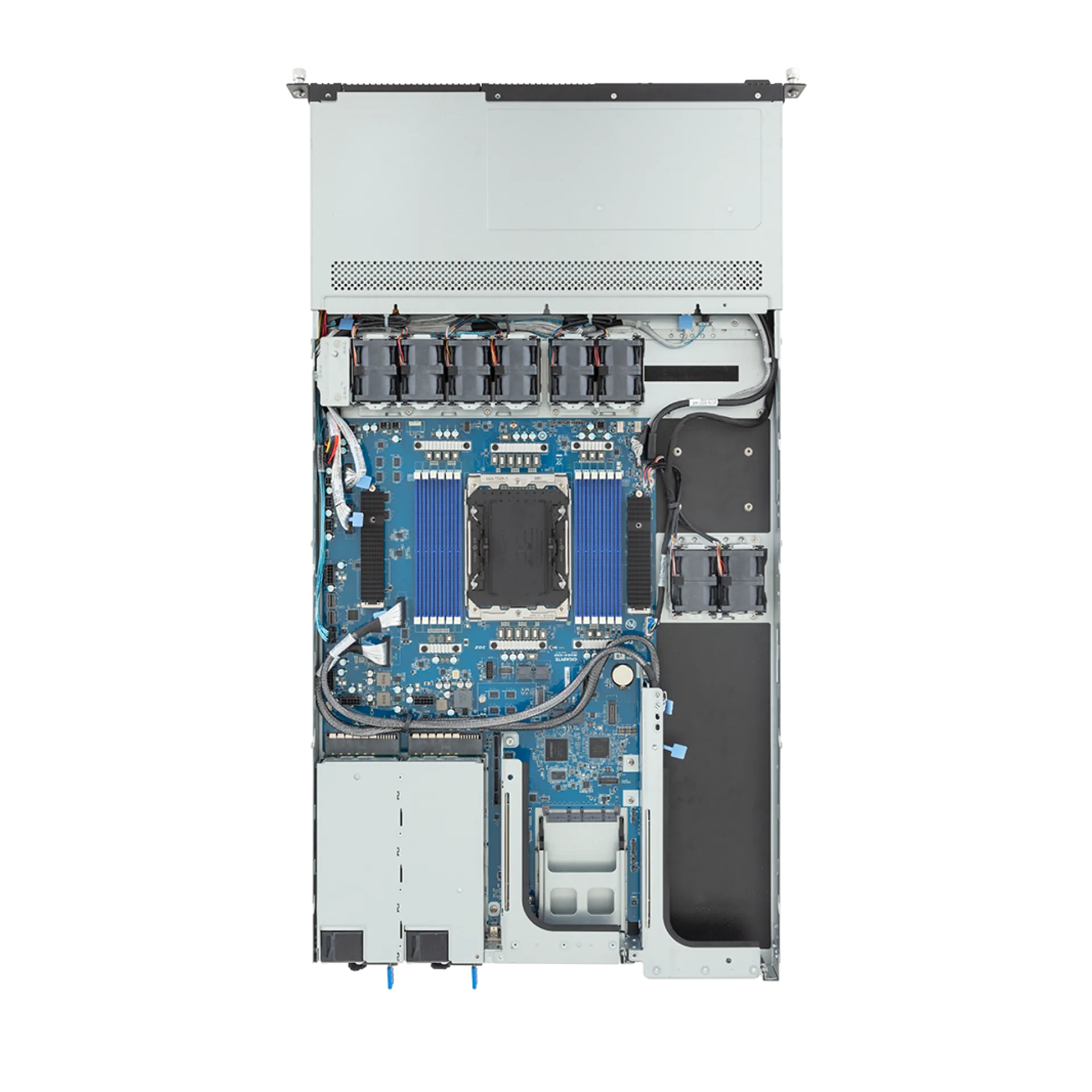

Gigabyte designs the R-series around data-centre-ready reliability, prioritizing airflow-driven mechanical layout, validated component interoperability, and remote manageability via ASPEED AST2600 BMC with IPMI and remote KVM to align with modern provisioning and lifecycle standards.

Key Applications:

Virtualisation and cloud control-plane nodes
High-I/O edge services and orchestration layers
Storage controller or network appliance roles
PCIe Gen5 expansion compute nodes

At Happyware - Server Hardware you benefit from non-binding offers tailored to your R164-AG0-AAV1 Gigabyte configuration requirements and an extended warranty of up to 6 years to secure long-term platform availability in enterprise deployments.

Technical details of R164-AG0-AAV1 Gigabyte

Type:

Rack

Suitability:

Server

CPU Socket:

BR (LGA 7529)

CPU Family:

Xeon 6

Supported CPU Manufacturer:

Intel

Supported CPU Type:

Xeon 6900 w/ P-cores Xeon 6 SoC

Supported CPU Generation:

6th

Supported CPU Codename:

Granite Rapids

Nodes:

RAM Type:

RDIMM MRDIMM

RAM Max. Total:

3TB

RAM Slots Total:

Memory Slots:

ECC:

ECC

Bays:

4x 2.5"/3.5" HotSwap NVMe, SATA, SAS

Hot-Swap:

Yes

RAID Support:

Yes

PCIe:

1x PCIe 5.0 x16 (x16 mode)

Expansion Slots:

1x PCIe 5.0 x16 Full-Height Half-Length 1x PCIe 5.0 x16 Full-Height Full-Length (Standard)

Front I/O Ports:

USB Type-A LED Indicators

IPMI / BMC integrated:

Yes

Chipset:

System-on-Chip (SoC)

Power Supply Wattage:

1600W

Redundant Power Supply:

Yes

Number of Power Supplies:

80 Plus Certificate:

80 Plus Titanium

Power Supply Cooler:

Quantity of Cooler:

Performance Class:

Enterprise-Class

TDP (Thermal Design Power):

500W

Applications:

AI / Deep Learning AI Inference Networking Visual Computing Visualization/Simulation Hybrid/Private Cloud Server

Onboard CPU:

Onboard Graphic:

Yes

Graphics Manufacturer:

ASpeed

Pre-installed Components:

None

Certificates:

80 Plus Titanium

Chassis Intrusion:

How long is the Warranty and how you can get technical support for R164-AG0-AAV1 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
