R163-S32-AAH2 Gigabyte
High-Density 1U Storage-Optimized Rack Server featuring DDR5 and PCIe 5.0 expansion with the R163-S32-AAH2 Gigabyte
The R163-S32-AAH2 Gigabyte is a 1U single-socket platform built on Intel Xeon Scalable 5th/4th Gen processors (LGA4677) with the Intel C741 chipset, targeting balanced compute and high I/O density in space-constrained racks. With up to 64 cores and up to 350W TDP support, the R163-S32-AAH2 Gigabyte aligns well with VM consolidation, edge infrastructure appliances, and general-purpose enterprise services where predictable latency and serviceability are required.

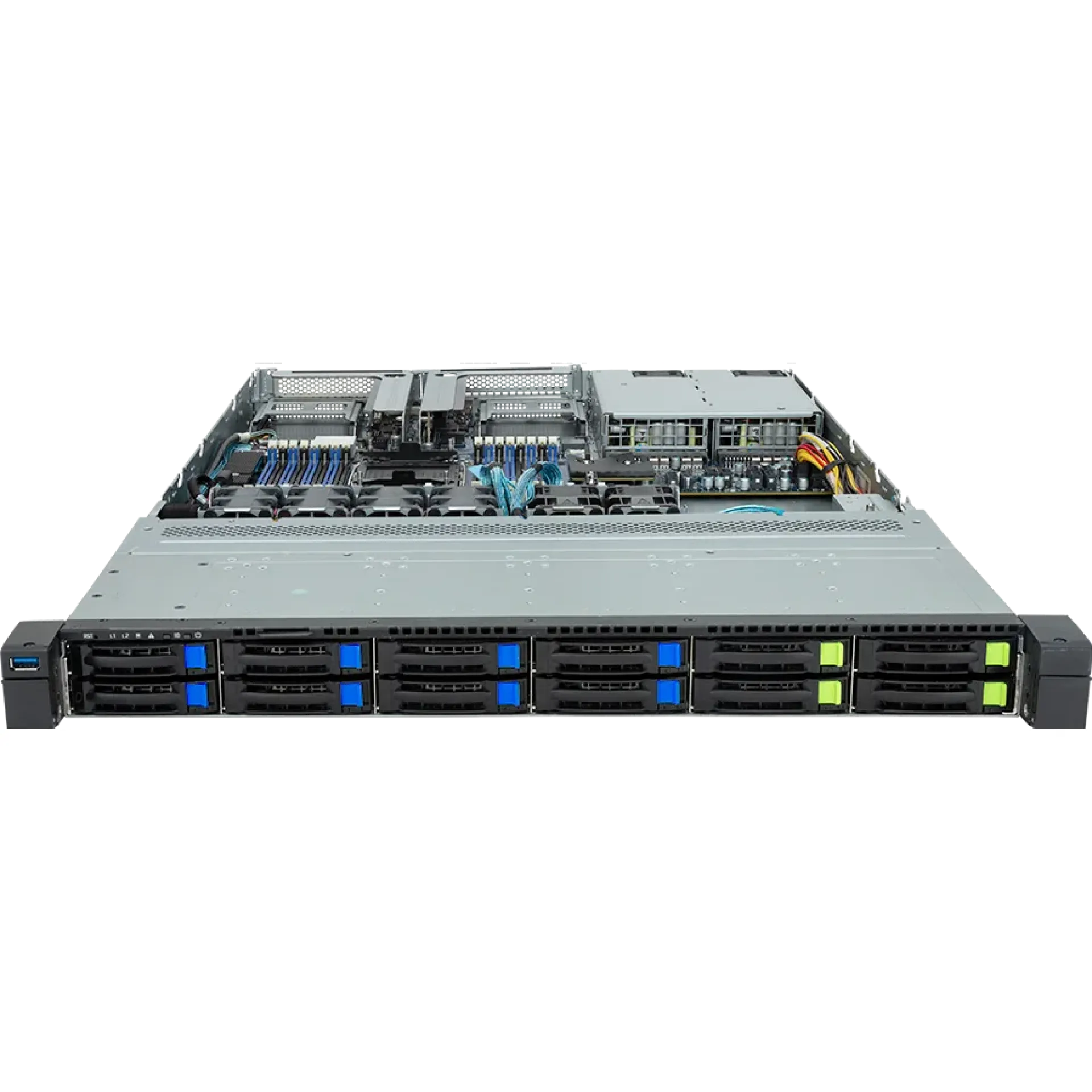

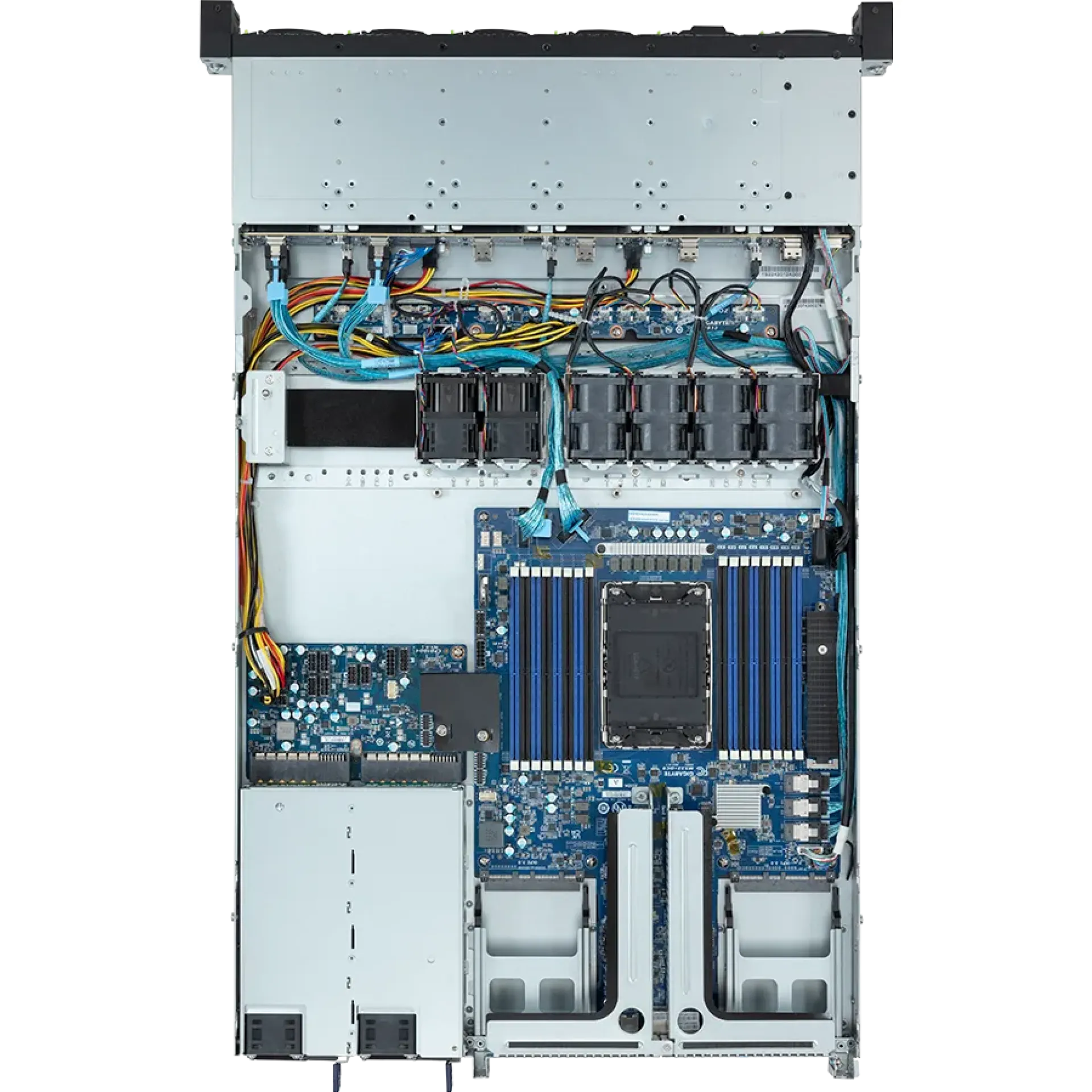

The memory subsystem uses 8-channel DDR5 RDIMM ECC across 16 DIMM slots, enabling up to 4TB capacity for in-memory datasets and high VM density. For expansion, the R163-S32-AAH2 Gigabyte provides PCIe 5.0 connectivity through 2 x PCIe 5.0 x16 FHHL slots and 2 x OCP NIC 3.0 PCIe 5.0 x16 connectors, supporting modern NICs and accelerators without compromising airflow. Storage architecture is optimized for tiering with 12 x 2.5-inch front hot-swap bays (mixed NVMe/SAS/SATA capability) plus an M.2 NVMe boot option, enabling separation of OS, cache, and data tiers; SAS integration is supported via add-in HBA/RAID.
Why Choose the R163-S32-AAH2 Gigabyte?

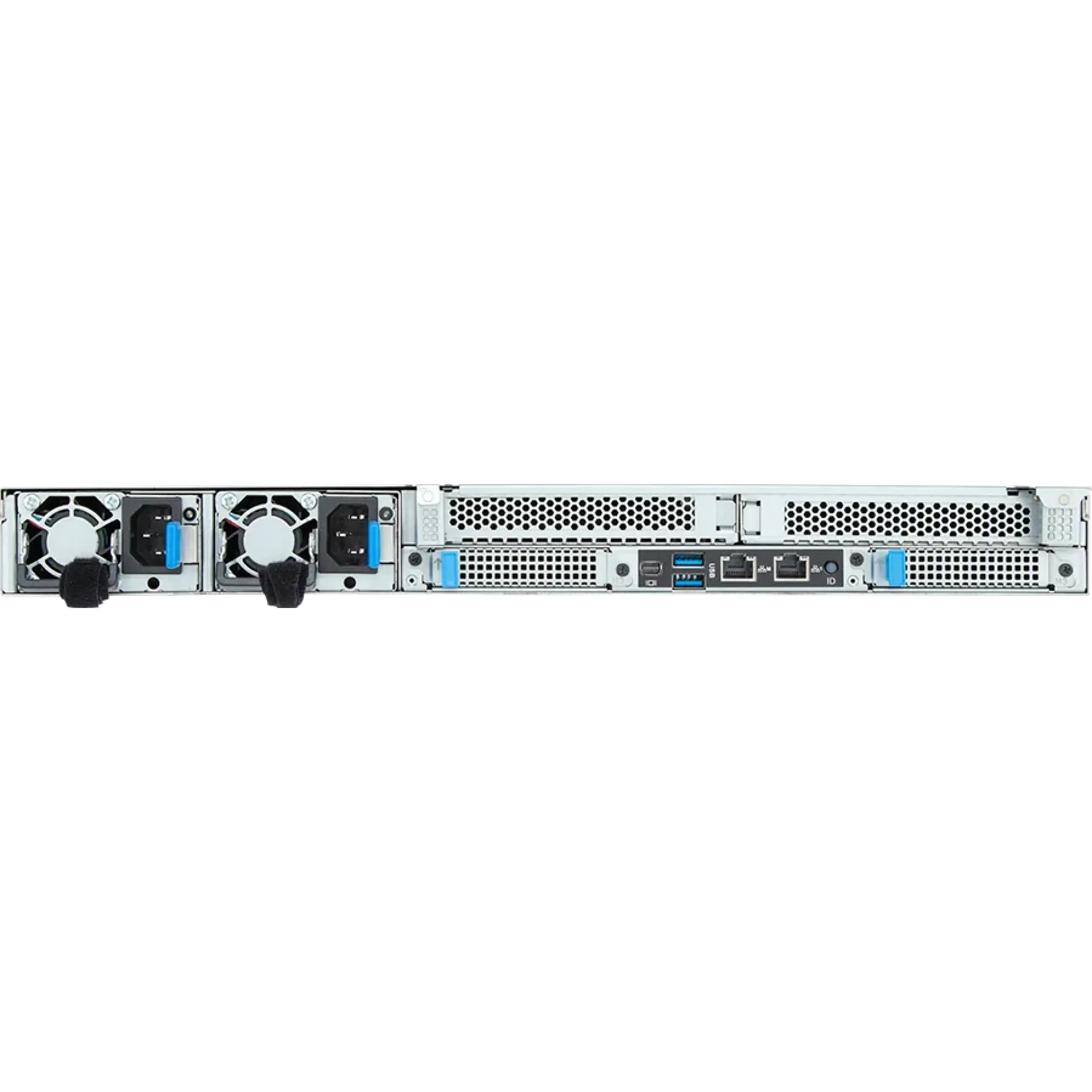

The R163-S32-AAH2 Gigabyte delivers a strong density-to-performance profile by combining a modern Xeon platform, high-capacity DDR5, and PCIe 5.0 I/O in a serviceable 1U chassis. Its hot-swap storage layout, redundant 80 PLUS Titanium power, and OCP-ready networking make the R163-S32-AAH2 Gigabyte suitable for repeatable scale-out deployments across private or hybrid cloud pods.
Gigabyte engineering focuses on standards-aligned server design with enterprise-grade management and lifecycle features, including an ASPEED AST2600 BMC with IPMI and HTML5 KVM, to support remote operations and consistent integration into modern data centre practices.
Key Applications:
- Private and hybrid cloud virtualization
- Edge networking and infrastructure appliances
- Web and application hosting
- Database and enterprise services
- Mixed-tier NVMe/SAS/SATA storage nodes
At Happyware - Server Hardware you benefit from non-binding offers tailored to your configuration and rollout requirements for the R163-S32-AAH2 Gigabyte, plus bulk order discounts for standardized multi-node deployments.
Technical details of R163-S32-AAH2 Gigabyte
How long is the Warranty and how you can get technical support for R163-S32-AAH2 Gigabyte
| Warranty: | 36 months (part) |
|---|---|
| RMA Url: | https://www.gigabyte.com/Support/Consumer/Warranty |
| Description: | Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard. |
| Support Portal: | https://support.happyware.com |
|---|
