R143-E32-AAH1 Gigabyte
High-Density 1U Rack Server Barebone with PCIe Gen5 I/O using the R143-E32-AAH1 Gigabyte platform
The R143-E32-AAH1 Gigabyte 1U barebone is designed for single-socket AMD EPYC 8005/8004 (SP6) deployments where core density, I/O throughput, and serviceability must fit tightly controlled rack footprints. With support for up to 84 cores and 225W TDP, the platform targets consolidation-friendly compute nodes for virtualisation clusters, security stacks, and edge estates that require predictable power and thermal behavior.

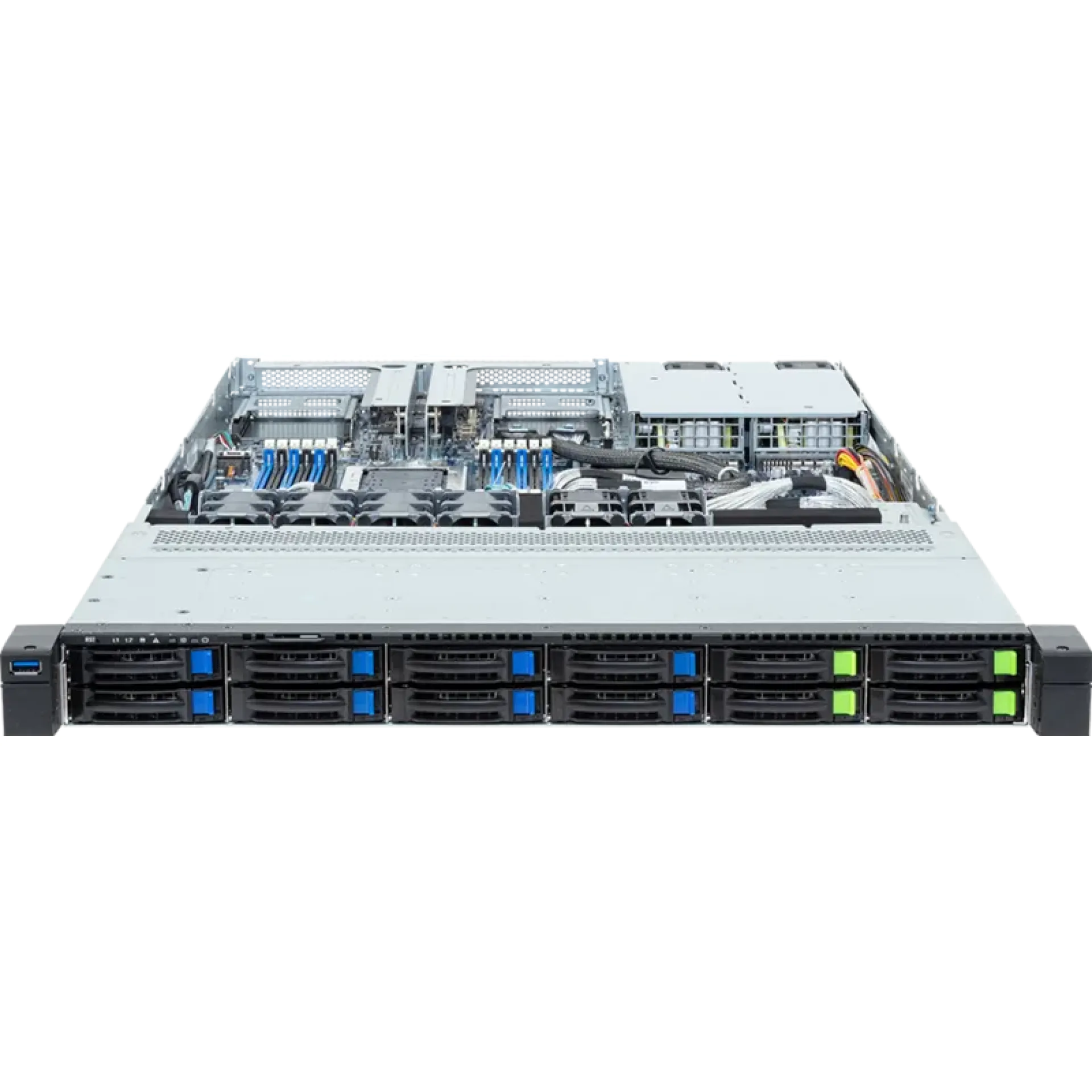

Memory scalability is aligned to modern VM and container pressure: 12x DDR5 RDIMM ECC slots provide high-capacity, resilient footprints up to 3TB, enabling balanced CPU-to-memory ratios across mixed workloads. PCIe Gen5 expansion is central to the architecture, including dual PCIe 5.0 x16 FHHL slots and dual OCP NIC 3.0 PCIe 5.0 interfaces to decouple network evolution from the base chassis. The storage topology in the R143-E32-AAH1 Gigabyte combines 4x front hot-swap bays supporting NVMe/SATA/SAS (via add-in controllers where required) with 8x internal SATA/SAS positions, plus a dedicated M.2 NVMe boot option to isolate OS media from data paths.
Why Choose the R143-E32-AAH1 Gigabyte?
The R143-E32-AAH1 Gigabyte delivers a practical density-to-performance profile for enterprises standardising on SP6 platforms, while keeping PCIe Gen5 headroom for high-bandwidth NICs, accelerators, or storage adapters. Redundant 80 PLUS Titanium power supplies, ECC memory, and BMC-based remote operations support scalable rollouts with consistent lifecycle management across private and hybrid cloud nodes.
Gigabyte engineers its server platforms for data centre compatibility, focusing on validated thermals, structured cabling and backplane design, and remote manageability via ASPEED AST2600 with IPMI. The result is an integration-ready chassis that aligns with modern security expectations through optional TPM 2.0 enablement and controlled firmware management.
Key Applications:
- Enterprise virtualisation
- Private and hybrid cloud nodes
- Edge compute consolidation
- Network and security appliance platforms
- General-purpose enterprise workloads
At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your deployment plan for the R143-E32-AAH1 Gigabyte, helping you standardise configurations efficiently across sites. For larger rollouts, bulk order discount options support predictable procurement for cluster-scale builds.
