MU92-TU0 Gigabyte E-ATX Single P+ (LGA 4189) 16 DIMM Slots 9MU92TU0MR-00 Server Mainboard

Product version:

Rev-1.x

See all EATX Motherboard

See other Gigabyte products

This product is currently not priced. Request a personalized quote now.

Out of stock

Not available

Happyware Article Number:

SH0M2915-736695

Manufacturer Number:

9MU92TU0MR-00

Brand:

Gigabyte

Are you a reseller?

Do you need help or a free consultation regarding our Services?

Contact our experts - we will assist You in finding the right services for Your requirements.

Do you need help?
Your contact

+49 4105 770000

Contact form

Description Technical details Warranty & Technical Support Reviews Bulk Deals

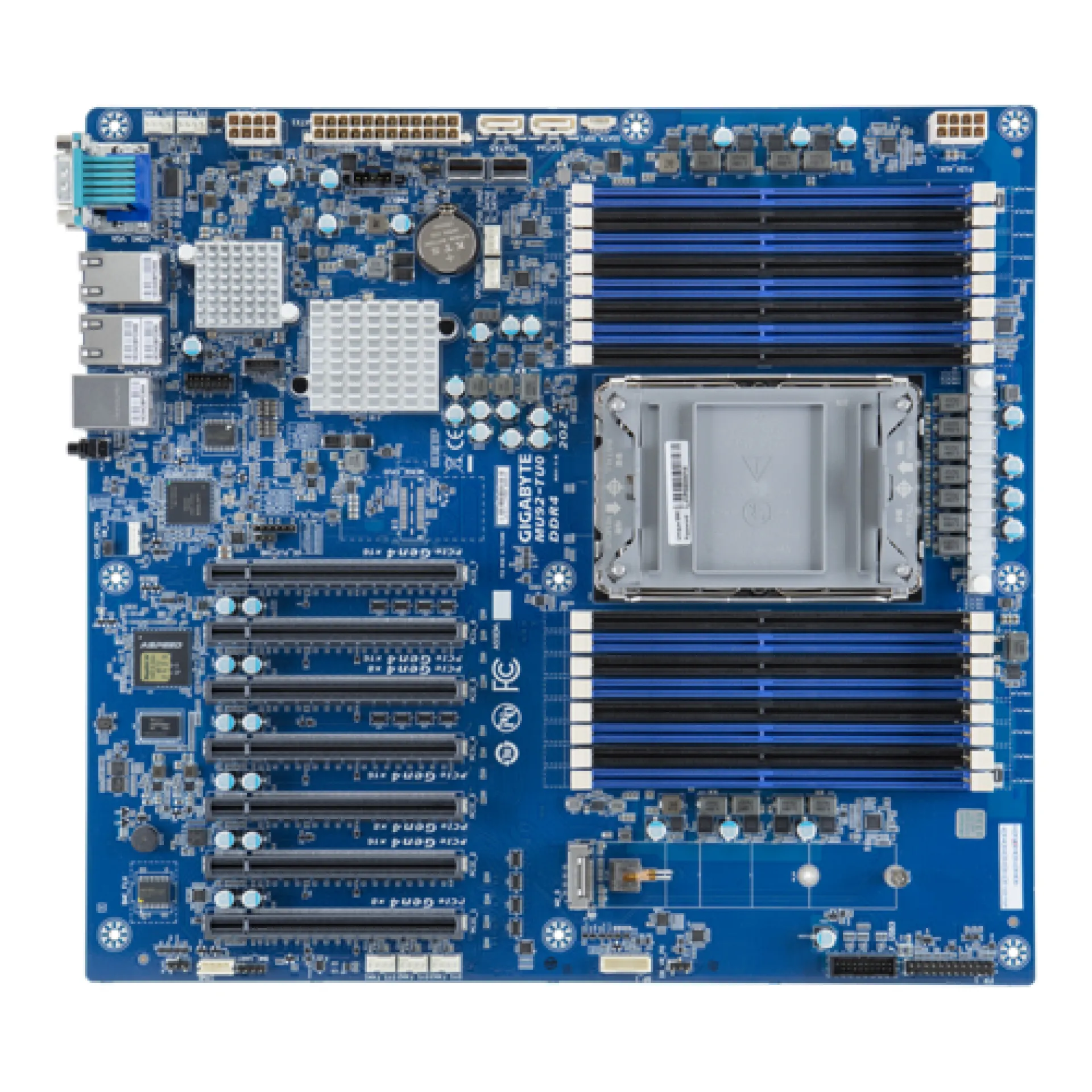

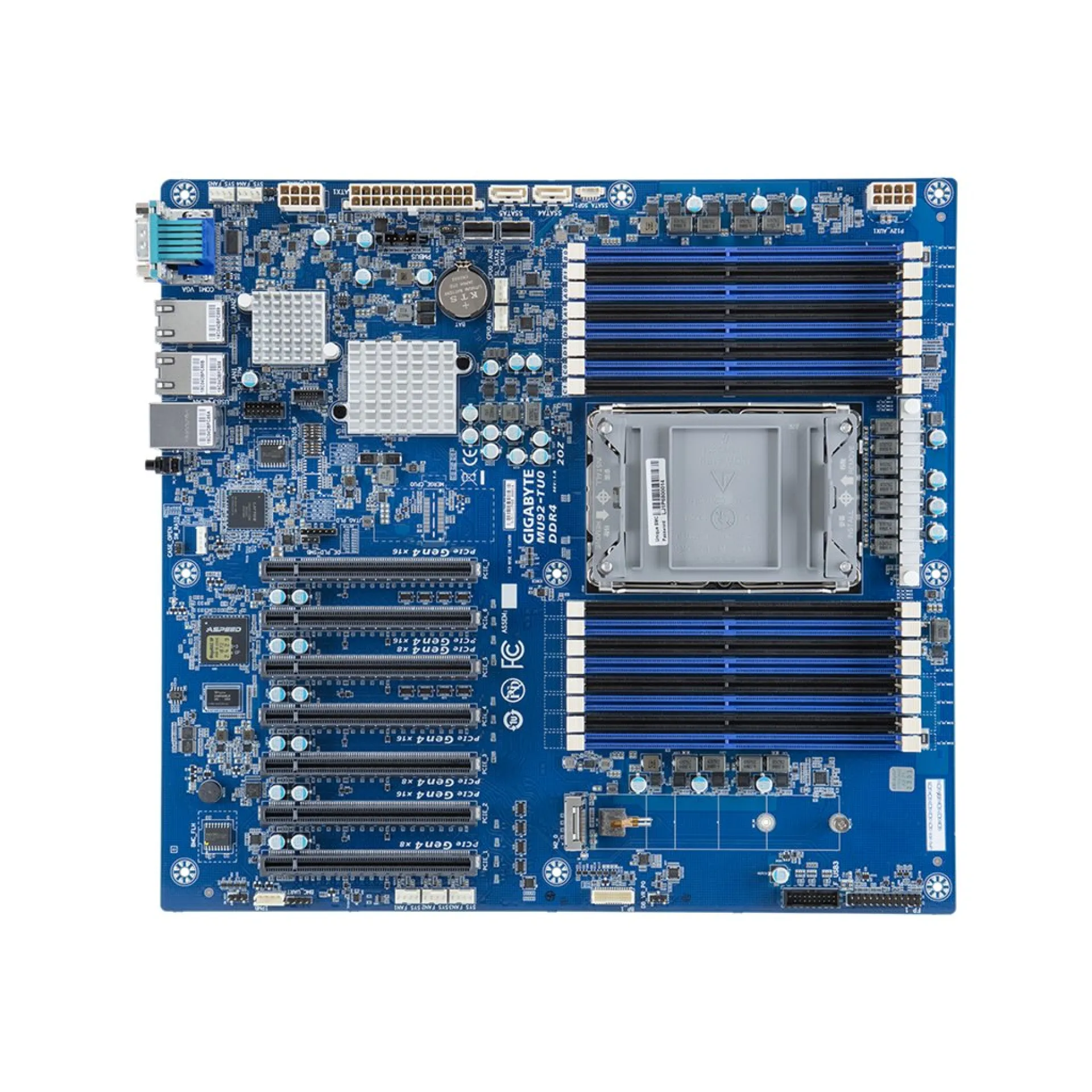

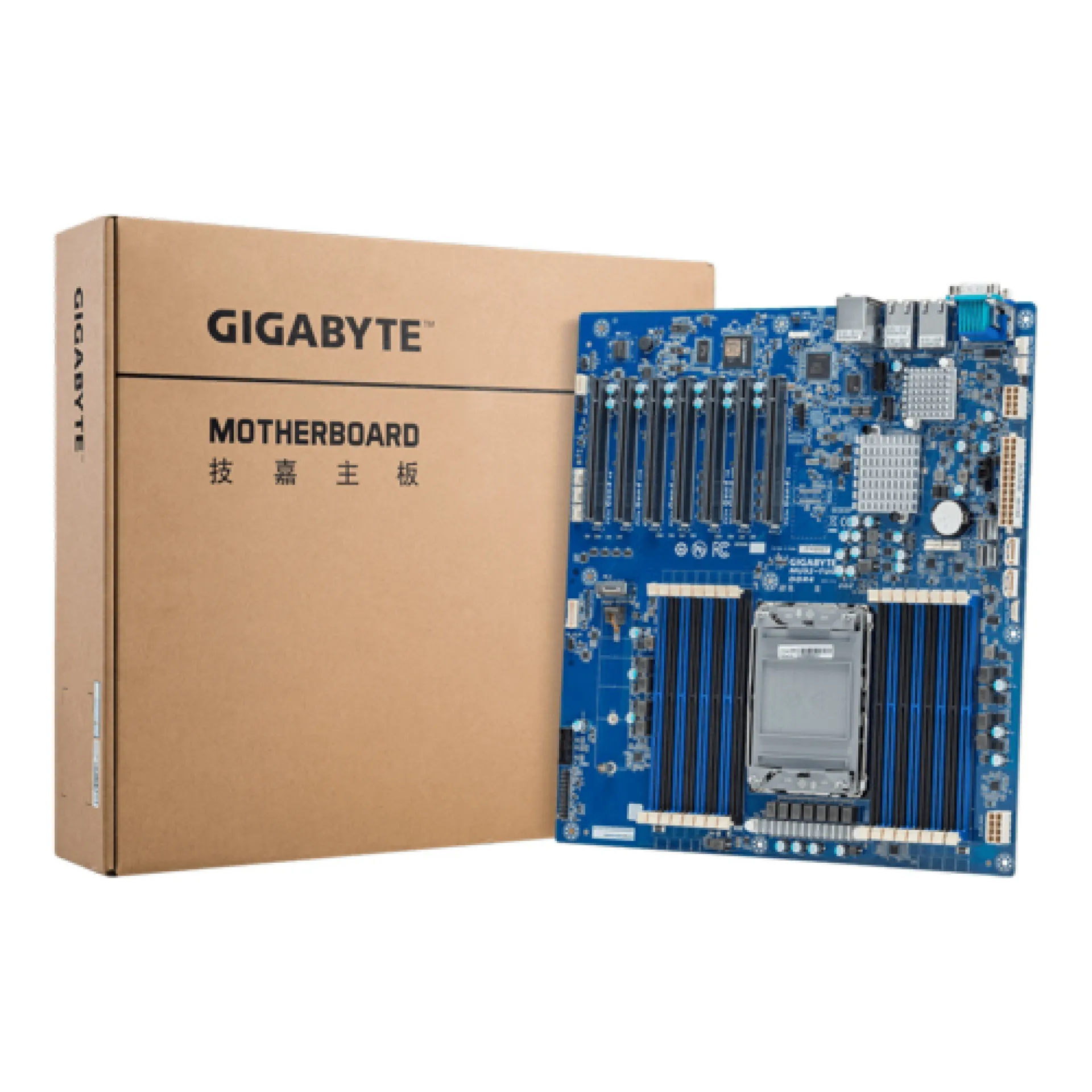

MU92-TU0 Gigabyte

E-ATX 1-Socket Server Motherboard Architecture with Intel C621A Platform in the MU92-TU0 Gigabyte

The MU92-TU0 Gigabyte (SKU: 9MU92TU0MR-00) is an E-ATX server motherboard built for 1-socket Intel Xeon Scalable and Xeon W deployments on Socket P+ (LGA4189), targeting virtualisation hosts, general-purpose datacentre nodes, and edge appliances requiring consistent remote operability. Its Intel C621A chipset foundation supports balanced I/O routing and predictable platform behaviour under mixed storage and expansion demands.

For memory-heavy consolidation, the MU92-TU0 Gigabyte implements an 8-channel DDR4-3200 ECC RDIMM architecture across 16 DIMM slots, enabling high-capacity, fault-tolerant memory footprints suitable for dense VM packing and in-memory services. Expansion is aligned to PCIe 4.0 with 7 slots (4 x16 electrical plus 3 x8 electrical in x16 form factor), allowing straightforward integration of high-throughput NICs, accelerators, or storage controllers while maintaining clear lane budgeting. Storage design prioritises SATA capacity scaling with 10 x SATA 6Gb/s and 2 x SlimSAS 4i connectors, complemented by an M.2 PCIe 3.0 x4 slot for boot NVMe to isolate OS and logging from bulk data drives.

Why Choose the MU92-TU0 Gigabyte?

The MU92-TU0 Gigabyte delivers a practical density-to-performance profile for single-socket fleets where expansion flexibility and serviceability are as critical as compute. Dual 10GbE and dedicated management LAN support scalable network topologies, while integrated IPMI/BMC enables standardised out-of-band control for distributed rollouts and unattended operations.

Gigabyte designs this platform with enterprise reliability in mind, combining validated power delivery (24-pin ATX plus dual 8-pin CPU) for CPUs up to 270W TDP, UEFI BIOS governance, and management tooling that aligns with modern datacentre provisioning and lifecycle practices.

Key Applications:

Virtualisation and consolidation hosts
General-purpose datacentre compute nodes
Storage-heavy SATA capacity servers
Network appliances and edge servers
Remote-managed infrastructure services

At Happyware - Server Hardware you benefit from non-binding offers tailored precisely to your MU92-TU0 Gigabyte rollout and an extended warranty up to 6 years to protect long-term platform standardisation.

Technical details of MU92-TU0 Gigabyte

CPU Socket:

P+ (LGA 4189)

Onboard Memory:

RAID Support:

Yes

CPU Manufacturer:

Intel

CPU Supported Type:

Xeon W Xeon Scalable

Form Factor:

E-ATX

Chipset:

Intel C621A

RAM Maximum Capacity:

1024GB

Max RAM Frequency :

3200MHz

RAM Slots:

16 DIMM DDR4

RAM Channels:

8-Channel

PCIe Slots:

3 PCIe 4.0 x16 4 PCIe 4.0 x16

M.2 Slots:

1 PCIe 3.0 x4 M.2 2280, M.2 22110 M-Key

Network Ports:

2 RJ45 10 Gbps

ECC Support:

ECC

Onboard Network:

Ethernet

Suitability:

Server

Onboard CPU:

RAID Support:

Yes

Onboard Graphic:

Yes

Video Output:

1x VGA

USB Ports:

2x USB 3.0 Type-A 1x USB 3.0 x2

Other Ports:

1x Serial Port 1x MLAN port

Trusted Platform Module (TPM):

Yes

BIOS:

UEFI

Wi-Fi Support:

None

Onboard Audio Chipset:

Embedded:

Card Reader:

How long is the Warranty and how you can get technical support for MU92-TU0 Gigabyte

Warranty:	36 months (part)
RMA Url:	https://www.gigabyte.com/Support/Consumer/Warranty
Description:	Items must be returned first. The manufacturer does not send replacement items in advance. Delivery times are not guaranteed, and on-site service is not offered as standard.
